Reliable Field Temperature Measurement for Industrial Processes

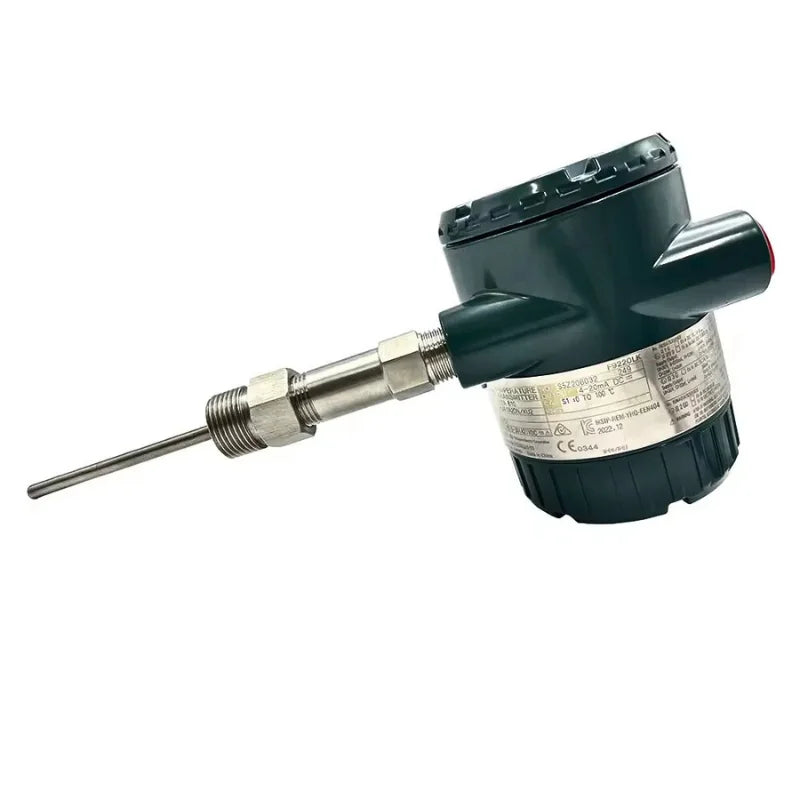

The Yokogawa YTA610 is an essential field-mount temperature transmitter designed for accurate and reliable temperature measurement in industrial process applications.
It accepts various temperature sensor inputs including RTD, thermocouple, resistance (ohm), and DC millivolt signals, then converts the measured signal into a standard 4–20 mA output or digital communication signal.
With Yokogawa’s proven measurement technology, the YTA610 provides stable operation in demanding industrial environments where measurement accuracy and long-term reliability are critical.
Flexible Sensor Input for Different Temperature Applications
One of the key advantages of the YTA610 is its wide sensor compatibility.
The transmitter supports:
- RTD sensors
- Thermocouple sensors
- Resistance input
- DC millivolt input
This flexibility allows the same transmitter platform to be used across different process temperature measurement requirements, reducing spare inventory and simplifying engineering selection.
Single or Dual Sensor Input Configuration
The YTA610 is available with single or dual sensor inputs.
The dual-input configuration allows users to:
- Calculate differential temperature
- Calculate average temperature
- Use sensor backup functions
- Automatically switch to a backup sensor if the primary sensor fails
This provides additional measurement reliability for critical processes where temperature monitoring cannot be interrupted.
High Accuracy and Stable Temperature Measurement
The YTA610 is designed for applications requiring accurate temperature conversion and reliable signal transmission.
For Pt100 input, Yokogawa specifies accuracy performance up to ±0.14 °C (±0.25 °F), helping maintain reliable temperature monitoring in process control systems.
The transmitter also provides long-term stability and continuous diagnostic functions to support dependable operation.
Advanced Communication Capability
The YTA610 supports modern industrial communication protocols:
- HART 7
- FOUNDATION Fieldbus ITK 6
Through digital communication, engineers can configure parameters, access device information, and perform diagnostics using compatible handheld communicators or asset management systems.
Designed for Harsh Industrial Environments

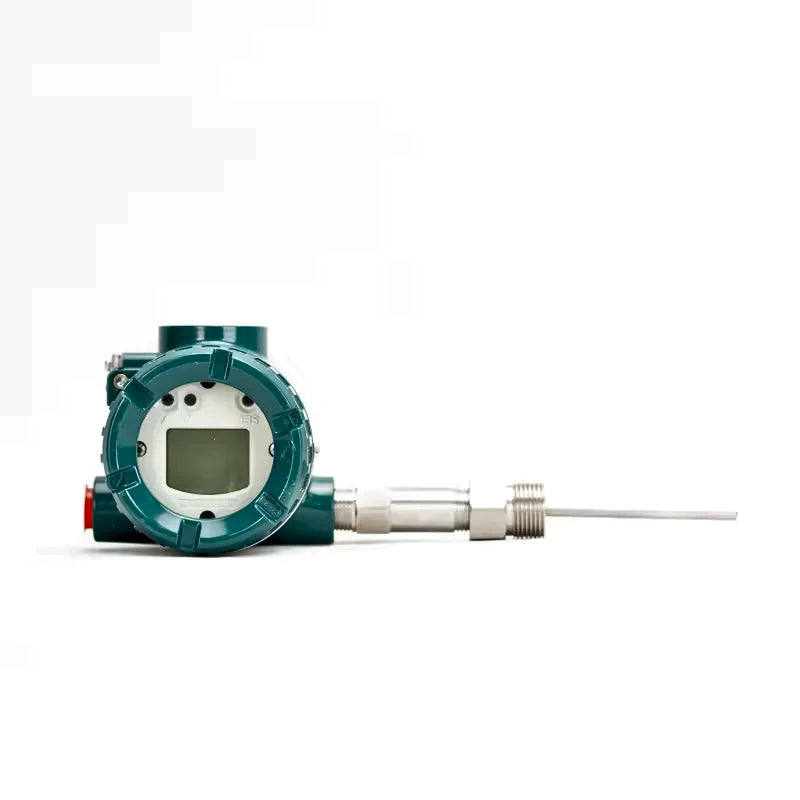

The YTA610 uses a reliable dual-compartment housing structure designed to improve resistance against challenging field conditions.
The separated terminal and electronics compartments help protect internal electronics while simplifying wiring and maintenance.
The transmitter is suitable for applications requiring robust field installation, including process plants, energy facilities, and industrial equipment.
Built-In Diagnostic Functions for Predictive Maintenance
The YTA610 includes self-diagnostic functions designed to monitor transmitter and sensor conditions.
Diagnostic capabilities include:
- Sensor failure detection
- Sensor line monitoring
- Hardware diagnostics
- Sensor drift detection with dual sensors
These functions help maintenance teams identify potential problems earlier and reduce unexpected downtime.
Safety Applications with SIL Capability
For safety-related applications, the HART version of the YTA610 is certified for SIL 2 capability when used according to applicable safety requirements.
This makes it suitable for applications where temperature measurement is part of a functional safety system.
Key Features
- Field-mount temperature transmitter
- Supports RTD, thermocouple, ohm, and DC mV inputs
- Single or dual sensor input options
- Differential and average temperature calculation
- Sensor backup switching function
- High accuracy temperature conversion
- HART 7 communication
- FOUNDATION Fieldbus communication
- Dual-compartment housing design
- Advanced self-diagnostics
- Local parameter setting

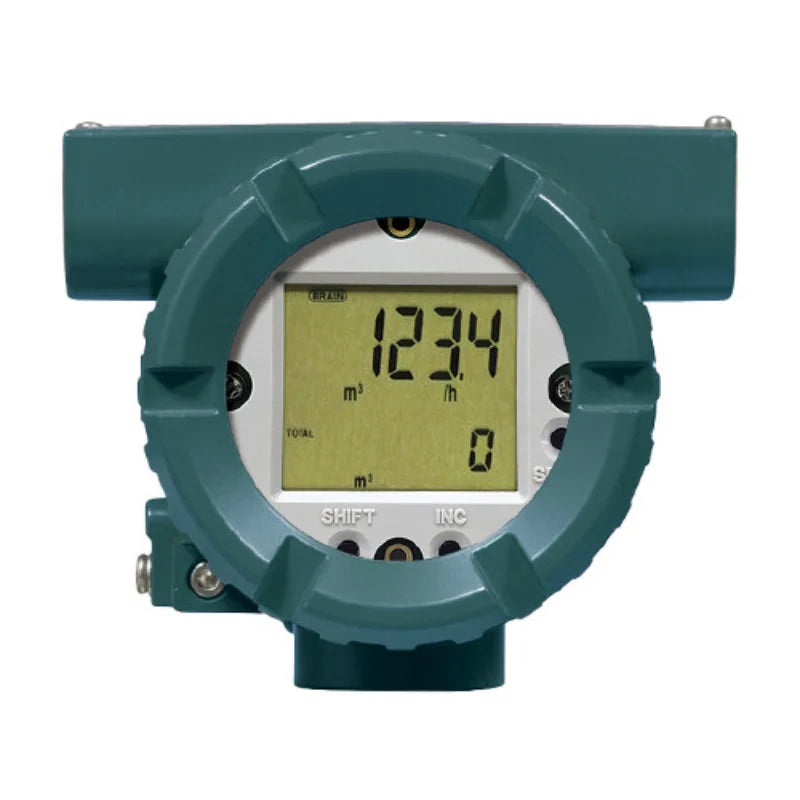

- Digital display option
- SIL 2 capability for HART version
- Explosion-proof and intrinsically safe options available
- IP66/IP67 protection
Technical Highlights
- Input Types: RTD, Thermocouple, Ohm, DC millivolt
- Sensor Input: Single or Dual input
- Output: 4–20 mA DC with HART 7 or FOUNDATION Fieldbus
- Accuracy: Up to ±0.14 °C for Pt100 input
- Housing: Aluminum or Stainless Steel
- Protection: IP66/IP67
- Operating Temperature: Up to -40 to +85 °C depending on configuration
- Mounting: Field installation with optional pipe mounting bracket
Typical Applications
Process Industry Temperature Monitoring
The YTA610 is suitable for temperature measurement in chemical, oil & gas, power generation, and general process industries.
Heat Exchanger and Utility Systems
Reliable temperature monitoring helps maintain efficient operation of heating and cooling systems.
Safety Instrumented Applications
With SIL capability, the YTA610 can be integrated into safety-related temperature monitoring systems.
Critical Equipment Monitoring
Dual sensor capability provides additional reliability for equipment where temperature failure could affect production or safety.
FAQ
What is the Yokogawa YTA610?
The Yokogawa YTA610 is a field-mount temperature transmitter designed to convert RTD, thermocouple, resistance, and mV sensor signals into 4–20 mA or digital communication outputs.
What sensors can the YTA610 accept?
The YTA610 supports:
- RTD
- Thermocouple
- Resistance (Ohm)
- DC millivolt input
This allows it to work with many industrial temperature sensors.
What is the difference between single and dual input models?
Single input models use one temperature sensor.
Dual input models can use two sensors for differential measurement, average calculation, or automatic backup switching if the primary sensor fails.
Does the YTA610 support HART communication?
Yes. The YTA610 supports HART 7 communication for configuration, diagnostics, and digital data access.
Does the YTA610 support FOUNDATION Fieldbus?
Yes. FOUNDATION Fieldbus communication is available depending on the selected configuration.
Why choose YTA610 instead of a basic temperature transmitter?
The YTA610 provides more than signal conversion. It offers high accuracy, multiple sensor compatibility, diagnostic functions, dual sensor backup capability, and industrial communication options.
Can the YTA610 detect sensor failure?
Yes. The transmitter includes diagnostic functions for detecting sensor problems and hardware conditions.
Is the YTA610 suitable for hazardous areas?
Yes. Various explosion-proof and intrinsically safe configurations are available depending on the selected option code and certification requirements.
Is the YTA610 suitable for safety applications?
Yes. The HART version has SIL 2 capability according to applicable functional safety requirements.
What industries use the YTA610?
Typical applications include oil & gas, chemical processing, power generation, energy systems, and general industrial automation.
