One Coriolis Platform for Different Process Requirements

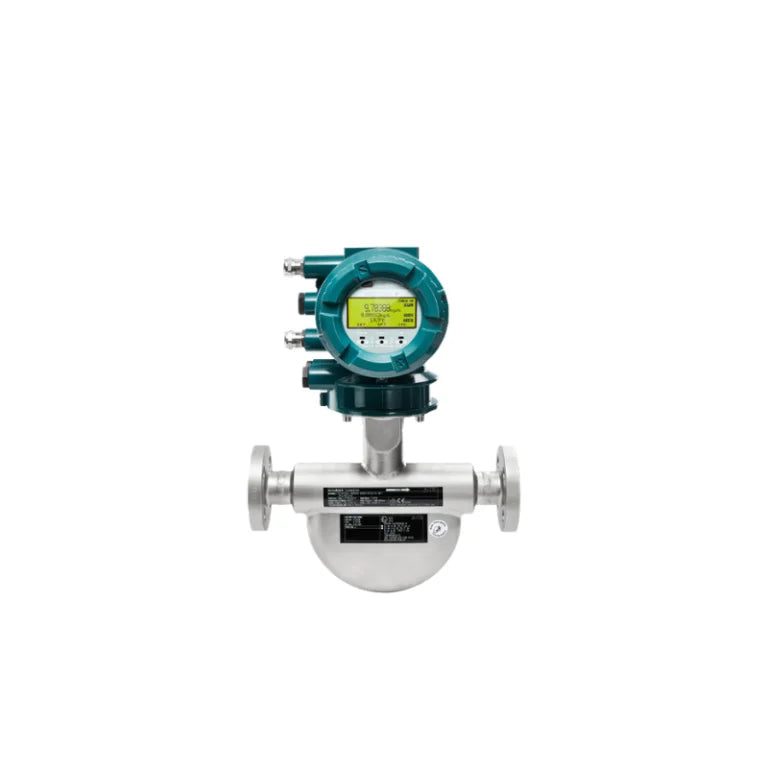

ROTAMASS Total Insight (TI) is Yokogawa's Coriolis mass flowmeter platform designed to provide accurate measurement of liquids and gases across a wide range of industrial applications.
Unlike conventional volumetric flowmeters, a Coriolis flowmeter directly measures mass flow rate. ROTAMASS TI can also measure density and temperature, allowing additional process values to be calculated from the same measurement system.
The product family is divided into several sensor series so the meter can be matched to the actual process rather than forcing one sensor design into every application.
What Can ROTAMASS Total Insight Measure?
The core measurement functions include:
- Mass flow
- Density
- Process temperature
- Volume flow at operating or reference conditions
- Density at reference conditions
- Concentration of mixable or unmixable fluids
With additional measurement input, ROTAMASS TI can also calculate:
- Dynamic viscosity for Newtonian liquids
- Energy or heating value for gas measurement
This makes the platform useful when the process requires more than simply knowing how much fluid is flowing.
Why Choose a Coriolis Mass Flowmeter?
A major advantage of Coriolis measurement is that mass flow is measured directly rather than calculated from volumetric flow and assumed density.
This is especially useful when fluid density changes with temperature, composition, pressure, or process conditions. For applications involving batching, dosing, blending, custody-related measurement, concentration monitoring, or changing fluid composition, direct mass measurement can simplify the measurement system.
ROTAMASS TI can simultaneously provide mass flow, density, and temperature, giving the control system more process information from one instrument.

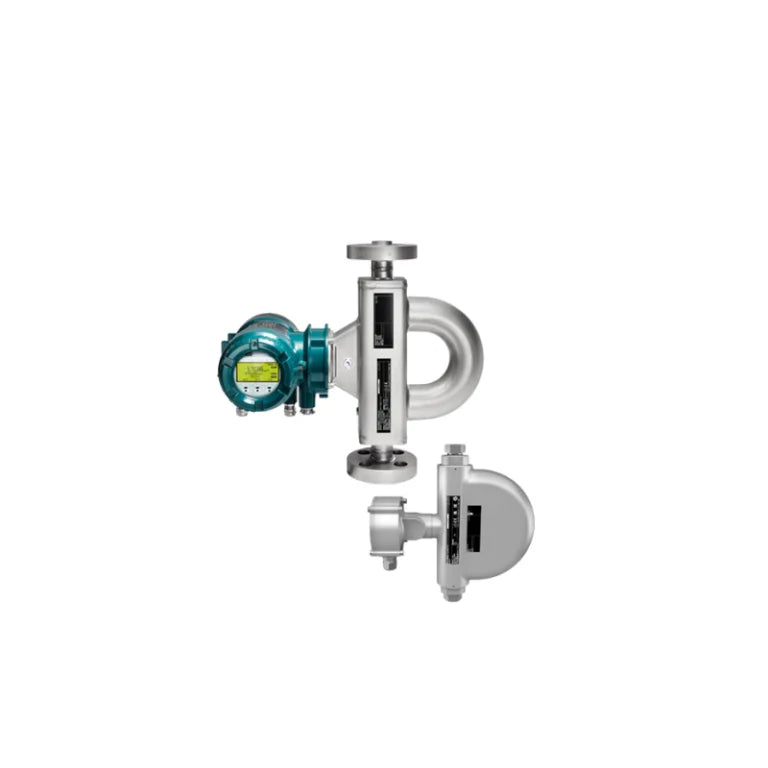

Six Sensor Families for Different Applications
ROTAMASS Total Insight is available in several sensor families, each designed around different process requirements.
ROTAMASS Nano — Low-Flow Measurement
The Nano series is designed for very low flow rates and uses a dual-bent-tube Coriolis design.
It is particularly suited to applications such as:
- Batching
- Dosing
- Blending
- Chemical injection
- Metering pump control
- Precision coating
- High-pressure gas measurement
- Laboratory and R&D applications
The dual-tube design helps maintain stable and repeatable measurement for small-flow applications.
ROTAMASS Prime — General Industrial Applications
ROTAMASS Prime is the versatile option for standard industrial flow measurement.
Its design focuses on wide turndown and low pressure loss, making it suitable when the process operates across a relatively broad flow range or when minimizing pressure drop is important.
Typical applications include general liquid and gas flow measurement, batching, blending, and process control.

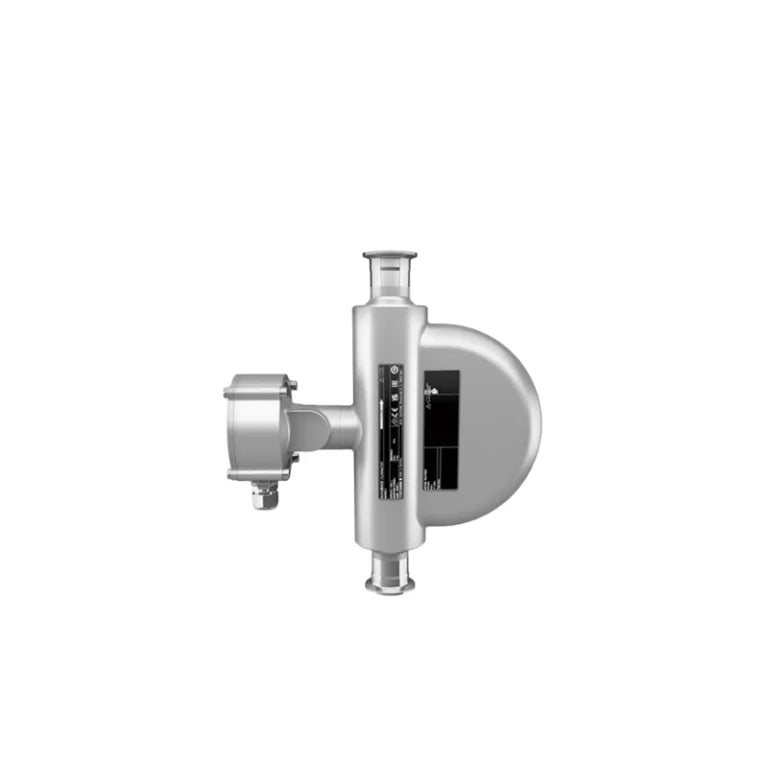

ROTAMASS Hygienic — Food, Beverage and Pharmaceutical
The Hygienic series is designed for hygienic process applications, including food and beverage, biotechnology, and pharmaceutical utility systems.
It is the appropriate family when sanitary construction, cleanability, and hygienic process requirements are more important than simply selecting a general-purpose Coriolis meter.
ROTAMASS Supreme — Demanding Process Conditions
ROTAMASS Supreme is designed for demanding applications where higher performance and wider process capability are required.
The series supports process temperatures down to -196 °C and process pressure up to 250 bar in applicable configurations, making it suitable for demanding process environments and specialized applications.
ROTAMASS Intense — High-Pressure Applications
ROTAMASS Intense is specifically positioned for high-pressure applications.
Depending on configuration, process pressure can reach up to 260 bar or 360 bar, making this series suitable for processes where standard Coriolis meters may not provide sufficient pressure capability.

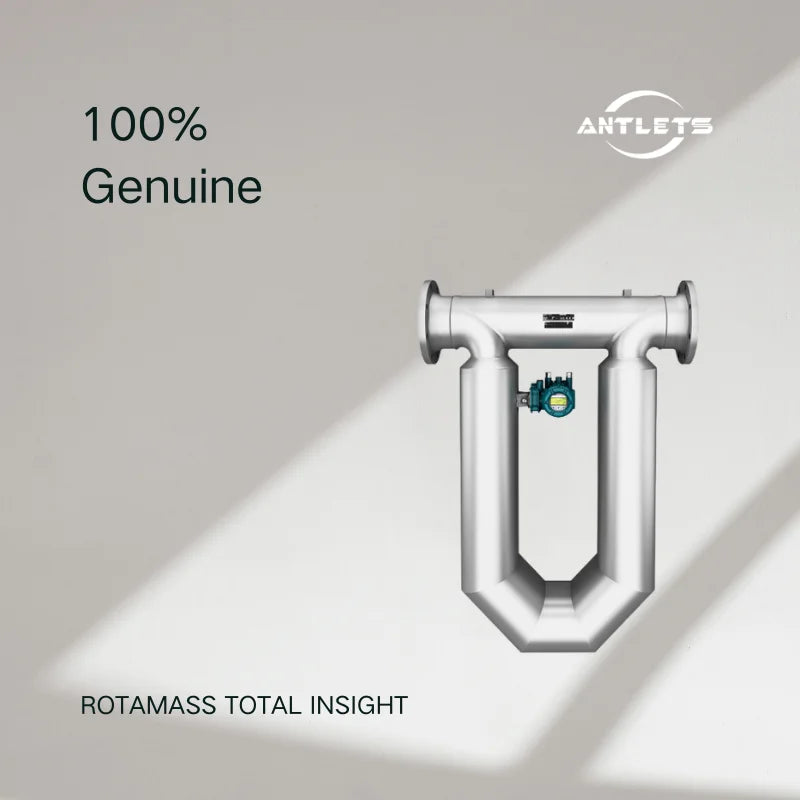

ROTAMASS Giga — High Flow and Flexible Installation
ROTAMASS Giga is designed for high-flow applications and larger line sizes.
The series covers line sizes up to DN250 and is intended for installations where high flow capacity and flexible sensor configuration are important.
Accuracy Across the ROTAMASS TI Family
The exact accuracy depends on the selected sensor family and process conditions.
Yokogawa specifies mass flow accuracy for liquids of up to ±0.1%, while gas mass flow accuracy can reach ±0.35% on applicable models. Liquid density accuracy is typically up to ±0.5 g/L, with the exact specification varying by sensor family.
This is why selecting the correct ROTAMASS series is important: the best model depends not only on pipe size, but also on flow rate, pressure, temperature, fluid characteristics, and required accuracy.
Total Insight Concept
The "Total Insight" concept extends beyond the basic flow measurement function.
ROTAMASS TI is supported by a range of engineering and lifecycle resources, including configuration tools, software packages, general specifications, instruction manuals, certificates, and communication options such as HART, FOUNDATION Fieldbus, PROFIBUS, and PROFINET on applicable configurations.
This allows the meter to remain part of the process measurement system throughout installation, commissioning, operation, maintenance, and future process changes.
Key Features
- Coriolis direct mass flow measurement
- Liquid and gas measurement
- Simultaneous density and temperature measurement
- Volume flow calculation
- Reference-condition density calculation
- Concentration measurement
- Optional viscosity calculation for Newtonian liquids
- Optional gas energy or heating value calculation
- Liquid mass flow accuracy up to ±0.1%
- Gas mass flow accuracy up to ±0.35%
- Multiple sensor families for different applications
- Low-flow Nano series
- General-purpose Prime series
- Hygienic series for food, beverage and pharmaceutical applications
- Supreme series for demanding process conditions
- Intense series for high-pressure applications
- Giga series for high-flow applications
- Multiple communication and integration options
- Lifecycle-oriented Total Insight platform
Typical Applications
Batching and Dosing
Direct mass flow measurement makes ROTAMASS TI suitable for batching, dosing, blending, and chemical injection applications where accurate quantity measurement is important.
Chemical Processing
Coriolis measurement can provide mass flow, density, and temperature information for chemical processes, including applications where fluid composition or density changes during production.
Food and Beverage
The ROTAMASS Hygienic series provides a dedicated solution for hygienic process measurement in food, beverage, biotechnology, and pharmaceutical applications.
High-Pressure Gas and Liquid Measurement
ROTAMASS Nano and Intense provide options for specialized high-pressure measurement requirements, depending on the required flow range and process conditions.
Oil and Gas
Coriolis measurement is suitable for applications requiring direct mass measurement, density information, or process monitoring across oil and gas operations.
Battery and Advanced Manufacturing
Yokogawa also provides application information for ROTAMASS TI in battery-related processes, including coating and mixing applications where accurate flow and material measurement are important.
FAQ
What is ROTAMASS Total Insight?
ROTAMASS Total Insight is Yokogawa's family of Coriolis mass flow and density meters. It measures mass flow directly and can simultaneously provide density and temperature measurement.
Is ROTAMASS a mass flowmeter or a volumetric flowmeter?
It is primarily a Coriolis mass flowmeter. Mass flow is measured directly using the Coriolis measurement principle rather than being calculated from volumetric flow and assumed density.
What can ROTAMASS TI measure?
The basic measurement functions include mass flow, density, and temperature. Depending on configuration, the system can also calculate volume flow, reference density, concentration, viscosity, and gas energy-related values.
Which ROTAMASS model should I choose?
The correct series depends on the process.
Nano is for low-flow applications, Prime for versatile general-purpose measurement, Hygienic for sanitary processes, Supreme for demanding conditions, Intense for high-pressure applications, and Giga for high-flow applications.
What is the difference between ROTAMASS Nano and Prime?
Nano is optimized for very low flow rates and precision applications, while Prime is a more versatile general-purpose Coriolis meter with wide turndown and low pressure loss.
Which ROTAMASS is suitable for hygienic applications?
The ROTAMASS Hygienic series is designed for food and beverage, biotechnology, and pharmaceutical utility applications.
Which ROTAMASS is designed for high-pressure applications?
The ROTAMASS Intense series is specifically positioned for high-pressure applications, with applicable configurations supporting process pressure up to 260 or 360 bar.
Can ROTAMASS measure gas?
Yes. ROTAMASS TI can measure both liquids and gases. The applicable accuracy and pressure/temperature capability depend on the selected sensor family and configuration.
Can ROTAMASS measure density?
Yes. Density is a direct measurement function of the ROTAMASS TI platform. Liquid density accuracy can reach up to ±0.5 g/L on applicable models.
Can ROTAMASS measure concentration?
Yes. Based on its direct mass flow, density, and temperature measurements, ROTAMASS TI can calculate concentration for suitable mixable or unmixable fluids.
Can ROTAMASS measure viscosity?
Yes, with additional measurement input, ROTAMASS TI can calculate the viscosity of Newtonian liquids.
Can ROTAMASS calculate gas heating value?
Yes. With additional measurement input, ROTAMASS TI can calculate an energy or heating value for gas measurement.
What is the maximum process temperature?
The maximum temperature depends on the selected sensor family. Across the current ROTAMASS TI range, the specified process temperature capability extends from cryogenic service at -196 °C on applicable models to approximately +350 °C on applicable Supreme and Giga configurations.
What is the maximum process pressure?
The maximum pressure depends on the sensor family and configuration. The current ROTAMASS TI lineup ranges from standard process pressure ratings to specialized high-pressure configurations, with Intense reaching up to 360 bar in applicable configurations.
Is ROTAMASS suitable for batching and dosing?
Yes. Batching, dosing, blending, and chemical injection are specifically listed among the applications for ROTAMASS Nano, and Coriolis mass measurement is well suited to applications where accurate material quantity is important.
Does ROTAMASS have communication options?
Yes. Depending on the transmitter and configuration, ROTAMASS TI supports communication technologies including HART, FOUNDATION Fieldbus, PROFIBUS, and PROFINET.
Is ROTAMASS suitable for large pipe sizes?
Yes. The ROTAMASS Giga series is designed for high-flow applications and supports line sizes up to DN250.
Is ROTAMASS suitable for very small flow rates?
Yes. ROTAMASS Nano is specifically designed for low-flow measurement and precision applications where conventional larger Coriolis meters may not be appropriate.
Is ROTAMASS suitable for custody transfer?
Applicable ROTAMASS TI configurations can be supplied for custody-transfer-related applications, and Yokogawa provides dedicated NTEP documentation for supported configurations. The exact meter model, approval, and ordering code should be checked against the applicable custody transfer requirement.
