Advanced Coriolis Technology for Accurate Mass Flow Measurement

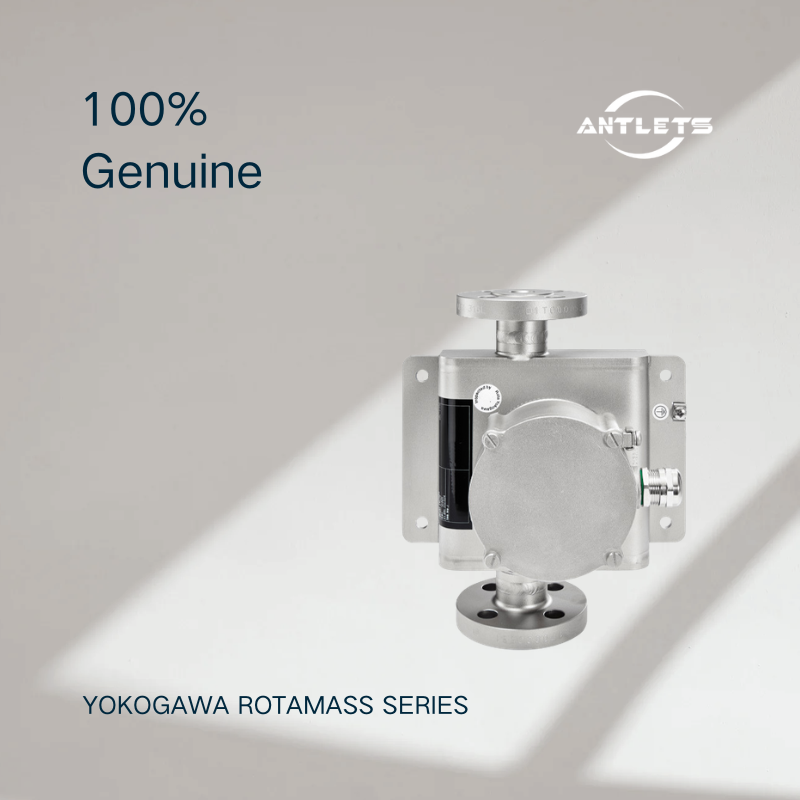

The Yokogawa ROTAMASS Total Insight (TI) is a high-performance Coriolis mass flow and density meter designed for accurate measurement of liquids, gases and challenging process media.
Unlike traditional volumetric flowmeters, ROTAMASS directly measures mass flow, making measurement less affected by changes in fluid density, viscosity or flow conditions. In addition to mass flow, the meter simultaneously measures density and temperature, allowing users to obtain additional process information such as volume flow, concentration and other calculated values.
ROTAMASS TI is designed around Yokogawaβs Total Insight concept, providing not only accurate measurement but also improved commissioning, diagnostics, maintenance and lifecycle management.
Direct Measurement of Mass Flow, Density and Temperature
The ROTAMASS TI uses the Coriolis measurement principle to provide direct mass flow measurement without requiring additional compensation for changing process conditions.
Depending on configuration, the meter can provide:
Mass flow measurement
Density measurement
Temperature measurement
Volume flow calculation
Reference density calculation
Concentration measurement of solutions, suspensions and emulsions
Viscosity calculation for Newtonian liquids
Energy/heating value calculation for gas applications
This makes ROTAMASS suitable for applications where accurate material balance, dosing control, product quality monitoring or custody transfer measurement is required.

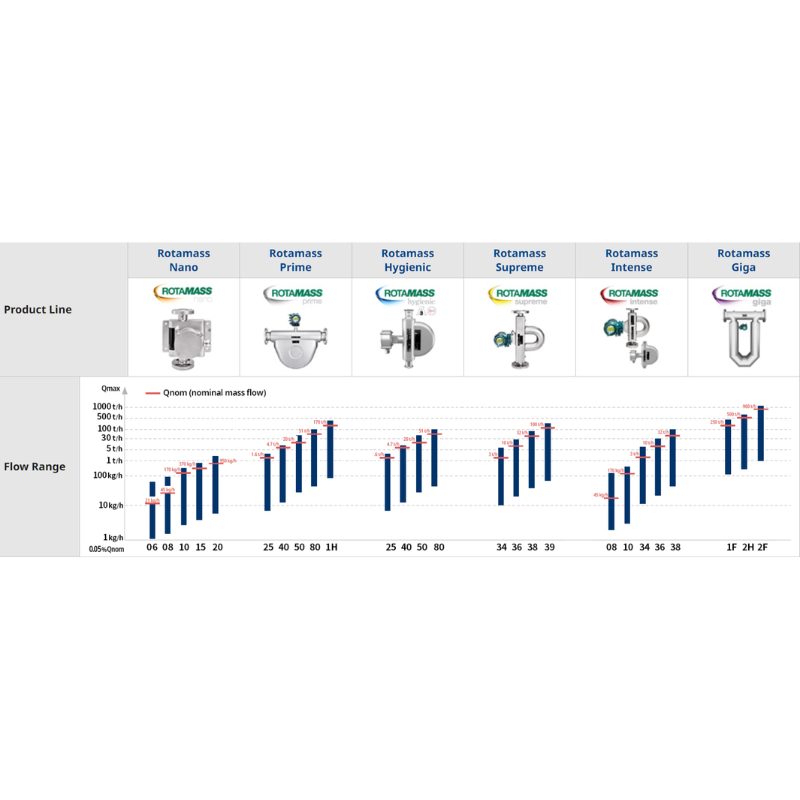

ROTAMASS Total Insight Product Family
Yokogawa offers different ROTAMASS TI models optimized for specific industries and process requirements.
ROTAMASS Nano
Designed for very low flow measurement with high precision.
Typical applications:
Chemical injection
Precision dosing
Laboratory and R&D systems
Metering pump control
Semiconductor process materials
Low-flow liquid and gas measurement
ROTAMASS Prime
A versatile Coriolis meter for general industrial applications.
Suitable for:
Process control
Blending
Filling and batching
Chemical recovery
Density and concentration measurement
Mass balance applications
Features include excellent turndown performance and low pressure loss.
ROTAMASS Hygienic
Designed for hygienic industries including:
Food & beverage
Biotechnology
Pharmaceutical production
The hygienic version supports demanding sanitary processes with certifications such as EHEDG and 3-A.
Typical applications:
Beverage filling
Fermentation
Dairy processing
Sugar concentration measurement
Pharmaceutical utilities

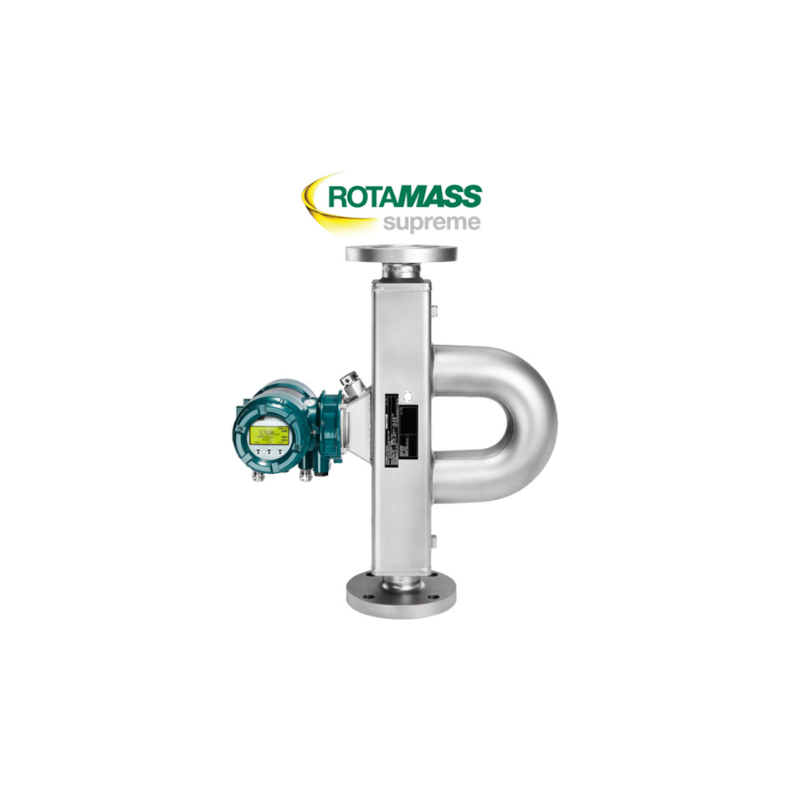

ROTAMASS Supreme
Designed for demanding process conditions where measurement stability is critical.
Typical applications:
Solvent measurement
Burner control
Process control
Gas void fraction applications
Material balance systems
It provides enhanced diagnostics and performance for challenging process environments.

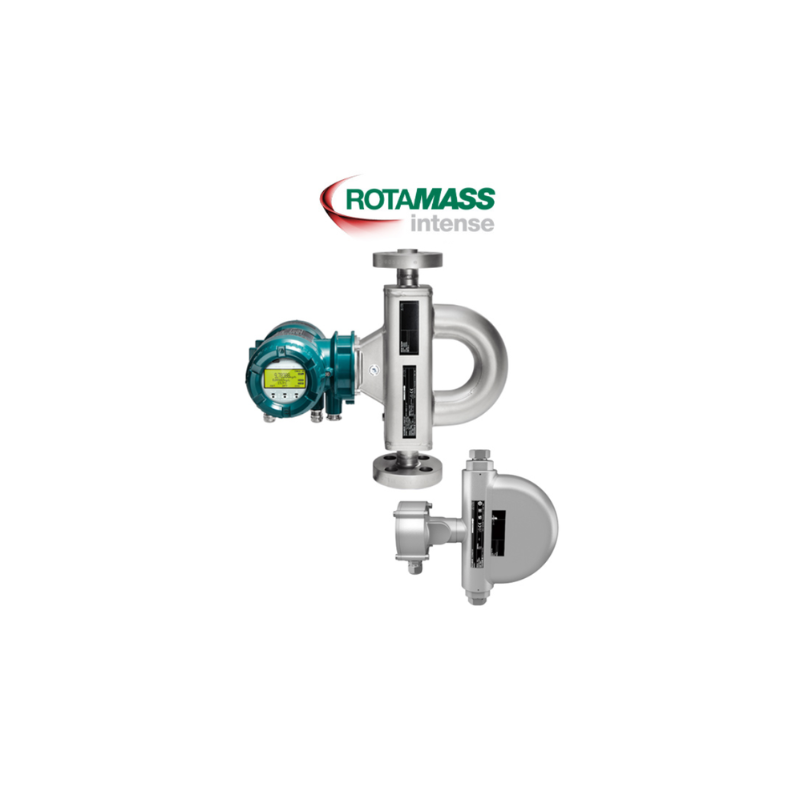

ROTAMASS Intense
Designed for high-pressure applications.
Typical applications:
Chemical injection
High-pressure gas measurement
Hydrocarbon measurement
Offshore and refinery processes
Liquefied gas applications
The robust design supports demanding pressure conditions while maintaining accurate measurement performance.

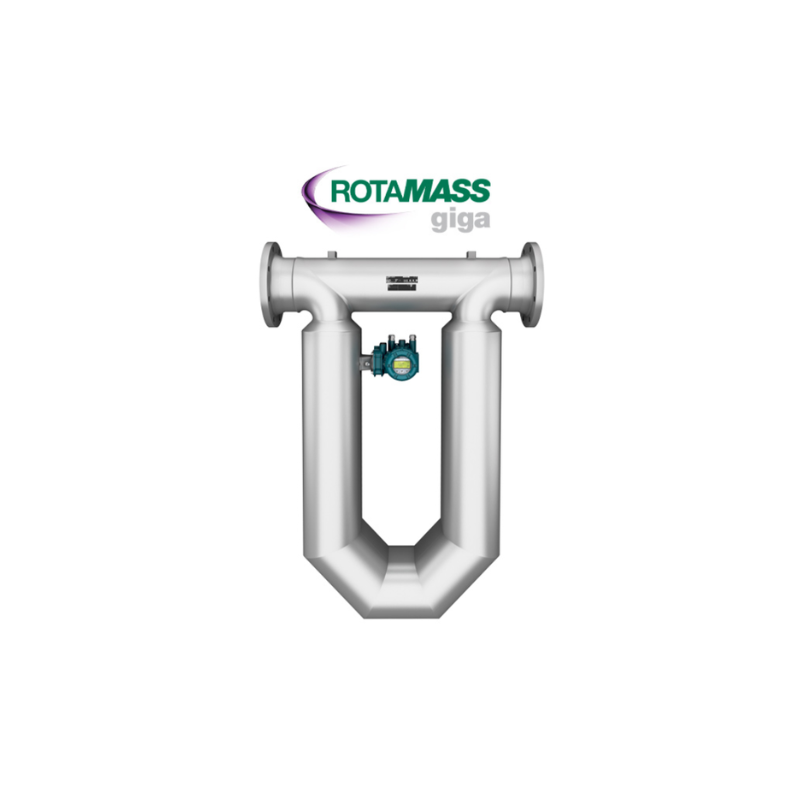

ROTAMASS Giga
Designed for large flow measurement applications.
Typical applications:
LNG
Marine applications
Large-scale transfer systems
Industrial process lines
ROTAMASS Giga provides flexible installation options and high accuracy for large flow rates.
High Accuracy and Stable Measurement Performance
ROTAMASS TI provides reliable measurement performance for critical industrial processes.
Key performance highlights:
Liquid mass flow accuracy up to Β±0.1%
Gas mass flow accuracy up to Β±0.35% depending on model
Liquid density accuracy up to Β±0.5 g/L depending on model
Wide temperature and pressure capabilities across different product series
The meter design helps maintain measurement stability even when process conditions change.
Box-in-Box Sensor Design for Better Stability
A key advantage of ROTAMASS TI is Yokogawaβs Box-in-Box sensor structure.
This design helps isolate the measuring tubes from:
External vibration
Pipeline stress
Mechanical forces caused by installation conditions
The result is improved zero stability and reliable measurement accuracy, especially in demanding industrial environments.
No Straight Pipe Requirement for Easier Installation
Because Coriolis meters measure based on tube vibration and mass force effects, ROTAMASS TI does not require long upstream and downstream straight pipe sections.
Benefits include:
Easier installation
Reduced piping requirements
Space-saving system design
Better suitability for retrofit projects
This makes ROTAMASS a practical choice where installation space is limited.
Advanced Diagnostics with Total Insight
ROTAMASS TI integrates Yokogawaβs Total Insight functions to support the entire product lifecycle.
Key functions include:
Smart Assist
Helps simplify:
Device setup
Configuration
Commissioning
Maintenance procedures
Process Guard
Provides process monitoring functions to improve operational reliability.
Expert Solution
Supports:
Device management
Maintenance optimization
Lifecycle data management
Additional functions include Tube Health Check and advanced diagnostics for monitoring meter condition.
Digital Communication and Automation Integration
ROTAMASS TI supports modern industrial communication systems for integration into process automation platforms.
Available communication options include:
HART
Modbus
PROFIBUS PA
FOUNDATION Fieldbus
Ethernet-APL (depending on configuration)
Ethernet-APL support enables high-speed digital communication and improved access to process data for industrial digitalization.
Typical Applications
Chemical Industry
Used for:
Chemical dosing
Solvent measurement
Blending processes
Concentration monitoring
Oil & Gas
Suitable for:
Hydrocarbon measurement
Fuel measurement
Gas applications
Transfer systems
Food & Beverage
Applications include:
Beverage production
Dairy processing
Sugar concentration measurement
Filling systems
Pharmaceutical Industry
Used for:
Precise dosing
High-purity process monitoring
Batch production
Energy Industry
Suitable for:
Fuel measurement
Power generation process optimization
Combustion control
Key Features
Direct mass flow measurement using Coriolis technology
Simultaneous measurement of mass flow, density and temperature
Liquid and gas measurement capability
Up to Β±0.1% liquid mass flow accuracy
Concentration measurement function
Six application-specific product series
Box-in-Box vibration-resistant sensor design
No straight pipe requirement
Advanced Total Insight diagnostics
HART / Modbus / Fieldbus communication options
Ethernet-APL option
High-pressure and high-temperature versions available
Hazardous-area approvals available depending on configuration
FAQ
What is Yokogawa ROTAMASS Total Insight?
ROTAMASS Total Insight is Yokogawaβs Coriolis mass flow and density meter family designed for accurate measurement of liquids and gases with integrated lifecycle support and advanced diagnostics.
What parameters can ROTAMASS measure?
ROTAMASS can directly measure:
Mass flow
Density
Temperature
It can also calculate volume flow, reference density, concentration and other application-specific values.
What is the accuracy of ROTAMASS?
Depending on the selected model, ROTAMASS TI provides liquid mass flow accuracy up to Β±0.1% and gas measurement accuracy up to approximately Β±0.35%.
Does ROTAMASS require straight pipe installation?
No. Coriolis measurement technology allows ROTAMASS TI to operate without traditional long straight pipe requirements, simplifying installation.
Can ROTAMASS measure density?
Yes. Density is measured directly together with mass flow and temperature, allowing additional calculations such as concentration measurement.
Which ROTAMASS model should I choose?
Selection depends on the application:
Nano β Low flow and precision measurement
Prime β General industrial applications
Hygienic β Food, beverage and pharmaceutical
Supreme β Advanced process applications
Intense β High-pressure processes
Giga β Large flow measurement
Can ROTAMASS measure gas?
Yes. ROTAMASS TI supports gas measurement with dedicated models and configurations for different gas applications.
Does ROTAMASS support concentration measurement?
Yes. ROTAMASS can calculate concentration values for compatible solutions, suspensions and emulsions using density and temperature measurement data.
What industries use ROTAMASS Coriolis meters?
Common industries include:
Chemical
Oil & gas
Food & beverage
Pharmaceutical
Energy
Industrial manufacturing
