Reliable Absolute Pressure Measurement for Critical Processes

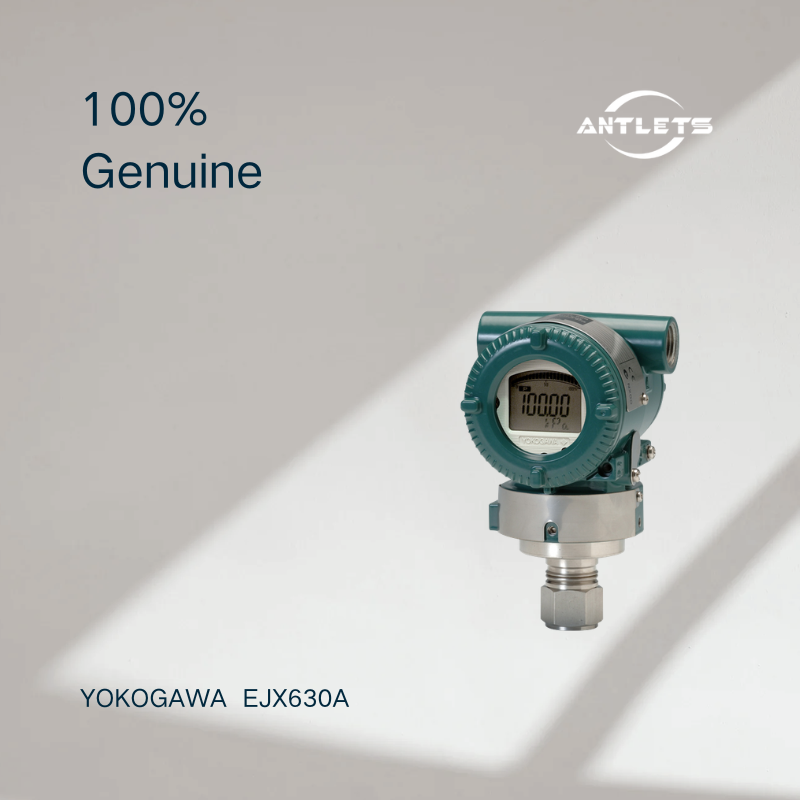

The Yokogawa EJX630A belongs to the premium EJX-A series of DPharp pressure transmitters. It is designed for users who need more than basic pressure measurement — providing stable performance, intelligent diagnostics, and reliable operation throughout the life of the process.
Unlike traditional analog pressure sensors, Yokogawa’s DPharp digital sensor directly provides a digital signal, reducing conversion errors and improving measurement performance. This technology helps achieve better accuracy, repeatability, and long-term stability.
Why Choose EJX630A?
High Accuracy for Better Process Control
The EJX630A provides:
- ±0.04% reference accuracy
- Optional ±0.025% accuracy with /HAC option
- 90 ms response time
- ±0.1% of URL per 15 years stability
This level of performance helps maintain consistent process conditions, reduce measurement deviation, and improve overall plant efficiency.
What Makes DPharp Technology Different?
The EJX630A uses Yokogawa’s active DPharp digital sensor technology.
Traditional analog sensors are passive devices, meaning they only generate a signal when the process changes. The DPharp sensor continuously provides sensor information, allowing the transmitter to recognize abnormal conditions and improve diagnostic capability.
The transmitter also includes Yokogawa’s patented Back-check Technology, which verifies calculations in real time to help ensure signal processing reliability.
How Does EJX630A Help Reduce Maintenance?
The EJX630A includes advanced diagnostic functions designed to help operators identify problems faster.
The local indicator can display:
- Measured pressure values
- Capsule temperature
- Alarm codes
- Short text error descriptions
- Process trend indication
This allows technicians to understand transmitter status directly in the field without immediately searching through manuals.
High Pressure Capability
The EJX630A is designed for demanding pressure applications with a maximum pressure capability up to 15,200 psi depending on configuration.
Available capsules cover a wide measurement range:
- A Capsule: 0.3 to 29 psig
- B Capsule: 1.5 to 290 psig
- C Capsule: 7.3 to 1,450 psig
- D Capsule: 50.8 to 10,150 psig
Rangeability reaches:
- 100:1 for A Capsule
- 200:1 for B, C and D Capsules
Key Features
- High-performance absolute pressure transmitter
- Yokogawa premium EJX-A Series
- DPharp digital sensor technology
- ±0.04% reference accuracy
- Optional ±0.025% accuracy
- 90 ms response time
- ±0.1% URL per 15 years stability
- Pressure range up to 15,200 psi
- Advanced self-diagnostics
- Back-check Technology
- Local Parameter Setting (LPS)
- Independent local indicator circuit
- Multiple communication options:HARTBRAINFOUNDATION FieldbusPROFIBUS PA
- SIL 2/3 safety certification options
- International hazardous area approvals
Typical Applications
The EJX630A is suitable for:
- Absolute pressure measurement
- High-pressure process systems
- Vacuum pressure monitoring
- Gas pressure measurement
- Liquid pressure measurement
- Steam pressure measurement
- Compressor monitoring
- Reactor pressure monitoring
- Chemical processing
- Oil and gas applications
- Power generation
- General industrial process control
Frequently Asked Questions
What is the Yokogawa EJX630A used for?
The EJX630A is used for absolute pressure measurement in industrial processes. It measures pressure using an absolute vacuum reference, making it suitable for applications where atmospheric pressure changes cannot affect measurement accuracy.
What is the difference between EJX530A and EJX630A?
The main difference is the pressure reference:
- EJX530A: Gauge pressure transmitter, measuring pressure relative to atmospheric pressure.
- EJX630A: Absolute pressure transmitter, measuring pressure relative to a vacuum reference.
The EJX630A is preferred for applications requiring accurate absolute pressure measurement.
Is EJX630A suitable for steam measurement?
Yes. The EJX630A can be used for liquid, gas, and steam pressure measurement applications.
How accurate is the EJX630A?
The EJX630A provides ±0.04% reference accuracy. With the /HAC option, accuracy can reach ±0.025% of span.
How long is the stability of EJX630A?
The EJX630A provides ±0.1% of URL stability per 15 years, reducing the frequency of calibration checks and maintenance requirements.
Does EJX630A support HART communication?
Yes. The EJX630A supports multiple communication options including HART, BRAIN, FOUNDATION Fieldbus, and PROFIBUS PA depending on configuration.
Does EJX630A have diagnostic functions?
Yes. It includes advanced diagnostics, active sensor monitoring, and Yokogawa’s Back-check Technology for improved reliability and faster troubleshooting.
Why choose EJX630A instead of a standard pressure transmitter?
The EJX630A is designed for applications where accuracy, stability, diagnostics, and long operating life are important. Compared with standard transmitters, it provides higher performance and advanced monitoring capabilities.
