Built for More Than Just Pressure Measurement

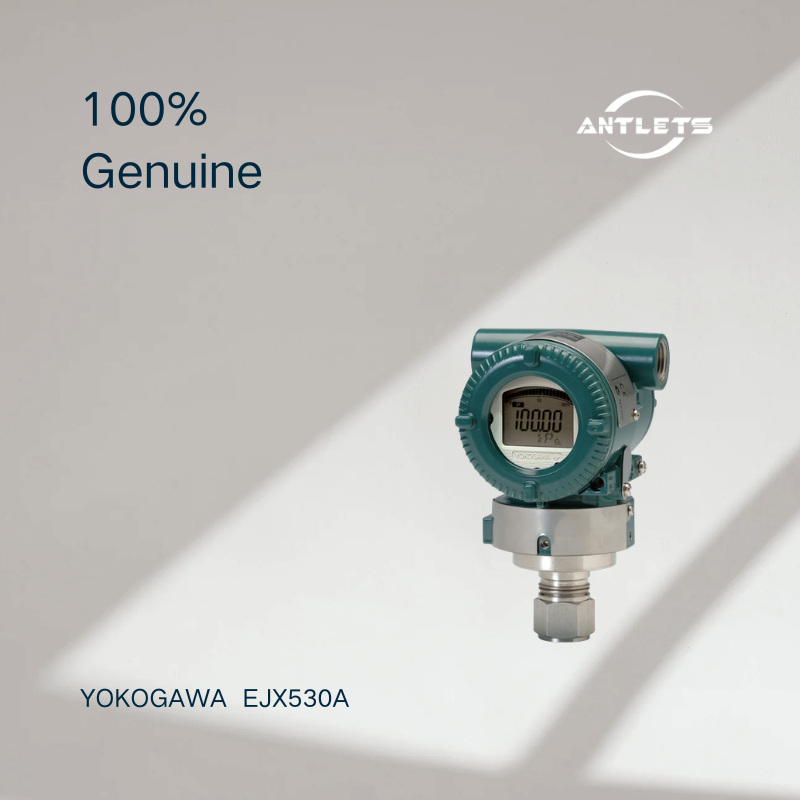

The EJX530A is part of Yokogawa's premium EJX-A family of DPharp pressure transmitters. It is designed for applications where pressure measurement needs to remain accurate and stable over long periods, rather than simply providing a 4–20 mA output.
The transmitter provides ±0.04% reference accuracy, 90 ms response time, and ±0.1% of URL per 15 years stability, helping maintain reliable measurement performance throughout the life of the installation.
Why Does DPharp Technology Matter?
The EJX530A uses Yokogawa's DPharp digital sensor, an active digital sensing technology developed for high-performance pressure measurement.

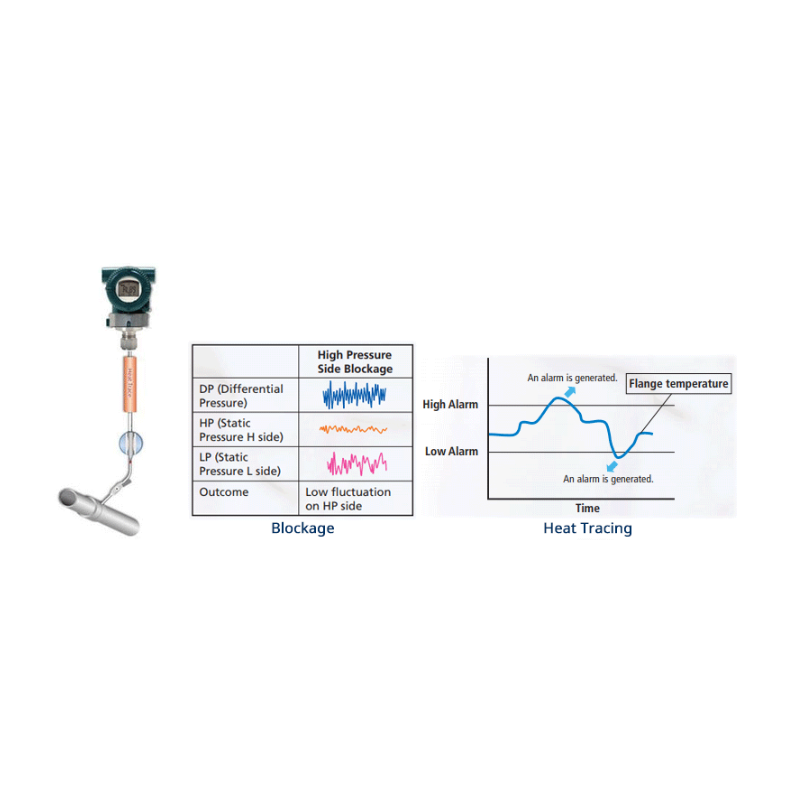

Unlike a traditional passive sensor, the DPharp sensor continuously provides a signal to the transmitter's diagnostic system. If the signal is lost or an abnormal condition occurs, the transmitter can identify the problem through its self-diagnostics.
What Happens When There Is a Problem?
This is one of the practical advantages of the EJX530A.
Its diagnostics include Back-check Technology (BCT), which checks calculations in real time. The local indicator can also display measured variables and alarm codes with short text descriptions, helping operators understand a problem without immediately having to search through a manual.
For maintenance teams, this can mean faster troubleshooting and less unnecessary field work.
What Can the Local Indicator Show?
The optional local indicator can display measured variables such as pressure and capsule temperature, as well as alarm codes and a graphical bar indication.
Because the indicator operates independently from the 4–20 mA analog output, the display can continue to provide information without relying on the analog output signal itself.
Key Features
- ±0.04% reference accuracy
- ±0.1% of URL per 15 years stability
- 90 ms response time
- Proven DPharp digital sensor technology
- Advanced self-diagnostics
- Back-check Technology (BCT)
- Local Parameter Setting (LPS)
- Optional local indicator
- Multiple communication and certification options
- Designed for liquid, gas, and steam pressure measurement
Typical Applications
The EJX530A can be used for:
- Process line pressure measurement
- Liquid pressure measurement
- Gas pressure measurement
- Steam pressure measurement
- Pump and compressor monitoring
- Tank and vessel pressure monitoring
- Open tank level applications
- Industrial process control
Frequently Asked Questions
What is the Yokogawa EJX530A used for?
The EJX530A is an in-line mount gauge pressure transmitter used to measure the pressure of liquids, gases, and steam in industrial processes. It converts process pressure into an electronic output for monitoring and control.
Is the EJX530A a gauge pressure or differential pressure transmitter?
The EJX530A is a gauge pressure transmitter. It measures pressure relative to atmospheric pressure. It should not be confused with Yokogawa's differential pressure models such as the EJX110A.
What is the accuracy of the EJX530A?
The standard reference accuracy of the EJX530A is ±0.04% of span. This is one of the key performance advantages of the EJX-A series.
How stable is the EJX530A over time?
The EJX530A has a specified long-term stability of ±0.1% of URL per 15 years for the primary variable. This makes it suitable for applications where long-term measurement stability is important.
How fast does the EJX530A respond?
The specified response time for the primary variable is 90 ms, allowing the transmitter to respond quickly to changes in process pressure.
What is DPharp technology?
DPharp is Yokogawa's digital pressure sensing technology. The EJX530A uses an active digital sensor combined with transmitter diagnostics to provide accurate measurement and help detect abnormal conditions.
What is the difference between EJX530A and EJA530E?
Both are Yokogawa in-line mount gauge pressure transmitters, but they belong to different product families. The EJX530A is part of Yokogawa's premium EJX-A series, while the EJA530E belongs to the EJA-E series.
The EJX530A provides ±0.04% accuracy and 15-year stability, making it the higher-performance choice when measurement accuracy and long-term stability are key priorities.
Can the EJX530A measure steam?
Yes. Yokogawa specifies the EJX530A for accurate measurement of liquid, gas, and steam.
Does the EJX530A have diagnostic functions?
Yes. The transmitter provides self-diagnostics and Yokogawa's Back-check Technology, which checks calculations in real time. These functions are designed to help identify problems and reduce troubleshooting time.
Does the EJX530A support local configuration?
Yes. Local Parameter Setting (LPS) is one of the standard features highlighted by Yokogawa for the EJX530A.
What certifications are available for the EJX530A?
Yokogawa provides certification resources for the EJX-A series, including Exida SIL and TÜV SIL certificates. Exact certification and approval availability depends on the selected configuration and option codes.
Is the EJX530A suitable for critical industrial applications?
Yes. Its combination of high accuracy, fast response, long-term stability, diagnostics, and safety certification options makes the EJX530A suitable for demanding industrial process applications.
