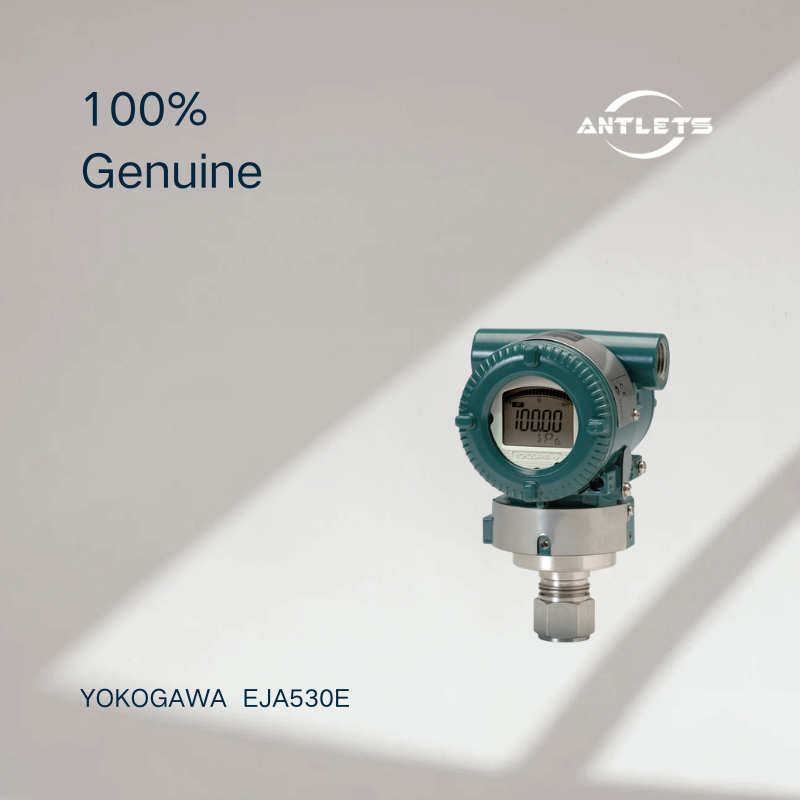

Yokogawa EJA530E In-Line Mount Gauge Pressure Transmitter

$502.00

The Yokogawa EJA530E is an in-line mount gauge pressure transmitter built around proven DPharp digital sensor technology. It combines accurate pressure measurement, fast response and long-term stability for reliable process monitoring.

Its compact in-line configuration and flexible communication options make the EJA530E suitable for a wide range of industrial pressure measurement and control applications.

🕑 Lead time: 4-6 weeks
Quantity:
Delivery & return Ask a Question
Visa PayPal Mastercard American Express

Yokogawa EJA530E In-Line Mount Gauge Pressure Transmitter

The EJA530E is a standard in-line mount gauge pressure transmitter in Yokogawa’s EJA-E series, designed for reliable measurement of gauge pressure in liquids, gases and steam. It uses Yokogawa’s DPharp digital sensor technology to provide accurate and repeatable pressure measurement with fast response and advanced diagnostics.

Key Features

  • Measurement: Gauge pressure
  • Reference Accuracy: ±0.055% of span
  • High-Accuracy Option: ±0.04% of span with /HAC
  • Response Time: 90 ms
  • Long-Term Stability: ±0.1% of URL per 10 years
  • Sensor Technology: DPharp digital pressure sensor

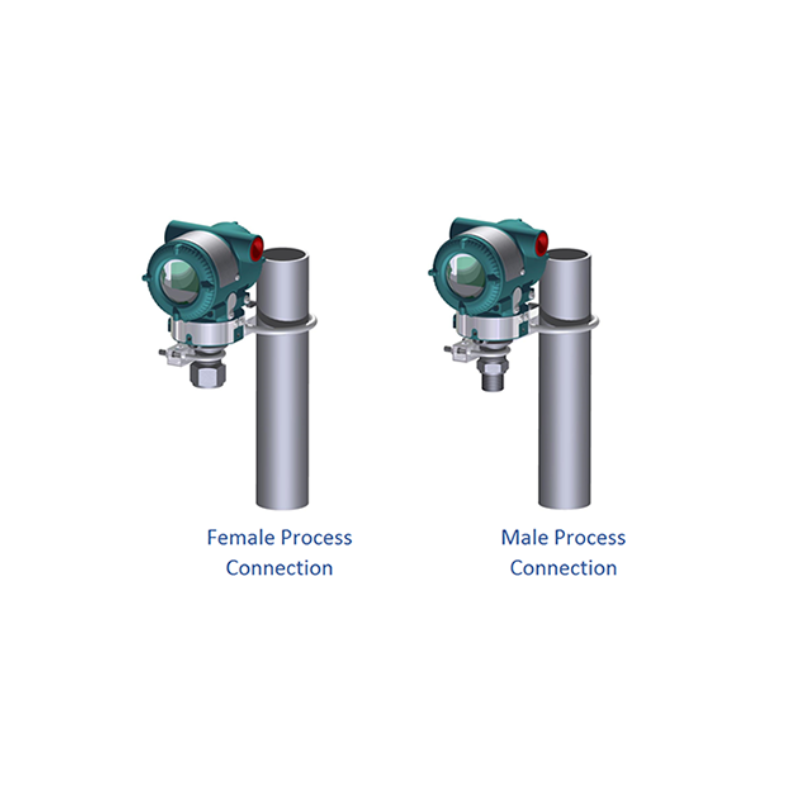

  • Mounting: In-line process mounting
  • Communication: HART, BRAIN, FOUNDATION Fieldbus, PROFIBUS PA and low-power HART options
  • Diagnostics: Advanced self-diagnostics and Back-check Technology
  • Approvals: Available configurations include FM, CSA, ATEX, IECEx, INMETRO, KOSHA, EAC and NEPSI certifications

Typical Applications

The EJA530E is suitable for process line pressure, liquid and gas pressure, steam pressure, pump and compressor monitoring, and general industrial process control. Yokogawa also identifies line pressure, open-tank level and tank blanket pressure among typical gauge pressure applications.

Why Choose EJA530E?

The combination of DPharp digital sensing, fast 90 ms response, strong long-term stability and flexible communication makes the EJA530E a dependable choice for industrial pressure measurement where accuracy and plant availability are important.

Typical Applications

  • Process line pressure measurement
  • Gas and liquid pressure monitoring
  • Steam pressure measurement
  • Pump and compressor pressure monitoring
  • Open tank and vessel applications
  • Industrial process control
  • Oil & gas, chemical, power and general process industries

Refer to the General Specification sheet located under the 'Downloads' tab for detailed specifications.

Measurement Types

Primary VariableGauge Pressure

Reference Accuracy

Primary Variable±0.055% of Span
±0.04% of Span (/HAC option)

Stability (All Normal Operating Conditions)

Primary Variable±0.1% of URL per 10 years

Response Time

Primary Variable90 msec

Rangeability

Primary VariableA capsule: 20:1
B, C and D capsules: 100:1

Burst Pressure (Absolute)

EJA510EA, B, and C Capsules: 4,350 psi (30 MPa)
D Capsule: 19,100 psi (132 MPa)

Specification Conformance

EJX-A Series±3σ
