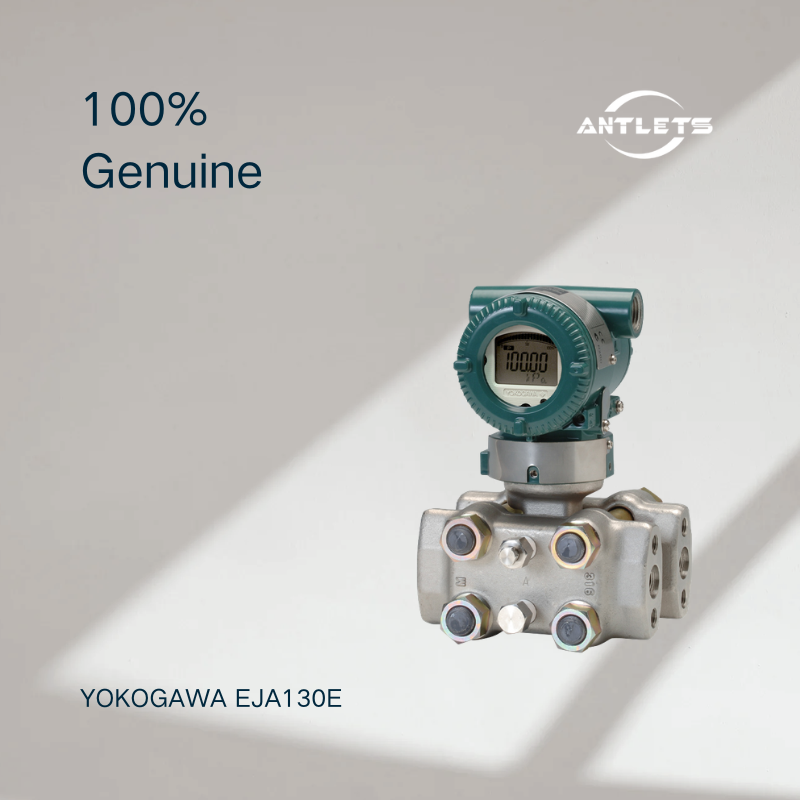

Yokogawa EJA130E Differential Pressure Transmitter

$545.00

The Yokogawa EJA130E is a high-performance differential pressure transmitter developed for process applications where accurate measurement is required under high static pressure. Its DPharp digital sensor provides stable differential pressure measurement while also monitoring static pressure and sensor temperature.

With a robust pressure design, universal mounting, multiple communication options, and a maximum pressure limit of 4,500 psi, the EJA130E is suitable for demanding flow, level, density, and pressure measurement applications.

🕑 Lead time: 4-6 weeks
Quantity:
Delivery & return Ask a Question
Visa PayPal Mastercard American Express

The Yokogawa EJA130E Differential Pressure Transmitter is designed specifically for high static pressure applications where reliable differential pressure measurement is essential. It is suitable for measuring the pressure of liquids, gases, and steam, and can be applied to flow, liquid level, density, and process pressure measurement.

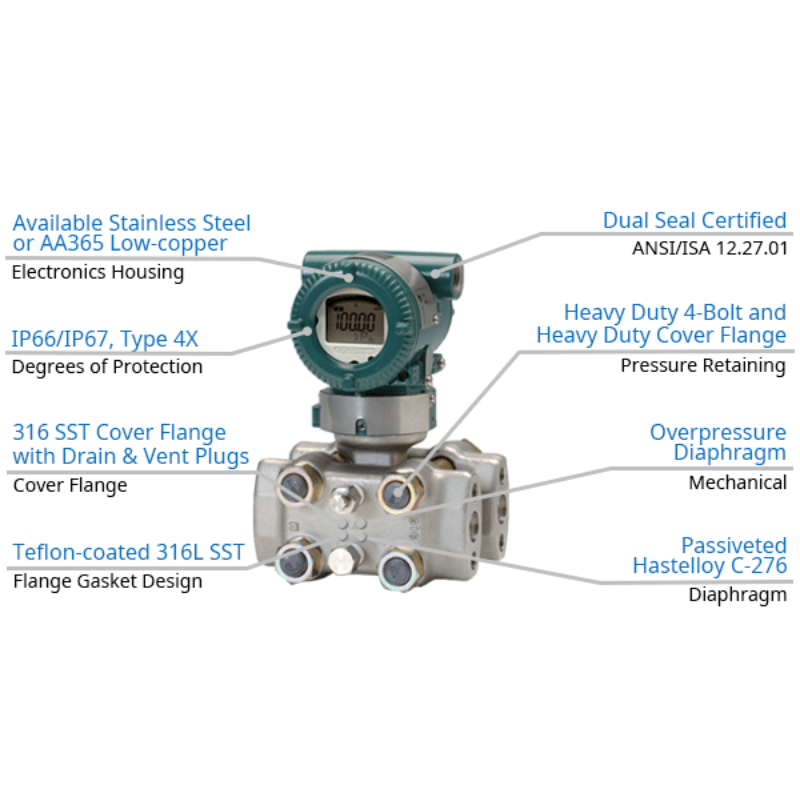

The EJA130E uses Yokogawa's DPharp single-crystal silicon resonant sensor. The sensor provides digital measurement information and can measure differential pressure, static pressure, and sensor temperature. This multi-sensing capability allows the transmitter to compensate for the effects of static pressure and temperature, helping maintain stable measurement performance under changing process conditions.

The transmitter provides a reference accuracy of ±0.055% of DP span for the primary differential pressure variable. Its 100:1 rangeability allows flexible configuration across different measurement requirements, while long-term stability is specified at ±0.1% of URL per 10 years under normal operating conditions. The over-pressure effect is specified at ±0.03% of URL.

A key advantage of the EJA130E is its ability to operate in high static pressure environments. The specified maximum pressure limit is 4,500 psi for all capsules, while the burst pressure is specified at 19,100 psi (132 MPa). This makes the transmitter particularly suitable for demanding process installations where both differential pressure and high line pressure must be considered.

The EJA130E can also measure static pressure as a secondary variable. The static pressure value can be shown on the integral indicator or monitored remotely through BRAIN or HART communication. This multi-variable capability can provide additional process information without requiring a separate pressure transmitter for the same measurement point.

Multiple communication configurations are available, including 4–20 mA DC with BRAIN, 4–20 mA DC with HART 5/HART 7, FOUNDATION Fieldbus, PROFIBUS PA, and 1–5 V DC low-power output with HART 7. Remote setup, self-diagnostics, and digital communication support convenient commissioning and maintenance.

The EJA130E also uses IEC 61518-compliant process connection dimensions and a universal mounting concept. Yokogawa provides flexible vent and drain configurations to accommodate different installation requirements. The transmitter is also available with a range of manifolds and accessories for differential pressure applications.

Key Features

  • High-performance differential pressure transmitter
  • Designed for high static pressure environments
  • Yokogawa DPharp single-crystal silicon resonant sensor
  • Suitable for liquid, gas, and steam measurement
  • Applications include flow, level, density, and pressure measurement
  • Reference accuracy of ±0.055% of DP span
  • 100:1 rangeability
  • Long-term stability of ±0.1% of URL per 10 years
  • Over-pressure effect of ±0.03% of URL
  • Maximum pressure limit of 4,500 psi
  • Burst pressure up to 19,100 psi (132 MPa)
  • Differential pressure and static pressure measurement
  • Dynamic compensation for static pressure and sensor temperature effects
  • Fast response and stable long-term measurement
  • Remote setup through digital communication
  • Built-in self-diagnostics
  • HART 5/HART 7 communication
  • BRAIN communication
  • FOUNDATION Fieldbus option
  • PROFIBUS PA option
  • Low-power 1–5 V DC with HART 7 option
  • Integral indicator option
  • Universal mounting design
  • IEC 61518 standard process connections
  • Standard EJA-E configurations are certified for SIL 2, excluding Fieldbus, PROFIBUS, and Low Power types

Measurement Span

The EJA130E is available with multiple differential pressure capsules. Current Yokogawa configuration information lists the following main measurement spans:

  • H Capsule: 5 to 500 kPa
  • M Capsule: 1 to 100 kPa
  • V Capsule: 0.14 to 14 MPa

The actual measurement range depends on the selected capsule, output configuration, wetted materials, and other model-code options.

Typical Applications

  • High-static-pressure differential pressure measurement
  • Flow measurement
  • Liquid level measurement
  • Density measurement
  • Process pressure monitoring
  • High-pressure steam measurement
  • Gas and liquid flow measurement
  • Filter differential pressure monitoring
  • Pump and equipment monitoring
  • Oil and gas processing
  • Chemical and petrochemical plants
  • Power generation
  • Water and wastewater treatment
  • High-pressure process systems

Specifications

Measurement Types – Primary VariableDifferential Pressure (DP)
Measurement Types – Secondary VariableStatic Pressure (SP)
Reference Accuracy – Primary Variable±0.055% of DP Span
Reference Accuracy – Secondary Variable±0.5% of SP Span
Long Term Stability (All Normal Operating Conditions) – Primary Variable±0.1% of URL per 10 years
Maximum Pressure Limit (MWP) – All Capsules4,500 psi
Over-pressure Effect – Primary Variable±0.03% of URL
Rangeability – Primary Variable100:1
Burst Pressure – All Capsules19,100 psi (132 MPa)
Specification Conformance – EJX-A Series±3σ
