Remote Converter for Yokogawa ADMAG AXW Magnetic Flow Meter

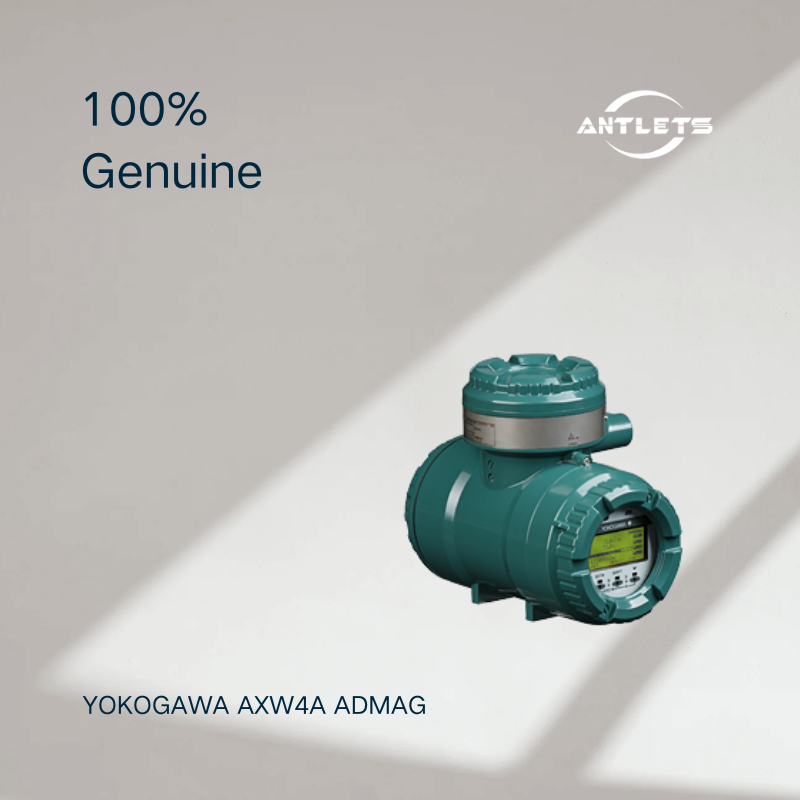

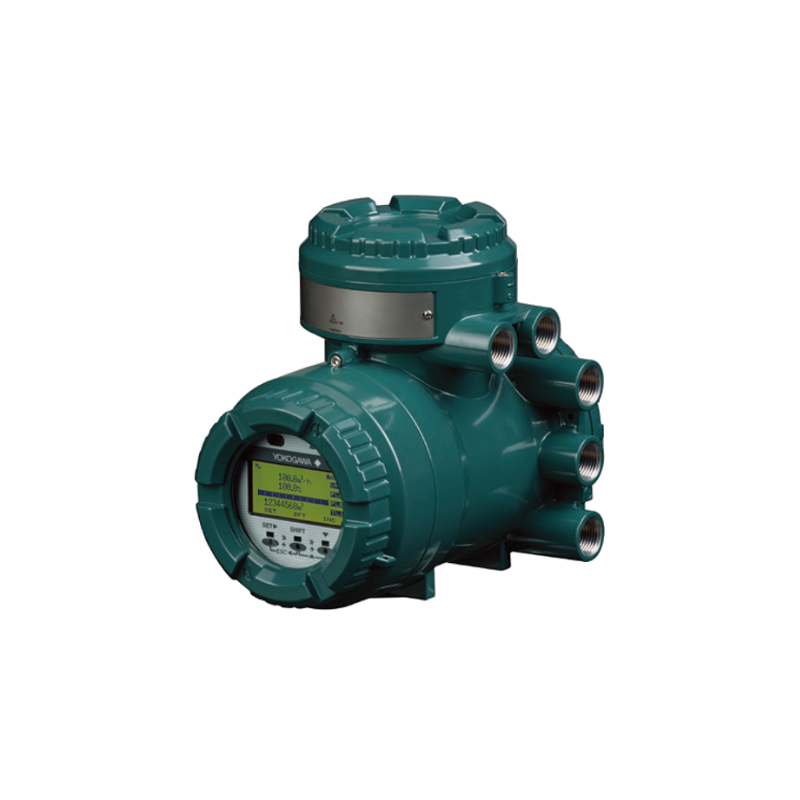

The Yokogawa AXW4A ADMAG TI Remote Converter is a remote transmitter designed specifically for the ADMAG AXW Magnetic Flow Meter. It processes signals from the remote sensor and converts them into reliable flow measurement outputs for industrial control systems.

The remote configuration allows flexible installation by separating the converter from the flow sensor, making it suitable for applications where the sensor is installed in difficult-to-access areas, high-temperature environments or locations with limited installation space.

Yokogawa ADMAG Total Insight Technology

The AXW4A belongs to Yokogawa’s ADMAG Total Insight (TI) series, which focuses on improving instrument usability throughout the entire product lifecycle.

Key benefits include:

•
  Simplified commissioning and setup

•
  Advanced device diagnostics

•
  Parameter backup and data management

•
  Improved maintenance efficiency

•
  Flexible configuration options


The Total Insight concept helps users achieve more reliable operation while reducing maintenance workload.

Stable Measurement with Dual-Frequency Excitation

The AXW4A ADMAG TI Remote Converter utilizes Yokogawa’s proprietary dual-frequency excitation technology.

Advantages include:

•
  Improved measurement stability

•
  Faster response performance

•
  Reduced influence from flow noise

•
  Reliable operation under changing process conditions


This technology supports accurate electromagnetic flow measurement in demanding industrial environments.

Built-In Verification and Diagnostic Functions

The AXW4A provides advanced monitoring functions to support predictive maintenance and improve process reliability.

Features include:

•
  Built-in verification function

•
  Device health monitoring

•
  Application diagnostics

•
  Sensor and measurement condition monitoring

•
  Data backup through optional microSD card


These functions help operators identify potential issues before they impact production.

Flexible Communication and System Integration

The Yokogawa AXW4A ADMAG TI Remote Converter supports various communication and output configurations for industrial automation systems.

Available options include:

•
  HART communication

•
  FOUNDATION Fieldbus

•
  PROFIBUS PA

•
  Modbus communication

•
  Flexible current, pulse and status outputs


This flexibility allows easy integration with DCS, PLC and plant monitoring systems.

Data Management with microSD Function

The optional microSD card function provides convenient instrument data management.

Applications include:

•
  Parameter backup

•
  Configuration transfer

•
  Trend data storage

•
  Offline data analysis

•
  Multiple device duplication


This feature simplifies commissioning and maintenance for large industrial installations.

Typical Applications

Water & Wastewater

•
  Water supply systems

•
  Sewage treatment plants

•
  Pump station monitoring

•
  Utility water measurement


Industrial Process

•
  Chemical processing

•
  Food & beverage production

•
  Pulp & paper industry

•
  General process liquid measurement


Infrastructure Applications

•
  Large plant utilities

•
  Remote installation environments

•
  Industrial automation systems


Key Features

•
  Designed for Yokogawa ADMAG AXW Magnetic Flow Meter

•
  ADMAG Total Insight (TI) series remote transmitter

•
  Remote installation configuration

•
  Dual-frequency excitation technology

•
  Built-in verification function

•
  Advanced diagnostic functions

•
  Optional microSD data storage

•
  Flexible I/O configuration

•
  HART / Fieldbus / Modbus communication options

•
  Reliable signal processing for industrial applications


FAQ

What is Yokogawa AXW4A ADMAG TI Remote Converter?

The AXW4A is a remote transmitter designed for the Yokogawa ADMAG AXW Magnetic Flow Meter system, providing signal conversion, diagnostics and communication functions.

What flow meter is compatible with AXW4A?

The AXW4A is designed for the ADMAG AXW electromagnetic flow meter series.

Why use a remote converter configuration?

A remote converter allows flexible installation when the sensor and transmitter need to be separated due to temperature, accessibility or environmental conditions.

Does AXW4A support diagnostics?

Yes. The AXW4A includes built-in verification and advanced diagnostic functions to improve measurement reliability and simplify maintenance.

What industries use AXW4A?

Typical industries include water treatment, wastewater, chemical processing, food & beverage and general industrial applications.
