High-Performance Remote Transmitter for ADMAG Magnetic Flow Meters

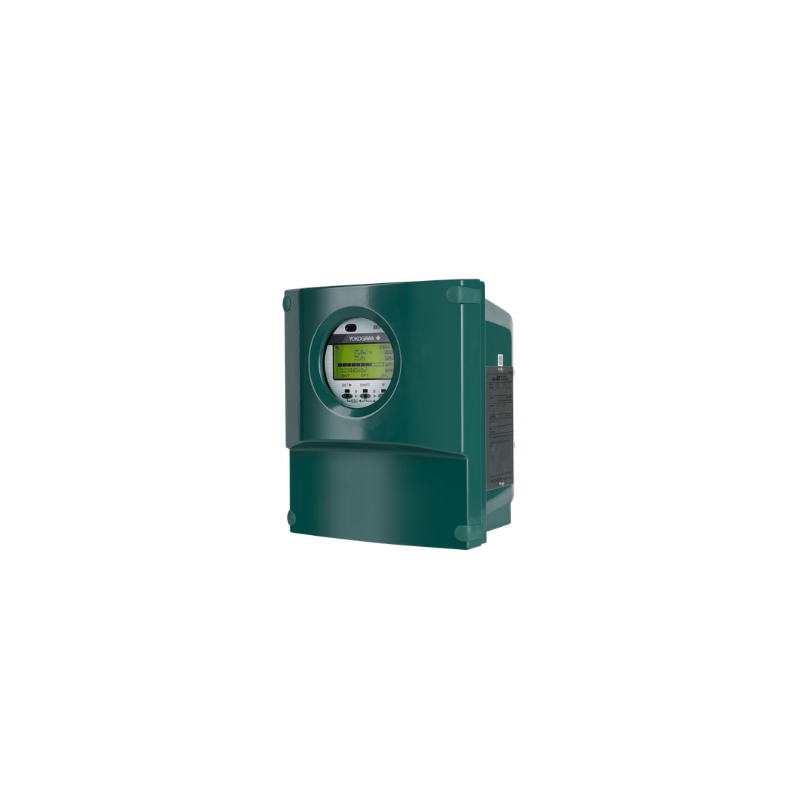

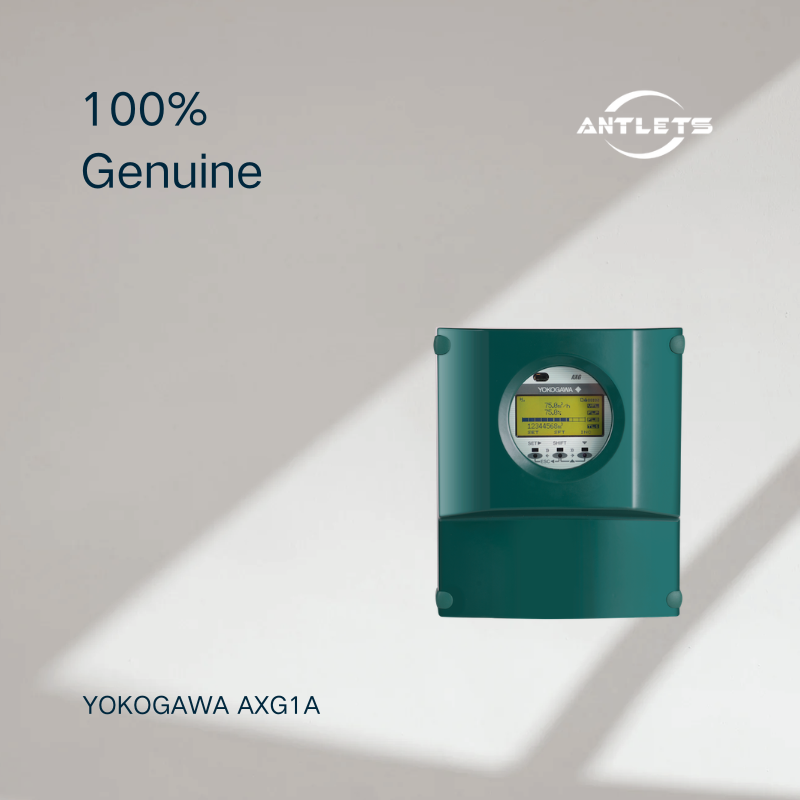

The Yokogawa AXG1A ADMAG TI Remote Transmitter is a high-grade remote transmitter developed for Yokogawa electromagnetic flow measurement systems. It is designed to work with ADMAG AXG and AXW flow sensors, providing accurate signal conversion and reliable process data transmission.
The remote transmitter configuration allows the transmitter and sensor to be installed separately, making it suitable for applications where environmental conditions, installation space or process requirements require flexible mounting.
Yokogawa Total Insight Technology
The AXG1A is part of the ADMAG Total Insight (TI) series, which integrates advanced operation, diagnostics and maintenance support functions.
Key advantages include:
Easy Setup Wizard for simplified commissioning
Trend display for process monitoring
Parameter backup and restore function
Data logging capability with microSD card
Built-in verification function
Advanced application diagnostics
These features help users improve measurement reliability and reduce lifecycle maintenance costs.
Dual-Frequency Excitation for Stable Flow Measurement
The AXG1A ADMAG TI Remote Transmitter uses Yokogawa’s proprietary dual-frequency excitation method.
Benefits include:
Stable measurement under high flow noise conditions
Faster response time
Improved measurement reliability
Better performance with challenging process fluids
This technology enables reliable electromagnetic flow measurement even in demanding industrial environments.
Advanced Diagnostic Functions
The AXG1A provides comprehensive diagnostic functions to support predictive maintenance and improve plant reliability.
Available diagnostics include:
Electrode adhesion detection
Sensor empty check
Wiring connection diagnosis
Flow noise diagnosis
Low conductivity diagnosis
Electrode insulation deterioration diagnosis
These functions allow operators to identify potential measurement issues before they affect the process.
Built-In Verification Function
The Yokogawa AXG1A Remote Transmitter includes built-in verification capabilities.
Advantages:
Instrument health checking without removing the flow meter
Reduced maintenance downtime
Improved measurement confidence
Easier troubleshooting
The verification function can also be enhanced with the Yokogawa ADMAG TI verification tool.
Flexible Communication and Data Management
The AXG1A supports flexible integration into industrial control systems.
Communication options include:
HART 7
BRAIN communication
Additional functions:
microSD data storage
Parameter backup and duplication
Multiple input/output configurations
Temperature input for density correction and calorie calculation
These features make the AXG1A suitable for modern digitalized process plants.
Typical Applications
Chemical Industry
Suitable for:
Chemical process measurement
Corrosive liquid monitoring
Batch process control
Water & Wastewater
Applications:
Water treatment systems
Distribution networks
Utility flow monitoring
Food & Beverage
Used for:
Hygienic process measurement
Liquid production monitoring
Oil & Gas
Suitable for:
Process liquid measurement
Refinery utility systems
Pulp & Paper
Applications:
Slurry measurement
Process liquid monitoring
Key Features
Yokogawa AXG1A ADMAG TI Remote Transmitter
Compatible with ADMAG AXG and AXW Magnetic Flow Meter sensors
High-grade remote transmitter design
Dual-frequency excitation technology
Built-in verification function
Electrode adhesion detection
Advanced application diagnostics
microSD data storage option
Easy Setup Wizard
Trend monitoring function
HART 7 and BRAIN communication
Flexible I/O configuration
Suitable for industrial process applications
FAQ
What is Yokogawa AXG1A ADMAG TI Remote Transmitter?
The Yokogawa AXG1A is a high-grade remote transmitter used with ADMAG AXG and AXW electromagnetic flow meters for reliable signal processing and flow measurement control.
What flow meters are compatible with AXG1A?
The AXG1A can be combined with Yokogawa ADMAG AXG and AXW magnetic flow sensors.
What is the advantage of a remote transmitter?
A remote transmitter allows flexible installation by separating the transmitter from the sensor, which is useful in harsh environments or locations with limited installation space.
Does AXG1A support diagnostics?
Yes. The AXG1A includes electrode adhesion detection, wiring diagnosis, flow noise diagnosis, low conductivity diagnosis and other monitoring functions.
What communication protocols are available?
The AXG1A supports HART 7 and BRAIN communication protocols depending on configuration.
