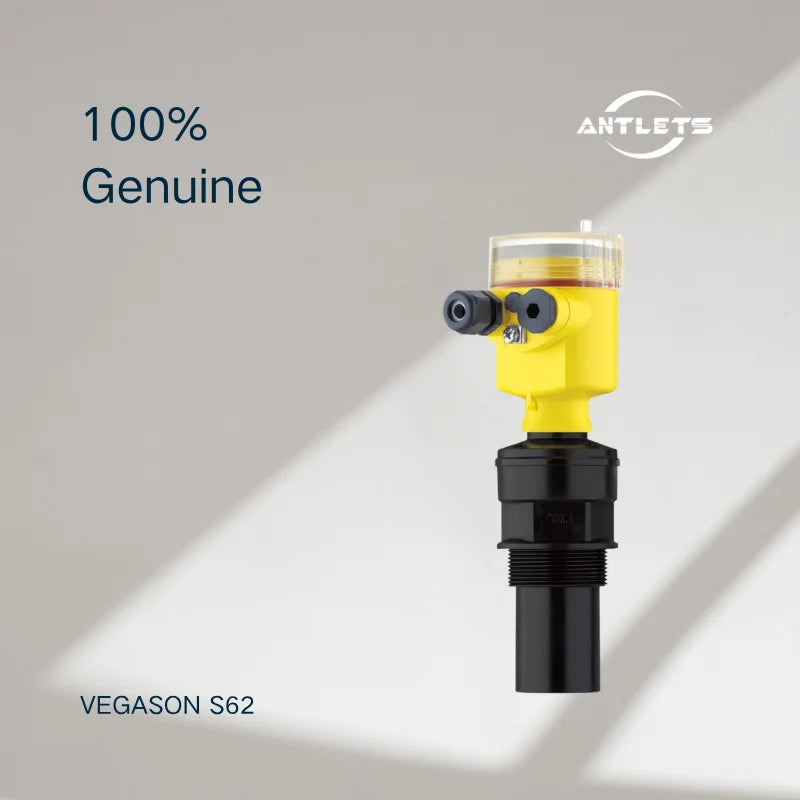

The VEGA VEGASON S62 is a non‑contact ultrasonic level sensor designed for continuous level measurement of both liquids and bulk solids. It uses ultrasonic pulses to determine fill level based on reflected signals from the product surface. The sensor measures liquids up to 8 m and bulk solids up to 3.5 m. ([turn0search4][turn0search6])
This instrument is suitable for measuring water, chemicals and other process fluids in storage tanks, open basins or small silos. Because the measurement is independent of medium characteristics, setup can be done even without medium present. ([turn0search4][turn0search8])
Typical applications include tanks, reservoirs, water treatment facilities and industrial vessels.
Not Recommended For:
• Gas‑only applications without liquid interface
• Very harsh environments where ultrasonic echo may fail
• Confirm the required measuring range for your application. VEGASON S62 supports up to 8 m for liquids.
• Verify whether the sensor will measure liquids or bulk solids. Range for solids is typically shorter (up to ~3.5 m).
• Choose the required output signal, such as two‑wire 4…20 mA/HART or other optional digital protocols.
• Check the process temperature and pressure limits (typically ~‑40 °C to +80 °C and -0.2….2 bar).
• In addition, ensure the protection rating (IP66/IP67) meets your environmental requirements.
• Non‑Contact Ultrasonic Measurement
Because the sensor measures by ultrasonic reflection, it avoids medium contact. As a result, wear and maintenance are reduced compared to contacting probes.
• Wide Measuring Range for Liquids
It supports a measuring range up to 8 m for liquids. Consequently, it handles deep tanks and open basins efficiently.
• Suitable for Liquids and Solids
In addition to liquids, the sensor can also detect bulk solids up to about 3.5 m, making it flexible for mixed process environments.
• Robust Industrial Construction
The housing offers IP66/IP67 protection, enabling reliable performance in dusty and wet industrial environments.
Standard output is 4…20 mA, and optional HART or digital protocols are available for remote parameterization and system integration. Adjustment can be done with modules like PLICSCOM or PC software.
Q: What is the measuring principle of VEGASON S62?
A: It uses ultrasonic pulses that reflect off the product surface. The time from emission to reception correlates with level.
Q: What media can it measure?
A: The sensor is suitable for continuous level measurement of liquids and bulk solids.
Q: What is the maximum measuring range?
A: The maximum measuring range for liquids is 8 m, and for solids is about 3.5 m.
Q: What outputs and interfaces are supported?
A: A two‑wire 4…20 mA/HART output is standard, with optional digital protocols available. Adjustment is possible via adjustment modules or PC.
| Vendor | VEGA |
|---|---|
| Type | Level Measurement |
