Product Introduction

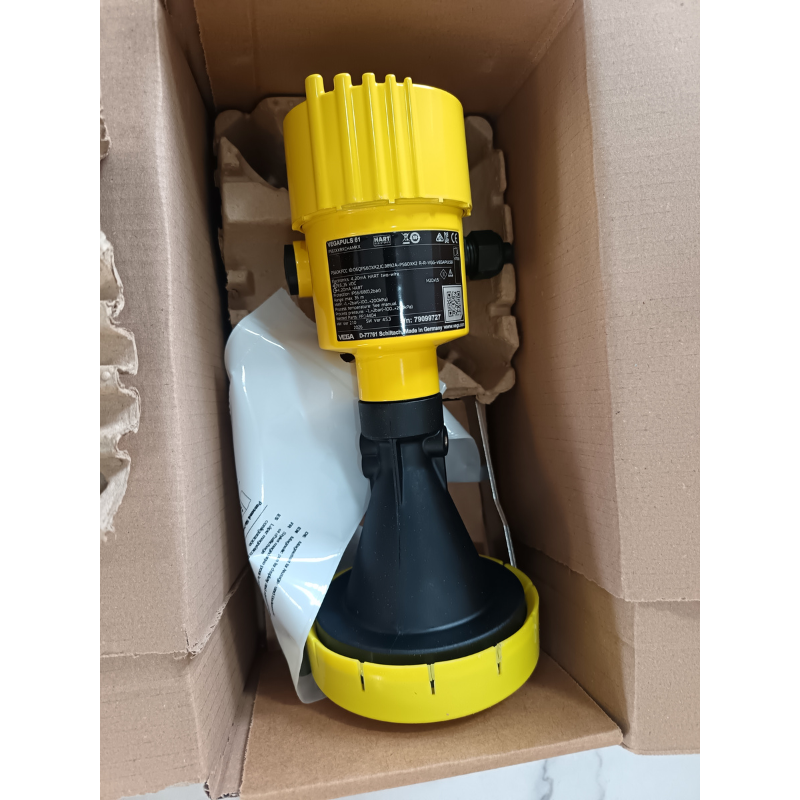

The VEGA VEGAPULS 61 is a radar sensor for continuous, non-contact measurement of liquid levels in tanks and vessels under simple process conditions. It measures the distance to the liquid surface using microwave signals, helping operators monitor levels without direct contact with the medium. Its versatile mounting options support cost-effective installation in industrial and environmental applications.
Key Features
- Non-contact radar measurement reduces wear and routine maintenance.
- Measuring range up to 35 m for suitable tank and vessel applications.
- Measurement accuracy: ±2 mm, according to the published product data.
- 26 GHz radar technology for continuous liquid-level monitoring.

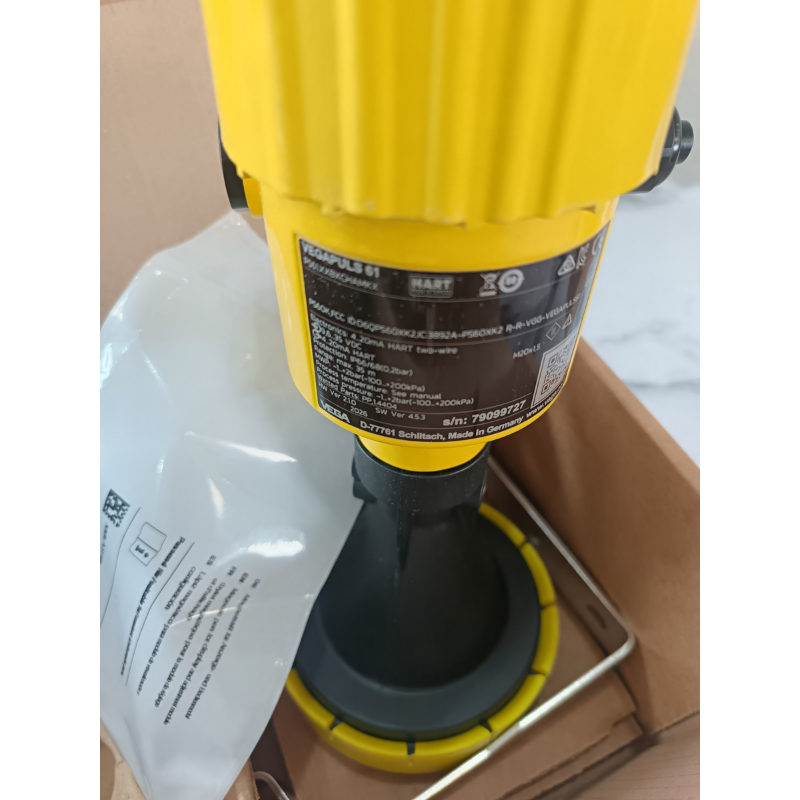

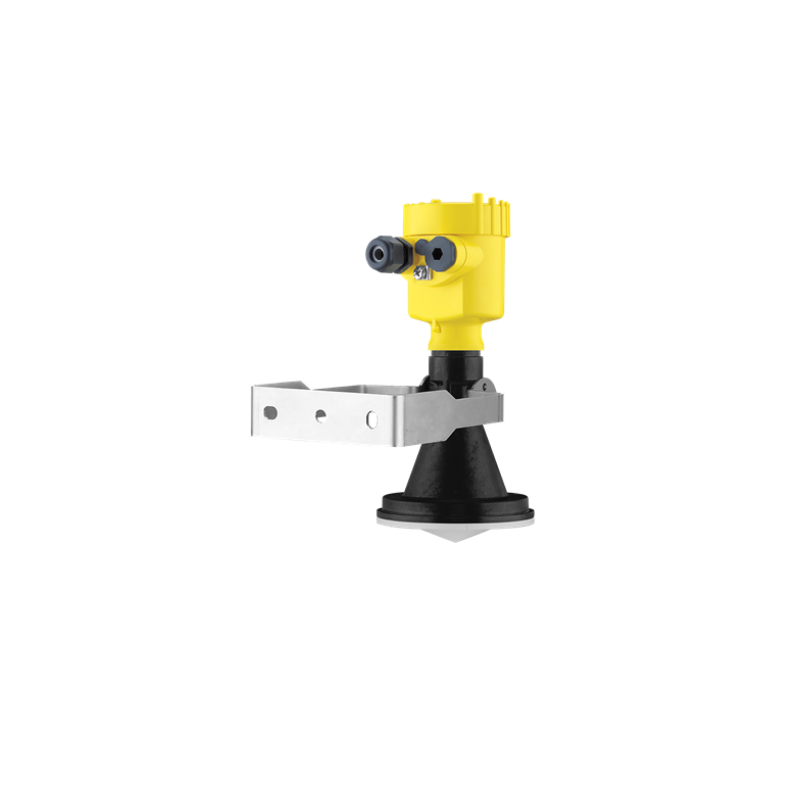

- Flexible installation options, including threaded and flange connections, depending on configuration.
- Multiple output options, including 4–20 mA/HART and fieldbus variants, depending on model.
Applications
- Water and wastewater treatment plants
- Water purification and environmental engineering facilities
- Liquid storage tanks and process vessels
- Utility systems and power-generation facilities
- General industrial liquid-level monitoring under simple process conditions
Technical Highlights and Selection Considerations
The VEGAPULS 61 has a published process temperature range of -40 to +80 °C and a process pressure range of -1 to +3 bar. Available antenna designs, wetted materials, process connections, housing options, and communication outputs depend on the selected configuration.
Product status: VEGA identifies the VEGAPULS 6X as the successor to the VEGAPULS 61. For a new installation, consider whether the newer model is more suitable; for replacement or existing systems, verify compatibility and configuration before ordering.
Frequently Asked Questions
1. What does the VEGA VEGAPULS 61 measure?
It measures the level of liquids continuously and without direct contact with the medium.
2. What is the maximum measuring range?
The published maximum measuring range is up to 35 m, depending on the application and configuration.
3. Which industries use the VEGAPULS 61?
Typical applications include water treatment, wastewater management, environmental engineering, power generation, and general industrial liquid storage.
4. What output options are available?
Published versions include two-wire 4–20 mA/HART, as well as selected fieldbus and other output variants. Confirm the required output when specifying the instrument.
5. Is the VEGAPULS 61 still the latest model?
No. VEGA lists the VEGAPULS 6X as its successor. The appropriate choice depends on whether you need a replacement for an existing installation or a sensor for a new project.
