Product Introduction

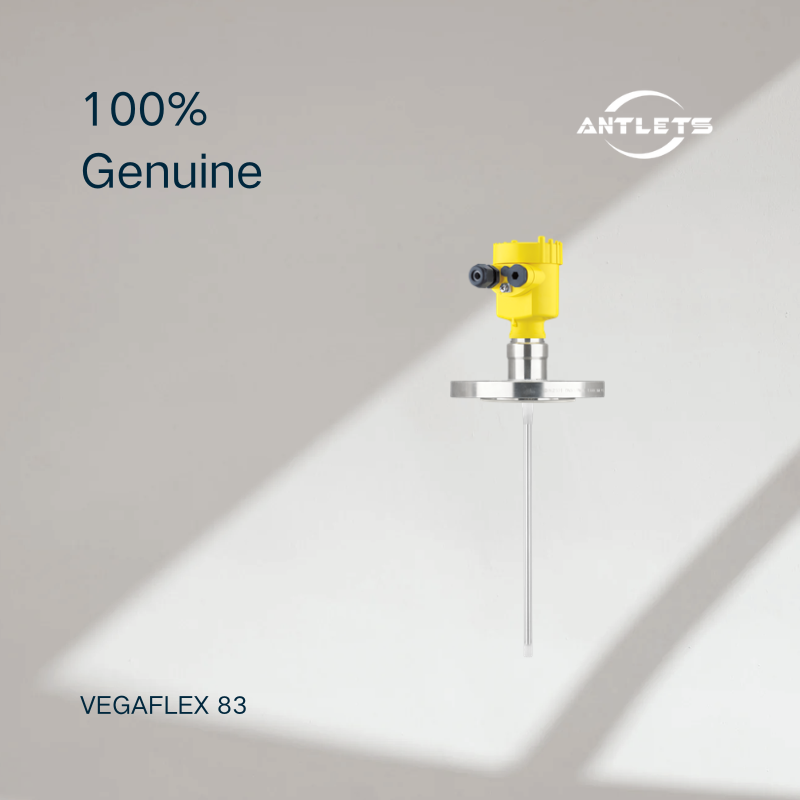

The VEGA VEGAFLEX 83 is a guided wave radar transmitter for continuous liquid-level and interface measurement in hygienic and chemically demanding applications. It guides microwave pulses along a probe and evaluates their reflections to determine the liquid level or the boundary between two liquids. Its specialized probe designs support applications requiring high cleanability or resistance to aggressive media.
Key Features
- Guided wave radar (TDR) technology for continuous level and interface measurement.
- Measuring range up to 32 m for suitable configurations.
- Measurement accuracy of ±2 mm, according to published product data.
- PFA-coated or polished stainless steel probes for different process requirements.
- Reliable measurement in applications involving foam, vapor, condensation, or product buildup.
- Hygienic design options for food and pharmaceutical processes.
- Process temperature range from -40 to +150 °C.
- Multiple communication options, including 4–20 mA/HART and selected fieldbus versions, depending on configuration.
Applications
- Level measurement in food and beverage tanks
- Milk storage and processing vessels
- Pharmaceutical and sterile process containers
- Acid and corrosive-liquid storage tanks
- Chemical processing vessels
- Hygienic filling and batch-processing systems
- Liquid interface measurement in compatible applications
Technical Highlights and Selection Considerations

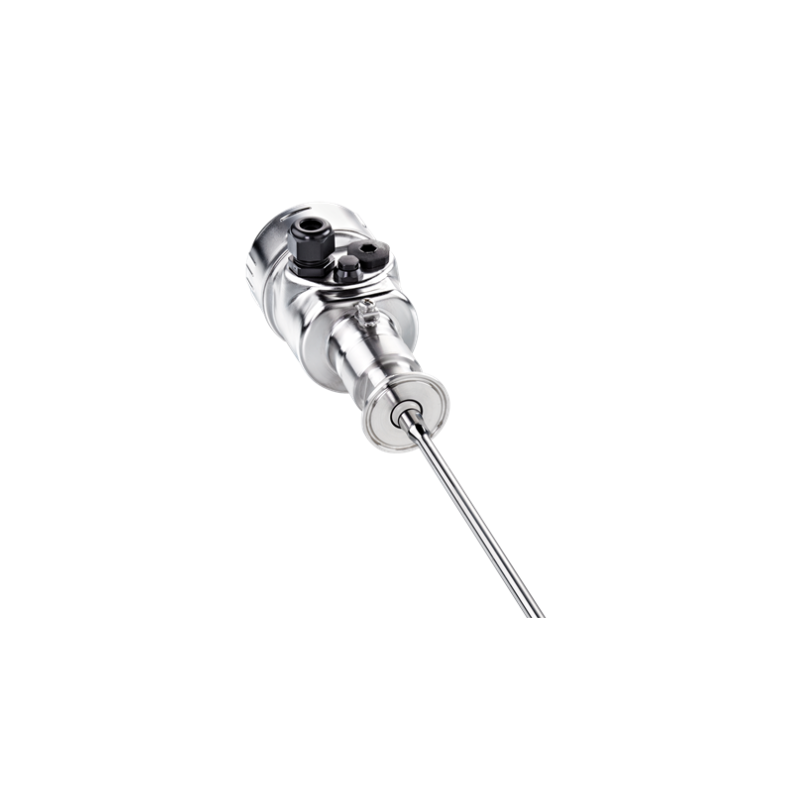

The VEGAFLEX 83 supports process pressures from -1 to +16 bar, with a maximum measuring range of 32 m. Available probe designs include PFA-coated rods, polished or electropolished stainless steel rods, and PFA-coated cable probes. Wetted materials and seals vary by configuration.
When selecting a transmitter, consider the liquid's chemical compatibility, hygiene requirements, cleaning or sterilization procedures, tank geometry, probe length, process temperature and pressure, and required output signal. For food and pharmaceutical applications, verify the required hygienic approvals and suitability of all wetted materials.
Frequently Asked Questions
1. What is the VEGA VEGAFLEX 83 used for?
It measures liquid level and liquid-to-liquid interfaces in hygienic processes and applications involving aggressive or corrosive liquids.
2. What is the maximum measuring range?
The published maximum measuring range is 32 m, depending on the probe and application.
3. Is the VEGAFLEX 83 suitable for food and pharmaceutical applications?
Yes. Its polished and electropolished probe options support hygienic applications. Confirm the required approvals and cleaning requirements for the selected configuration.
4. Can it measure aggressive liquids?
Yes. PFA-coated probe options and compatible wetted materials are available for suitable aggressive-media applications. Chemical compatibility should be checked before ordering.
5. Can the VEGAFLEX 83 measure through foam or condensation?
Guided wave radar can provide reliable readings in applications involving foam, vapor, condensation, or buildup. Actual performance depends on the medium, probe configuration, and process conditions.
6. Which output signals are available?
The product family offers 4–20 mA/HART and selected fieldbus or other output versions. Confirm the specific electronics and communication protocol required.
7. What is the maximum process temperature and pressure?
The published limits are +150 °C for process temperature and +16 bar for process pressure, with lower limits possible depending on the selected configuration.
