Product Introduction

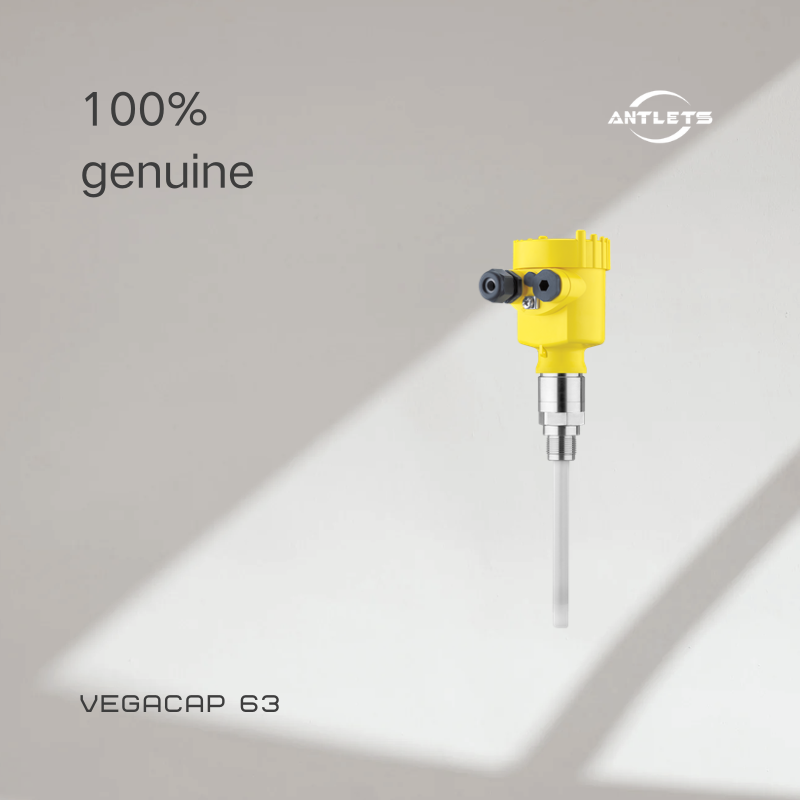

The VEGA VEGACAP 63 is a capacitive point level switch for detecting whether liquids or non-abrasive bulk solids have reached a defined level. It detects changes in capacitance between the probe and the vessel, converting them into a switching signal for level monitoring and process control.
Key Features
- Fully Insulated Rod Electrode: Available with PE or PTFE insulation for different process media.
- Adjustable Switching Point: Allows flexible setup to suit the required detection level.
- Long Sensor Length: Supports probe lengths up to 6 m.
- Robust Construction: Designed for long service life and reduced maintenance.
- Flexible Outputs: Options include relay (DPDT), transistor (NPN/PNP), contactless electronic switch, and two-wire versions.
- Broad Process Compatibility: Depending on configuration, supports process temperatures from -50 to +200°C and pressures from -1 to +64 bar.
Applications
- Liquid Storage Tanks: High- or low-level detection in industrial vessels.
- Water and Wastewater: Level switching in suitable tanks and process systems.
- Chemical Processing: Point level detection for compatible liquids using suitable probe materials.
- Bulk Solids Handling: Level detection for non-abrasive solids in storage vessels.
- Overfill Protection: Supports high-level alarm applications when the selected configuration meets the required approvals.
Technical Highlights and Selection Considerations

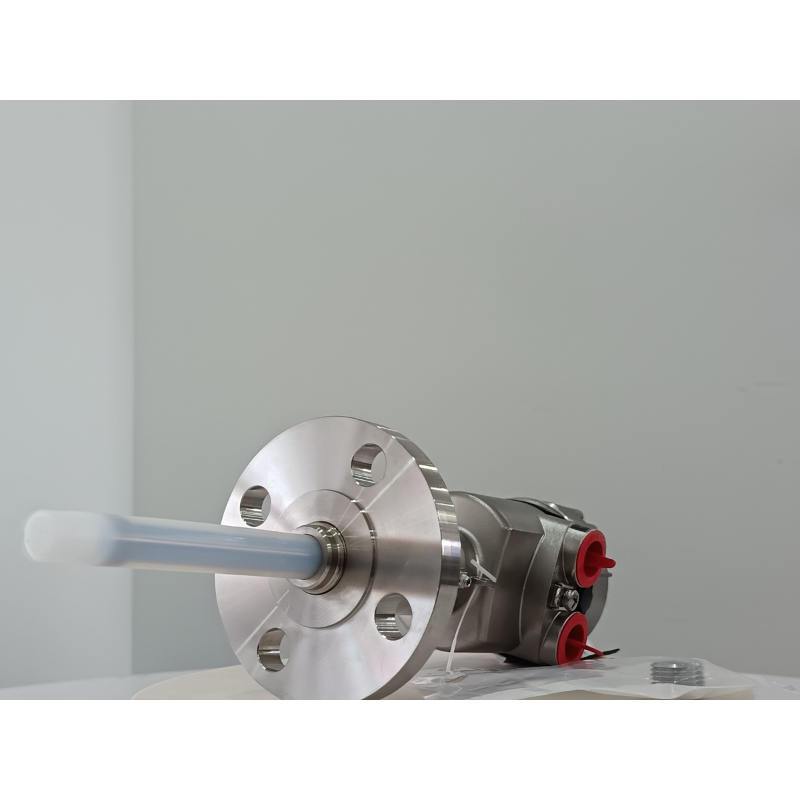

The VEGACAP 63 uses capacitive sensing to provide a switching signal when the material reaches the configured detection point. Its fully insulated rod probe and optional concentric or screening tubes help accommodate different vessel and process conditions.
When selecting a model, confirm the material being detected, probe length, process temperature and pressure, insulation material, output type, process connection, and required certifications. For hazardous areas or safety-related applications, verify the approvals and suitability of the exact configuration.
Frequently Asked Questions
Q1: What is the VEGA VEGACAP 63 used for?
It is used for point level detection in non-abrasive liquids and bulk solids, including high- and low-level monitoring.
Q2: What is the difference between VEGACAP 63 and VEGACAL 63?
The VEGACAP 63 is a point level switch that provides a switching signal at a defined level. The VEGACAL 63 is designed for continuous level measurement.
Q3: What is the maximum sensor length?
The sensor length can reach up to 6 m, depending on the selected configuration.
Q4: Which output options are available?
Options include relay (DPDT), transistor (NPN/PNP), contactless electronic switch, and two-wire versions. Availability depends on the selected model.
Q5: Can the VEGACAP 63 be used with aggressive liquids?
It can be suitable when the selected PE or PTFE insulation and other wetted materials are compatible with the process medium. Check chemical compatibility before ordering.
