Capacitive Point Level Detection for Liquids and Bulk Solids
The VEGACAP 62 is designed for point level detection, rather than continuous level measurement. It detects whether the measured material has reached the defined switching point and can therefore be used for applications such as high-level or low-level detection.
VEGA specifies the sensor for both liquids and bulk solids, making it suitable for a broad range of industrial level-switching applications.

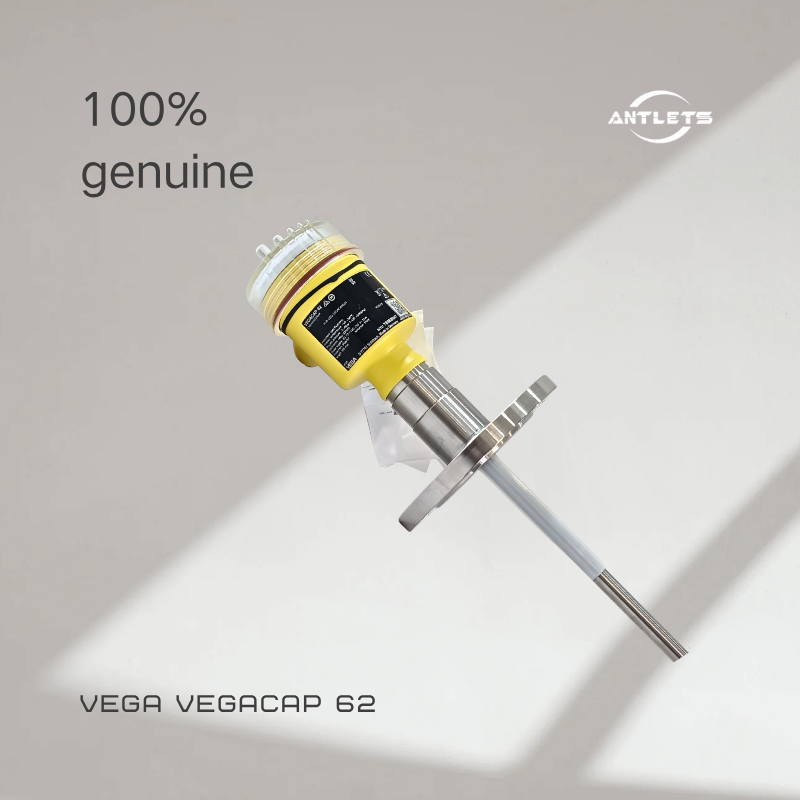

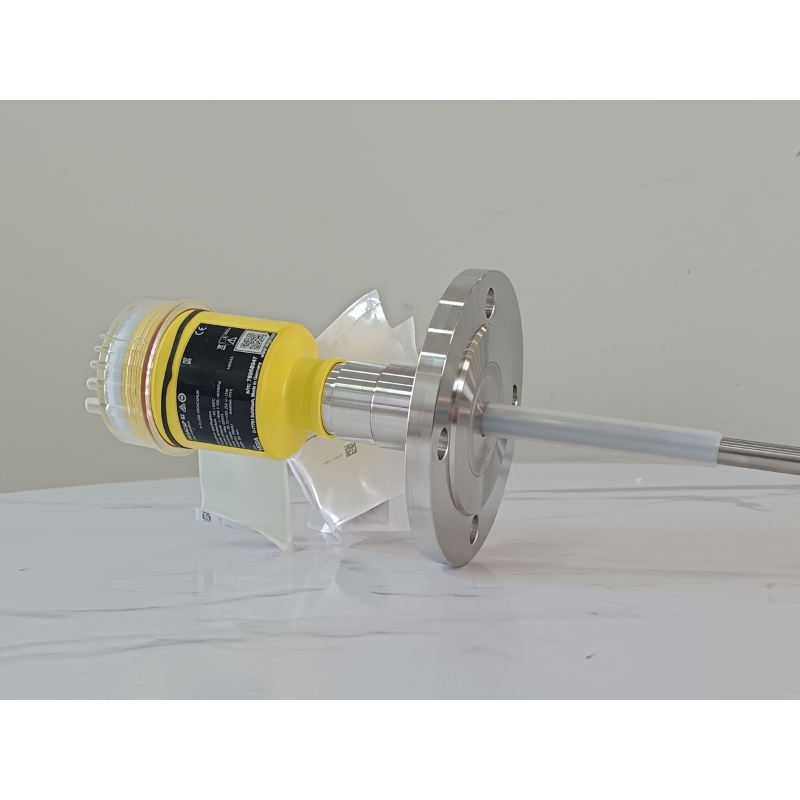

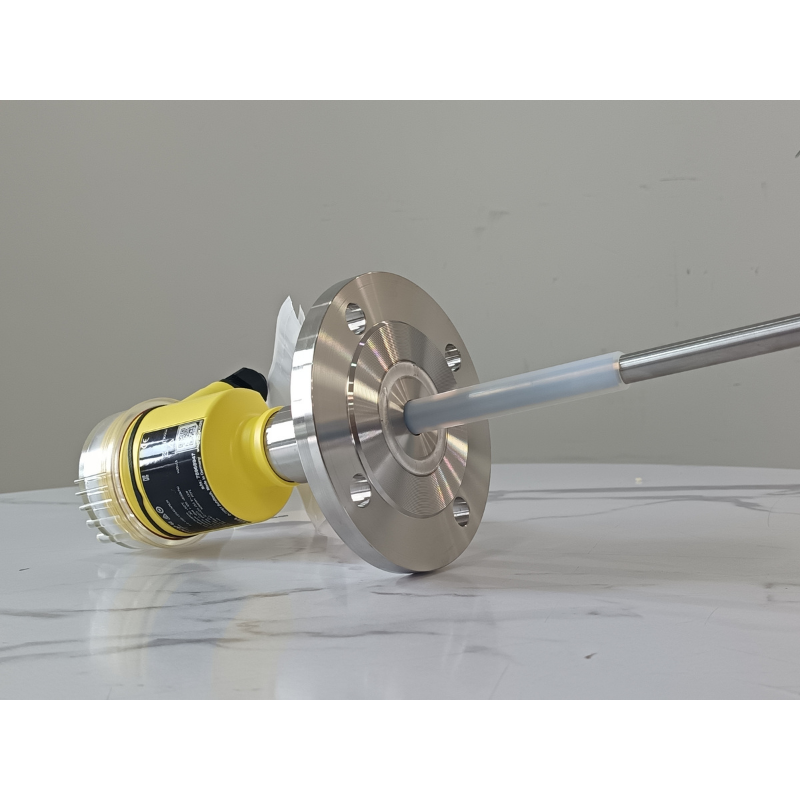

Partly PTFE-Insulated Rod Probe
The sensing element uses a partly PTFE-insulated rod, providing electrical insulation where required while maintaining a robust mechanical construction.
The wetted material options listed by VEGA include PTFE, 316L, Alloy 400, PEEK and steel C22.8, depending on the selected configuration.
Sensor Length Up to 6 m
The VEGACAP 62 is available with sensor lengths of up to 6 m, allowing the probe to be adapted to larger vessels and different installation requirements.
A key practical advantage is that the probe can be shortened on site, providing additional flexibility when the required installation length is known only after the vessel or process connection has been assessed.
Designed for Demanding Process Conditions
The VEGACAP 62 supports a process temperature range of -50 to +200°C and process pressures from -1 to +64 bar.
This wide operating range allows the probe to be used across many industrial process applications, including vessels where temperature and pressure requirements exceed those of simpler point level switches.
Flexible Process Connections
Depending on configuration, the VEGACAP 62 can be supplied with threaded process connections from G½ or ½ NPT and flange connections from DN25 or 1".
This allows the probe to be integrated into different vessel and piping arrangements.
Multiple Output Options
The VEGACAP 62 is available with several output configurations, including relay (DPDT), contactless electronic switch, transistor NPN/PNP and two-wire versions.
This allows the sensor to be matched to different signal-conditioning and control arrangements.
Built for Long-Term Industrial Use
VEGA describes the VEGACAP 62 as having a robust mechanical construction designed for high functional safety, with a long service life and low maintenance requirements.
The probe is intended for use across different industrial sectors and can be configured with different housing, process connection and material options depending on the application.
Protection and Hazardous-Area Options
The VEGACAP 62 is available with protection ratings including IP66/IP67 and IP66/IP68, depending on configuration.
A range of approvals is also available, including ATEX, FM, CSA, IEC, NEPSI and other regional approvals, while SIL2, WHG/VLAREM II overfill protection and ship approvals are available for applicable configurations.
Optional PLICSLED Status Display
The VEGACAP 62 can be equipped with the PLICSLED pluggable display module, which provides local indication of the switching status.
This can be useful when commissioning or checking a point level switch directly at the measuring point.
Key Features
- Product type: Capacitive point level probe
- Partly PTFE-insulated rod probe
- Designed for liquids and bulk solids
- Point level detection for high- or low-level switching
- Sensor length up to 6 m
- Probe can be shortened
- Process temperature -50 to +200°C
- Process pressure -1 to +64 bar
- PTFE, 316L, Alloy 400, PEEK and steel C22.8 wetted material options
- Threaded connections from G½ / ½ NPT
- Flange connections from DN25 / 1"
- Relay, contactless electronic switch, NPN/PNP transistor and two-wire output options
- IP66/IP67 or IP66/IP68 protection depending on configuration
- PLICSLED display option
- ATEX, FM, CSA, IEC, NEPSI and other approvals depending on configuration
- SIL2 and overfill protection options depending on configuration
- Ship approvals available depending on configuration
Typical Applications
High-Level and Low-Level Detection
The VEGACAP 62 can be used as a switching device to detect when a liquid or bulk solid reaches a predefined level.
Typical applications include high-level alarms, low-level protection and basic level control.
Bulk Solid Storage
The probe can be installed in silos, hoppers and storage vessels containing bulk materials where point level detection is required.
The sensor's long probe length and shortenable design provide flexibility for different vessel dimensions.
Liquid Storage Tanks
For conductive or suitable process liquids, the VEGACAP 62 can be used to detect defined fill levels in storage and process vessels.
Process Vessels
The wide process temperature and pressure ranges make the VEGACAP 62 suitable for point level switching in demanding industrial vessels.
Overfill Protection
Applicable configurations can be used as part of overfill protection systems. VEGA lists WHG and VLAREM II overfill protection options for the product.
Chemical and General Industrial Processes
The available wetted materials and process connections allow the VEGACAP 62 to be configured for a variety of industrial liquids and bulk solids, including applications requiring corrosion-resistant probe materials.
FAQ
What is the VEGA VEGACAP 62?
The VEGACAP 62 is a capacitive point level probe for detecting the level of liquids and bulk solids. It is designed for switching applications rather than continuous level measurement.
Is the VEGACAP 62 for continuous level measurement?
No. The VEGACAP 62 is a point level sensor. For continuous capacitive level measurement, VEGA offers the VEGACAL series, including the VEGACAL 62.
What materials can the VEGACAP 62 measure?
VEGA specifies the VEGACAP 62 for liquids and bulk solids. The exact suitability depends on the electrical properties of the medium and the selected probe configuration.
What is the maximum probe length?
The sensor length can be up to 6 m. The probe can also be shortened to match the required installation length.
What is the operating temperature range?
The specified process temperature range is -50 to +200°C.
What is the maximum process pressure?
The specified process pressure range is -1 to +64 bar. The applicable limit depends on the selected configuration.
What process connections are available?
Depending on configuration, the VEGACAP 62 is available with threaded connections from G½ and ½ NPT, as well as flange connections from DN25 and 1".
What outputs are available?
VEGA lists relay (DPDT), contactless electronic switch, NPN/PNP transistor and two-wire output versions. The appropriate output depends on the selected electronics and signal-conditioning arrangement.
Can the VEGACAP 62 be used for overfill protection?
Yes. VEGA lists WHG and VLAREM II overfill protection options, with the exact approval depending on the selected configuration.
Can the VEGACAP 62 be used in hazardous areas?
Yes. Depending on configuration, VEGA lists approvals including ATEX, FM, CSA, IEC and NEPSI, together with different explosion-protection concepts. The exact approval should be confirmed against the selected order code.
Does the VEGACAP 62 have a local status display?
A PLICSLED pluggable display module is available for local indication of the switching status.
