Product Introduction

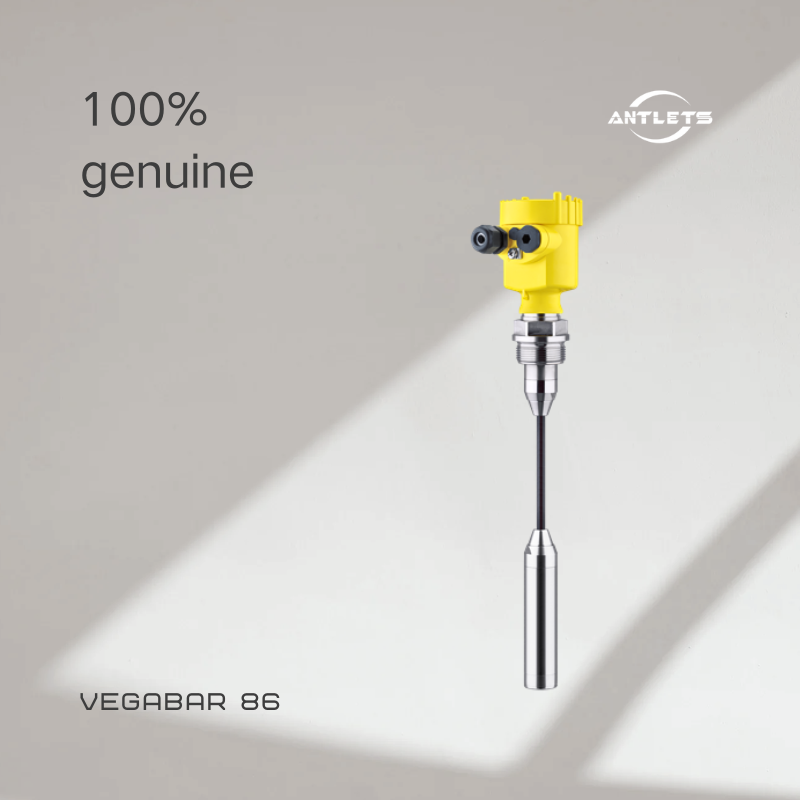

The VEGA VEGABAR 86 is a submersible pressure transmitter for continuous hydrostatic level measurement. It uses a ceramic CERTEC® measuring cell to measure liquid pressure and convert it into a signal for determining liquid level. When combined with another compatible VEGABAR Series 80 sensor, it can also support electronic differential pressure measurement.
Key Features
- Ceramic CERTEC® Measuring Cell: Offers high overload resistance and long-term stability.
- Front-Flush Design: Helps minimize deposits on the measuring diaphragm.
- Flexible Installation: Available with suspension cable or tube versions for different installation depths.
- Chemical Compatibility: Suitable materials are available for water, acids, alkalis, and other compatible liquids.
- Multiple Output Options: Depending on configuration, available outputs include 4–20 mA, HART®, PROFIBUS PA, FOUNDATION Fieldbus, and Modbus.
- Electronic Differential Pressure: Can be paired with another compatible VEGABAR Series 80 sensor for additional measurement applications.
Applications
- Water and Wastewater Treatment: Level monitoring in wells, wastewater shafts, basins, and reservoirs.
- Chemical Processing: Measuring liquid levels in tanks containing compatible acids, alkalis, and process chemicals.
- Water Supply Systems: Monitoring water levels in wells and open storage tanks.
- Industrial Liquid Storage: Continuous level measurement in open vessels and process basins.
- Special Differential Pressure Applications: With a compatible secondary sensor, supports applications such as level difference, flow, density, and interface measurement.
Technical Highlights and Selection Considerations
The VEGABAR 86 combines a robust ceramic sensor with flexible submersible installation. The published measuring range extends up to 25 bar, with a stated accuracy of 0.1% for the listed product specification. Maximum sensor length is up to 250 m for cable versions and 6 m for tube versions, depending on configuration.
When selecting a model, confirm the liquid properties, measurement depth, process temperature, cable or tube length, wetted materials, output signal, and required approvals. Ensure that seal and housing materials are compatible with the application.
Frequently Asked Questions
Q1: What is the VEGA VEGABAR 86 used for?
It is primarily used for hydrostatic level measurement in wells, basins, open tanks, and other liquid-containing vessels.
Q2: What is the advantage of its ceramic measuring cell?
The ceramic CERTEC® cell offers high overload resistance and long-term stability, helping reduce maintenance requirements.
Q3: Can the VEGABAR 86 measure chemically aggressive liquids?
Yes, when the selected wetted materials and seals are compatible with the liquid. Confirm chemical compatibility before ordering.
Q4: What output signals are available?
Depending on the selected version, outputs include 4–20 mA, 4–20 mA/HART®, PROFIBUS PA, FOUNDATION Fieldbus, and Modbus.
Q5: Can the VEGABAR 86 be used for differential pressure measurement?
Yes. When combined with a compatible VEGABAR Series 80 sensor, it can support electronic differential pressure measurement and related applications.
