Product Introduction

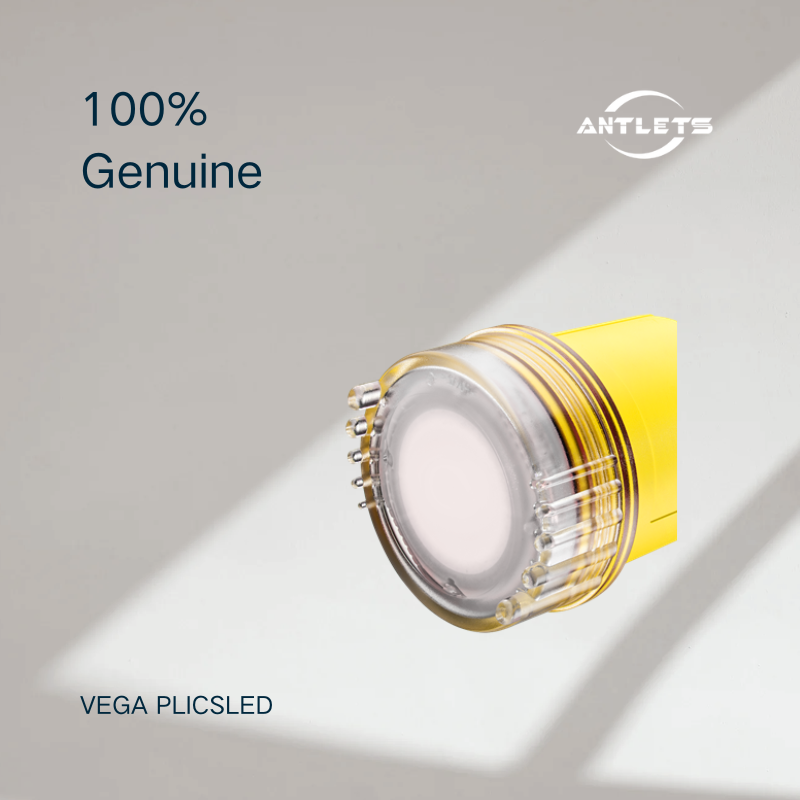

The VEGA PLICSLED is a pluggable display module that indicates the switching status of compatible VEGA plics® level switches with relay outputs. Integrated directly into the sensor housing, it provides a visible LED indication so operators can check the switch state without additional external wiring or a separate display unit.
Key Features

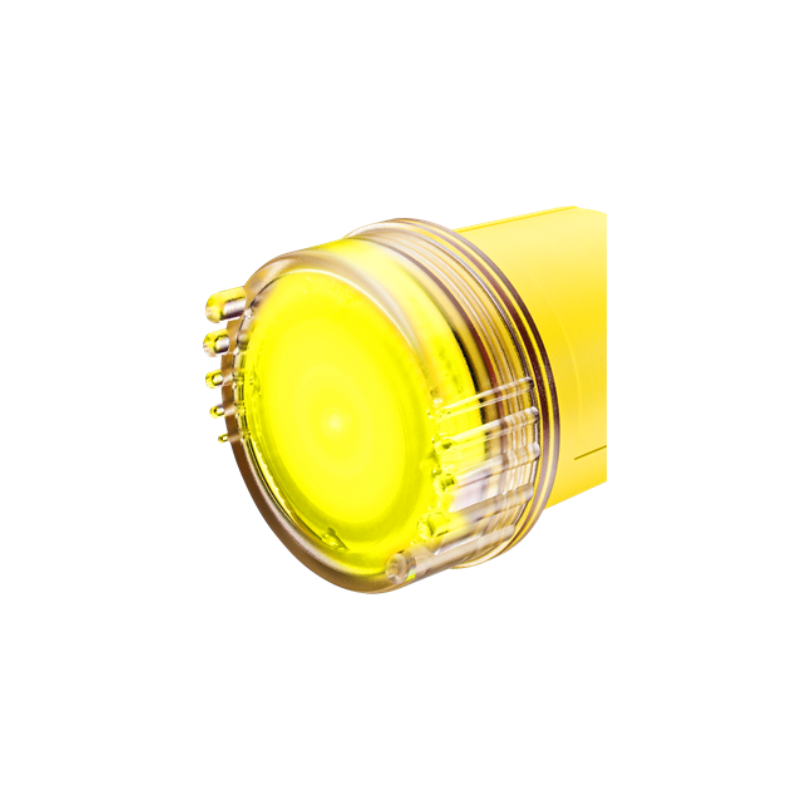

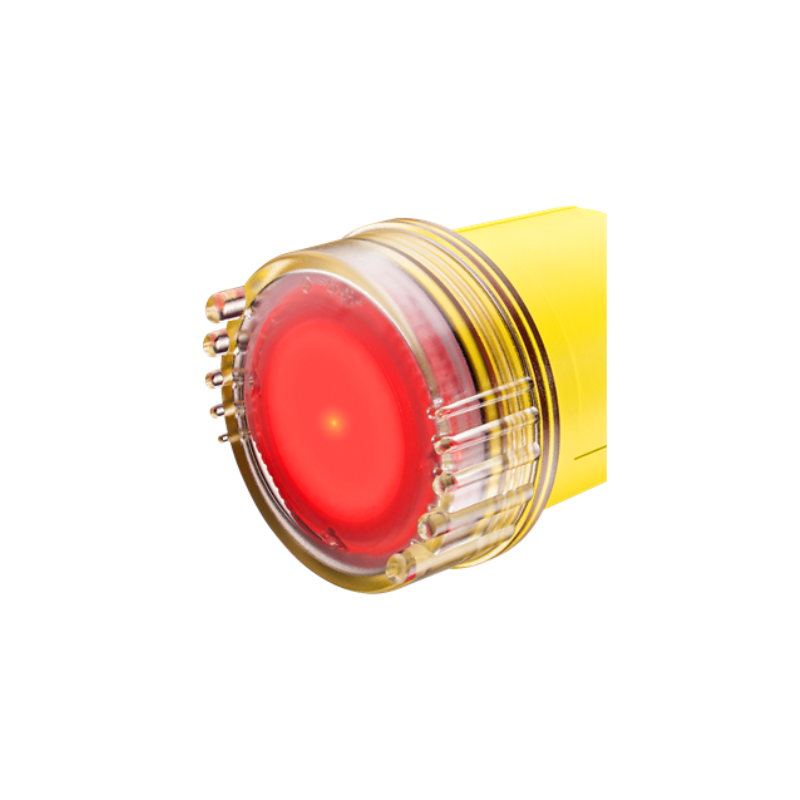

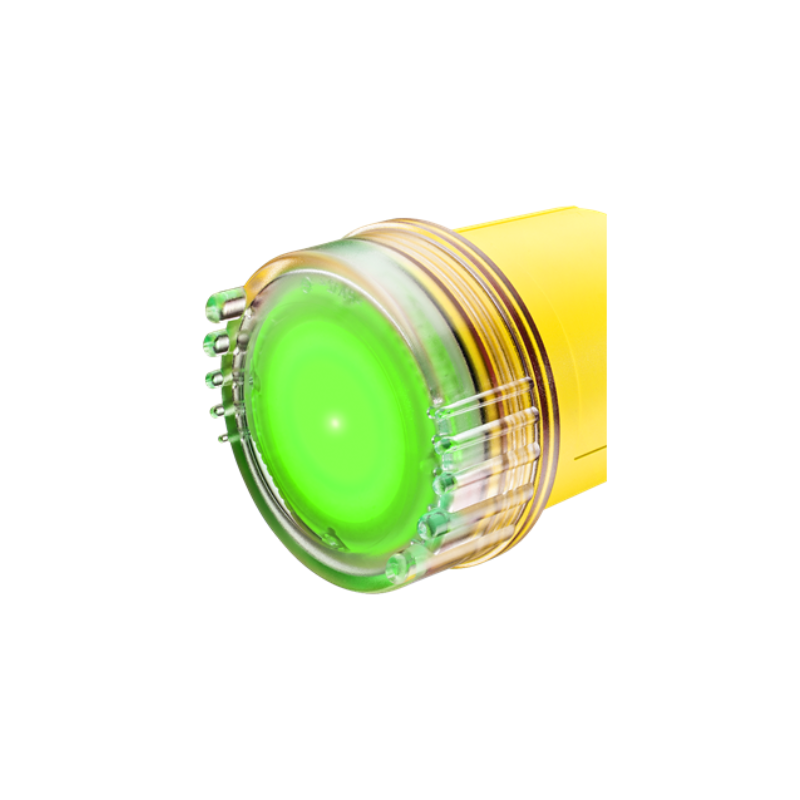

- Clear LED status indication using red-green or yellow-green illumination.
- No external wiring required, simplifying installation.
- Direct integration into compatible plics® sensor housings.
- Visible in bright daylight for convenient local status checks.
- Wide operating voltage range: 20–253 V AC/DC, 50/60 Hz.
- Wide ambient temperature range: -40 to +80 °C.
- IP66/IP67 protection when installed in a compatible sensor housing.
Applications
- Switching status indication for liquid level switches
- High-level and low-level monitoring in tanks
- Overfill and low-level alarm systems
- Bulk-solids level switching applications
- Industrial process monitoring and equipment inspection
- Local status indication in water and wastewater facilities
Technical Highlights and Selection Considerations
The PLICSLED is designed for VEGA plics® sensors with relay outputs, including compatible models in the VEGASWING 60, VEGAVIB 60, VEGAWAVE 60, VEGACAP 60, and VEGAMIP 60 series.
Power consumption is approximately 0.8 W or 2 VA at 253 V AC. The module is available with red-green or yellow-green status indication. Before ordering, verify the exact sensor model, relay electronics, indicator color, and housing compatibility.
Frequently Asked Questions
1. What is the VEGA PLICSLED used for?
It provides a visible indication of the switching status of compatible VEGA level switches.
2. Which sensors are compatible with the PLICSLED?
It is designed for compatible plics® level switches with relay outputs, including selected VEGASWING, VEGAVIB, VEGAWAVE, VEGACAP, and VEGAMIP Series 60 models.
3. What colors does the indicator display?
Depending on the version, the indicator uses red-green or yellow-green illumination.
4. Does the PLICSLED require separate wiring?
No external wiring is required for the indicator module. It is installed directly inside the compatible sensor housing.
5. What is the operating temperature range?
The specified ambient temperature range is -40 to +80 °C.
6. Can the PLICSLED be installed separately on any level sensor?
No. It is intended for compatible VEGA plics® sensors with relay outputs. Check the sensor's electronics and housing before selecting the module.
