A Pluggable Interface for VEGA Sensors
PLICSCOM provides a local display and operating interface for compatible VEGA sensors. Rather than functioning as an independent measuring instrument, it works as an accessory and adjustment module installed directly inside the sensor housing.
It can display measured values and provide access to sensor setup and operating parameters, making commissioning and service work more convenient.

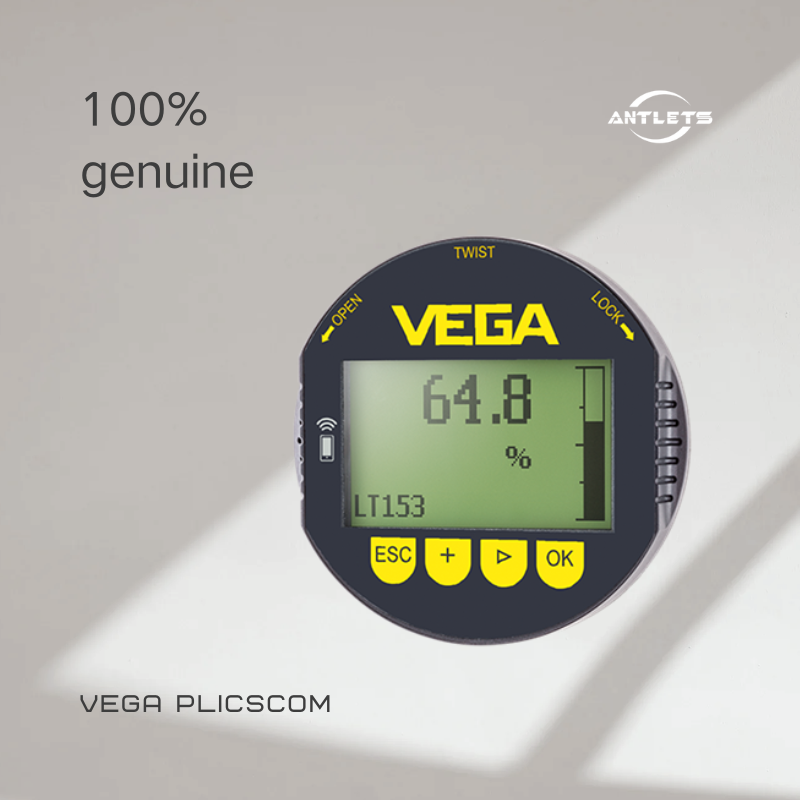

Clear Graphic-Capable LC Display

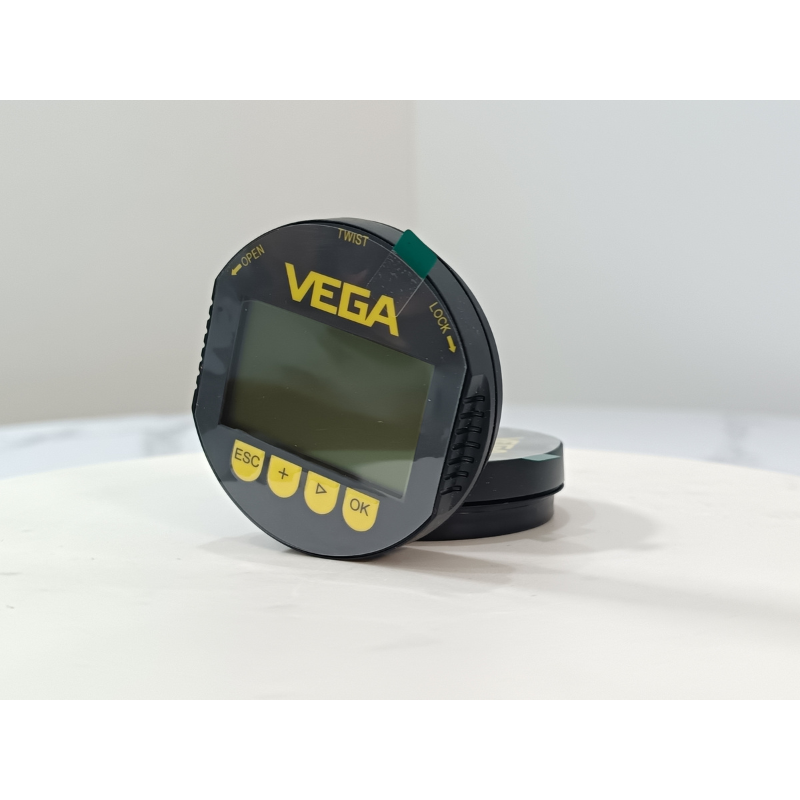

The PLICSCOM features a graphic-capable LC display designed to present measured values and configuration information clearly.
Integrated lighting improves visibility during local operation, while the four-key interface provides direct access to the module's adjustment functions.

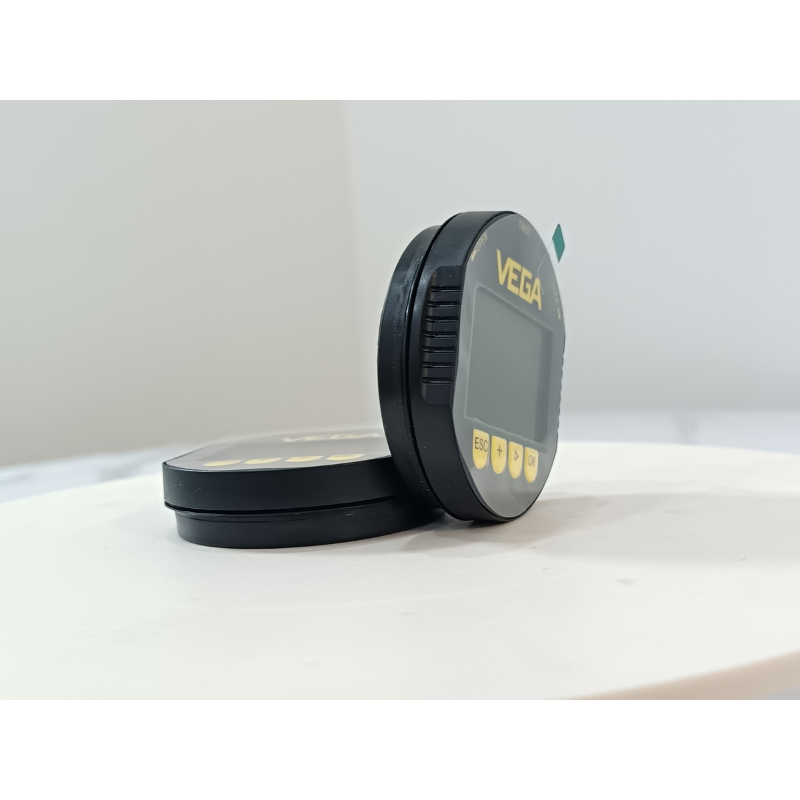

Easy to Install and Remove
One of the practical advantages of PLICSCOM is its plug-in design. The module can be inserted into a compatible sensor and removed again without interrupting the sensor's power supply.
This allows the same module to be used with other compatible sensors when required, reducing the need for a permanently installed display and adjustment unit at every measuring point.
Compatible with a Wide Range of VEGA Instruments
VEGA specifies PLICSCOM as a universal display and adjustment module for compatible instruments across the plics® family and several VEGA product series.
The official product page lists compatibility with VEGABAR series 50/60/80, VEGADIF 65/85, VEGACAL series 60, VEGAFLEX series 60/80, VEGAPULS series 60, VEGASON series 60, PROTRAC and VEGADIS series 80, in addition to plics® sensors. Compatibility should be checked against the specific sensor configuration before ordering.
Optional Bluetooth Operation
Selected PLICSCOM versions support Bluetooth communication, allowing sensor adjustment from a smartphone, tablet or PC.
This provides an alternative to operating the sensor directly through the four-key interface and can be particularly useful when parameter access is needed without working directly at the sensor display.

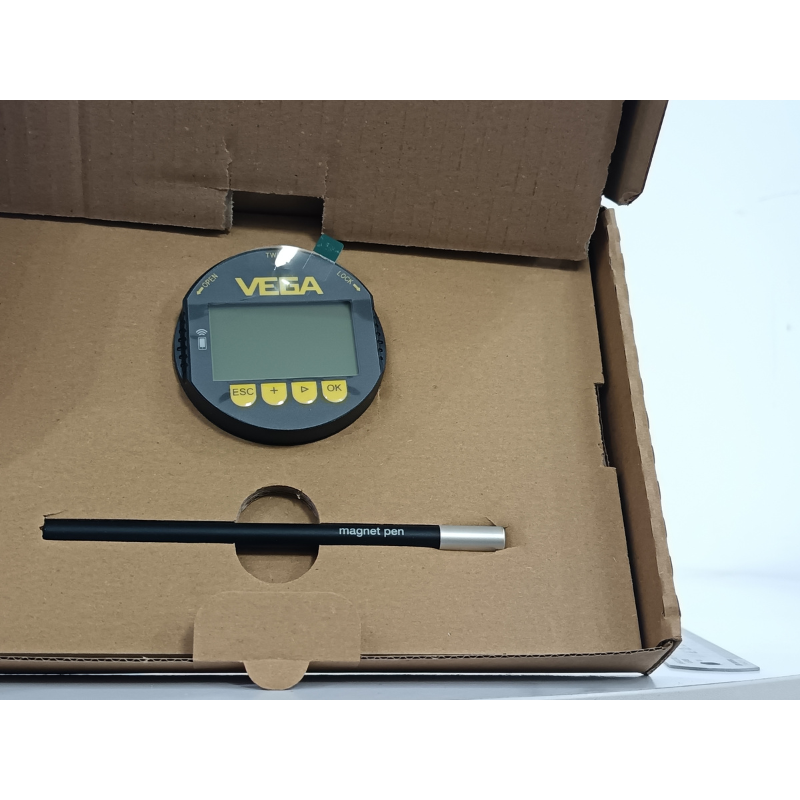

Magnetic Pen Operation
When the sensor is equipped with a housing lid with an inspection window, PLICSCOM can also support operation using a magnetic pen.
This provides an additional way to operate the display and adjustment functions while keeping the housing closed.
Suitable for Double-Chamber Sensor Housings
For VEGA sensors with double-chamber housings, PLICSCOM can be installed in either housing compartment.
This provides greater flexibility for positioning the display and adjustment interface where it is easier to access and read.
Designed for Industrial Sensor Configuration
PLICSCOM is intended for local commissioning, parameter adjustment and measured value indication rather than signal conditioning or independent measurement.
It provides a practical interface for working directly with compatible VEGA sensors during installation, commissioning, maintenance and service.
Key Features
- Product type: Pluggable display and adjustment module
- Designed for compatible VEGA plics® sensors
- Local measured value indication
- Sensor setup and parameter adjustment
- Graphic-capable LC display
- Integrated display lighting
- Four-key operation
- Plug-in design
- Can be removed without interrupting the sensor power supply
- Optional Bluetooth communication
- Wireless operation with smartphone, tablet or PC depending on configuration
- Magnetic pen operation with compatible housing configuration
- Suitable for selected VEGABAR, VEGADIF, VEGACAL, VEGAFLEX, VEGAPULS, VEGASON, PROTRAC and VEGADIS instruments
- IP20/IP40 protection rating
- Ambient temperature -20 to +70°C
- ATEX, IEC and UKEX approvals depending on configuration
- Intrinsic safety options depending on configuration
- DNV, LR and NK ship approvals depending on configuration
Typical Applications
Local Sensor Commissioning
PLICSCOM can be used during initial commissioning of compatible VEGA sensors to access setup parameters and verify measured values directly at the instrument.
On-Site Parameter Adjustment
For maintenance or process changes, the module provides a direct interface for adjusting compatible sensor parameters without requiring a separate PC.
Measured Value Display
PLICSCOM can provide a convenient local display of the measured value directly at the sensor, which is useful when a separate external display is not required.
Maintenance and Service
Because the module can be removed and used with other compatible sensors, PLICSCOM can be useful for service teams working across multiple VEGA measuring points.
Wireless Sensor Adjustment
Versions with Bluetooth can be used for wireless sensor adjustment from a smartphone, tablet or PC, providing an alternative to local keypad operation.
Difficult-to-Access Measuring Points
Bluetooth-enabled operation can be useful where direct access to the sensor display is inconvenient, provided the selected PLICSCOM and sensor configuration support the required wireless functionality.
FAQ
What is the VEGA PLICSCOM?
PLICSCOM is a pluggable display and adjustment module for compatible VEGA sensors. It provides local measured value indication and access to sensor setup parameters.
Is PLICSCOM a sensor?
No. PLICSCOM is not a measuring sensor or transmitter. It is a display and adjustment module used with compatible VEGA sensors.
Can PLICSCOM be removed while the sensor is powered?
Yes. VEGA states that the module can be inserted and removed without interrupting the power supply to the sensor.
Which VEGA sensors are compatible with PLICSCOM?
VEGA lists compatibility with the plics® family and selected VEGABAR, VEGADIF, VEGACAL, VEGAFLEX, VEGAPULS, VEGASON, PROTRAC and VEGADIS series. The exact compatibility should be checked against the specific sensor and configuration.
Does PLICSCOM support Bluetooth?
Yes, Bluetooth is available on selected PLICSCOM versions. Bluetooth-enabled versions can support wireless operation from a smartphone, tablet or PC.
Can PLICSCOM be operated without a PC?
Yes. The module provides local operation through its four-key interface and graphic-capable LC display, so a PC or dedicated software is not required for basic local adjustment.
What is the ambient temperature range?
The current VEGA specifications list an ambient temperature range of -20 to +70°C.
What is the protection rating of PLICSCOM?
VEGA specifies IP20/IP40, depending on the applicable installation or configuration.
Is PLICSCOM the same as VEGADIS 81 or VEGADIS 82?
No. PLICSCOM is a plug-in display and adjustment module installed in compatible VEGA sensors, while VEGADIS products are external display and adjustment units. VEGA lists these as separate products within its indicating-instrument range.
Can PLICSCOM be used with VEGA radar sensors?
PLICSCOM is compatible with selected VEGA radar instruments, including the VEGAPULS series 60 listed by VEGA. Compatibility with newer sensor generations should be checked against the exact sensor model and configuration before ordering.
