Smart Pressure Transmitter for Industrial Process Measurement
The Siemens SITRANS P320 (7MF03) is part of the SITRANS P family of digital pressure transmitters, developed for accurate and reliable pressure measurement in demanding industrial environments.
It combines proven sensor technology with digital communication and intelligent diagnostics, helping engineers improve process control, reduce maintenance effort, and increase plant reliability.
Typical applications include:
Chemical processing
Oil & gas production
Power generation
Water and wastewater treatment
Pharmaceutical and food industries
Process automation systems
Accurate Measurement with Long-Term Stability
The SITRANS P320 provides precise pressure measurement with excellent long-term stability, making it suitable for continuous industrial operation.
Key advantages:
Accuracy up to 0.065%
Fast response time
Stable measurement over long operating periods
Reliable performance under changing process conditions
The transmitter supports multiple pressure measurement tasks, including:
Gauge pressure measurement
Absolute pressure measurement
Differential pressure measurement
Level measurement
Flow measurement
Flexible Pressure Measurement Solutions
The 7MF03 series covers different pressure applications through various sensor configurations.
Gauge Pressure Measurement
Suitable for:
Pipeline pressure monitoring
Pump systems
Process equipment monitoring
Absolute Pressure Measurement
Ideal for:
Vacuum systems
Distillation processes
Pressure reference applications
Differential Pressure Measurement
Used for:
Filter monitoring
Flow measurement
Level measurement in closed tanks
This flexibility allows one transmitter family to cover a wide range of industrial measurement requirements.
Advanced Diagnostics for Easier Maintenance
The SITRANS P320 integrates intelligent diagnostic functions to help users identify device status and improve maintenance efficiency.
Benefits include:
Device status monitoring
Fault identification
Simplified commissioning
Reduced troubleshooting time
Improved plant availability
Diagnostics are designed according to industrial standards such as NAMUR NE107, providing clear device health information for operators.
HART Communication for Easy Integration
The SITRANS P320 supports modern industrial communication systems.
Available communication options include:
4–20 mA with HART
PROFIBUS PA
FOUNDATION Fieldbus (depending on configuration)
HART communication enables:
Remote parameter configuration
Device diagnostics
Process data access
Easier maintenance management
Designed for Harsh Industrial Environments
The SITRANS P320 features a rugged industrial design suitable for demanding process conditions.
Construction advantages include:
Stainless steel wetted parts options
Robust transmitter housing
Wide process temperature capability
Hazardous area approvals available

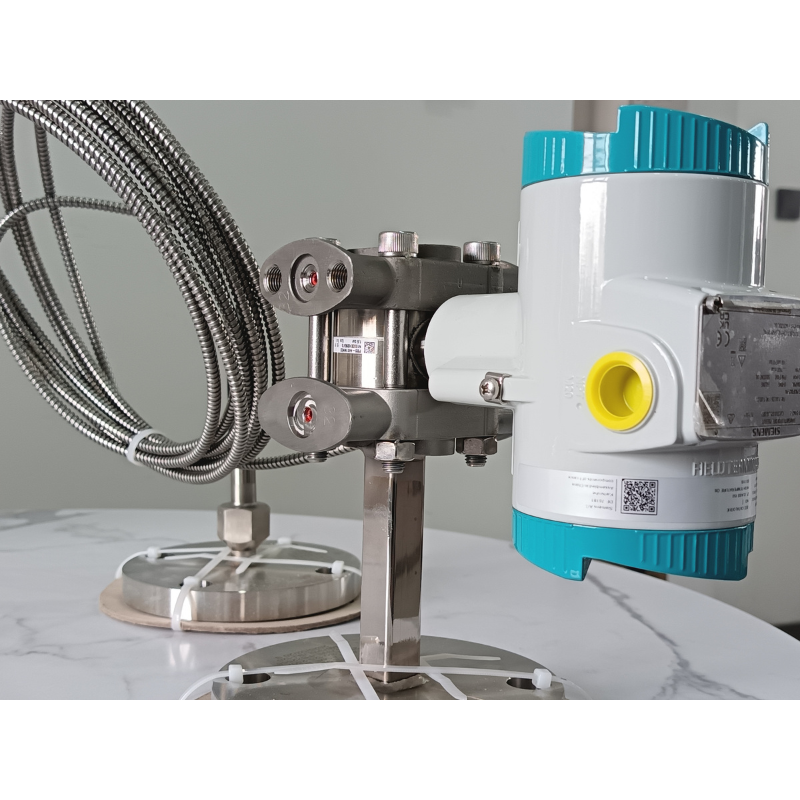

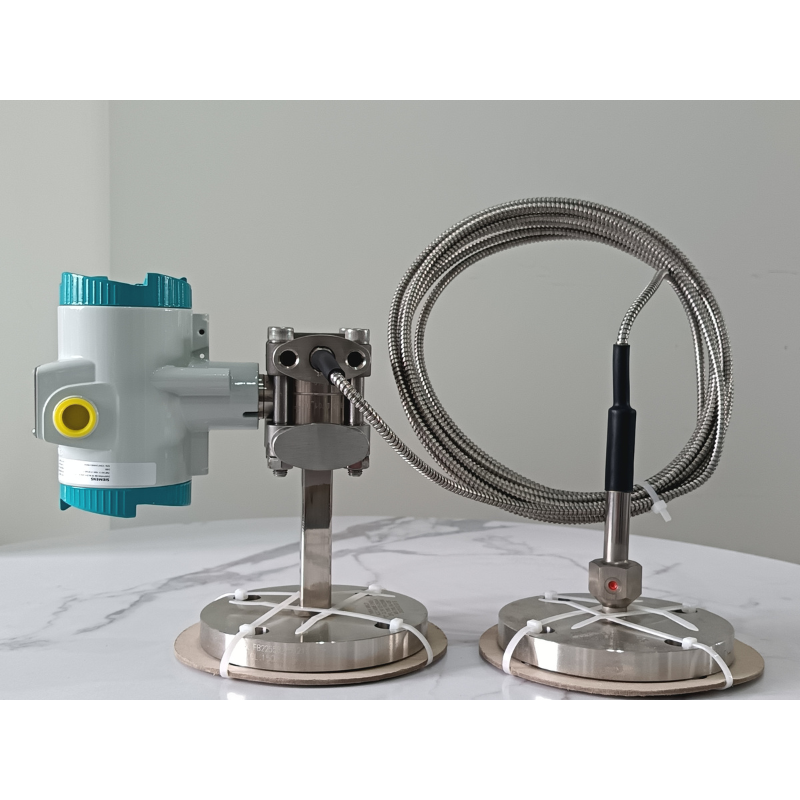

Depending on configuration, the transmitter can be equipped with different diaphragm materials and remote seals to handle corrosive, high-temperature, or special process media.
Safety Functions for Critical Applications
For industries where safety is essential, SITRANS P320 supports safety-related applications.
Features include:
SIL2/3 capability
Hazardous area certifications
Reliable pressure monitoring in safety loops
These functions make it suitable for critical process applications in chemical, petrochemical, and energy industries.
Wide Range of Process Connections and Configurations
The 7MF03 series can be customized according to installation requirements.
Configuration options include:
Different measuring ranges
Various process connections
Multiple diaphragm materials
Explosion protection options

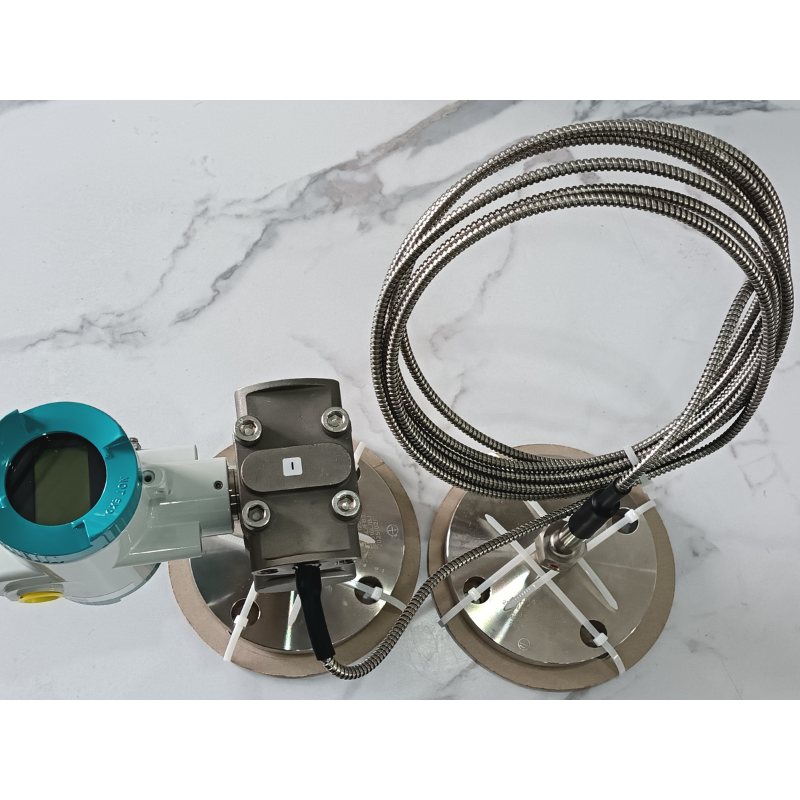

Display and local operation options
This modular design allows engineers to select the correct transmitter configuration for specific process conditions.
Typical Applications
Chemical Industry
Used for:
Reactor pressure monitoring
Pipeline pressure measurement
Process control systems
Oil & Gas
Suitable for:
Wellhead pressure monitoring
Separator systems
Pipeline applications
Water Treatment
Applied in:
Pump pressure monitoring
Filter differential pressure measurement
Water process control
Power Generation
Used for:
Steam systems
Cooling water systems
Boiler monitoring
FAQ
What is Siemens 7MF03?
Siemens 7MF03 is the order code family for the SITRANS P320 digital pressure transmitter, used for gauge, absolute, and differential pressure measurement in industrial applications.
What is the difference between SITRANS P320 and SITRANS P420?
The main difference is performance and digital functionality:
SITRANS P320: Reliable digital pressure transmitter for general and demanding industrial applications.
SITRANS P420: Higher-end version with improved accuracy and additional digital features such as onboard trend recording.
Can SITRANS P320 measure level?
Yes. When configured for differential pressure measurement, SITRANS P320 can be used for level measurement in closed tanks and process vessels.
Does SITRANS P320 support hazardous areas?
Yes. Depending on configuration, SITRANS P320 is available with hazardous area approvals including ATEX, IECEx, FM, CSA, and other international certifications.
What replaced older Siemens pressure transmitters?
For older SITRANS P DS III / P410 products, Siemens lists SITRANS P320/P420 as successor products for many applications.
Is SITRANS P320 suitable for chemical or petrochemical applications?
Yes. With robust construction, multiple diaphragm materials, hazardous area options, and advanced diagnostics, SITRANS P320 is designed for demanding process industries including chemical and petrochemical applications.
