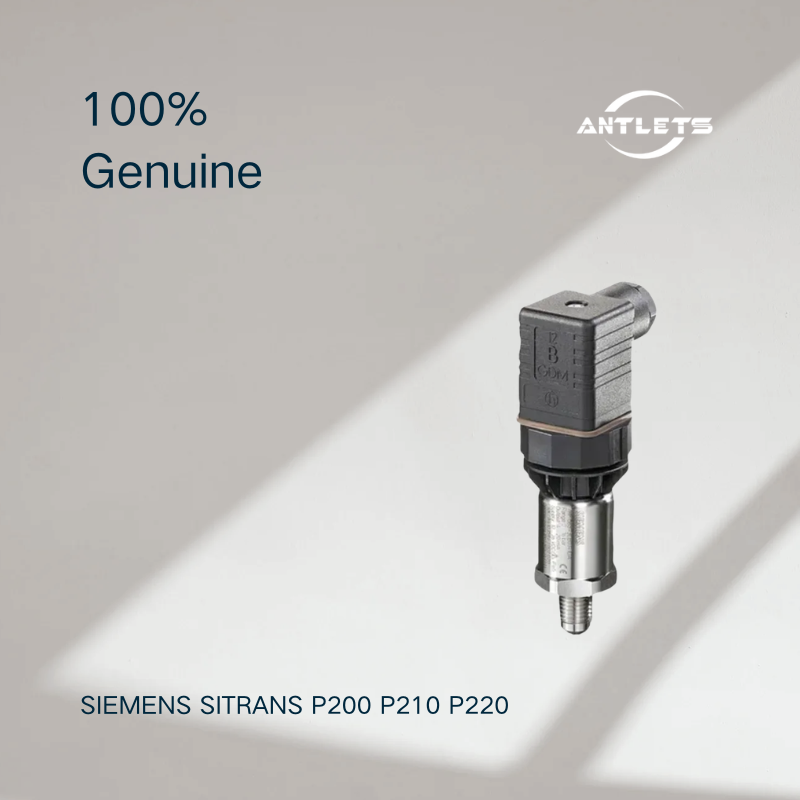

The Siemens SITRANS P200 / P210 / P220 7MF1565 / 7MF1566 / 7MF1567 Compact Pressure Transmitters are reliable and cost-effective pressure measurement solutions designed for general industrial applications. These compact transmitters measure gauge and absolute pressure of liquids, gases, and vapors with high accuracy and robust construction.

The SITRANS P200, P210, and P220 series are optimized for different pressure requirements. The SITRANS P200 is designed for standard pressure applications, the SITRANS P210 is optimized for low-pressure measurement, and the SITRANS P220 features a fully welded design for high-pressure and demanding applications.

With stainless steel housings, compact dimensions, and standard 4–20 mA two-wire output, these transmitters are suitable for machine building, water supply, chemical processing, power engineering, and industrial automation systems.

Product Series Overview

Key Features

• Compact pressure transmitter design
• Measures gauge and absolute pressure
• Suitable for liquids, gases, and vapors
• Reliable ceramic or stainless steel measuring cell options
• Stainless steel enclosure for industrial environments
• Standard 4–20 mA two-wire output
• High overload resistance
• Accuracy typically up to 0.25%
• Wide pressure range options
• Easy installation with multiple process connections
• Suitable for corrosive and non-corrosive media


Model Advantages

Siemens SITRANS P200 (7MF1565)

Designed for general industrial pressure measurement applications with compact structure and reliable performance. Suitable for standard liquid, gas, and vapor pressure monitoring.

Siemens SITRANS P210 (7MF1566)

Optimized for low-pressure applications, offering stable measurement for small pressure ranges such as ventilation, water systems, and process monitoring.

Siemens SITRANS P220 (7MF1567)

Designed with a fully welded stainless steel construction for high-pressure and refrigerant applications, providing enhanced durability in demanding environments.

Applications

• Machine building equipment
• Hydraulic and pneumatic systems
• Water supply systems
• Chemical processing plants
• Power generation equipment
• HVAC pressure monitoring
• Industrial automation systems
• Pump and compressor monitoring
• Process gas and liquid measurement

Selection Notes

Before selecting the Siemens SITRANS P200 / P210 / P220 Compact Pressure Transmitter, consider:

• Required pressure range
• Gauge or absolute pressure measurement
• Medium type (liquid, gas, vapor)
• Process connection requirements
• Wetted material compatibility
• Operating temperature and environment
• Required electrical connection
• Hazardous area certification requirements

Choose the correct model according to application conditions:

• P200 → General industrial pressure measurement
• P210 → Low-pressure measurement
• P220 → High-pressure and harsh applications

FAQ

Q1: What is the difference between SITRANS P200, P210, and P220?
SITRANS P200 is designed for general pressure applications, P210 is optimized for low-pressure measurement, and P220 uses a fully welded design for high-pressure applications.

Q2: What media can SITRANS P200/P210/P220 measure?
These transmitters can measure the pressure of liquids, gases, and vapors in industrial processes.

Q3: What output signal does SITRANS P200/P210/P220 provide?
The transmitters typically provide a standard 4–20 mA two-wire output for industrial control systems.
