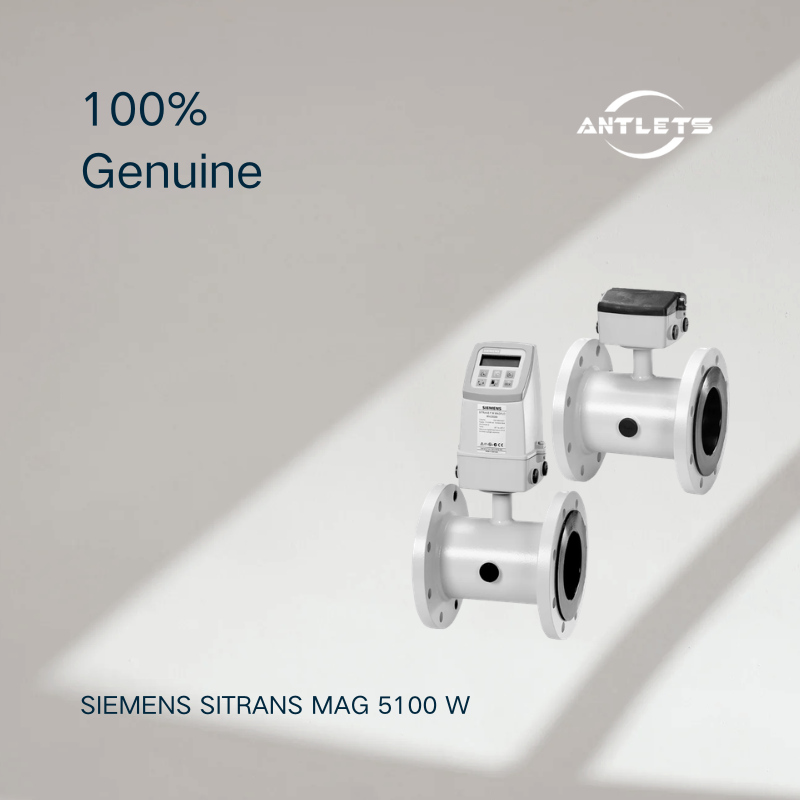

The Siemens SITRANS FM MAG 5100 W 7ME652 Electromagnetic Flow Sensor is a reliable magnetic flow sensor specially designed for all water applications, including drinking water, wastewater, groundwater, sewage, sludge, and industrial water measurement. Based on proven electromagnetic flow technology, it provides accurate volume flow measurement for conductive liquids.

The SITRANS MAG 5100 W features a robust construction, coned liner design for improved low-flow accuracy, and excellent resistance to harsh environments. It is suitable for water distribution networks, leak detection systems, irrigation, filtration plants, and industrial water processes.

The sensor can be combined with Siemens SITRANS MAG 5000, MAG 6000, or MAG 6000 I transmitters to create a complete electromagnetic flow measurement system.

Key Features

• Electromagnetic flow measurement technology for conductive liquids
• Designed for drinking water and wastewater applications
• Suitable for groundwater, sewage, sludge, and industrial water
• Coned liner design improves low-flow measurement accuracy
• No moving parts for low maintenance operation
• Wide nominal diameter range from DN15 to DN2000
• Supports drinking water approvals and custody transfer applications
• Suitable for direct burial and constant flooding environments
• Compatible with SITRANS MAG 5000, MAG 6000, and MAG 6000 I transmitters
• Available with multiple flange standards including EN, ANSI, AWWA, AS, and JIS


Applications

• Drinking water measurement
• Water supply networks
• Wastewater treatment plants
• Sewage and sludge measurement
• Irrigation systems
• Water abstraction facilities
• Reverse osmosis and filtration plants
• Industrial process water monitoring
• Leak detection management systems

Selection Notes

Before selecting the Siemens SITRANS MAG 5100 W Electromagnetic Flow Sensor, consider:

• Medium conductivity and fluid characteristics
• Pipe diameter and installation conditions
• Required liner material (NBR, EPDM, etc.)
• Drinking water certification requirements
• Flange standard and pressure rating
• Compatible transmitter model
• Environmental conditions such as burial or flooding

Correct sensor configuration ensures accurate measurement and long-term reliability in water applications.

FAQ

Q1: What applications is Siemens SITRANS MAG 5100 W designed for?
The SITRANS MAG 5100 W is designed for water abstraction, water treatment, water distribution, wastewater, irrigation, and industrial water applications.

Q2: Can SITRANS MAG 5100 W measure wastewater and sludge?
Yes. The sensor is designed for wastewater, sewage, and sludge measurement applications.

Q3: Which transmitters are compatible with SITRANS MAG 5100 W?
It can be combined with Siemens SITRANS MAG 5000, MAG 6000, and MAG 6000 I transmitters.
