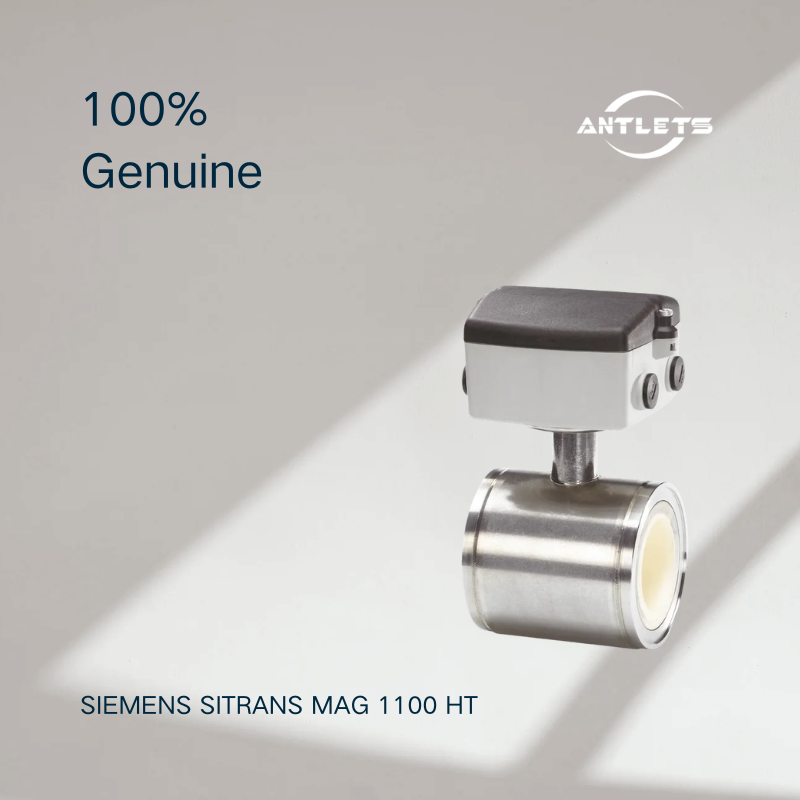

The Siemens SITRANS FM MAG 1100 HT 7ME612 Electromagnetic Flow Sensor is a high-temperature electromagnetic flow sensor designed for demanding process industry applications. It provides accurate volume flow measurement of conductive liquids in chemical, pharmaceutical, water treatment, and industrial processes.

Featuring a compact wafer design, corrosion-resistant stainless steel housing, and high-temperature capability up to 200 °C (392 °F), the SITRANS MAG 1100 HT is suitable for harsh process environments requiring reliable and stable flow measurement.

The sensor can be combined with Siemens SITRANS FM MAG 5000, MAG 6000, and MAG 6000 I transmitters to create a complete electromagnetic flow measurement system.

Key Features

• High-temperature electromagnetic flow measurement technology
• Designed for demanding process industry applications
• Temperature capability up to 200 °C (392 °F)
• Compact wafer-type sensor design
• Corrosion-resistant AISI 316 stainless steel housing
• Highly resistant liner and electrode materials
• Suitable for aggressive and extreme process media
• Available for hazardous area applications
• IP67 protection with optional IP68/NEMA 6P upgrade
• Compatible with SITRANS MAG transmitters


Applications

• Chemical process industries
• Pharmaceutical manufacturing
• Industrial water treatment
• Chemical dosing systems
• High-temperature liquid measurement
• Process automation systems
• Industrial utility applications
• Specialty chemical production

Selection Notes

Before selecting the Siemens SITRANS MAG 1100 HT Electromagnetic Flow Sensor, consider:

• Medium conductivity and chemical properties
• Required operating temperature
• Liner and electrode material compatibility
• Pipe size and flange requirements
• Hazardous area certification needs
• Compatible transmitter model
• Installation environment and protection level

Correct configuration ensures accurate and reliable flow measurement in high-temperature process applications.

FAQ

Q1: What is Siemens SITRANS MAG 1100 HT used for?
The SITRANS MAG 1100 HT is designed for conductive liquid flow measurement in process industries, chemical plants, pharmaceutical systems, and water treatment applications.

Q2: What is the maximum temperature of SITRANS MAG 1100 HT?
The high-temperature version supports process temperatures up to 200 °C (392 °F) depending on configuration.

Q3: Which transmitters are compatible with MAG 1100 HT?
It can be integrated with Siemens SITRANS FM MAG 5000, MAG 6000, and MAG 6000 I transmitters.
