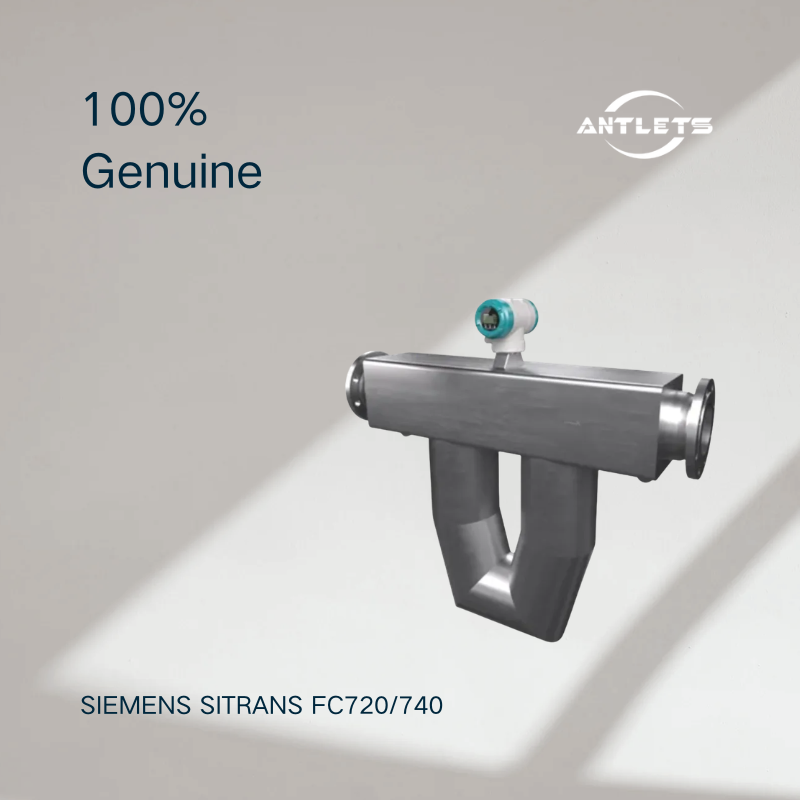

The Siemens SITRANS FC720 / FC740 7ME447 Coriolis Flowmeter is a high-performance Coriolis multi-parameter flow measurement system designed for large pipelines and high flow applications. It combines the FCS700 Coriolis sensor with either the FCT020 transmitter (FC720) or FCT040 transmitter (FC740) to deliver accurate mass flow, density, and process measurement.

Designed for demanding industrial processes, the SITRANS FC720/FC740 features robust dual curved measuring tubes, excellent turndown capability, and low pressure loss. It is suitable for large-scale applications requiring reliable measurement performance and long service life.

Key Features

• High-performance Coriolis mass flow measurement technology
• Designed for large pipes and high flow rates
• Available with FCS700 sensor and FCT020/FCT040 transmitter combinations
• Dual curved AISI 316L stainless steel or Alloy 22 measuring tubes
• Nominal sizes from DN100 to DN200
• Connection sizes from DN100 to DN250 (4" to 10")
• Flow rates up to 900,000 kg/h depending on configuration
• High turndown capability with low pressure loss
• Compact or remote transmitter installation options
• Reliable performance in demanding industrial environments


Applications

• Oil & Gas production and processing
• Petrochemical industries
• Chemical processing plants
• Large-scale liquid transfer systems
• Energy and utility measurement
• Industrial process monitoring
• Bulk material and fluid management
• High-flow chemical and hydrocarbon applications

Selection Notes

Before selecting the Siemens SITRANS FC720 / FC740 Coriolis Flowmeter, consider:

• Required flow rate range
• Pipe size and connection requirements
• Process medium characteristics
• Required measurement accuracy
• Operating temperature and pressure
• Sensor material compatibility
• Compact or remote transmitter installation requirements

Correct configuration ensures accurate measurement and reliable operation in high-flow industrial processes.

FAQ

Q1: What is the difference between SITRANS FC720 and FC740?
The SITRANS FC720 uses the FCT020 transmitter, while the SITRANS FC740 uses the FCT040 transmitter combined with the FCS700 Coriolis sensor.

Q2: What applications is SITRANS FC720/FC740 designed for?
It is designed for large pipeline applications requiring accurate Coriolis flow measurement at high flow rates.

Q3: What pipe sizes are available?
The system supports nominal sizes from DN100 to DN200, with connection sizes up to DN250 depending on configuration.
