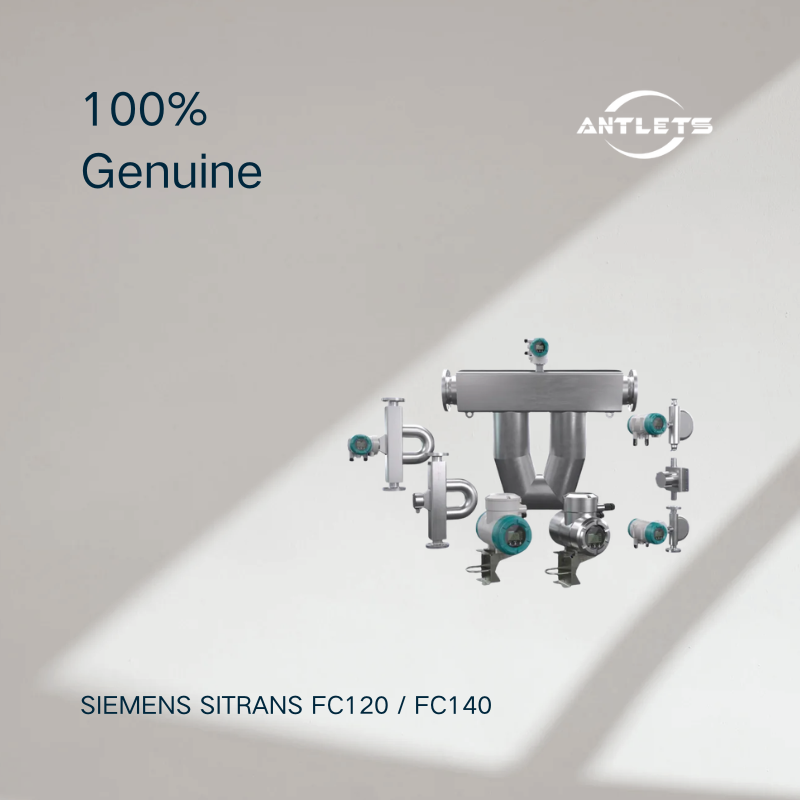

The Siemens SITRANS FC120 / FC140 7ME441 Coriolis Flow Meter is a compact and highly accurate Coriolis flow measurement system designed for low-flow applications. Featuring advanced dual curved tube technology, it provides reliable measurement of mass flow, density, temperature, and volume flow for liquids, gases, and mixtures.

The SITRANS FC120 and FC140 combine the FCS100 Coriolis sensor with either the FCT020 transmitter (FC120) or FCT040 transmitter (FC140), offering flexible configuration options for demanding industrial processes. Its compact design makes it ideal for pilot plants, laboratories, dosing systems, and applications requiring high precision at low flow rates.

Key Features

• High-accuracy Coriolis flow measurement for low-flow applications
• Measures liquids, gases, mixtures, emulsions, and suspensions
• Dual curved tube design for excellent measurement stability
• Simultaneous measurement of mass flow, density, temperature, and volume flow
• Compact design starting from DN1 sensor size
• Suitable for dosing and batching applications
• Optional FCT020 and FCT040 transmitter versions
• Advanced concentration measurement functions available with FCT040
• Wide range of process connections including threaded and hygienic clamp options
• Suitable for pilot plants, R&D systems, and high-value fluid applications


Applications

• Pharmaceutical production
• Chemical dosing systems
• Laboratory and pilot plant applications
• Food & beverage processing
• Biotechnology processes
• Liquid additive measurement
• Gas flow monitoring
• Precision batch control systems

Selection Notes

Before selecting the Siemens SITRANS FC120 / FC140 Coriolis Flow Meter, consider:

• Required minimum and maximum flow rate
• Medium type (liquid, gas, or mixture)
• Required accuracy level
• Process connection requirements
• Hygienic requirements for food/pharmaceutical applications
• Need for density or concentration measurement
• Compact or advanced transmitter requirements

Correct configuration ensures accurate measurement and stable operation in precision flow applications.

FAQ

Q1: What is Siemens SITRANS FC120/FC140 used for?
The SITRANS FC120/FC140 is designed for highly accurate measurement of low flow rates in liquids, gases, and mixtures.

Q2: What is the difference between FC120 and FC140?
The FC120 uses the FCT020 transmitter, while the FC140 uses the advanced FCT040 transmitter with additional measurement functions such as concentration calculation.

Q3: Which industries use SITRANS FC120/FC140?
It is widely used in pharmaceutical, chemical, food, laboratory, and industrial dosing applications requiring precise low-flow measurement.
