Hygienic Temperature Measurement for Demanding Processes
The Rosemount 68Q Sanitary Temperature Sensor is designed specifically for hygienic process environments where temperature measurement must be combined with strict requirements for cleanability and sanitary design.
It is suitable for food and beverage, pharmaceutical, and life-science processing, providing a flexible RTD solution for applications where contamination control and reliable temperature measurement are important.
Designed for Easy Sanitary Installation

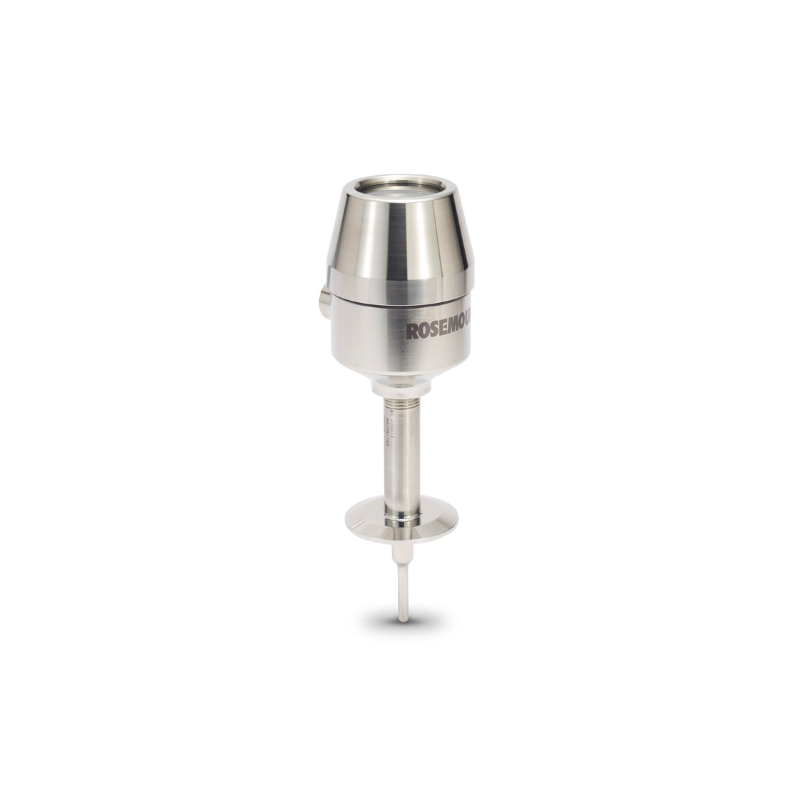

The Rosemount 68Q uses a Tri Clamp sanitary endcap that allows easy installation and provides multiple immersion length options from 1.0 to 9.5 inches (25.4 to 241.3 mm).
Its aseptic process connection is designed for CIP applications and dead-pocket-free measurement, helping support hygienic process operation and cleaning procedures.
Built for Food, Pharmaceutical and Life-Science Applications
The 68Q is engineered for industries where sanitary construction and surface finish are critical.
The sensor and stainless steel connection head options can meet 3-A Standards, while the wetted parts can optionally be electropolished to satisfy specific surface-finish requirements.
Reliable Construction for Process Temperature Measurement
The sensor capsule is welded into a 316 stainless steel sanitary endcap and stem assembly, providing a robust construction for hygienic process environments.
The Rosemount 68Q supports a temperature range of -50 to 200 °C (-58 to 392 °F), making it suitable for a broad range of sanitary process temperature applications.
Calibration for Improved Measurement Performance
The Rosemount 68Q supports calibration schedules using Callendar-Van Dusen constants, helping improve overall sensor performance and temperature measurement accuracy.

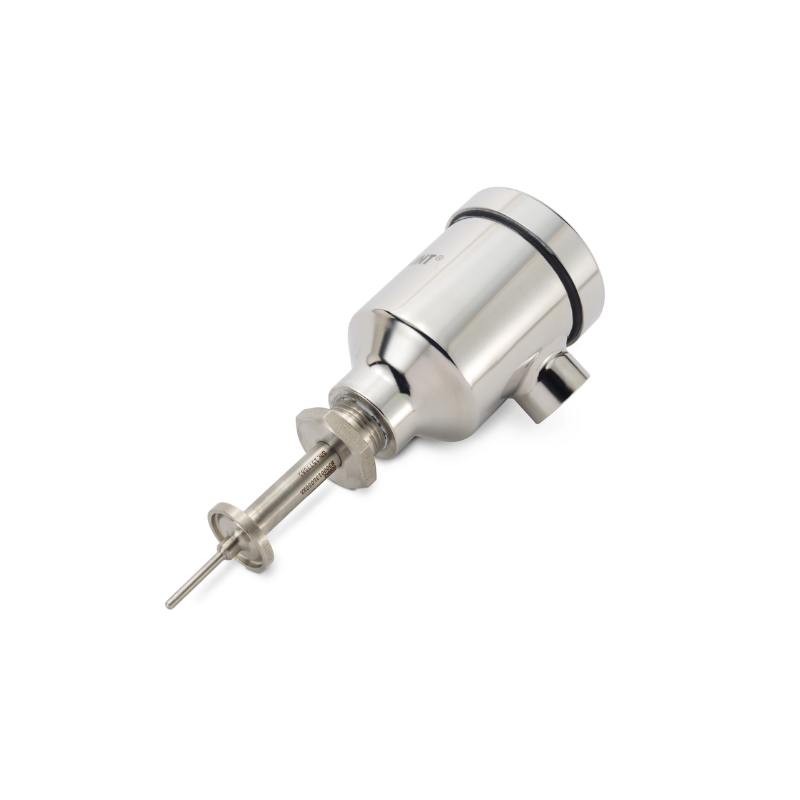

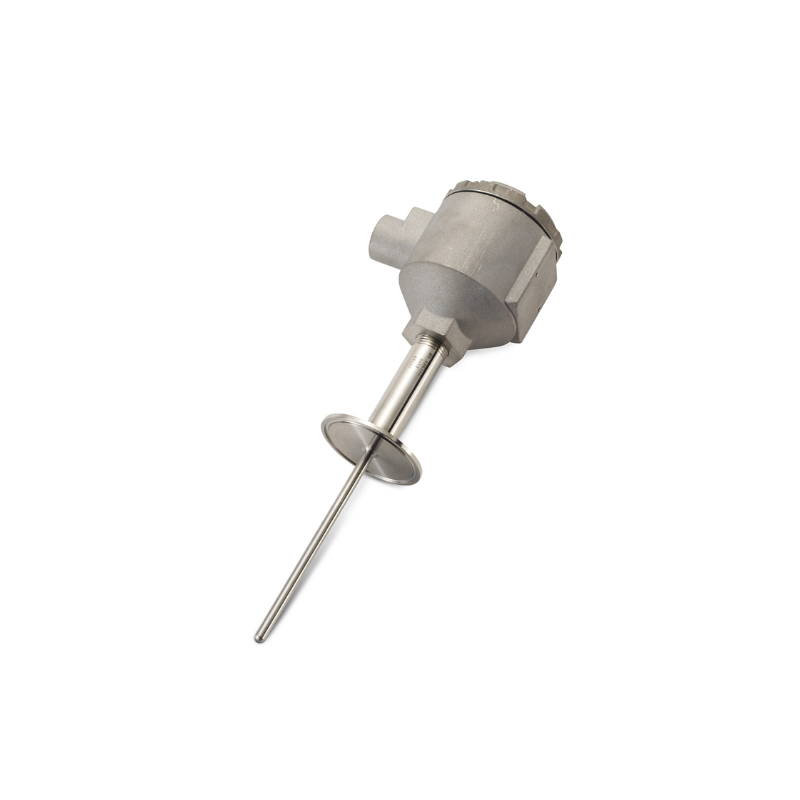

A variety of enclosure and connection head configurations are also available, allowing the sensor to be adapted to different installation requirements.
Key Features
- Sanitary RTD temperature sensor
- Designed for food & beverage, pharmaceutical and life-science industries
- Tri Clamp sanitary connection
- Immersion lengths from 25.4 to 241.3 mm
- Temperature range -50 to 200 °C
- Suitable for CIP and dead-pocket-free measurement
- 3-A Standards compliant surface finish options
- 316 stainless steel sanitary endcap and stem assembly
- Optional electropolishing of wetted parts
- Callendar-Van Dusen calibration support
- Multiple enclosure and connection head options
Typical Applications
The Rosemount 68Q is suitable for:
- Food and beverage processing
- Dairy processing
- Pharmaceutical manufacturing
- Biotechnology and life-science processes
- Hygienic process temperature monitoring
- CIP process temperature measurement
- Sanitary tanks and vessels
- Hygienic production lines
Frequently Asked Questions
What is the Rosemount 68Q used for?
The Rosemount 68Q is an RTD temperature sensor designed for hygienic process applications, particularly in food and beverage, pharmaceutical, and life-science industries.
What temperature range does the Rosemount 68Q support?
The Rosemount 68Q supports a temperature range of -50 to 200 °C (-58 to 392 °F).
Does the Rosemount 68Q use a Tri Clamp connection?
Yes. The 68Q is available with a Tri Clamp sanitary endcap, with immersion lengths from 25.4 to 241.3 mm.
Is the Rosemount 68Q suitable for CIP?
Yes. Its aseptic process connection is designed for clean-in-place (CIP) and dead-pocket-free measurement applications.
Is the Rosemount 68Q suitable for pharmaceutical applications?
Yes. Emerson specifically positions the Rosemount 68Q for pharmaceutical and life-science hygienic process environments, in addition to food and beverage applications.
What material is used for the sanitary sensor assembly?
The sensor capsule is welded into a 316 stainless steel sanitary endcap and stem assembly.
Does the Rosemount 68Q support calibration?
Yes. The sensor supports calibration schedules using Callendar-Van Dusen constants to improve overall sensor performance and accuracy.
