Multi-Point Temperature Measurement for Storage Tanks

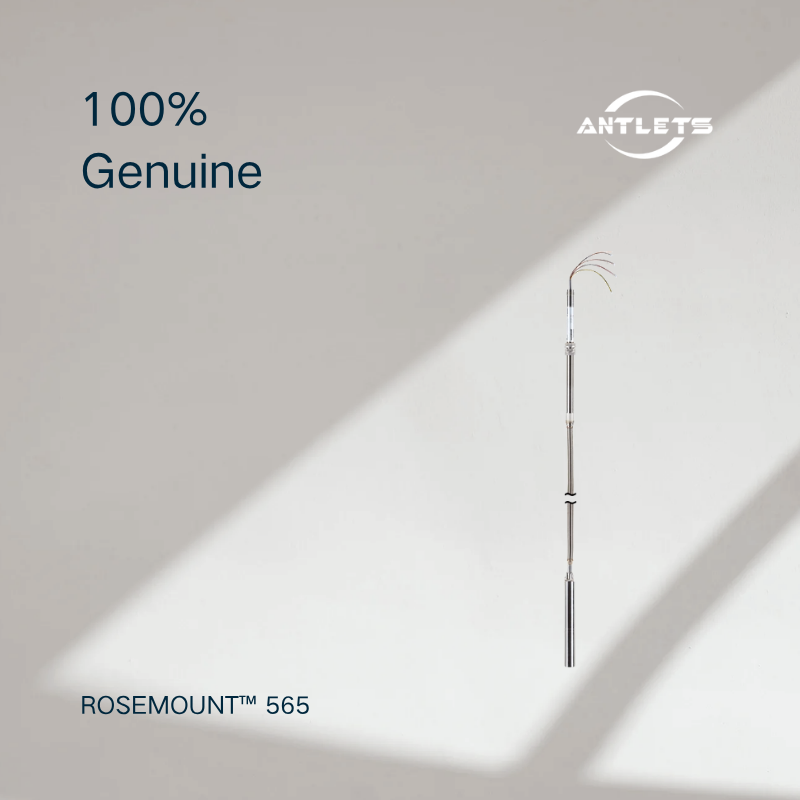

The Rosemount 565 Multiple Spot Temperature Sensor is designed specifically for accurate temperature monitoring in large liquid storage tanks. Unlike single-point temperature sensors, the Rosemount 565 uses multiple sensing elements installed at different heights to measure temperature distribution throughout the tank.
Only fully immersed Pt-100 elements are used to calculate product temperature, ensuring accurate average temperature measurement for inventory calculations and custody transfer applications.
Accurate Tank Temperature Profile Measurement
The Rosemount 565 provides detailed temperature profiling by using multiple RTD sensing points along the sensor length.
Key benefits:
Measures temperature at multiple tank levels
Provides average product temperature calculation
Supports accurate volume correction
Improves inventory management accuracy
Reduces measurement uncertainty during custody transfer
The sensor can be configured with up to 16 Pt-100 spot elements according to tank height and application requirements.
High Accuracy Pt-100 RTD Technology
The Rosemount 565 uses industrial-grade Pt-100 resistance temperature detectors according to IEC 60751 standards.
Features include:
Pt-100 RTD sensing elements
Three-wire or four-wire wiring options
Individual spot element calibration
Improved measurement accuracy
Long-term stability
The four-wire configuration with individual calibration can achieve enhanced total sensor accuracy for demanding custody transfer applications.
Designed for Custody Transfer Applications
For bulk liquid storage, accurate temperature measurement is essential for calculating product volume and maintaining measurement integrity.
The Rosemount 565 supports:
Petroleum storage terminals
Fuel inventory management
Tank farm measurement systems
Liquid hydrocarbon storage
Chemical storage facilities
Its multi-point design provides a more representative product temperature compared with traditional single-point sensors.
Integration with Rosemount Tank Gauging System
The Rosemount 565 Temperature Sensor is designed to work with the Rosemount 2240S Multi-input Temperature Transmitter.
System advantages:
Centralized temperature data collection
Easy connection to tank gauging systems
Integration with DCS and host systems
Improved inventory monitoring
The measured temperature values can be used together with Rosemount tank measurement solutions for advanced inventory management.
Robust Construction for Industrial Storage Tanks
The Rosemount 565 features a durable stainless steel protection design suitable for long-term installation in storage tanks.
Design advantages:
AISI 316 stainless steel sheath
Flexible installation length options
Multiple tank connection choices
Suitable for harsh industrial environments
Optional accessories including anchor weights and vapor boots
These options allow configuration according to different tank designs and operating conditions.
Typical Applications
Oil & Gas Storage
Applications:
Crude oil storage tanks
Refined product tanks
Fuel terminals
Tank farm inventory systems
Chemical Industry
Used for:
Chemical liquid storage
Bulk material management
Process inventory monitoring
Energy & Terminal Operations
Applications:
Petroleum depots
Marine terminals
Custody transfer systems
Industrial Tank Gauging
Suitable for:
Large atmospheric storage tanks
Inventory control systems
Automated tank monitoring
Key Features
Rosemount 565 Multiple Spot Temperature Sensor
Multi-point tank temperature measurement
Pt-100 RTD sensing technology
Up to 16 temperature spot elements
Three-wire and four-wire configurations
High accuracy calibration options
Designed for custody transfer applications
Compatible with Rosemount 2240S Multi-input Temperature Transmitter
Stainless steel AISI 316 protection tube
Flexible tank connection options
Supports Rosemount Tank Gauging System
Suitable for bulk liquid storage applications
FAQ
What is Rosemount 565 Multiple Spot Temperature Sensor?
The Rosemount 565 is a multi-point RTD temperature sensor designed to measure liquid temperature profiles and average product temperature in storage tanks.
How many temperature points can Rosemount 565 measure?
The Rosemount 565 can be configured with up to 16 Pt-100 temperature spot elements positioned at different heights inside the tank.
Which transmitter is compatible with Rosemount 565?
The Rosemount 565 connects to the Rosemount 2240S Multi-input Temperature Transmitter for temperature signal processing and tank gauging integration.
What type of sensor element does Rosemount 565 use?
The Rosemount 565 uses Pt-100 RTD spot elements according to IEC 60751 standards.
Where is Rosemount 565 commonly used?
The Rosemount 565 is widely used in bulk liquid storage tanks, petroleum terminals, chemical storage facilities and custody transfer measurement systems.
