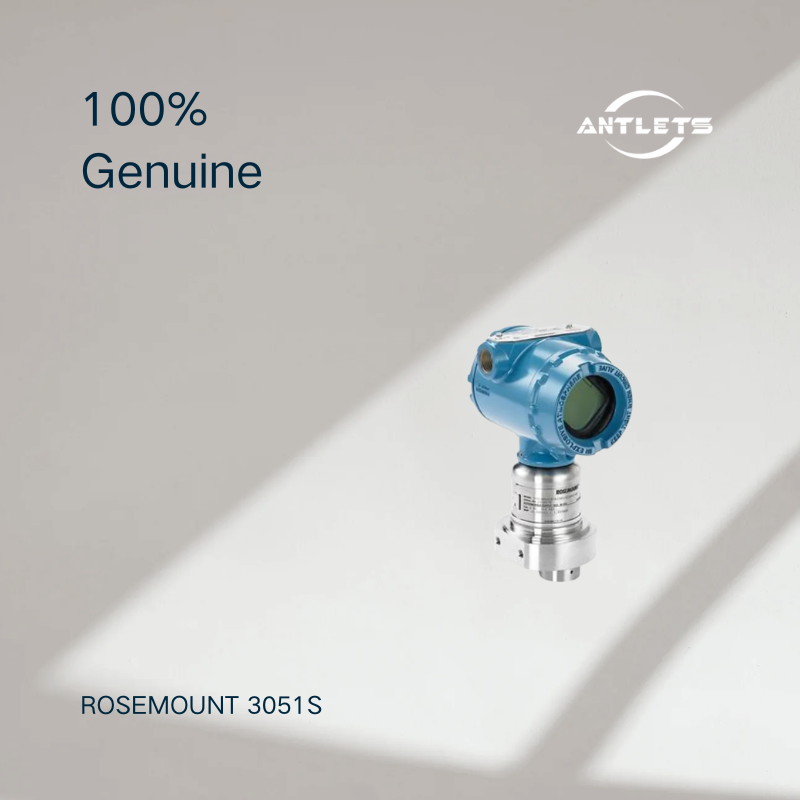

The Rosemount 3051S High Static DP Transmitter is part of Emerson's Rosemount 3051S pressure instrumentation platform. It is engineered for applications where conventional differential pressure transmitters may not withstand the high static pressures present in the process line.
Its compact SuperModule™ design combines high static pressure capability with reliable differential pressure measurement. The transmitter uses a coned-and-threaded direct process connection for high-pressure service and supports compatible communication and diagnostic options for integration into industrial control systems.
Key Features
- High static pressure capability up to 15,000 psi (1,034 bar)
- SuperModule™ sensor technology for demanding process conditions
- Differential pressure and temperature measurement in supported configurations
- Rosemount Coplanar™ platform to reduce installation weight by up to 60% compared with the high-pressure transmitters referenced by Emerson
- All-welded, hermetic construction to resist overpressure and line-pressure effects
- 0.055% accuracy under the specified performance conditions
- 10-year stability for long-term measurement reliability
- Advanced diagnostics for improved process and instrument monitoring
- Multiple communication options, depending on configuration
- SIL 2/3 certification options for applicable safety installations
Suitable Applications
- High-pressure oil and gas production
- Subsea and wellhead-related measurement systems, where configuration requirements are met
- High-static-pressure process lines
- Refining and petrochemical operations
- Chemical processing
- Industrial pressure and differential pressure monitoring
- High-pressure flow measurement systems
- Critical process control and safety-related applications
Technical Highlights & Selection Considerations
- Static pressure: The transmitter is designed to withstand static line pressures up to 15,000 psi (1,034 bar). Confirm the allowable pressure for the exact model and process connection.
- Measurement variables: Differential pressure and temperature measurement are supported. Confirm the selected configuration and output requirements.
- Accuracy: Emerson specifies 0.055% accuracy for the stated performance conditions. Verify the applicable accuracy specification for the ordered model.
- Process connection: A coned-and-threaded direct connection is used for high-static-pressure service. Check connection dimensions and compatibility with the installation.
- Communication protocol: Available options include 4–20 mA HART®, WirelessHART®, and FOUNDATION™ Fieldbus, depending on configuration.
- Installation: The compact Coplanar™ design helps reduce weight, but mounting requirements and compatible accessories should be checked before ordering.
- Diagnostics: Advanced diagnostics can help identify instrument and process issues. Available diagnostic functions depend on the selected configuration.
- Safety certification: SIL 2/3 certification under IEC 61508 is available for applicable configurations. Confirm the required approvals and safety documentation for the intended application.
- Operating conditions: Verify process temperature, wetted materials, pressure limits, and environmental certifications against the manufacturer's current datasheet.
Frequently Asked Questions
Q1: What is the Rosemount 3051S High Static DP Transmitter used for?
It measures differential pressure in industrial systems where the process line is subject to very high static pressure, such as demanding oil and gas and high-pressure process applications.
Q2: What is its maximum static pressure rating?
Emerson specifies static pressure capability up to 15,000 psi (1,034 bar). The permissible limit must be confirmed for the specific model and connection.
Q3: What is the benefit of SuperModule technology?
The SuperModule design is engineered to resist overpressure and line-pressure effects while supporting stable measurement performance in demanding environments.
Q4: Which communication protocols are available?
Depending on the configuration, the transmitter supports 4–20 mA HART®, WirelessHART®, or FOUNDATION™ Fieldbus.
Q5: Is the Rosemount 3051S suitable for safety-related applications?
Specified configurations are SIL 2/3 certified under IEC 61508. Suitability depends on the complete safety instrumented function, model configuration, and applicable documentation.
Q6: What should I confirm before purchasing?
Check the required static and differential pressure ranges, process connection, communication protocol, wetted materials, operating temperature, diagnostic requirements, and any safety or hazardous-area approvals.
