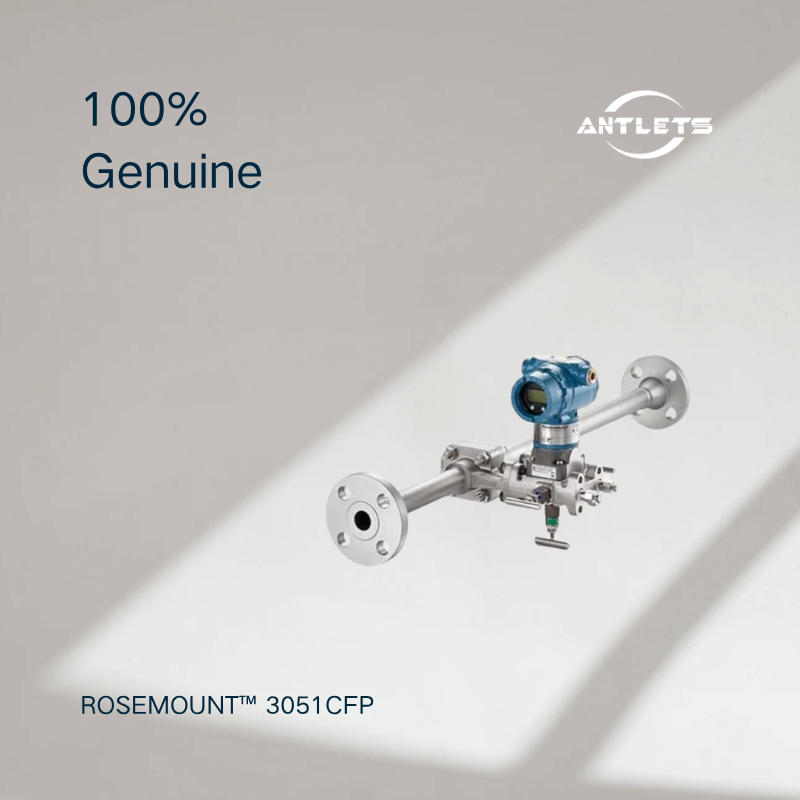

The Rosemount™ 3051CFP Integral Orifice Flow Meter is an integrated differential pressure flow measurement solution designed for accurate measurement in small line size applications. It combines a Rosemount pressure transmitter with a self-centering integral orifice plate, providing a compact and easy-to-install flow measurement system.

Designed for 0.5 to 1.5 inch (15 to 40 mm) pipelines, the Rosemount 3051CFP delivers reliable flow measurement for gas, liquid, and steam applications. Its integrated design reduces installation complexity while improving measurement repeatability and operational efficiency.

Key Features

• Integrated orifice plate and differential pressure transmitter design
• Designed for small pipe sizes from 0.5 to 1.5 inch (15–40 mm)
• Self-centering integral orifice technology for improved accuracy
• Suitable for gas, liquid, and steam flow measurement
• Supports HART® and WirelessHART® communication options
• Compact design reduces installation space and maintenance requirements
• Optional display and advanced configuration capabilities
• 316 stainless steel body material options available


Applications

• Small pipeline flow measurement
• Natural gas monitoring
• Steam flow measurement
• Chemical process systems
• Utility flow monitoring
• Industrial gas measurement
• Skid-mounted process equipment
• Process automation systems

Selection Notes

Before selecting the Rosemount 3051CFP Integral Orifice Flow Meter, consider:

• Pipe size and process connection requirements
• Measurement medium (gas, liquid, or steam)
• Required flow range and accuracy
• Operating pressure and temperature conditions
• Communication requirements (HART® / WirelessHART®)
• Installation space limitations

Correct configuration ensures stable flow measurement and long-term operational reliability.

FAQ

Q1: What is the Rosemount 3051CFP used for?
The Rosemount 3051CFP is designed for differential pressure-based flow measurement using an integrated orifice plate, especially in small pipeline applications.

Q2: What pipe sizes are suitable for the 3051CFP?
It is designed for small line sizes from 0.5 to 1.5 inches (15–40 mm).

Q3: What industries use Rosemount 3051CFP?
It is commonly used in process industries such as oil & gas, chemical, power, and industrial utility systems.
