Reliable Temperature Measurement for Industrial Processes
The Rosemount 214C Temperature Sensor is an industry-standard temperature sensing solution designed for process monitoring and control applications where accuracy, durability and flexibility are required.
Available in both RTD and thermocouple configurations, the Rosemount 214C provides multiple sensing technologies to match different process conditions, temperature ranges and accuracy requirements.
Advanced RTD and Thermocouple Technology

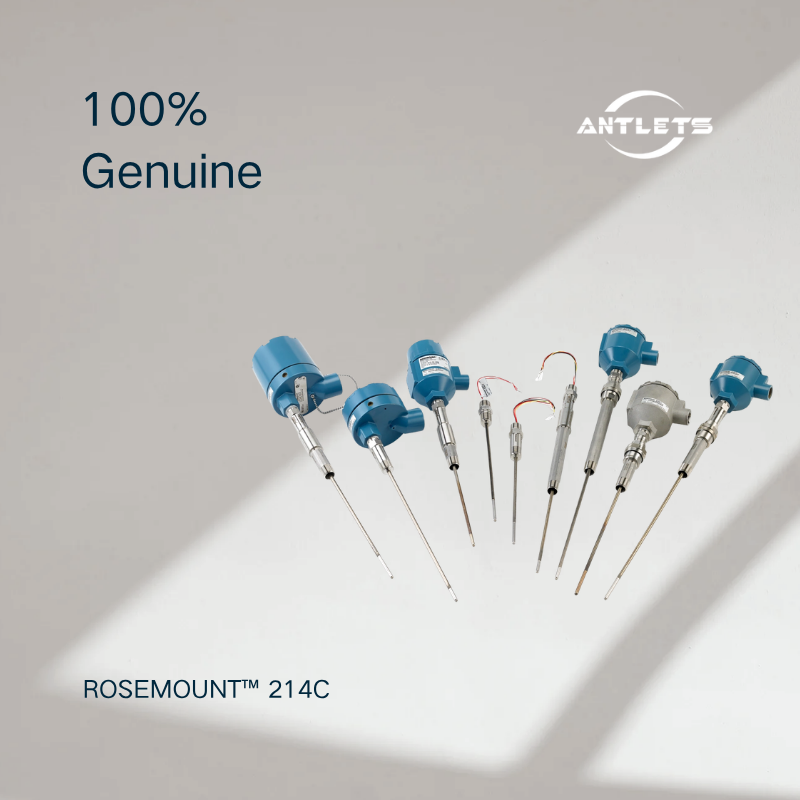

The Rosemount 214C family includes:
RTD Temperature Sensor

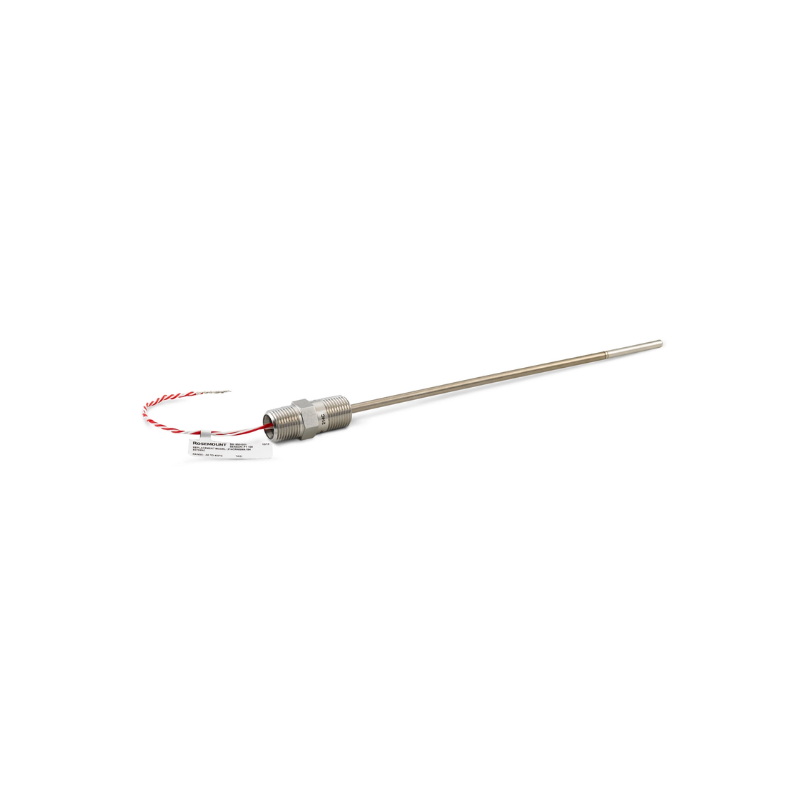

The Rosemount 214C RTD Sensor uses Pt-100 resistance temperature detector technology.
Key advantages:
Single or dual element configuration
Thin-film and wire-wound designs
High accuracy measurement
Excellent vibration resistance
Callendar-Van Dusen calibration capability
Class A accuracy option available
The RTD version is suitable for applications requiring stable and precise temperature measurement.
Thermocouple Temperature Sensor
The Rosemount 214C Thermocouple Sensor supports common thermocouple types:
Benefits include:
Wide temperature capability
High mechanical durability
Good performance in high vibration environments
Grounded and ungrounded junction options
The thermocouple version is designed for demanding process environments requiring robust temperature monitoring.
High Accuracy and Calibration Capability
The Rosemount 214C provides multiple calibration options to improve measurement performance.
Features include:
Class A RTD accuracy option
Single-point calibration
Custom calibration options
Callendar-Van Dusen constants for transmitter matching
When paired with compatible Rosemount temperature transmitters, transmitter-sensor matching can improve overall measurement accuracy and system performance.
Designed for Harsh Industrial Environments
The Rosemount 214C Temperature Sensor is engineered for reliable operation in demanding process conditions.
Key design advantages:
Robust sensor construction
High vibration resistance
Mineral insulated cable options
Multiple mounting configurations
Hazardous location approvals available
These features make it suitable for critical temperature measurement points in industrial plants.
Flexible Integration with Rosemount Transmitters
The Rosemount 214C can be combined with Emerson Rosemount temperature transmitters to create a complete temperature measurement solution.
Compatible solutions include:
Rosemount 3144S Temperature Transmitter
Rosemount 3144P Temperature Transmitter
Rosemount 248 Temperature Transmitter
Rosemount 648 Wireless Temperature Transmitter
This combination provides reliable temperature measurement, advanced diagnostics and flexible communication options for process automation systems.
Typical Applications
Oil & Gas
Applications:
Refinery process monitoring
Pipeline temperature measurement
Equipment temperature monitoring
Chemical Industry
Used for:
Reactor temperature measurement
Process control
Chemical production systems
Power Generation
Applications:
Steam temperature monitoring
Turbine systems
Boiler temperature measurement
Food & Beverage
Suitable for:
Process temperature control
Hygienic applications
Production monitoring
Pharmaceutical
Used for:
Critical process temperature measurement
Equipment monitoring
Validation applications
Key Features
Rosemount 214C Temperature Sensor Family
RTD and thermocouple configurations
Pt-100 single or dual element RTD
J, K and T thermocouple options
Temperature range up to 1200°C
Class A accuracy option
Callendar-Van Dusen calibration support
High vibration resistance
Flexible mounting options
Hazardous area approvals available
Compatible with Rosemount temperature transmitters
FAQ
What is Rosemount 214C Temperature Sensor?
The Rosemount 214C is an industrial temperature sensor family offering RTD and thermocouple options for reliable process temperature measurement.
What is the temperature range of Rosemount 214C?
The RTD version measures temperatures from -196 to 600°C (-321 to 1112°F), while thermocouple versions can measure up to 1200°C (2192°F) depending on configuration.
Is Rosemount 214C available with RTD and thermocouple options?
Yes. The Rosemount 214C family includes Pt-100 RTD sensors and J, K, T thermocouple sensors.
Can Rosemount 214C be used in high vibration applications?
Yes. The sensor is designed with robust construction and thin-film RTD options that provide reliable performance in high vibration industrial environments.
Which transmitters are compatible with Rosemount 214C?
Rosemount 214C can be combined with Rosemount temperature transmitters including 3144S, 3144P, 248 and 648 models depending on application requirements.
