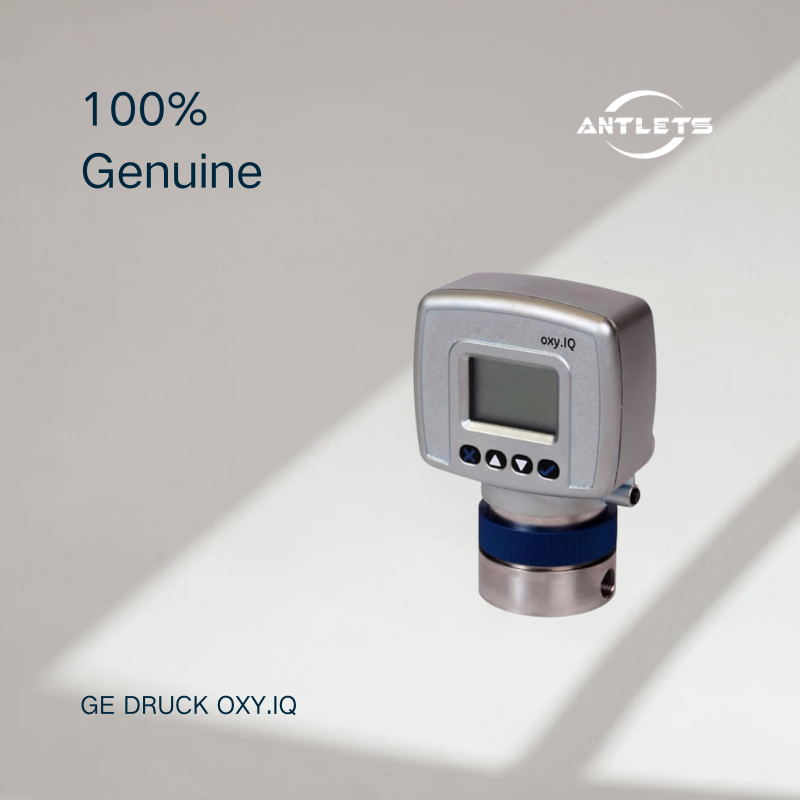

GE Panametrics oxy.IQ Oxygen Transmitter

$5,760.00

The Panametrics oxy.IQ Oxygen Transmitter is a compact, loop-powered oxygen measurement instrument designed to measure oxygen concentrations from trace ppm levels to percentage ranges in industrial gas applications. Using galvanic fuel cell sensor technology, it provides a linearized 4–20 mA output for integration with PLCs and process monitoring systems, with user-selectable measurement ranges to suit different gas analysis requirements.

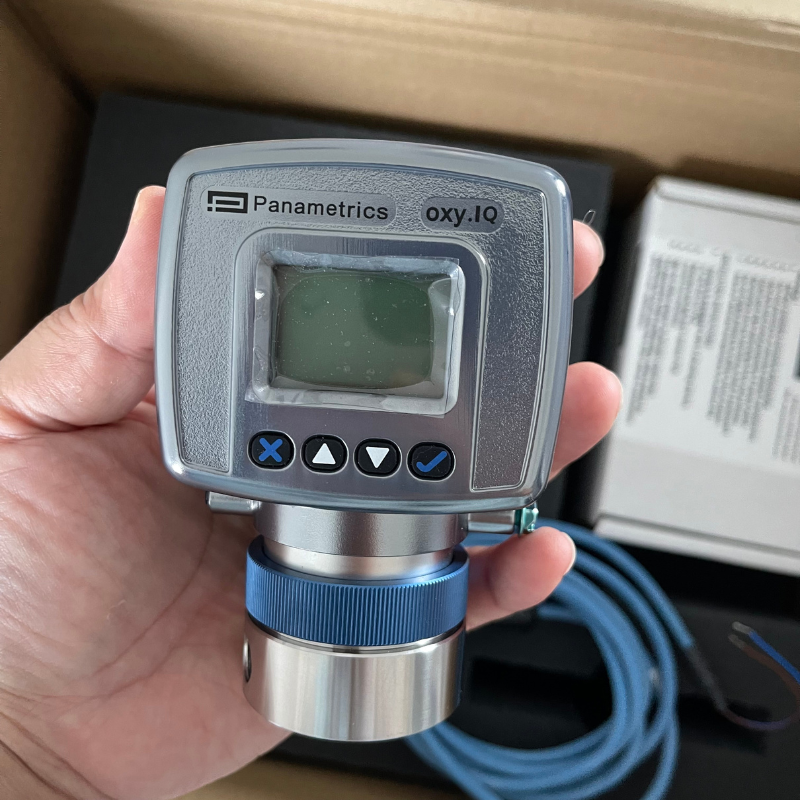

Its integrated display and keypad simplify range selection, calibration, and routine operation, while the compact design allows installation close to the sampling point. For applications involving gas purity, inert atmospheres, or oxygen impurity monitoring, selecting the appropriate sensor range, cable length, and hazardous-area configuration helps ensure the instrument matches the actual process requirements.

🕑 Lead time: 6-8 weeks
Quantity:
Delivery & return Ask a Question
Visa PayPal Mastercard American Express

The GE Panametrics oxy.IQ Oxygen Transmitter is a compact industrial gas analyzer designed for continuous measurement of oxygen concentration in process gases.

It uses proven galvanic fuel cell technology to measure oxygen in both ppm and percentage ranges, providing stable and reliable readings in demanding industrial environments.

With a two-wire loop-powered design and 4–20 mA output, the oxy.IQ is widely used in gas quality monitoring, inert gas systems, glovebox applications, and process safety control where accurate oxygen measurement is critical.

Natural SEO keywords included: oxygen transmitter, oxygen analyzer, ppm oxygen sensor, industrial gas analyzer, GE oxy.IQ

Key Features

• Galvanic fuel cell oxygen sensing technology
• Measures oxygen in ppm and % ranges
• Two-wire loop powered 4–20 mA output
• Stable and low-drift measurement performance
• User-configurable measurement ranges
• Built-in diagnostics and sensor health indication
• Suitable for hazardous area installation options
• Compact and low-maintenance design

Applications

  • Glove box inerting and purge systems
  • Semiconductor manufacturing
  • Chemical process gas monitoring
  • Natural gas and hydrocarbon processing
  • Heat treatment and annealing systems
  • Gas purity monitoring systems
  • Laboratory and industrial gas analysis
  • Membrane separation systems

Selection Notes

Before selecting oxy.IQ, confirm:

  • Required oxygen range (ppm or % O₂)
  • Gas type (inert gas, air, hydrocarbons, etc.)
  • Installation environment (standard or hazardous area)
  • Required output signal (4–20 mA / alarm options)
  • Sampling pressure and flow conditions
  • Mounting method (inline or sampling system)
  • Sensor lifetime and maintenance expectations

FAQ

Q: What is GE oxy.IQ used for?
A: It is used for continuous oxygen measurement in industrial gas systems and process monitoring.

Q: Does oxy.IQ measure ppm oxygen?
A: Yes, it supports multiple ppm and percentage oxygen ranges.

Q: What sensor technology does it use?
A: It uses a galvanic fuel cell oxygen sensor.

Q: Is oxy.IQ suitable for hazardous areas?
A: Yes, with appropriate intrinsically safe or explosion-proof configurations.

Q: What industries use oxy.IQ?
A: Semiconductor, chemical processing, oil & gas, and heat treatment industries.

Q: Does it require frequent maintenance?
A: No, it is designed for low maintenance operation with stable sensor performance.

Oxygen Measurement & Analytical Performance

Accuracy ±1% of range at calibration point
±2% of range at calibration point for 0 to 10 ppmv range (OX-1 or OX-2 only)
Repeatability ±1% of range
±2% of range for 0 to 10 ppmv range (OX-1 or OX-2 only)
Resolution ±0.1% of range
Linearity ±2% of range (OX-1, OX-2, OX-3, OX-5); ±5% of range (OX-4)
Atmospheric Pressure Effect ±0.13% of reading per mmHg (directly proportional to absolute pressure; pressure and flow must be kept constant during calibration)

Sample Gas & Operating Conditions

O2 Sensor Operating Temperature 0 to 45 °C (32 to 113 °F)
Sample Gas Pressure Vented to atmosphere during operation and calibration
Max. operating pressure: 10 psig (0.69 barg)
Burst pressure: 200 psig (13.78 barg) for standard manifold bases (ISO-KF-40 flange adapter designed for vacuum service)
Sample Flow Rate 1.0 SCFH (500 cc/min) recommended for process gas units
Sample Process Connections 1/8 in. NPT female inlet and outlet ports

Physical Dimensions & Electrical Classifications

Dimensions & Net Weight 104.1 x 69.9 x 52.1 mm (4.10 x 2.75 x 2.05 in.); 1.35 lb (612 g)

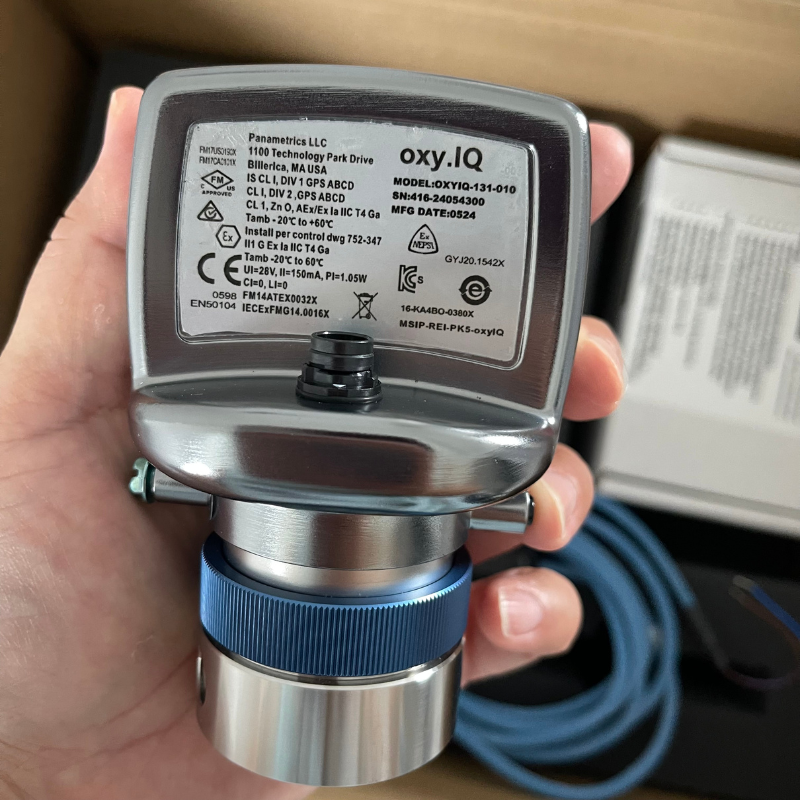

Intrinsically Safe (IS) Approvals USA/Canada: IS Class I, Div 1, Groups A, B, C, D, T4
ATEX / IECEx: Ex ia IIC Ga T4 (Tamb: -20 to +60 °C)
Non-Incendive Option Class I, Div 2, Groups A, B, C, D, T4 without external Zener barrier or galvanic isolator
Flameproof Package Option ATEX / IECEx Ex d IIC T4, IP66 enclosure rating
European Compliance Complies with European EMC Directive 2014/30/EU
