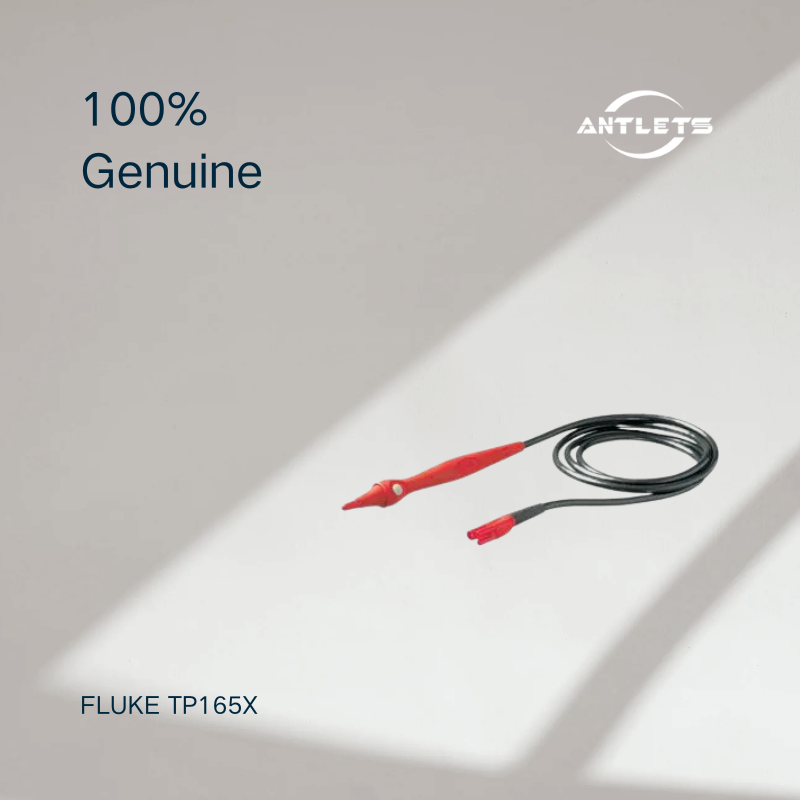

The Fluke TP165X Remote Control Probe is a dedicated testing accessory designed to make electrical installation and insulation testing easier when the measurement point is difficult to reach. Instead of returning to the tester to start a measurement, the integrated test button allows the operator to control the test directly from the probe.
Its slim probe body helps technicians access confined areas such as electrical panels, terminals, sockets, and other hard-to-reach test points. This design allows the operator to maintain visual focus on the panel and probe position during testing, which can make repetitive measurements more convenient and efficient.
The TP165X is designed for use with Fluke 1500 Series Insulation Testers and 150/1660 Series Installation Testers, making it a practical accessory for insulation resistance and electrical installation testing workflows.
The probe has a 1 mm tip diameter and a tip length of up to 18.66 mm, providing access to small and recessed test points. Its safety rating is CAT II 1000 V, 10 A, with higher CAT III/CAT IV ratings when used with the protective cap as specified by Fluke.
Key Features
- Remote control test probe with integrated test button
- Slim design for hard-to-reach test points
- Allows test operation directly from the probe
- Helps keep the operator's eyes on the electrical panel during testing
- Designed for Fluke 1500 Series Insulation Testers
- Compatible with Fluke 150/1660 Series Installation Testers
- 1 mm probe tip diameter
- Tip length up to 18.66 mm
- Suitable for confined terminals and electrical testing points
- Safety rating: CAT II 1000 V, 10 A
- CAT III 1000 V / CAT IV 600 V with protective cap, according to Fluke specifications
Typical Applications
- Insulation resistance testing
- Electrical installation testing
- Electrical panel testing
- Terminal and connection testing
- Testing in confined or recessed locations
- Repetitive electrical measurements
- Commissioning and maintenance work
- Troubleshooting electrical installations
