Faster 4-20 mA Troubleshooting Without Interrupting the Process

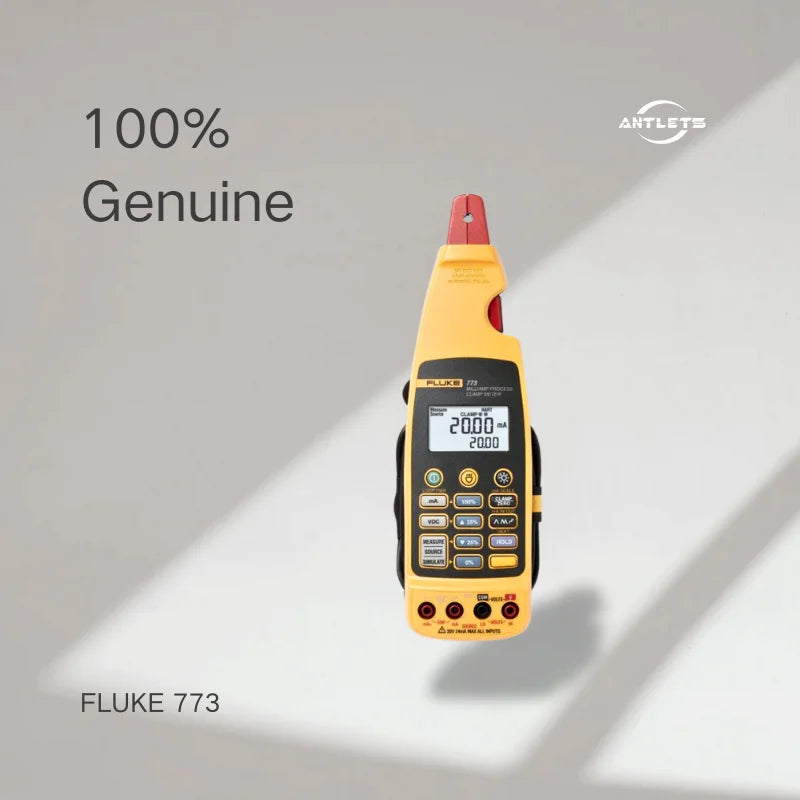

The Fluke 773 Milliamp Process Clamp Meter is designed for instrumentation and maintenance engineers who need to troubleshoot live process control systems quickly and safely.

In industrial automation applications, 4-20 mA current loops are widely used for transmitting signals from field instruments such as pressure transmitters, flow meters, temperature transmitters, and control valves. Traditional testing methods often require opening the loop, disconnecting wiring, or interrupting the process.

The Fluke 773 allows technicians to measure 4-20 mA signals directly from the conductor without breaking the loop, helping reduce downtime and making troubleshooting faster.

Measure Live 4-20 mA Signals Without Disconnecting Wiring

One of the biggest advantages of the Fluke 773 is its clamp-based current measurement capability.

Technicians can check:

•
  Transmitter output signals

•
  Control valve input signals

•
  PLC analog inputs

•
  Loop current stability

•
  Signal fluctuations

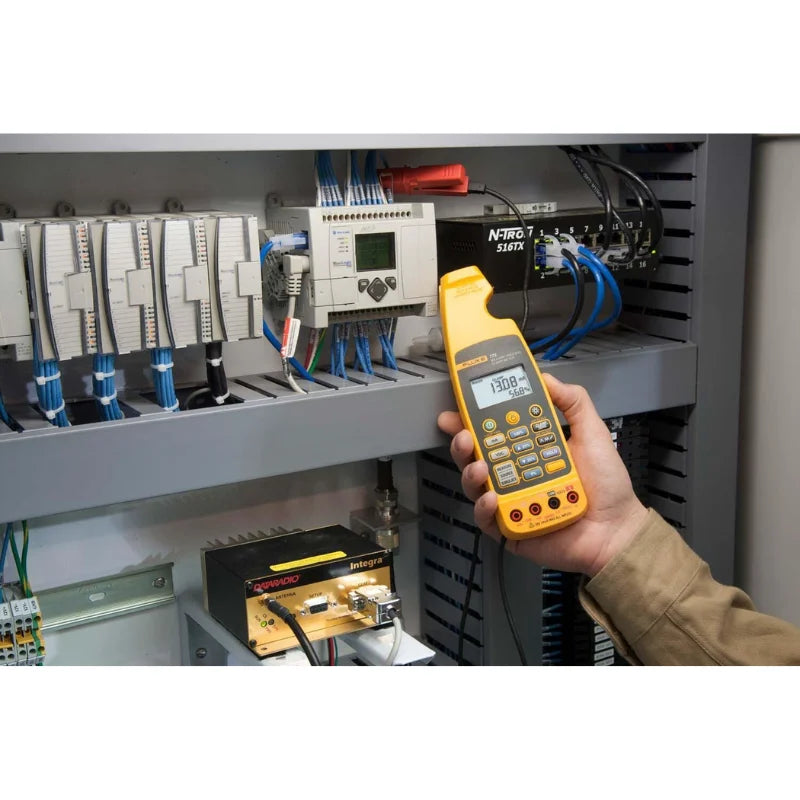

The clamp allows quick verification of operating equipment while the process remains active, making it especially valuable for critical production environments where shutdowns are costly.

Complete mA Source, Simulate, and Measure Functions

Beyond current measurement, the Fluke 773 provides the functions needed for complete loop testing.

It supports:

•
  mA measurement

•
  mA source

•
  mA simulation

•
  Loop current verification


Technicians can simulate transmitter outputs to verify whether PLC, DCS, or control systems correctly respond to changing signals.

This makes it suitable for:

•
  4-20 mA transmitters

•
  I/P converters

•
  Control valves

•
  Analog input modules


Built-In Loop Power for Field Transmitter Testing

Many field instruments require a power source during troubleshooting.

The Fluke 773 provides built-in loop power capability, allowing technicians to test transmitters and current loops without carrying additional power supplies.

This simplifies field work for applications such as:

•
  New instrument installation

•
  Transmitter verification

•
  Control loop commissioning

•
  Fault diagnosis


DC Voltage Source and Measurement for Control Systems

Modern automation systems often use both current and voltage signals.

The Fluke 773 can:

•
  Measure DC voltage signals

•
  Source DC voltage signals

•
  Verify 1-5 V and 0-10 V input devices


This extends its application beyond traditional current loops and allows technicians to test a wider range of industrial control equipment.

Ideal for Transmitter and Valve Maintenance

The Fluke 773 is designed around real-world process maintenance requirements.

Typical applications include:

Pressure Transmitter Testing

Used for checking:

•
  4-20 mA output signals

•
  Loop wiring problems

•
  Transmitter signal stability


Control Valve Troubleshooting

Useful for:

•
  Valve positioner signal testing

•
  I/P converter verification

•
  Output signal simulation


PLC and DCS Loop Verification

Helps engineers confirm:

•
  Analog input performance

•
  Signal transmission accuracy

•
  Control system response


Remote Detachable Clamp for Difficult Locations

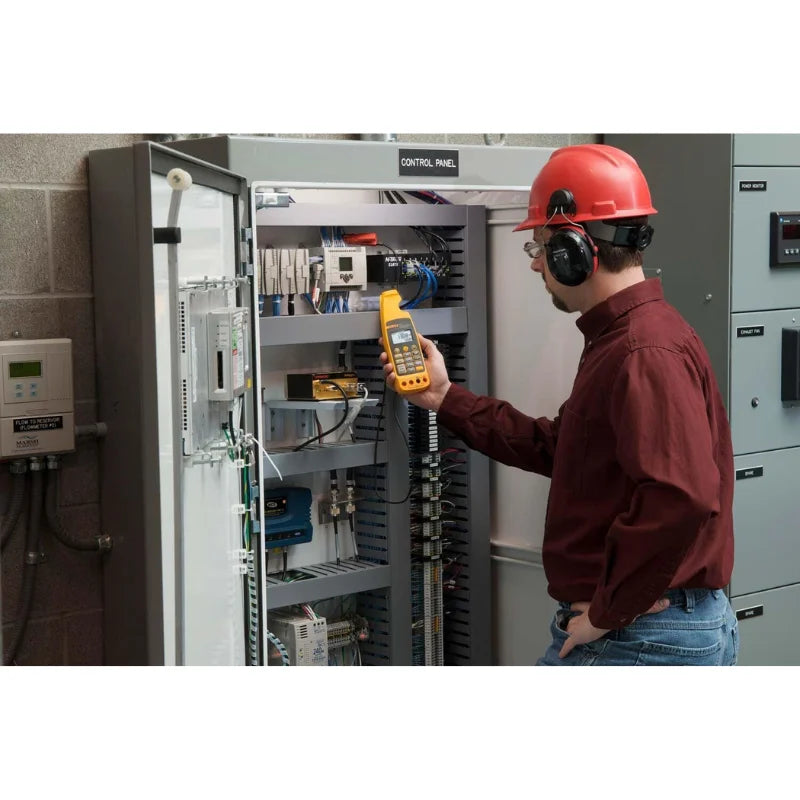

The Fluke 773 features a detachable clamp design that allows easier measurement in tight installation areas.

The clamp can be separated from the main body and connected through an extension cable, making it easier to access:

•
  Crowded control cabinets

•
  Hard-to-reach field wiring

•
  Compact instrument panels


This improves measurement flexibility in complex industrial environments.

Designed for Industrial Field Applications

The Fluke 773 combines portability with professional process troubleshooting capability.

Key advantages include:

•
  Compact handheld design

•
  Clamp measurement without loop interruption

•
  0.01 mA resolution

•
  0.2% accuracy for core mA functions

•
  Battery-powered operation

•
  Rugged field construction


It is suitable for maintenance teams working in industries such as:

•
  Oil & gas

•
  Chemical processing

•
  Power generation

•
  Water treatment

•
  Manufacturing automation


FAQ

What is the Fluke 773 used for?

The Fluke 773 is a milliamp process clamp meter used for measuring, sourcing, and simulating 4-20 mA signals in industrial process control systems.

Can Fluke 773 measure 4-20 mA without disconnecting the loop?

Yes. The clamp function allows technicians to measure 4-20 mA signals without opening the circuit, helping troubleshoot live process equipment faster.

Can Fluke 773 test pressure transmitters?

Yes. The Fluke 773 can verify the 4-20 mA output signal of pressure transmitters and other process instruments. For complete pressure calibration, it can be combined with appropriate pressure calibration equipment.

What is the difference between Fluke 773 and Fluke 707?

The main difference is the measurement method and application focus:

•
  Fluke 707: Traditional 4-20 mA loop calibrator using test leads.

•
  Fluke 773: Adds clamp-based non-invasive mA measurement, allowing technicians to check live loops without disconnecting wiring.


What is the difference between Fluke 773 and Fluke 789?

•
  Fluke 773: Focuses on process loop troubleshooting with clamp measurement and mA calibration functions.

•
  Fluke 789: Combines a digital multimeter with loop calibration functions for both electrical testing and process troubleshooting.


Is Fluke 773 suitable for field maintenance?

Yes. Its portable design, clamp measurement capability, and loop testing functions make it ideal for technicians performing field troubleshooting on industrial process systems.
