Fluke 771 Milliamp Process Clamp Meter

The Fluke 771 Milliamp Process Clamp Meter is a dedicated process troubleshooting instrument for measuring low-level DC current in industrial 4–20 mA control loops.

Its primary advantage is simple but important: technicians can measure the current signal without breaking or disconnecting the loop. This allows process and automation equipment to remain operational while the signal is being checked, helping reduce troubleshooting time and unnecessary process downtime.

Measure 4–20 mA Without Breaking the Loop

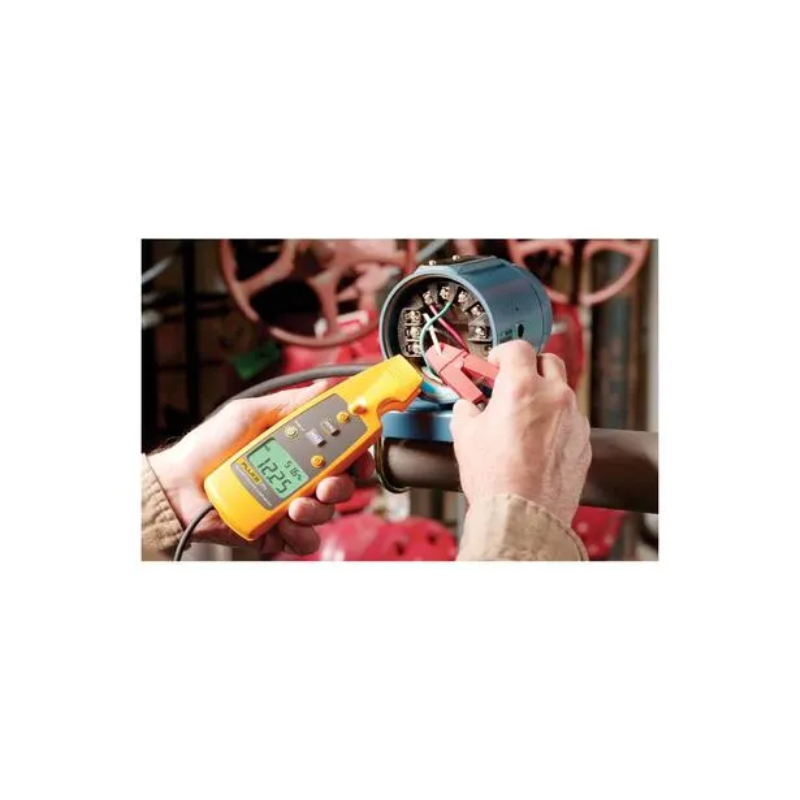

The Fluke 771 is designed specifically for in-circuit milliamp measurement. Instead of disconnecting the transmitter output or opening the control loop, the detachable clamp can be placed around the conductor to measure the current signal.

This makes it useful for checking transmitter outputs and diagnosing process control systems while equipment remains in operation.

The primary clamp measurement range is 0 to 20.99 mA, with 0.2% + 2 counts accuracy. The instrument also provides an extended range for measuring higher-current signals up to 100 mA.

Accurate Measurement for Process Instrumentation

The Fluke 771 provides the resolution and accuracy needed for common industrial 4–20 mA troubleshooting tasks.

Key Technical Parameters

•
  Primary mA measurement range: 0–20.99 mA

•
  Primary accuracy: 0.2% + 2 counts

•
  Resolution: 0.01 mA

•
  Extended range: 21.0–100.0 mA

•
  Extended-range accuracy: 1% + 5 counts

•
  Maximum measurable conductor diameter: 4.5 mm

•
  Operating temperature: -10 to +50 °C

•
  IP rating: IP40

•
  Typical battery life: 40 hours

•
  Battery: 2 × AA 1.5 V alkaline

•
  Weight: approximately 260 g

•
  Dimensions: 59 × 38 × 212 mm

•
  Warranty: 3 years for electronics; 1 year for cable and clamp assembly


Detachable Clamp for Tight Locations

The detachable clamp is one of the most useful features of the Fluke 771.

The clamp can be attached to the conductor being tested while the main meter is positioned somewhere easier to see. The extension cable makes it possible to move the display away from crowded wiring or confined installation areas.

This design is especially useful inside control cabinets, junction boxes and process equipment where access to the wiring and visibility of the display can be difficult.

Dual Display for Faster Troubleshooting

The Fluke 771 uses a dual backlit display that shows both the measured milliamp value and the corresponding percentage of the standard 4–20 mA span.

This allows technicians to understand not only the actual current but also where the signal sits within the process range.

For example, a technician can quickly identify whether a transmitter output is close to its lower range, midpoint or upper range without manually converting the current value to percentage.

Built-In LED Spotlight

Process instrumentation is frequently installed inside dark electrical cabinets or confined equipment areas.

The Fluke 771 incorporates a built-in LED spotlight to illuminate the wire being measured, making it easier to identify the correct conductor and position the clamp in poorly lit locations.

Hold Function for Changing Signals

During troubleshooting, process signals may fluctuate continuously.

The Fluke 771 includes a Hold function that allows a changing measurement to be captured and displayed, making it easier to record or inspect an unstable signal during field diagnostics.

Designed for Process and Automation Troubleshooting

The Fluke 771 is particularly useful when the objective is measurement and troubleshooting rather than active loop calibration.

Typical applications include:

•
  4–20 mA transmitter output measurement

•
  Pressure transmitter troubleshooting

•
  Temperature transmitter troubleshooting

•
  Flow transmitter signal checking

•
  Level transmitter signal checking

•
  PLC analog input verification

•
  DCS analog I/O troubleshooting

•
  Process automation maintenance

•
  Live loop signal monitoring

•
  Control system diagnostics


Fluke 771 vs. Fluke 772

The distinction between these two models is important when selecting a process current instrument.

The Fluke 771 is primarily a milliamp clamp meter for non-intrusive 4–20 mA measurement. It is designed to measure existing process signals without opening the loop.

The Fluke 772 adds more active loop-testing functions, including mA sourcing, mA simulation and 24 V loop power. Therefore, the 772 is better suited when technicians need to generate or power a loop, while the 771 is a more focused choice for fast in-circuit mA troubleshooting.

Fluke 771 vs. Fluke 773

The Fluke 773 extends the process clamp concept further by adding additional source and measurement capabilities, including DC voltage functions.

For applications primarily requiring non-invasive 4–20 mA signal measurement, the Fluke 771 provides a simpler and more focused solution.

FAQ

What is the Fluke 771 used for?

The Fluke 771 is used to measure 4–20 mA process signals without breaking the loop, making it suitable for transmitter and PLC/DCS analog I/O troubleshooting.

Can the Fluke 771 measure 4–20 mA without disconnecting the loop?

Yes. The Fluke 771 uses a clamp to measure the current signal without opening or disconnecting the process loop.

What is the accuracy of the Fluke 771?

For clamp measurement from 0 to 20.99 mA, the specified accuracy is 0.2% + 2 counts. For 21.0 to 100.0 mA, the specified accuracy is 1% + 5 counts.

What is the resolution of the Fluke 771?

The Fluke 771 provides 0.01 mA resolution for its primary mA measurement range.

What is the maximum conductor diameter?

The Fluke 771 can measure conductors up to 4.5 mm in diameter using its clamp.

Does the Fluke 771 source or simulate 4–20 mA?

No. The Fluke 771 is primarily a mA measurement clamp meter. For sourcing, simulation and loop-power functions, the Fluke 772 is the more appropriate model.
