All-in-One Process Calibrator for Modern Industrial Instrumentation

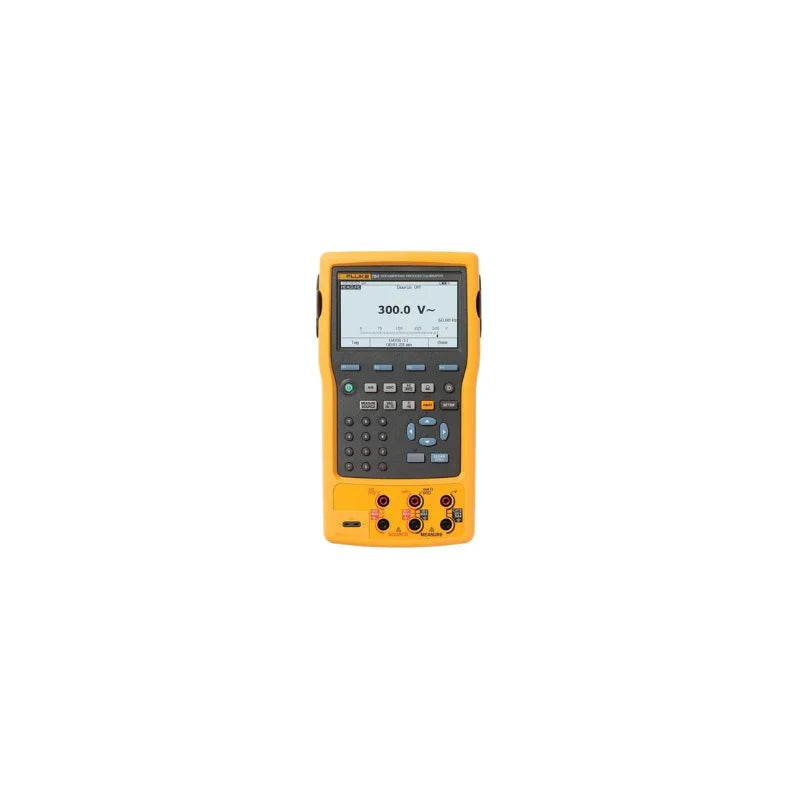

The Fluke 754 Documenting Process Calibrator-HART is a multifunction handheld calibrator designed for process engineers, instrumentation technicians, and maintenance teams.
Unlike traditional calibrators that only measure or source electrical signals, the Fluke 754 combines:
- Signal measurement
- Signal sourcing
- Pressure and temperature calibration
- HART communication
- Calibration procedure management
- Test result documentation
in one portable instrument.
This reduces the need to carry multiple tools when commissioning, maintaining, or troubleshooting industrial process instruments.
HART Communication for Smart Transmitter Maintenance
The biggest advantage of the Fluke 754 compared with standard multifunction calibrators is its built-in HART communication capability.
The integrated HART interface allows technicians to:
- Communicate with HART smart transmitters
- Read transmitter configuration information
- Perform calibration-related HART operations
- Troubleshoot digital process instruments
The 754 helps eliminate the need to carry a separate HART communicator for many routine calibration tasks.
Complete Calibration Capability in One Device
The Fluke 754 can source, simulate, and measure multiple industrial signals.
Supported measurement and source functions include:
- DC voltage
- Current (mA)
- Resistance
- Frequency
- Thermocouples
- RTDs
- Pressure (with compatible Fluke pressure modules)
This allows technicians to calibrate a wide range of field instruments from a single handheld device.

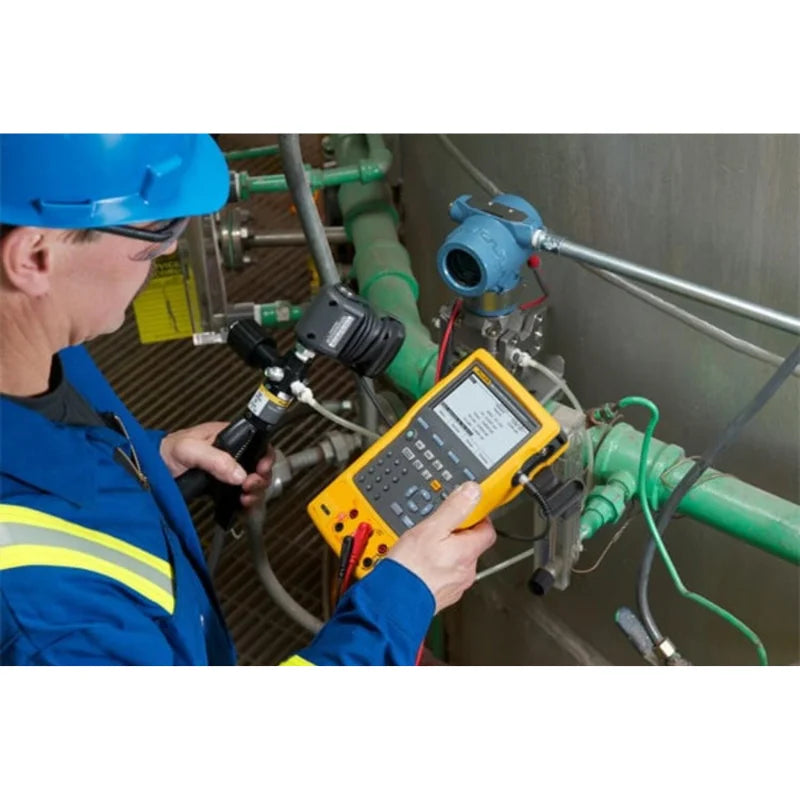

Pressure Calibration with Fluke 750P Modules
For pressure applications, the Fluke 754 works with Fluke 750P Series Pressure Modules.
By connecting different pressure modules, users can calibrate:
- Pressure transmitters
- Differential pressure transmitters
- Pressure switches
- Process gauges
This modular approach allows one calibrator to support different pressure ranges without purchasing multiple dedicated pressure instruments.
24 V Loop Power for Transmitter Testing
Many industrial transmitters require external power during calibration.
The Fluke 754 provides:
- 24 V loop power supply
- Simultaneous mA measurement
- Loop testing capability
This makes it suitable for verifying complete transmitter loops directly in the field.
Automated Calibration Procedures and Documentation
The Fluke 754 is designed for organizations that require traceable calibration records.
It can:
- Download calibration procedures
- Execute automated as-found / as-left tests
- Store calibration results
- Upload data to calibration management software
This helps companies maintain documentation requirements for standards such as ISO 9000 and regulated industries.

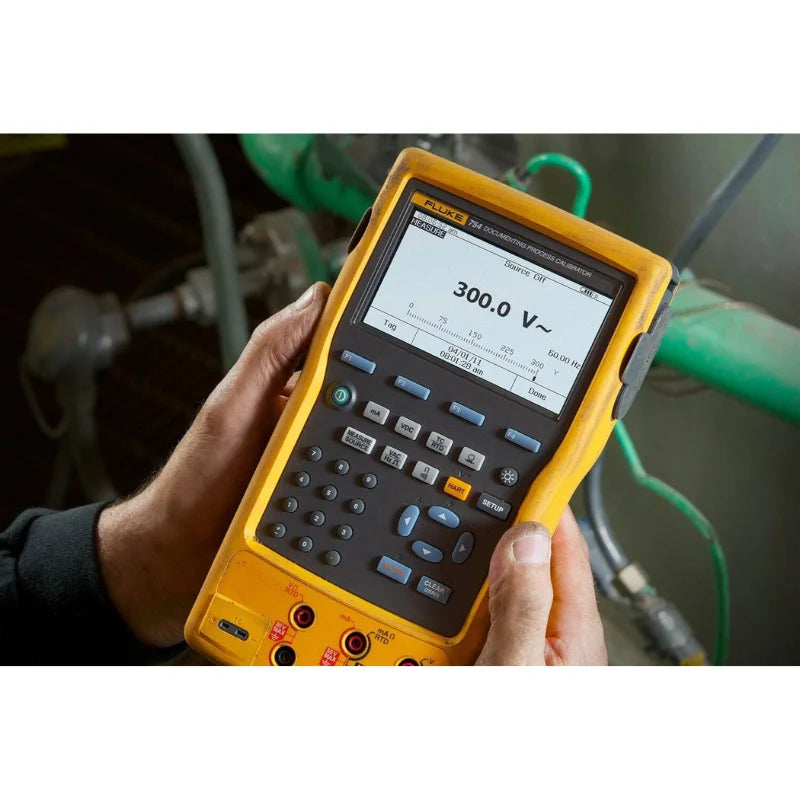

Dual Display Improves Field Efficiency
The bright dual display allows technicians to view:
- Applied signal
- Measured output
- Calibration status
at the same time.
This reduces switching between screens and helps prevent errors during calibration procedures.
Designed for Industrial Field Applications
The Fluke 754 is built for demanding process environments.
Features include:
- Rugged handheld design
- Rechargeable lithium-ion battery
- Portable operation
- IP52 environmental protection
The long battery life supports extended field calibration work without frequent charging.
Key Features
- HART-enabled documenting process calibrator
- Measures and sources pressure, temperature, and electrical signals
- Integrated HART communication
- 24 V loop power supply
- Measures and sources mA, voltage, resistance, frequency
- Supports RTD and thermocouple calibration
- Compatible with Fluke 750P pressure modules
- Automated calibration procedures
- Stores calibration results
- USB communication
- Compatible with calibration management software
- Dual display
- Rugged portable design
Technical Highlights
- Functions: Measure / Source / Simulate
- Communication: HART protocol
- Current Measurement: mA loop measurement
- Loop Power: 24 V supply capability
- Temperature Input: RTD and thermocouple
- Pressure Input: Fluke 750P Series Pressure Modules
- Data Storage: Calibration procedures and results
- Communication Interface: USB
- Battery: Rechargeable Li-ion battery
- Protection: IP52
Typical Applications
Pressure Transmitter Calibration
Used for calibration and verification of:
- Differential pressure transmitters
- Gauge pressure transmitters
- Absolute pressure transmitters
HART Smart Instrument Maintenance
Ideal for maintaining HART-enabled:
- Pressure transmitters
- Temperature transmitters
- Flow transmitters
- Level instruments
Process Plant Maintenance
Commonly used in:
- Oil & gas
- Chemical processing
- Power generation
- Pharmaceutical manufacturing
- Water treatment
Commissioning and Troubleshooting
Engineers can use the 754 during:
- New equipment installation
- Loop testing
- Instrument commissioning
- Fault diagnosis
FAQ
What is the Fluke 754?
The Fluke 754 is a documenting multifunction process calibrator with built-in HART communication for calibrating and troubleshooting industrial instrumentation.
Is Fluke 754 a HART communicator?
The Fluke 754 includes HART communication capability for calibration and maintenance tasks. It is designed as a calibrator with HART functions rather than a full replacement for every dedicated HART communicator function.
What instruments can Fluke 754 calibrate?
It can calibrate many process instruments including:
- Pressure transmitters
- Temperature transmitters
- Flow-related instruments
- HART smart transmitters
Can Fluke 754 calibrate pressure?
Yes. With compatible Fluke 750P pressure modules, the 754 can measure and source pressure for calibration applications.
What is the difference between Fluke 754 and 753?
The main difference is:
- Fluke 753: Documenting multifunction calibrator
- Fluke 754: Adds integrated HART communication capability
Does Fluke 754 record calibration results?
Yes. The 754 can store calibration procedures and results and transfer data to calibration management software.
Why choose Fluke 754 instead of multiple calibration tools?
Because it combines electrical testing, temperature calibration, pressure calibration support, HART communication, and documentation functions in one portable instrument.
