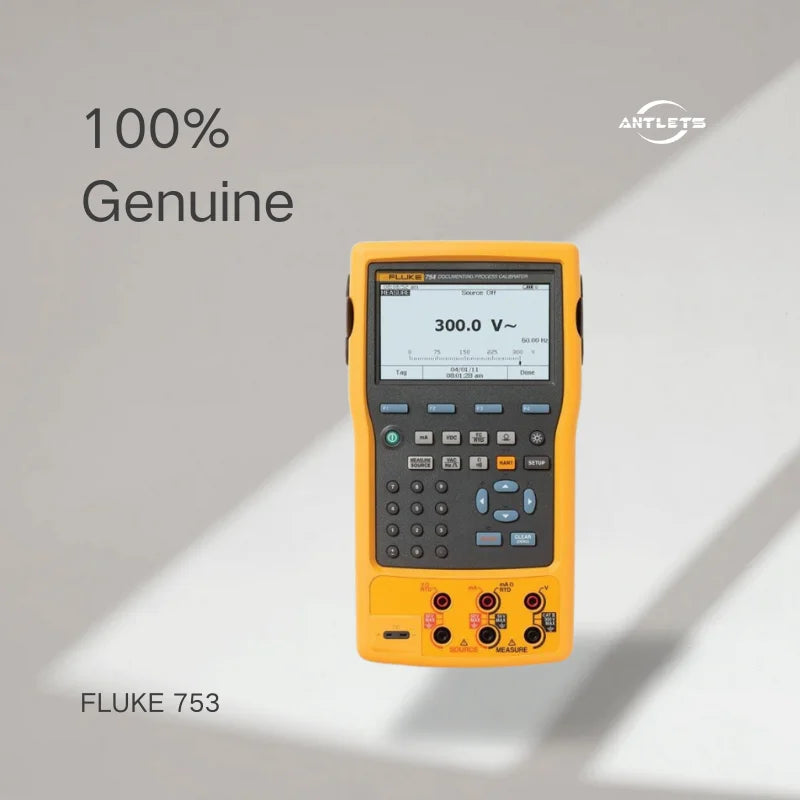

Fluke 753 Documenting Process Calibrator

$5,500.00

Multifunction Calibration · Process Transmitter Testing · Automated Documentation

Fluke 753 combines measurement, signal sourcing, transmitter power supply, and calibration documentation in one rugged handheld instrument, helping technicians complete field calibration faster.

Pressure · Temperature · mA · RTD · Thermocouple · Data Logging

🕑 Lead time: In stock
Quantity:
Delivery & return Ask a Question
Visa PayPal Mastercard American Express

Complete Field Calibration Solution for Process Instruments

The Fluke 753 Multifunction Documenting Process Calibrator is designed for instrumentation engineers and maintenance technicians who need a reliable solution for calibrating and troubleshooting industrial process equipment.

Instead of carrying separate meters, signal generators, and documentation tools, the Fluke 753 combines multiple calibration functions into one portable device.

It can:

  • Measure electrical signals
  • Source simulation signals
  • Calibrate transmitters
  • Test sensors
  • Record calibration results

This makes it suitable for a wide range of process industries where accurate and traceable calibration is required.

One Instrument for Multiple Calibration Tasks

The Fluke 753 works as a complete multifunction calibrator for common industrial measurement signals.

It can measure and source:

  • DC voltage
  • Current (mA)
  • Resistance
  • Frequency
  • RTD signals
  • Thermocouple signals
  • Pressure (with compatible pressure modules)

This allows technicians to calibrate many types of field instruments using a single handheld device.

Process Transmitter Calibration Made Easier

Industrial plants rely on transmitters for measuring:

  • Pressure
  • Temperature
  • Flow
  • Level

The Fluke 753 supports transmitter calibration workflows by providing:

  • Signal simulation
  • Output measurement
  • Loop testing
  • Transmitter power supply

The built-in loop supply allows technicians to power transmitters during testing while simultaneously measuring mA output.

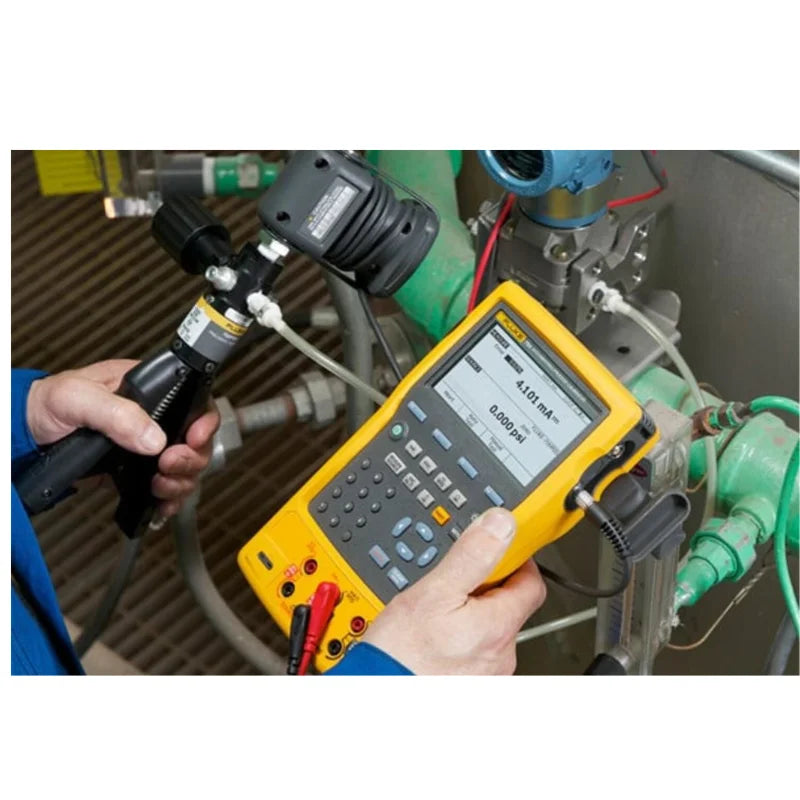

Pressure Calibration with Fluke 700P Modules

For pressure applications, the Fluke 753 can connect with Fluke 700P Series Pressure Modules.

This allows calibration of:

  • Pressure transmitters
  • Differential pressure transmitters
  • Pressure switches
  • Pressure gauges

The modular design lets users select different pressure ranges according to application requirements instead of purchasing multiple dedicated calibrators.

Temperature Calibration Capability

The Fluke 753 supports temperature measurement and simulation using compatible sensors.

Supported temperature devices include:

  • RTDs
  • Thermocouples

This makes it suitable for verifying temperature transmitters and industrial temperature measurement systems.

Automated Calibration Procedures and Documentation

Modern industries require reliable calibration records for quality management and compliance.

The Fluke 753 allows users to:

  • Download calibration procedures
  • Perform automated as-found / as-left tests
  • Store calibration results
  • Upload data for analysis and reporting

Through USB communication and compatible calibration management software, technicians can create a more efficient paperless calibration workflow.

Dual Display for Faster Troubleshooting

During calibration, engineers often need to compare the applied signal with the measured output.

The Fluke 753 dual display allows simultaneous viewing of:

  • Source value
  • Measured value

This improves efficiency when adjusting and verifying transmitters in the field.

Rugged Handheld Design for Field Work

The Fluke 753 is designed for industrial environments where portability is essential.

Features include:

  • Rugged handheld enclosure
  • Rechargeable lithium-ion battery
  • Portable calibration capability
  • Bright display for field visibility

It allows technicians to perform calibration tasks directly at the installation location instead of removing instruments for laboratory testing.

Key Features

  • Multifunction documenting process calibrator
  • Measures and sources electrical signals
  • Supports pressure calibration with Fluke 700P modules
  • Supports RTD and thermocouple calibration
  • Measures and sources mA, voltage, resistance, frequency
  • Provides transmitter loop power
  • Simultaneous source and measurement display
  • Automated calibration procedures
  • Stores calibration results
  • USB communication
  • Compatible with DPCTrack2 calibration management software
  • Rechargeable Li-ion battery
  • Rugged field design

Technical Highlights

  • Measurement Functions: Voltage, current, resistance, frequency, temperature, pressure
  • Source Functions: Voltage, current, resistance, frequency, temperature, pressure
  • Loop Power: 26 V selectable supply
  • Current Source: Up to 22 mA
  • Pressure Support: Fluke 700P Pressure Modules
  • Data Logging: Up to 8000 readings
  • Communication: USB interface
  • Battery: Rechargeable Li-ion battery
  • Battery Life: Approximately 8–10 hours
  • Protection: IP52

Typical Applications

Pressure Transmitter Calibration

Used for verifying:

  • Differential pressure transmitters
  • Gauge pressure transmitters
  • Absolute pressure transmitters

Temperature Instrument Calibration

Suitable for:

  • Temperature transmitters
  • RTD sensors
  • Thermocouple systems

Flow and Level Instrument Maintenance

Used together with pressure measurement devices for:

  • Flow transmitter testing
  • DP flow applications
  • Level measurement verification

Process Plant Maintenance

Common industries include:

  • Oil & gas
  • Chemical processing
  • Power generation
  • Pharmaceutical
  • Water treatment

FAQ

What is the Fluke 753?

The Fluke 753 is a multifunction documenting process calibrator used for calibrating and troubleshooting industrial process instruments.

What is the difference between Fluke 753 and Fluke 754?

The main difference is that Fluke 754 adds integrated HART communication capability, while Fluke 753 focuses on multifunction calibration and documentation.

Can Fluke 753 calibrate pressure transmitters?

Yes. With compatible Fluke 700P pressure modules, the 753 can perform pressure calibration tasks.

Can Fluke 753 provide loop power?

Yes. It can power transmitters during testing while measuring the output current.

Does Fluke 753 record calibration results?

Yes. It supports automated calibration procedures and stores calibration data for documentation and analysis.

Is Fluke 753 suitable for field use?

Yes. Its handheld design and rechargeable battery make it suitable for on-site industrial calibration work.

Measurement Accuracy

Parameter Range / Resolution 1 Year 2 Years
Voltage DC100.000 mV0.02% + 0.005 mV0.03% + 0.005 mV
3.00000 V0.02% + 0.00005 V0.03% + 0.00005 V
30.0000 V0.02% + 0.0005 V0.03% + 0.0005 V
300.00 V0.05% + 0.05 V0.07% + 0.05 V
Voltage AC3.000 V (40 Hz to 500 Hz) / 0.001 V0.5% + 0.002 V1.0% + 0.004 V
30.00 V (40 Hz to 500 Hz) / 0.01 V0.5% + 0.02 V1.0% + 0.04 V
300.0 V (40 Hz to 500 Hz) / 0.1 V0.5% + 0.2 V1.0% + 0.2 V
Current DC30.000 mA0.01% + 5 uA0.015% + 7 uA
110.00 mA0.01% + 20 uA0.015% + 30 uA
Resistance10.000 Ω0.05% + 50 mΩ0.07% + 70 mΩ
100.00 Ω0.05% + 50 mΩ0.07% + 70 mΩ
1.0000 kΩ0.05% + 500 mΩ0.07% + 0.5 Ω
10.000 kΩ0.1% + 10 Ω0.15% + 15 Ω
Frequency1.00 to 110.00 Hz / 0.01 Hz0.05 Hz
110.1 to 1100.0 Hz / 0.1 Hz0.5 Hz
1.101 to 11.000 kHz / 0.001 kHz0.005 kHz
11.01 to 50.00 kHz / 0.01 kHz0.05 kHz

Source Accuracy

Parameter Range 1 Year 2 Years
Voltage DC100.000 mV0.01% + 0.005 mV0.015% + 0.005 mV
1.00000 V0.01% + 0.00005 V0.015% + 0.0005 V
15.0000 V0.01% + 0.0005 V0.015% + 0.0005 V
Current DC22.000 mA (source)0.01% + 0.003 mA0.02% + 0.003 mA
Current sink (simulate)0.02% + 0.007 mA0.04% + 0.007 mA
Resistance10.000 Ω0.01% + 10 mΩ0.015% + 15 mΩ
100.00 Ω0.01% + 20 mΩ0.015% + 30 mΩ
1.0000 kΩ0.02% + 0.2 Ω0.03% + 0.3 Ω
10.000 kΩ0.02% + 3 Ω0.03% + 5 Ω
Frequency0.1 to 10.99 Hz0.01 Hz
0.01 to 10.99 Hz0.01 Hz
11.00 to 109.99 Hz0.1 Hz
110.0 to 1099.9 Hz0.1 Hz
1.100 to 21.999 kHz0.002 kHz
22.000 to 50.000 kHz0.005 kHz

Technical Data

Data log functions – Measure functionsVoltage, current, resistance, frequency, temperature, pressure
Reading rate1, 2, 5, 10, 20, 30, or 60 readings/minute
Maximum record length8000 readings (7980 for 30 or 60 readings/minute)
Ramp functions – Source functionsVoltage, current, resistance, frequency, temperature
Ramp functions – Rate4 steps/second
Trip detectContinuity or voltage (continuity detection not available when sourcing current)
Loop power function – VoltageSelectable, 26 V
Loop power function – Accuracy10%, 18 V minimum at 22 mA
Loop power function – Maximum current25 mA, short circuit protected
Loop power function – Maximum input voltage50 V DC
Step functions – Source functionsVoltage, current, resistance, frequency, temperature
Step functions – Manual stepSelectable step, change with arrow buttons
Step functions – AutostepFully programmable for function, start delay, stepvalue, time per step, repeat

Environmental Specifications

Operating temperature-10°C to +50°C
Storage temperature-20°C to +60°C
Dust/water resistanceMeets IP52, IEC 529
Operating altitude3000 m above mean sea level (9842 ft)

Safety Specifications

Agency approvalsCAN/CSA C22.2 No 1010.1-92, ASNI/ISA S82.01-1994, UL3111, and EN610-1:1993

Mechanical and General Specifications

Size136 x 245 x 63 mm (5.4 x 9.6 x 2.5 in)
Weight1.2 kg (2.7 lb)
BatteriesInternal Battery Pack Li-ion: 7.2 V, 4400 mAh, 30 Wh
Battery life> 8 hours typical
Battery replacementVia snap-shut door without opening calibrator; no tools required
Side port connectionsPressure module connector
USB Connector to interface to your PC
Connection for optional battery charger/eliminator
Data storage capacity1 week of calibration procedures results
90 day specificationsThe standard specification interval for the 750 Series are 1 and 2 years.
Typical 90 day measurement and source accuracy can be estimated by dividing the one year "% of reading" or "% of output" specifications by 2.
Floor specifications, expressed as "% of full scale" or "counts" or "ohms" remain constant.

Temperature, Resistance Temperature Detectors

Degrees or % of reading – Type (α) Range °C Measure °C¹
1 year 2 year
100 Ω Pt (385)-200 to 1000.07°C
0.02% + 0.05°C		0.14°C
0.04% + 0.10°C
100 to 8000.07°C
0.02% + 0.05°C		0.14°C
0.04% + 0.10°C
200 Ω Pt (385)-200 to 1000.07°C
0.02% + 0.05°C		0.14°C
0.04% + 0.10°C
100 to 6300.07°C
0.02% + 0.05°C		0.14°C
0.04% + 0.10°C
500 Ω Pt (385)-200 to 1000.07°C
0.02% + 0.05°C		0.14°C
0.04% + 0.10°C
100 to 6300.07°C
0.02% + 0.05°C		0.14°C
0.04% + 0.10°C
1000 Ω Pt (385)-200 to 1000.07°C
0.02% + 0.05°C		0.14°C
0.04% + 0.10°C
100 to 6300.07°C
0.02% + 0.05°C		0.14°C
0.04% + 0.10°C
100 Ω Pt (3916)-200 to 1000.07°C
0.02% + 0.05°C		0.14°C
0.04% + 0.10°C
100 to 6300.07°C
0.02% + 0.05°C		0.14°C
0.04% + 0.10°C
100 Ω Pt (3926)-200 to 1000.08°C
0.02% + 0.06°C		0.16°C
0.04% + 0.12°C
100 to 6300.08°C
0.02% + 0.06°C		0.16°C
0.04% + 0.12°C
10 Ω Cu (427)-100 to 2600.2°C0.4°C
120 Ω Ni (672)-80 to 2600.1°C0.2°C
Source current Source °C Allowable current²
1 year 2 year
1 mA0.05°C
0.0125% + 0.04°C		0.10°C
0.025% + 0.08°C		0.1 mA to 10 mA
500 μA0.06°C
0.017% + 0.05°C		0.12°C
0.034% + 0.10°C		0.1 mA to 1 mA
250 μA0.06°C
0.017% + 0.05°C		0.12°C
0.034% + 0.10°C		0.1 mA to 1 mA
150 μA0.06°C
0.017% + 0.05°C		0.12°C
0.034% + 0.10°C		0.1 mA to 1 mA
1 mA0.05°C
0.0125% + 0.04°C		0.10°C
0.025% + 0.08°C		0.1 mA to 10 mA
1 mA0.05°C
0.0125% + 0.04°C		0.10°C
0.025% + 0.08°C		0.1 mA to 10 mA
3 mA0.2°C0.4°C0.1 mA to 10 mA
1 mA0.04°C0.08°C0.1 mA to 10 mA

1. For two and three-wire RTD measurements, add 0.4°C to the specifications.
2. Supports pulsed transmitters and PLCs with pulse times as short as 1 ms

Temperature, Thermocouples

Type Range °C Source °C Measure °C
1 year 2 years 1 year 2 years
E-250 to -2001.32.00.60.9
-200 to -1000.50.80.30.4
-100 to 6000.30.40.30.4
600 to 10000.40.60.20.3
N-200 to -1001.01.50.60.9
-100 to 9000.50.80.50.8
900 to 13000.60.90.30.4
J-210 to -1000.60.90.30.4
-100 to 8000.30.40.20.3
800 to 12000.50.80.30.3
K-200 to -1000.71.00.40.6
-100 to 4000.30.40.30.4
400 to 12000.50.80.30.4
1200 to 13720.71.00.30.4
T-250 to -2001.72.50.91.4
-200 to 00.60.90.40.6
0 to 4000.30.40.30.4
B600 to 8001.32.01.01.5
800 to 10001.01.50.81.2
1000 to 18200.91.30.81.2
R-20 to 02.32.81.21.8
0 to 1001.52.21.11.7
100 to 17671.01.50.91.4
S-20 to 02.32.81.21.8
0 to 2001.52.11.11.7
200 to 14000.91.40.91.4
1400 to 17671.11.71.01.5
C0 to 8000.60.90.60.9
800 to 12000.81.20.71.0
1200 to 18001.11.60.91.4
1800 to 23162.03.01.32.0
L-200 to -1000.60.90.30.4
-100 to 8000.30.40.20.3
800 to 9000.50.80.20.3
U-200 to 00.60.90.40.6
0 to 6000.30.40.30.4
BP0 to 10001.01.50.40.6
1000 to 20001.62.40.60.9
2000 to 25002.03.00.81.2
XK-200 to 3000.20.30.20.5
300 to 8000.40.60.30.6

Related Product
