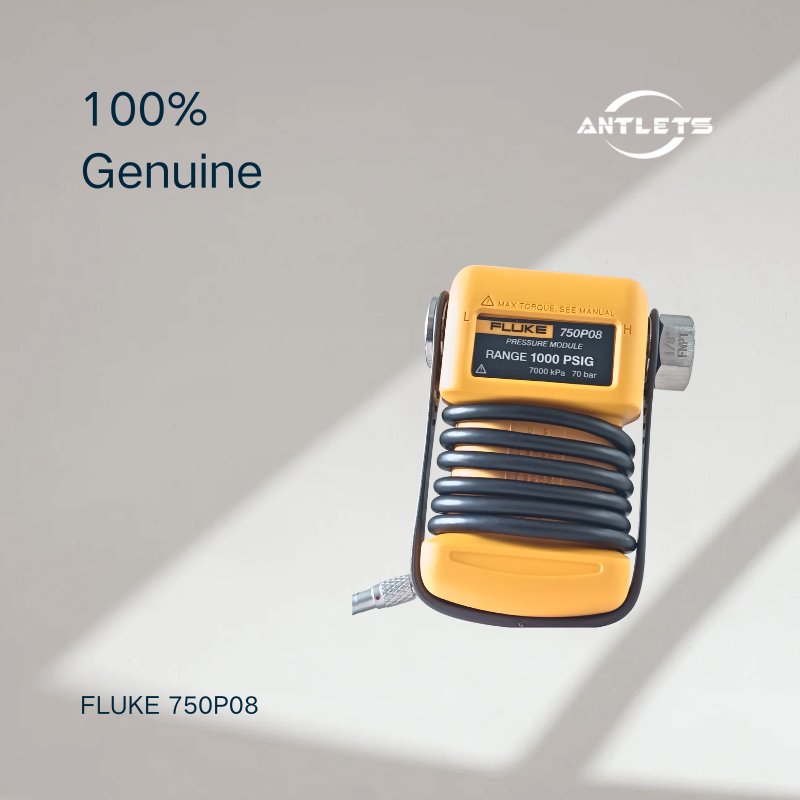

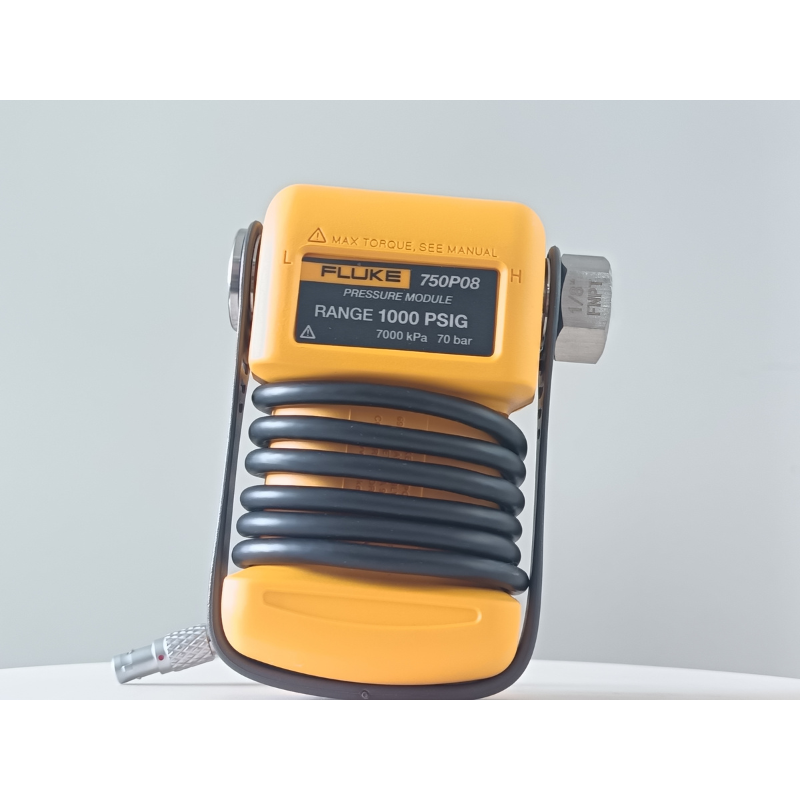

Fluke 750P08 Pressure Calibration Module

$1,600.00

Precision Pressure Measurement · Wide Range Coverage · Compatible with Fluke Calibrators

Fluke 750P Series Pressure Modules provide flexible pressure measurement solutions for process calibration, supporting multiple pressure ranges and measurement types with reliable accuracy and traceable calibration.

1 inH₂O–10,000 psi Range · ±0.01% Accuracy · Differential / Gauge / Absolute

🕑 Lead time: In stock
Quantity:
Delivery & return Ask a Question
Visa PayPal Mastercard American Express

Flexible Pressure Modules for Industrial Calibration

The Fluke 750P Series Pressure Modules are precision accessories designed to transform compatible Fluke multifunction calibrators into complete pressure calibration systems.

Instead of purchasing separate pressure calibrators for different ranges, engineers can select the appropriate 750P module and connect it directly to a compatible Fluke calibrator to measure and calibrate pressure instruments efficiently.

The modular design allows technicians to change pressure ranges according to different field requirements while maintaining calibration traceability.

Expand Fluke Calibrators into Pressure Calibration Systems

The 750P Series works with Fluke multifunction calibrators including:

  • Fluke 725 Multifunction Process Calibrator
  • Fluke 726 Precision Multifunction Process Calibrator
  • Fluke 750 Series Documenting Process Calibrators

By adding a suitable pressure module, these calibrators can perform pressure measurement and calibration tasks for industrial pressure devices.

Wide Pressure Range Selection

The Fluke 750P family provides one of the widest selections of industrial pressure modules.

Available measurement ranges cover:

  • 1 inH₂O to 10,000 psi
  • 2.5 mbar to 690 bar

This allows users to select the correct module for applications ranging from low-pressure air measurement to high-pressure industrial systems.

Multiple Pressure Measurement Types

The 750P Series includes different module categories to meet various calibration requirements:

Differential Pressure Modules

Designed for low differential pressure applications such as:

  • Flow transmitters
  • Filter monitoring
  • HVAC pressure measurement

Gauge Pressure Modules

Suitable for general industrial pressure instruments:

  • Pressure transmitters
  • Pressure switches
  • Process gauges

Absolute Pressure Modules

Used where pressure must be referenced to a vacuum:

  • Barometric measurement
  • Vacuum systems
  • Laboratory applications

Vacuum Modules

Designed for negative pressure measurement.

Dual Range Modules

Provide flexible measurement capability across positive and negative pressure ranges.

Reference Pressure Modules

Designed for higher accuracy calibration requirements.

High Accuracy for Calibration Applications

Calibration accuracy is critical when verifying industrial pressure instruments.

The 750P Series provides precision measurement performance with reference uncertainties down to:

±0.01%

depending on selected module type and range.

This makes the modules suitable for calibration laboratories, maintenance departments, and process instrument verification.

Independent Calibration Maintains Traceability

Each pressure module is independently calibrated.

This means modules can be moved between compatible Fluke calibrators without losing calibration accuracy or measurement traceability.

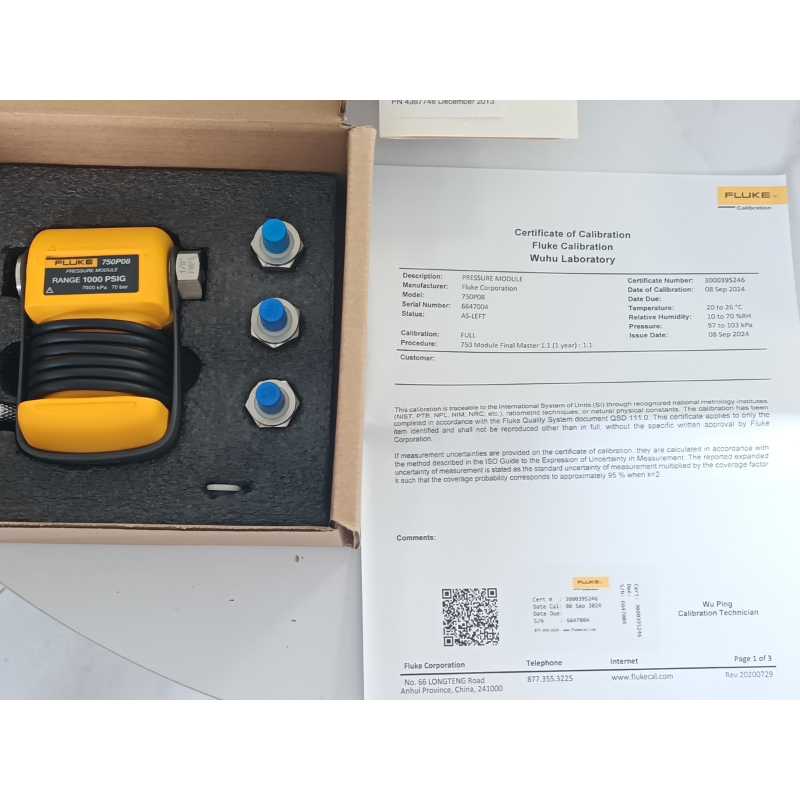

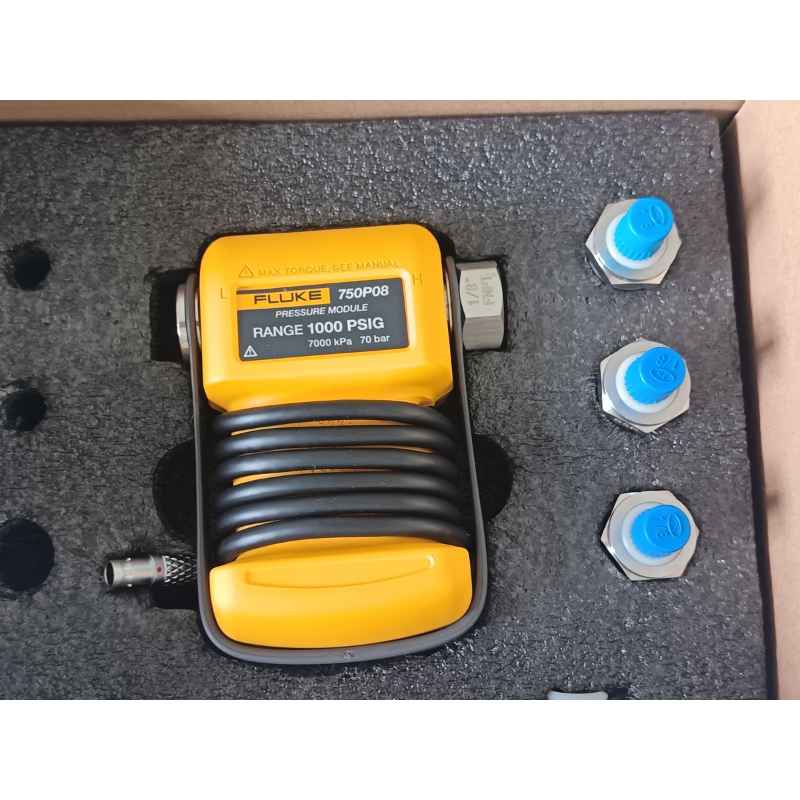

Each module includes:

  • Calibration certificate traceable to SI units
  • Pressure adapters
  • Documentation

Easy Connection and Field Operation

The 750P modules are designed for fast field installation.

Operation steps:

  1. Connect the module to a pressure source or hand pump
  2. Connect the module cable to the Fluke calibrator
  3. Apply pressure
  4. Read pressure directly on the calibrator display

The system supports up to 11 engineering pressure units, allowing technicians to work with familiar measurement formats.

Designed for Field Calibration

Industrial calibration often requires equipment that can withstand harsh working conditions.

The 750P Series features:

  • Rugged protective boot
  • Protection against shock and contamination
  • Wide operating temperature capability
  • Compact portable design

These features make it suitable for field technicians working in demanding industrial environments.

Intrinsically Safe Options Available

For hazardous area applications, selected 750P pressure modules provide intrinsically safe versions.

These models can be used with compatible Fluke Ex-certified calibrators, such as:

  • Fluke 718EX
  • Fluke 725EX

This allows pressure calibration in classified hazardous locations.

Key Features

  • Precision pressure measurement modules
  • Compatible with Fluke multifunction calibrators
  • Supports Fluke 725, 726 and 750 Series calibrators
  • Pressure range from 1 inH₂O to 10,000 psi
  • More than 50 module configurations available
  • Differential pressure measurement
  • Gauge pressure measurement
  • Absolute pressure measurement
  • Vacuum measurement
  • Dual range pressure measurement
  • Reference pressure modules
  • Accuracy up to ±0.01%
  • Independent calibration
  • SI traceable calibration certificate included
  • Rugged protective housing
  • No-tools-required connections
  • Intrinsically safe options available

Technical Highlights

  • Pressure Range: 1 inH₂O to 10,000 psi (2.5 mbar to 690 bar)
  • Measurement Types: Differential / Gauge / Absolute / Vacuum / Dual Range / Reference
  • Accuracy: Up to ±0.01% reference uncertainty
  • Media Compatibility: Dry air and 316 stainless steel options depending on model
  • Operating Temperature: -10°C to +50°C
  • Connection: NPT, metric BSP, M20 adapters included
  • Compatible Calibrators: Fluke 725 / 726 / 750 Series
  • Certification: Intrinsically safe models available

Typical Applications

Pressure Transmitter Calibration

The 750P Series is widely used for verification and calibration of industrial pressure transmitters in process plants.

Control Valve and Instrument Maintenance

Maintenance teams can use Fluke calibrators with pressure modules to verify pressure-related control devices.

Oil & Gas Industry

Different pressure ranges support upstream, midstream, and downstream pressure measurement tasks.

Chemical and Pharmaceutical Plants

High accuracy modules help maintain process measurement reliability.

Calibration Laboratories

Reference modules provide precision pressure measurement for professional calibration environments.

FAQ

What is the Fluke 750P Series?

The Fluke 750P Series is a family of precision pressure modules used with Fluke multifunction calibrators to perform pressure measurement and calibration tasks.

Is Fluke 750P a complete pressure calibrator?

No. The 750P is a pressure measurement module. It becomes a complete pressure calibration solution when connected to compatible Fluke multifunction calibrators and a pressure source.

Which Fluke calibrators work with 750P modules?

The 750P Series works with Fluke 725, 726, and 750 Series multifunction calibrators.

What pressure range does Fluke 750P cover?

The series covers pressure ranges from 1 inH₂O to 10,000 psi (2.5 mbar to 690 bar).

How many 750P models are available?

The 750P family includes more than 50 pressure modules covering different pressure ranges and measurement types.

What types of pressure can 750P measure?

The series includes differential, gauge, absolute, vacuum, dual range, and reference pressure modules.

Does each pressure module include calibration documentation?

Yes. Each module includes a calibration certificate traceable to SI standards.

Can Fluke 750P modules be used in hazardous areas?

Selected intrinsically safe models are available for use with compatible Fluke Ex-certified calibrators.

Why use pressure modules instead of separate pressure calibrators?

Pressure modules provide a flexible and economical solution because one multifunction calibrator can support multiple pressure ranges by changing modules.

Differential Module Specifications

Model Parameter / range Burst rating⁶ Hi side media² Lo side media²
750P000 to 1 inH2O (0 to 2.5 mBar)30XDry airDry air
750P3IN0 to 3 Inch H2O (0 to 7.5 mbar)10XDry airDry air
750P5IN0 to 5 Inch H2O (0 to 12.5 mbar)6XDry airDry air
750P0170 to 10 inH2O (0 to 25 mBar)3XDry airDry air
750P020 to 1 psi (0 to 70 mBar)3XDry airDry air
750P220 to 1 psi (0 to 70 mBar)3X316 SSDry air
750P030 to 5 psi (0 to 350 mBar)3XDry airDry air
750P230 to 5 psi (0 to 350 mBar)4X316 SSDry air
750P040 to 15 psi (0 to 1 bar)3XDry airDry air
750P2470 to 15 psi (0 to 1 bar)4X316 SSDry air
Model Reference uncertainty⁴ Total uncertainty 1-year Total uncertainty 6-month
(15-35°C) ¹ (15-35°C) ¹
750P00±0.15%±0.3%±0.35%±0.25%±0.30%
750P3IN±0.15%±0.3%±0.35%±0.25%±0.30%
750P5IN±0.15%±0.3%±0.35%±0.25%±0.30%
750P017±0.1%±0.2%±0.3%±0.15%±0.25%
750P02±0.050%±0.1%±0.15%±0.075%±0.125%
750P22±0.050%±0.1%±0.15%±0.075%±0.125%
750P03±0.02%±0.04%±0.05%±0.035%±0.04%
750P23±0.02%±0.04%±0.05%±0.035%±0.04%
750P04±0.0175%±0.035%±0.045%±0.03%±0.04%
750P247±0.0175%±0.035%±0.045%±0.03%±0.04%

Gage Module Specifications

Model Parameter / range Burst rating⁶ Hi side media² Lo side media²
750P0570 to 30 psi (0 to 2 bar)4X316 SSN/A
750P0670 to 100 psi (0 to 7 bar)4X316 SSN/A
750P2770 to 300 psi (0 to 20 bar)4X316 SSN/A
750P070 to 500 psi (0 to 35 bar)4X316 SSN/A
750P080 to 1000 psi (0 to 70 bar)3X316 SSN/A
750P0970 to 1500 psi (0 to 100 bar)3X316 SSN/A
750P20000 to 2000 psi (0 to 140 bar)3X316 SSN/A
Model Reference uncertainty⁴ Total uncertainty 1-year Total uncertainty 6-month
(15-35°C) ¹ (15-35°C) ¹
750P057±0.0175%±0.035%±0.045%±0.03%±0.04%
750P067±0.0175%±0.035%±0.045%±0.03%±0.04%
750P277±0.0175%±0.035%±0.045%±0.03%±0.04%
750P07±0.0175%±0.035%±0.045%±0.03%±0.04%
750P08±0.0175%±0.035%±0.045%±0.03%±0.04%
750P097±0.0175%±0.035%±0.045%±0.03%±0.04%
750P2000±0.0175%±0.035%±0.045%±0.03%±0.04%

High Pressure Module Specifications

Model Parameter / range Burst rating⁶ Hi side media² Lo side media²
750P290 to 3000 psi (0 to 200 bar)3X316 SSN/A
750P300 to 5000 psi (0 to 340 bar)3X316 SSN/A
750P310 to 10000 psi (0 to 700 bar)2X316 SSN/A
Model Reference uncertainty⁴ Total uncertainty 1-year Total uncertainty 6-month
(15-35°C) ¹ (15-35°C) ¹
750P29±0.0175%±0.035%±0.045%±0.03%±0.04%
750P30±0.0175%±0.035%±0.045%±0.03%±0.04%
750P31±0.0175%±0.035%±0.045%±0.03%±0.04%

Absolute Module Specifications

Model Parameter / range Burst rating⁶ Hi side media² Lo side media²
750PA30 to 5 psia (0 to 350 mBar)4X316 SSN/A
750PA470 to 15 psia (0 to 1 bar)4X316 SSN/A
750PA50 to 30 psia (0 to 2 bar)4X316 SSN/A
750PA60 to 100 psia (0 to 7 bar)4X316 SSN/A
750PA270 to 300 psia (0 to 20 bar)4X316 SSN/A
750PA70 to 500 psia (0 to 35 bar)4X316 SSN/A
750PA80 to 1000 psia (0 to 70 bar)3X316 SSN/A
750PA90 to 1500 psia (0 to 100 bar)3X316 SSN/A
Model Reference uncertainty⁴ Total uncertainty 1-year Total uncertainty 6-month
(15-35°C) ¹ (15-35°C) ¹
750PA3±0.03%±0.06%±0.07%±0.05%±0.06%
750PA47±0.03%±0.06%±0.07%±0.05%±0.06%
750PA5±0.03%±0.06%±0.07%±0.05%±0.06%
750PA6±0.03%±0.06%±0.07%±0.05%±0.06%
750PA27±0.03%±0.06%±0.07%±0.05%±0.06%
750PA7±0.03%±0.06%±0.07%±0.05%±0.06%
750PA8±0.03%±0.06%±0.07%±0.05%±0.06%
750PA9±0.03%±0.06%±0.07%±0.05%±0.06%

Vacuum Module Specifications

Model Parameter / range Burst rating⁶ Hi side media² Lo side media²
750PV3-5 psi (-350 mBar)4X316 SSDry air
750PV4-15 psi (-1 bar)4X316 SSDry air
Model Reference uncertainty⁴ Total uncertainty 1-year Total uncertainty 6-month
(15-35°C) ¹ (15-35°C) ¹
750PV3±0.03%±0.06%±0.07%±0.05%±0.06%
750PV4±0.03%±0.06%±0.07%±0.05%±0.06%

Dual Range Specifications

Model Parameter / range Burst rating⁶ Hi side media² Lo side media²
750PD2-1 to 1 psi (-70 to 70 mBar)4X316 SSDry air
750PD3-5 to 5 psi (-350 to 350 mBar)4X316 SSDry air
750PD10-10 to 10 psi (-700 to 700 mBar)4X316 SSDry air
750PD4-15 to 15 psi (-1 to 1 bar)4X316 SSDry air
750PD5-15 to 30 psi (-1 to 2 bar)4X316 SS—
750PD50-15 to 50 psi (-1 to 3.5 bar)4X316 SS—
750PD6-15 to 100 psi (-1 to 7 bar)4X316 SS—
750PD7-15 to 200 psi (-1 to 14 bar)4X316 SS—
750PD27-15 to 300 psi (-1 to 20 bar)4X316 SS—
Model Reference uncertainty⁴ Total uncertainty 1-year Total uncertainty 6-month
(15-35°C) ¹ (15-35°C) ¹
750PD2±0.05%±0.1%±0.15%±0.075%±0.125%
750PD3±0.03%±0.06%±0.07%±0.05%±0.06%
750PD10±0.025%±0.05%±0.07%±0.04%±0.06%
750PD4±0.0175%±0.035%±0.045%±0.03%±0.04%
750PD5±0.0175%±0.035%±0.045%±0.03%±0.04%
750PD50±0.0175%±0.035%±0.045%±0.03%±0.04%
750PD6±0.0175%±0.035%±0.045%±0.03%±0.04%
750PD7±0.0175%±0.035%±0.045%±0.03%±0.04%
750PD27±0.0175%±0.035%±0.045%±0.03%±0.04%

Reference Module Specifications

Model Parameter / range Burst rating⁶ Hi side media² Lo side media²
750R0450 to 15 psi (0 to 1 bar)3XDry airDry air
750R0650 to 100 psi (0 to 7 bar)4X316 SS—
750R270 to 300 psi (0 to 20 bar)4X316 SS—
750R070 to 500 psi (0 to 35 bar)4X316 SS—
750R0850 to 1000 psi (0 to 70 bar)3X316 SS—
750R290 to 3000 psi (0 to 200 bar)3X316 SS—
750R300 to 5000 psi (0 to 340 bar)3X316 SS—
750R3150 to 10000 psi (0 to 700 bar)2X316 SS—
750RD5-15 to 30 psi (-1 to 2 bar)4XDry air—
750RD65-12 to 100 psi (-0.8 to 7 bar)4X316 SS—
750RD27-12 to 300 psi (-0.8 to 20 bar)4X316 SS—
Model Reference uncertainty⁴ Total uncertainty 1-year Total uncertainty 6-month
(15-35°C) ¹ (15-35°C) ¹
750R045±0.01% of FS±0.02% of FS±0.04% of FS±0.015% of FS±0.035% of FS
750R065±0.01% of FS±0.02% of FS±0.04% of FS±0.015% of FS±0.035% of FS
750R27±0.01% of FS±0.02% of FS±0.04% of FS±0.015% of FS±0.035% of FS
750R07±0.01% of FS±0.02% of FS±0.04% of FS±0.015% of FS±0.035% of FS
750R085±0.01% of FS±0.02% of FS±0.04% of FS±0.015% of FS±0.035% of FS
750R29±0.01% of FS±0.02% of FS±0.04% of FS±0.015% of FS±0.035% of FS
750R30±0.01% of FS±0.02% of FS±0.04% of FS±0.015% of FS±0.035% of FS
750R315±0.01% of FS±0.02% of FS±0.04% of FS±0.015% of FS±0.035% of FS
750RD5±0.01% of FS±0.02% of FS±0.04% of FS±0.015% of FS±0.035% of FS
750RD65±0.01% of FS±0.02% of FS±0.04% of FS±0.015% of FS±0.035% of FS
750RD27±0.01% of FS±0.02% of FS±0.04% of FS±0.015% of FS±0.035% of FS

Notes

  1. Total uncertainty, % of full span for temperature range 0°C to +50°C, one year interval. Total uncertainty, 1.0% of full span for temperature range -10°C to 0°C, one year interval. No 6 month specification available for range -10°C to 0°C.
  2. "Non-corrosive gasses" indicates Dry air or non-corrosive gas as compatible media. "Stainless Steel 316-SS" indicates media compatible with Type 316 Stainless Steel.
  3. Specifications % of Full Span unless otherwise noted.
  4. Reference Uncertainty is the specification for as left data for 24 hours.
  5. When reference class modules are used with fixed resolution products (717, 718, 719 series, 725 and 726) calibrators add ±1 count to the overall accuracy specification.
  6. Burst rating specification refers to the multiplier times full scale of the module for the rated burst pressure.
  7. Intrinsically Safe pressure module available in this pressure range.

Related Product
