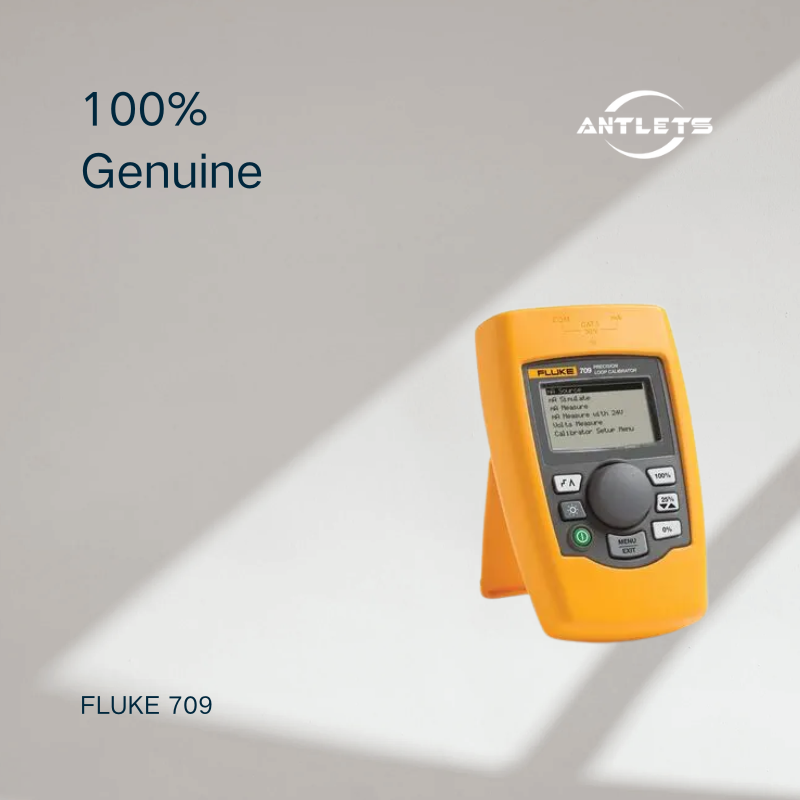

Fluke 709 Precision mA Loop Calibrator

The Fluke 709 Precision mA Loop Calibrator is designed for professionals who need accurate and efficient testing of industrial 4–20 mA process loops. It combines current sourcing, simulation, measurement and loop power functions in a compact handheld instrument, making it suitable for transmitter calibration, commissioning and troubleshooting.

Precision 4–20 mA Loop Calibration

The Fluke 709 provides the essential functions required for process current-loop testing, including mA source, mA simulate, mA read, mA read/loop power and voltage measurement.

Its 0.01% accuracy and 1 µA resolution provide the precision required for professional instrumentation calibration.

Key Technical Parameters

•
  mA range: 0 to 24 mA

•
  Voltage range: 0 to 30 V DC

•
  mA resolution: 1 µA

•
  Voltage resolution: 1 mV

•
  Accuracy: 0.01% ± 2 counts

•
  Loop compliance voltage: 24 V DC at 20 mA

•
  Operating temperature: -10 to +55 °C

•
  Battery: 6 × AAA alkaline

•
  Typical battery life: 40 hours

•
  Weight: approximately 0.3 kg

•
  Dimensions: approximately 150 × 90 × 30 mm


Source, Simulate and Measure 4–20 mA

The Fluke 709 supports both current sourcing and simulation, allowing technicians to generate controlled mA signals for testing transmitters, PLC/DCS analog inputs and other process control equipment.

The instrument also supports adjustable 0–20 mA and 4–20 mA spans, variable step and ramp functions, making it useful for checking loop response across different operating points.

24 V Loop Power for Field Testing

The integrated 24 V DC loop power allows the Fluke 709 to power compatible current loops while measuring the resulting mA signal.

This helps reduce the amount of additional equipment required during transmitter commissioning and field troubleshooting. Fluke specifies 24 V DC loop compliance at 20 mA.

HART-Compatible Loop Testing

Although the Fluke 709 is primarily a precision mA loop calibrator rather than a dedicated HART communicator, it includes a selectable built-in 250 Ω resistor that can facilitate HART communication within compatible loops.

For applications requiring integrated HART communication and diagnostics, the Fluke 709H provides the additional HART functionality.

Simple Operation for Field Technicians

The Fluke 709 uses a Quick-Set rotary encoder for fast parameter adjustment and setup. Its backlit graphical LCD is designed to remain readable in dark or confined work areas.

A simple two-wire connection can be used for all measurement functions, helping reduce setup time during field service.

Valve Testing and Signal Simulation

The Fluke 709 includes a valve test function that allows technicians to source and simulate defined mA values using percentage keys.

This makes it useful for checking the response of current-controlled valve positioners and related control-loop equipment. Fluke notes that the 709 can stroke most valves when the maximum load impedance is 1200 Ω or less.

Rugged Portable Design

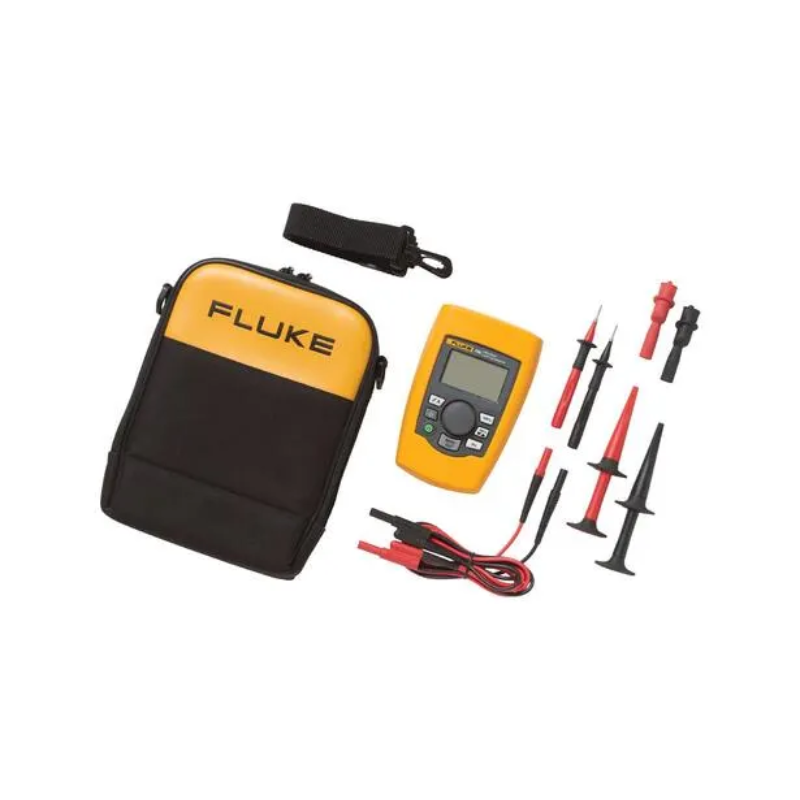

The Fluke 709 is designed for portable instrumentation work rather than fixed laboratory installation. Its compact housing, protective holster, backlit display and AAA battery operation make it practical for technicians working around process plants and equipment.

Additional features include adjustable auto shutdown, over-voltage protection and variable step/ramp functions.

Typical Applications

The Fluke 709 is suitable for:

•
  4–20 mA loop calibration

•
  Pressure transmitter testing

•
  Temperature transmitter testing

•
  Flow transmitter testing

•
  Level transmitter testing

•
  PLC/DCS analog input verification

•
  Process loop commissioning

•
  Control valve testing

•
  Instrumentation troubleshooting

•
  Field transmitter calibration


Fluke 709 vs. Fluke 709H

The Fluke 709 and 709H share the same precision mA loop calibration foundation, including 0.01% accuracy, 0–24 mA range, 1 µA resolution and 24 V loop power. The key difference is that the 709H adds integrated HART communication, diagnostics and HART data logging capabilities.

For standard 4–20 mA calibration and troubleshooting, the Fluke 709 is a straightforward choice. When direct HART configuration and diagnostics are required, the 709H is the more advanced option.

FAQ

What is the Fluke 709 used for?

The Fluke 709 is used for 4–20 mA loop measurement, sourcing, simulation and loop-powered testing, particularly for industrial process instrumentation.

What is the accuracy of the Fluke 709?

The Fluke 709 has a specified accuracy of 0.01% ± 2 counts across its ranges under the stated reference conditions.

Can the Fluke 709 source 4–20 mA?

Yes. The Fluke 709 supports mA source and mA simulation functions with a 0–24 mA range.

Does the Fluke 709 provide loop power?

Yes. It provides 24 V DC loop power at 20 mA for compatible loop testing.

Does Fluke 709 have HART communication?

The Fluke 709 includes a selectable 250 Ω resistor for HART communication, but it does not provide the full integrated HART communication and diagnostic functions found in the Fluke 709H.

What is the difference between Fluke 709 and 709H?

The 709 is focused on precision mA loop calibration, while the 709H adds HART communication, diagnostics and HART data logging for smart process instruments.
