Complete Pneumatic Pressure Testing Solution for Field Applications

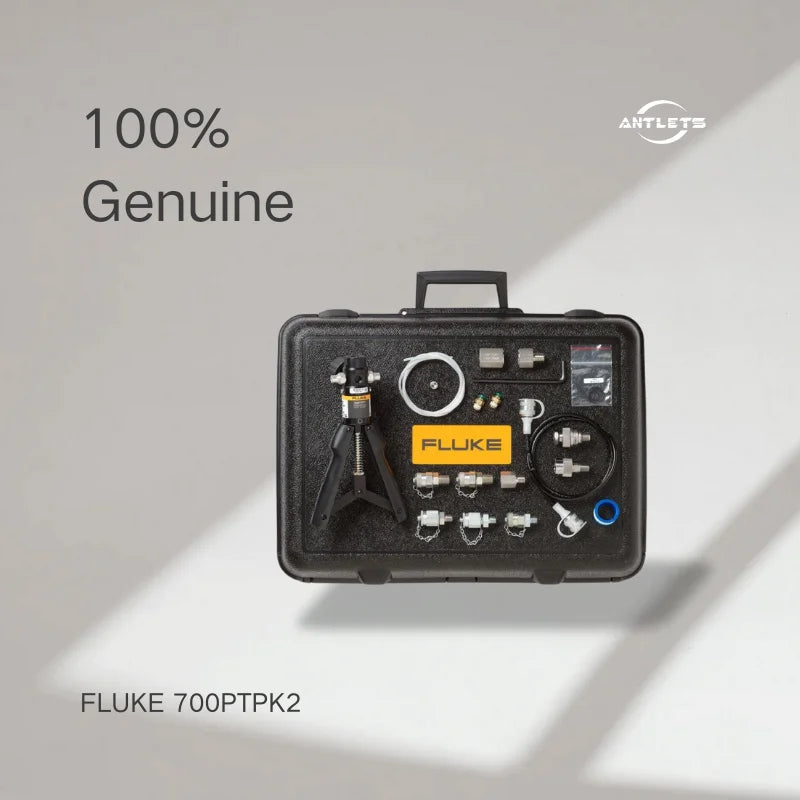

The Fluke 700PTPK2 Pneumatic Test Pressure Kit is designed for technicians who need a reliable and portable solution for generating test pressure during pressure instrument calibration.
Unlike standalone pressure gauges or calibrators that only measure pressure, a pressure testing system also requires a stable pressure source. The Fluke 700PTPK2 combines a pneumatic hand pump, pressure connections, transmitter test hoses, adapters, and a protective carrying case to create a complete field pressure testing setup.
It is commonly used with compatible Fluke pressure gauges and calibrators for testing:
Pressure transmitters
Pressure gauges
Pressure switches
Process instruments
Generate Pressure Up to 600 psi (40 bar)

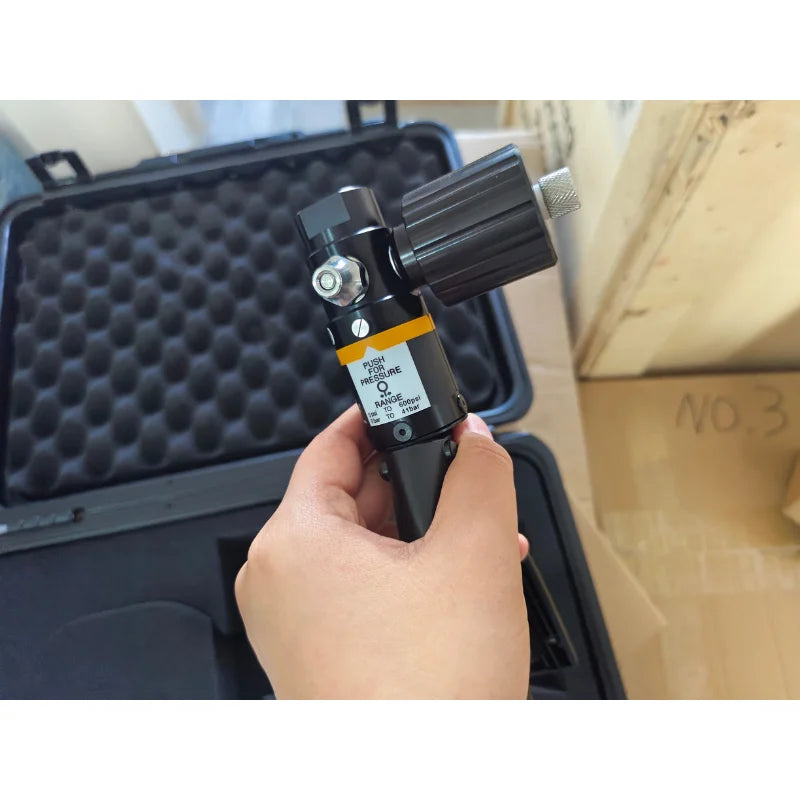

The Fluke 700PTPK2 includes the Fluke 700PTP-1 pneumatic hand pump, which can generate pressure up to:
This range covers many common industrial pressure testing applications, making it suitable for maintenance and calibration work in process plants, laboratories, and field installations.
Designed for Pressure Instrument Calibration
Pressure calibration requires both accurate pressure measurement and controlled pressure generation.
The Fluke 700PTPK2 provides the pressure source needed to test instruments such as:
Gauge pressure transmitters
Pressure switches
Mechanical pressure gauges
Process pressure sensors
When combined with a compatible Fluke pressure gauge or calibrator, technicians can generate known pressure points and compare instrument readings to verify accuracy.
Compatible with Fluke 700G Pressure Gauges
The Fluke 700PTPK2 is designed to work together with Fluke 700G Series Precision Pressure Gauges.
By connecting a 700G gauge directly to the hand pump, users can create a complete pressure testing solution for field calibration tasks.
Benefits include:
Easy setup
Reliable pressure generation
Reduced equipment required
Portable calibration capability
Premium Hose and Adapter Kit for Easy Connection
Connecting pressure equipment in the field can often be time-consuming due to different thread sizes and instrument connections.

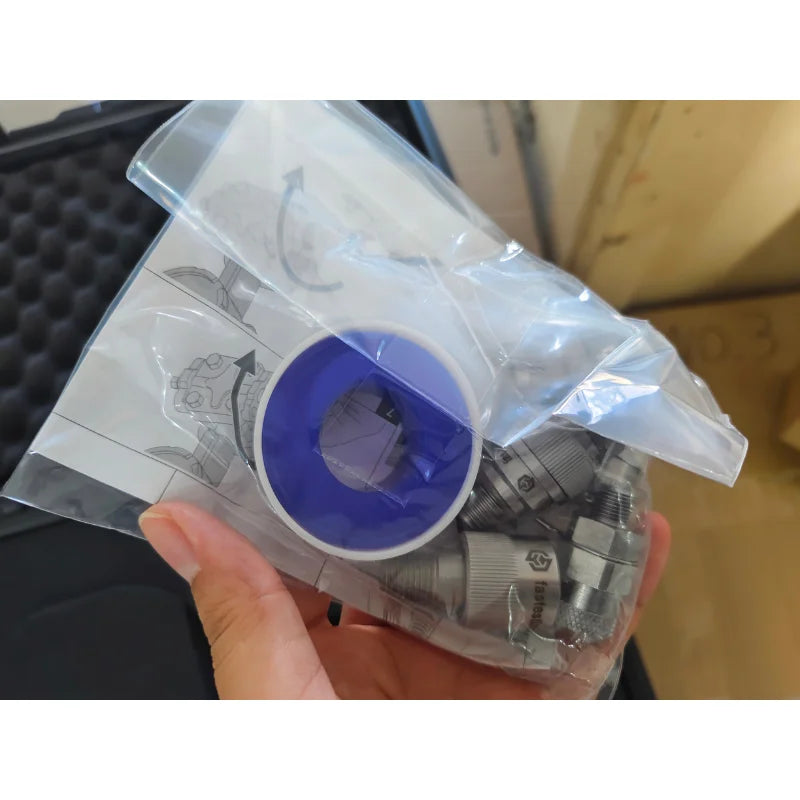

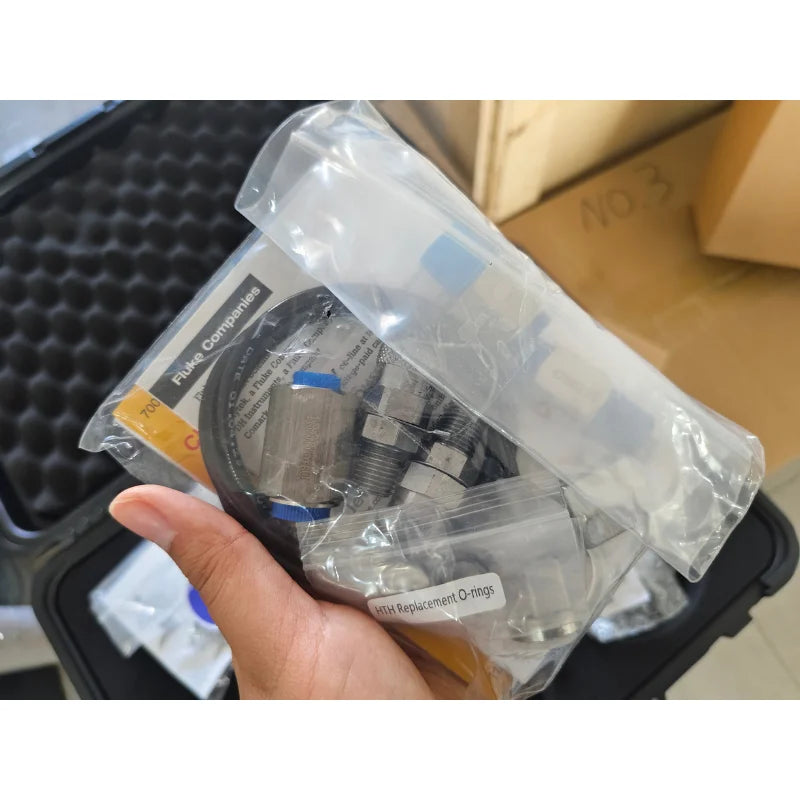

The Fluke 700PTPK2 includes:
Premium transmitter test hose kit
Pressure adapters
No-tools-required gauge connector
These accessories simplify connection between the pump and the device under test, helping technicians complete calibration tasks faster.

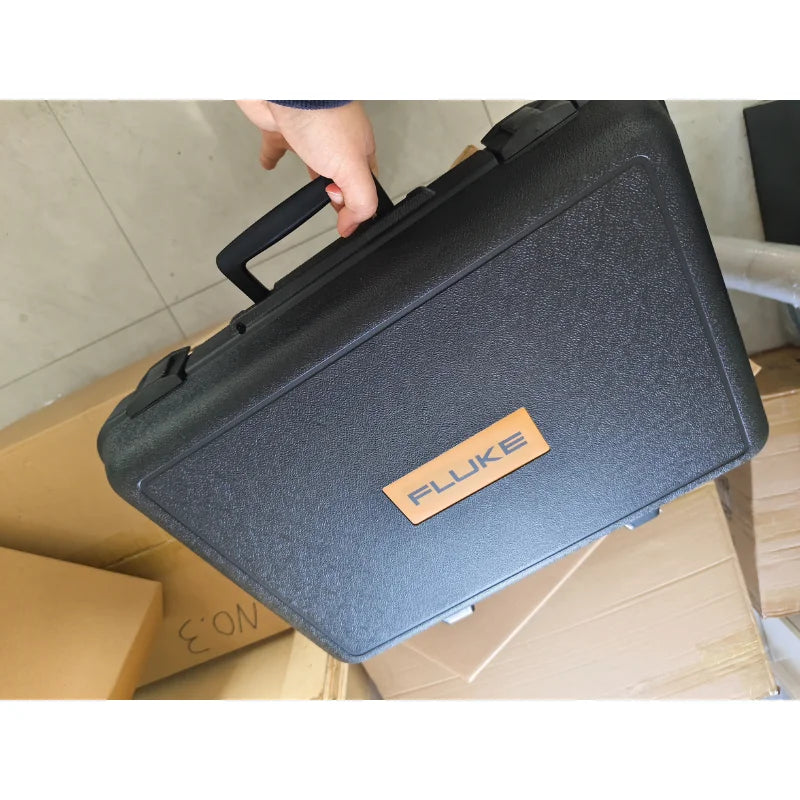

Portable Design with Protective Hard Case
Field calibration often requires technicians to move between multiple installation points.
The Fluke 700PTPK2 includes a rugged protective hard case that helps:
Protect the pump and accessories
Keep components organized
Transport the complete test setup easily
The case also allows the pressure gauge to remain connected to the pump during storage and transportation.
Typical Applications
Pressure Transmitter Testing
Used together with pressure measurement devices for:
Pressure transmitter verification
Calibration point testing
Field troubleshooting
Pressure Gauge Calibration
Suitable for checking:
Analog pressure gauges
Digital pressure gauges
Mechanical pressure indicators
Industrial Maintenance
Common industries include:
Oil & gas
Chemical processing
Power generation
Water treatment
Manufacturing
FAQ
What is the Fluke 700PTPK2 used for?
The Fluke 700PTPK2 is a pneumatic pressure test kit used to generate controlled test pressure for calibrating and verifying pressure instruments.
What pressure range can Fluke 700PTPK2 generate?
The kit can generate pressure up to 600 psi (40 bar) using the included Fluke 700PTP-1 pneumatic hand pump.
Does Fluke 700PTPK2 include a pressure gauge?
No. The kit includes the pneumatic pump, hoses, adapters, and carrying case. A compatible pressure gauge or calibrator, such as a Fluke 700G Series gauge, is required for pressure measurement.
Can Fluke 700PTPK2 calibrate pressure transmitters?
Yes. When combined with a suitable pressure calibrator or gauge, it can provide the pressure source required for testing and calibrating pressure transmitters.
What is the difference between Fluke 700PTPK2 and Fluke 729 Pro?
The main difference is the pressure generation method:
Fluke 700PTPK2: Manual pneumatic pressure pump kit for flexible field pressure generation.
Fluke 729 Pro: Automatic pressure calibrator with built-in electric pump and automatic pressure control.
Is Fluke 700PTPK2 suitable for field use?
Yes. Its portable design, included accessories, and protective hard case make it suitable for on-site pressure testing and maintenance applications.
