Complete Portable Pressure Calibration Solution

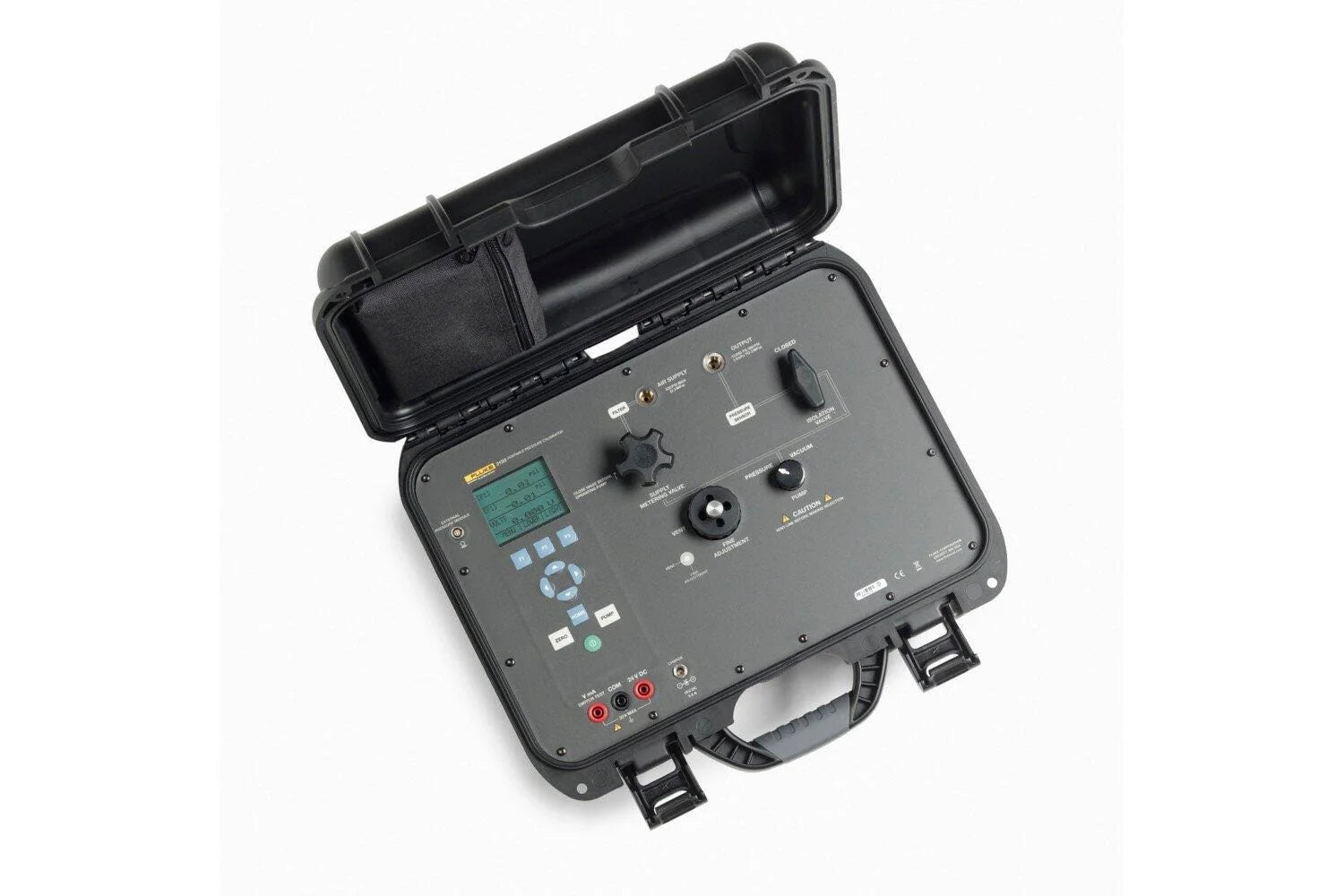

The Fluke 3130-G2M Portable Pressure Calibrator is designed for technicians who need a complete pressure calibration system that can be carried directly to the job site.
Unlike traditional calibration setups requiring separate pressure sources, gauges, and electrical measurement tools, the 3130-G2M integrates:
- Pressure generation
- Pressure measurement
- Current measurement
- Voltage measurement
- Loop power supply
into a single portable instrument.
This makes it an efficient solution for calibrating pressure transmitters, pressure switches, and other process instruments in industrial environments.

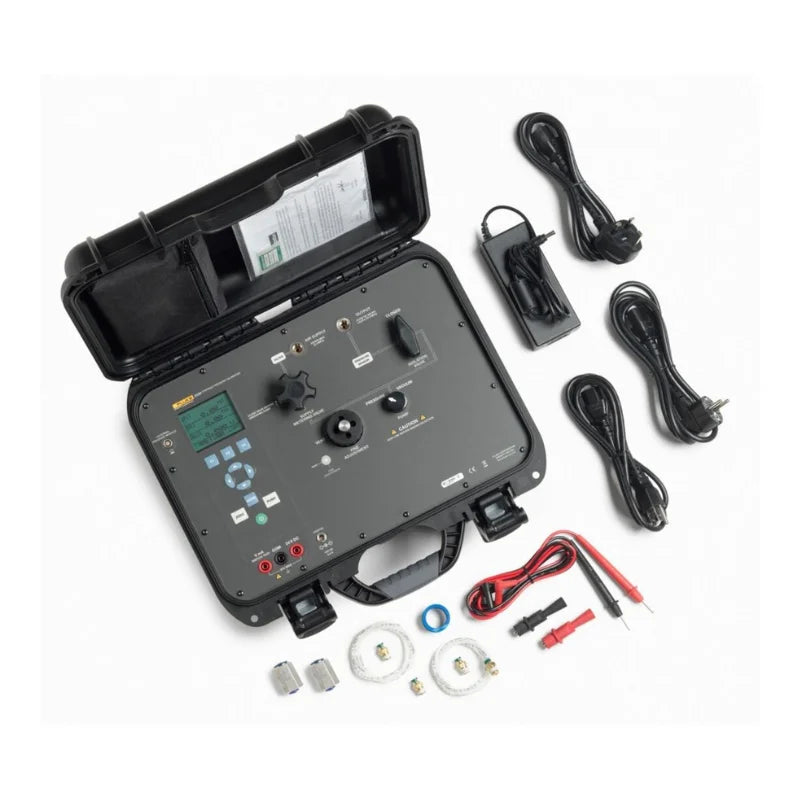

Integrated Motorized Pressure Pump
One of the main advantages of the Fluke 3130-G2M is its built-in motorized pump.
Compared with manual hand pumps, the integrated pump helps:
- Reduce operator effort
- Speed up pressure generation
- Improve calibration efficiency
- Provide smoother pressure control
The internal pump can generate:
- Vacuum down to -80 kPa (-12 psi, -0.8 bar)
- Pressure up to 2 MPa (300 psi, 20 bar)
For larger volume applications, an external gas supply can also be connected.
Pressure Measurement with High Accuracy
The 3130-G2M provides precision pressure measurement for field calibration applications.
Key performance:
- Pressure range: vacuum to 300 psi (20 bar)
- Accuracy: ±(0.025% of reading + 0.01% FS)
This accuracy level makes it suitable for verifying industrial pressure transmitters and process measurement devices.
Complete Pressure Transmitter Calibration Capability
The Fluke 3130-G2M is designed specifically for pressure transmitter calibration workflows.
It can:
- Generate test pressure
- Measure transmitter output
- Supply loop power
- Verify 4–20 mA signals
- Document calibration results
Built-in electrical measurement includes:
- 0–24 mA measurement
- 0–30 V DC measurement
- 24 V loop power supply
This allows technicians to test complete pressure transmitter loops without additional equipment.
Compatible with Fluke 700P Pressure Modules
When additional pressure ranges are required, the 3130-G2M can be expanded using Fluke 700P pressure modules.
This provides flexibility for applications requiring pressure ranges beyond the internal sensor capability.

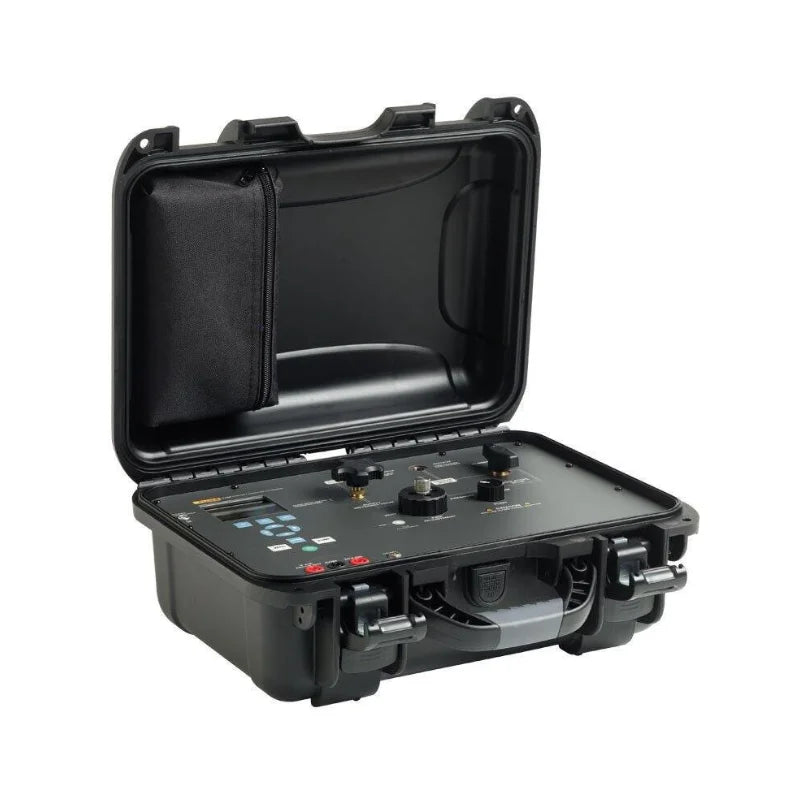

Designed for Field Calibration
Industrial calibration often takes place in locations where portability is essential.
The 3130-G2M features:
- Rugged protective enclosure
- Internal storage for accessories
- Rechargeable NiMH battery
- Portable carrying design
Battery operation provides approximately:
- Up to 50 hours for measurement applications
- Up to 100 calibration cycles to 300 psi using the internal pump
Easy Pressure Adjustment and Control
Accurate pressure calibration requires fine pressure control.
The 3130-G2M includes:
- Fine pressure adjustment
- Integrated variable volume control
- Quick pressure stabilization
This helps technicians achieve precise calibration points during transmitter verification.
Automated Calibration and Data Management
For users requiring documented calibration processes, the 3130-G2M can connect with a PC.
Using Fluke Calibration COMPASS for Pressure software, users can:
- Automate calibration procedures
- Record measurement data
- Improve calibration traceability
- Generate professional calibration documentation
Key Features
- All-in-one portable pressure calibrator
- Integrated motorized pressure pump
- Generate vacuum to -80 kPa
- Generate pressure up to 2 MPa (300 psi)
- Pressure measurement accuracy ±(0.025% reading + 0.01% FS)
- Measure 4–20 mA signals
- Measure 0–30 V DC
- Provide 24 V loop power
- Compatible with Fluke 700P pressure modules
- Fine pressure adjustment
- External pressure supply connection
- Rechargeable battery operation
- Rugged field-ready enclosure
- Data logging and calibration automation capability
Technical Highlights
- Pressure Range: -80 kPa to 2 MPa (-12 to 300 psi, -0.8 to 20 bar)
- Pressure Accuracy: ±(0.025% reading + 0.01% FS)
- Current Measurement: 0 to 24 mA
- Voltage Measurement: 0 to 30 V DC
- Loop Power: 24 V DC supply
- Pressure Generation: Internal motorized pump
- Battery: Rechargeable 3800 mAh NiMH battery
- Operating Time: Approx. 50 hours measurement mode
- Calibration Cycles: Approx. 100 cycles at 300 psi with internal pump
- Operating Temperature: -10°C to +50°C
- Weight: Approximately 7 kg
Typical Applications
Pressure Transmitter Calibration
The 3130-G2M is commonly used for calibration of:
- Differential pressure transmitters
- Gauge pressure transmitters
- Absolute pressure transmitters
- Pressure switches
Oil & Gas Industry
Field technicians can verify pressure instruments directly at production sites, pipelines, and processing facilities.
Chemical and Process Plants
The integrated electrical testing functions simplify maintenance of pressure measurement loops.
Power Generation
Used for calibration of pressure devices installed in steam and auxiliary systems.

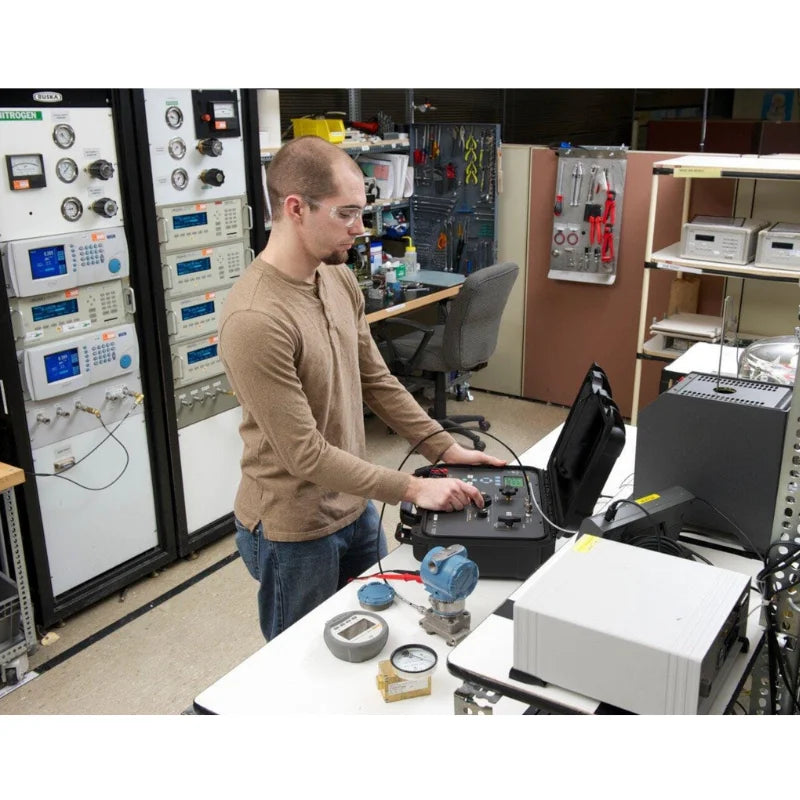

Instrument Maintenance Workshops
The portable design allows technicians to perform calibration tasks without moving equipment to a laboratory.
FAQ
What is the Fluke 3130-G2M?
The Fluke 3130-G2M is a portable pressure calibrator that combines pressure generation, pressure measurement, and electrical signal testing in one instrument.
Is Fluke 3130-G2M a pressure source or a pressure calibrator?
It is a complete pressure calibrator. It can generate pressure, measure pressure, and test electrical signals from pressure instruments.
What pressure range can Fluke 3130-G2M generate?
The internal pump generates vacuum to -80 kPa and pressure up to 2 MPa (300 psi, 20 bar).
Can it calibrate pressure transmitters?
Yes. The 3130-G2M can supply loop power, measure 4–20 mA output, and generate test pressure for pressure transmitter calibration.
Does Fluke 3130-G2M replace a hand pump?
For many field applications, yes. The integrated motorized pump eliminates the need for a separate manual pressure pump.
Can Fluke 3130-G2M measure current signals?
Yes. It can measure 0–24 mA signals and generate 4–20 mA outputs.
Can the pressure range be expanded?
Yes. Additional pressure ranges can be achieved by connecting compatible Fluke 700P pressure modules.
Is Fluke 3130-G2M suitable for field use?
Yes. Its rugged enclosure, internal storage, and rechargeable battery make it suitable for industrial field calibration.
