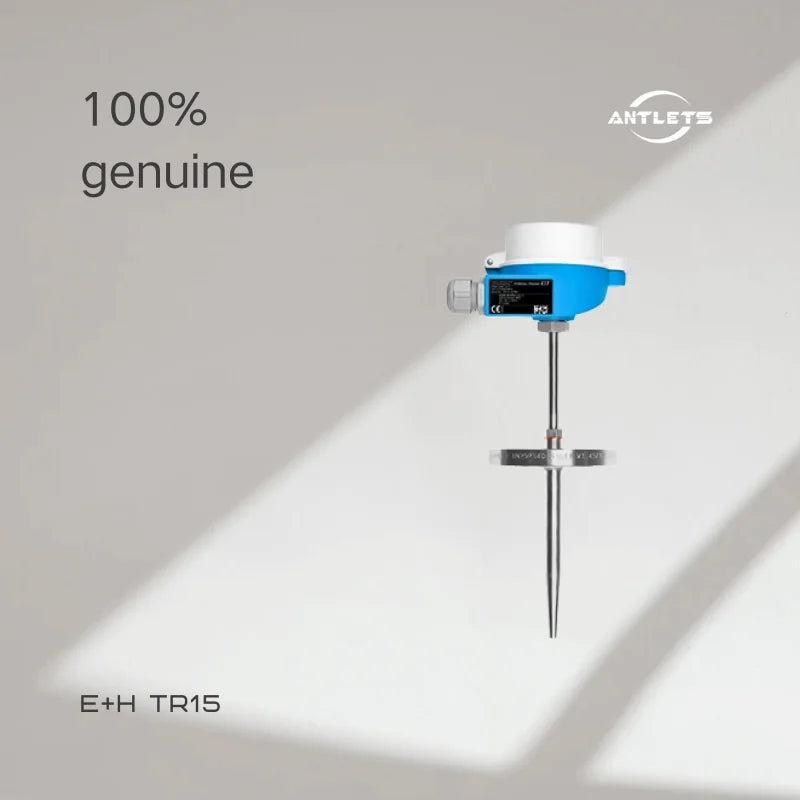

The Endress+Hauser iTHERM TR15 Modular RTD Thermometer is a robust industrial temperature measurement solution designed for demanding process applications such as steam, gas, chemical, and energy systems.

It uses a resistance temperature detector (RTD, Pt100/Pt1000) for accurate and stable temperature measurement. With its modular design and replaceable insert concept, TR15 ensures high flexibility, easy maintenance, and long service life.

The instrument is suitable for high-pressure and high-temperature environments, making it widely used in oil & gas, chemical processing, power generation, and industrial utilities.

Not Recommended For:
• Extremely fast dynamic temperature changes requiring ultra-fast response sensors
• Applications without thermowell protection in high-flow aggressive media

Technical Information TR15

Selection Notes

• Confirm the process temperature range, typically from cryogenic to high-temperature steam conditions
• Select appropriate process connection type, such as threaded, flanged, or weld-in installation
• Verify if a thermowell is required, especially for high-pressure or corrosive media
• Choose insert type, including mineral insulated (MI) or iTHERM StrongSens for enhanced stability
• Confirm hazardous area requirements, such as ATEX or IECEx approval if needed
• Define whether a head transmitter (4–20 mA / HART / Fieldbus) is required

Why Choose the TR15 Modular RTD Thermometer

• High Flexibility with Modular Design
The replaceable insert concept allows easy maintenance and reduced downtime. Therefore, calibration and replacement can be done without removing the entire assembly.

• Reliable Measurement in Harsh Conditions
Designed for high pressure (up to 400 bar) and extreme temperatures. As a result, it performs reliably in steam and gas applications.

• Fast and Stable Temperature Response
Optional tapered tip design improves thermal response time, ensuring faster process feedback.

• Wide Industrial Application Range
Suitable for chemical plants, oil & gas facilities, power generation, and general process industries.

• Thermowell Protection Capability
Can be installed with robust thermowells made of stainless steel, duplex, or alloy materials, ensuring safety in aggressive media.

• Flexible Communication Options
Supports head transmitters with 4–20 mA, HART, PROFIBUS, or FOUNDATION Fieldbus, enabling integration into automation systems.

• Hazardous Area Certified
Available with Ex ia and Ex nA approvals, making it suitable for explosive environments.

FAQ

Q: What is the TR15 used for?
A: It is used for industrial temperature measurement in gas, steam, and chemical processes.

Q: What type of sensor does it use?
A: It uses an RTD (Pt100 or Pt1000 resistance temperature detector) for accurate measurement.

Q: Can it handle high pressure?
A: Yes. It supports static pressure up to 400 bar, making it suitable for demanding applications.

Q: Is it suitable for hazardous areas?
A: Yes. It is available with ATEX, IECEx, and other explosion protection approvals.
