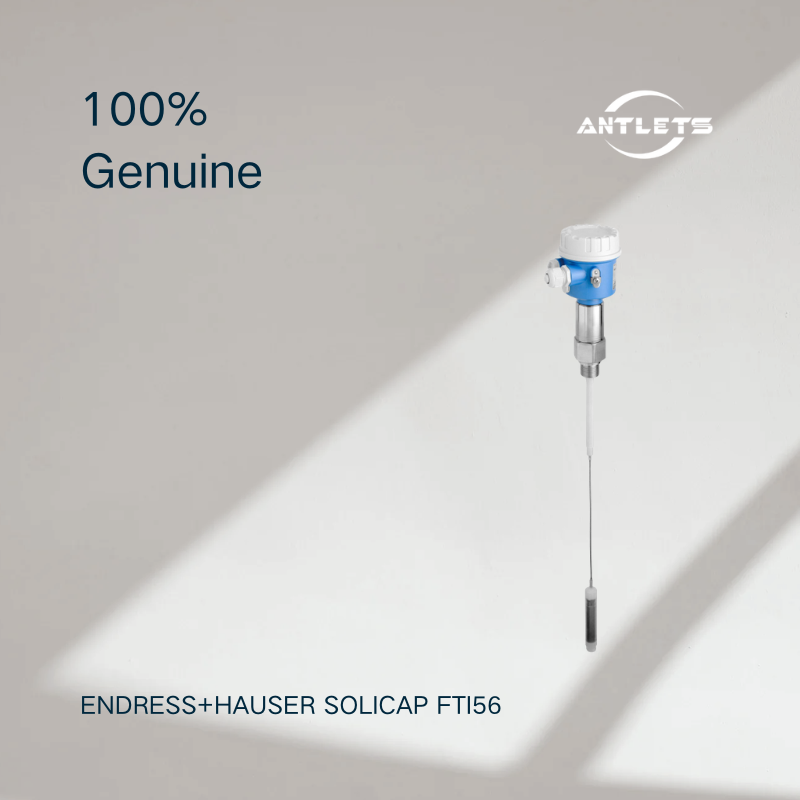

Reliable Point Level Detection for Bulk Solids
The Solicap FTI56 is designed for industries where reliable detection of solid materials is essential. Instead of measuring the continuous level, it provides a defined switching point to indicate whether the material has reached a specific height.
Its capacitance measuring principle allows it to be used with a wide variety of bulk solids, from fine powders to larger particles.
Designed for Large Silos and Long Measuring Ranges
Compared with rod-type level switches, the rope probe design of the FTI56 allows installation in deeper vessels.
With a measuring range from 500 mm up to 22 m, the FTI56 is suitable for large silos, storage tanks and applications where a longer sensing length is required.
Strong Rope Probe for Demanding Applications
Bulk solids can create significant mechanical stress on a level probe, especially during filling and discharge processes.
The FTI56 features a robust rope probe construction with a maximum tensile strength of 60 kN, helping it perform reliably in demanding bulk material applications.
Reliable Detection Even in Harsh Conditions
The FTI56 is designed for applications involving dust, abrasive materials and challenging storage conditions.
Its fully or partly insulated rope probe and active measurement technology help provide stable switching performance while reducing the influence of material accumulation around the probe.
Simple Commissioning and Flexible Installation
The FTI56 supports straightforward commissioning with push-button calibration, helping reduce installation time.
A wide selection of process connections, certificates and approvals allows the instrument to be adapted to different industrial requirements.
Built for Industrial Bulk Material Handling
The FTI56 is commonly used in applications where operators need reliable information about high or low material levels, helping prevent overfilling, empty running or interruptions in material supply.
Key Features
- Capacitance point level switch for bulk solids
- Robust rope probe design
- Suitable for fine-grained to coarse-grained materials
- Measuring length: 500…22,000 mm
- Maximum tensile strength: 60 kN
- Fully or partly insulated probe options
- Process temperature: -50…+180°C
- Process pressure: Vacuum…25 bar
- Suitable for abrasive materials
- Active build-up compensation
- Simple push-button calibration
- Two-stage overvoltage protection against silo static discharge
- Automatic electronics monitoring
- Threaded and flanged process connections
- International explosion protection approvals available depending on configuration
- SIL safety approval available depending on configuration
Typical Applications
Large Storage Silos
The FTI56 is suitable for high and low-level detection in large silos storing powders, granules and other bulk materials.
Cement and Building Materials
The robust rope probe design makes it suitable for applications involving abrasive materials such as cement, minerals and aggregates.
Chemical and Process Industries
The FTI56 can monitor bulk material levels in process vessels where reliable switching performance is required.
Food and Beverage Bulk Material Storage
Depending on the selected configuration and approvals, it can be used for level monitoring of dry bulk materials in hygienic production environments.
Inventory and Material Supply Monitoring
The FTI56 can support material provisioning and inventory control applications when combined with suitable monitoring solutions.
FAQ
What is the Endress+Hauser Solicap FTI56?
The Solicap FTI56 is a capacitance point level switch for bulk solids. It detects whether solid material has reached a defined level point rather than measuring continuous level.
What is the difference between FTI55 and FTI56?
The main difference is the probe design:
- FTI55: Rod probe, suitable for shorter measuring distances.
- FTI56: Rope probe, designed for longer measuring ranges up to 22 m and applications requiring high tensile strength.
What materials can the FTI56 measure?
The FTI56 is designed for fine-grained to coarse-grained bulk solids, including powders, granules and abrasive materials.
How long can the FTI56 probe be?
The FTI56 supports measuring lengths from 500 mm to 22,000 mm.
What are the temperature and pressure limits?
The official specifications list:
- Process temperature: -50…+180°C
- Process pressure: Vacuum…25 bar
Is the FTI56 a continuous level transmitter?
No. The FTI56 is a point level switch. It provides switching information when material reaches a defined level.
Is the FTI56 suitable for abrasive materials?
Yes. The product is designed for bulk solids applications and is suitable for demanding materials, including abrasive media.
Does the FTI56 require frequent calibration?
The FTI56 supports simple commissioning with push-button calibration, helping reduce setup time.
