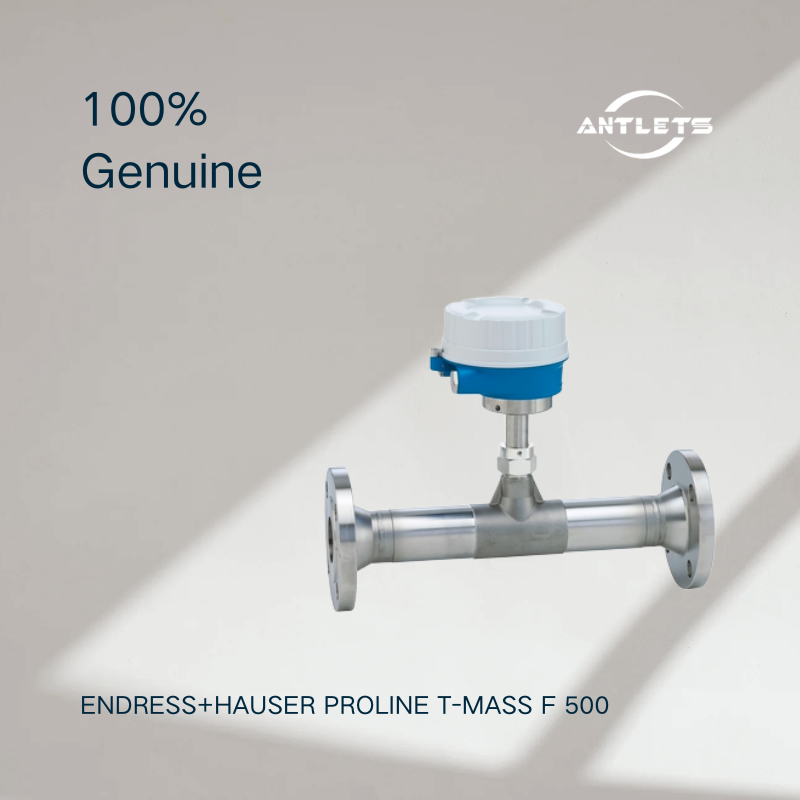

Endress+Hauser Proline t-mass F 500 Thermal Mass Flowmeter
The Endress+Hauser Proline t-mass F 500 is a high-performance thermal mass flowmeter designed for direct measurement of gas mass flow. It is suitable for industrial applications where accurate gas consumption, process flow and utility monitoring are required.
Unlike volumetric flowmeters, thermal mass flow measurement determines the mass flow of gas directly, reducing the need for separate pressure and temperature compensation in many applications. This makes the t-mass F 500 particularly useful for compressed air, natural gas and industrial gas measurement.
Direct Gas Mass Flow Measurement
The t-mass F 500 uses the thermal dispersion measurement principle to measure gas mass flow. Heated sensors detect the cooling effect created by the flowing gas, allowing the instrument to determine the mass flow rate.
The technology provides direct gas mass flow measurement and can also provide standard volume flow, actual volume flow and temperature measurement, depending on the selected configuration.
This makes the flowmeter suitable for monitoring gas consumption and controlling industrial processes where accurate gas flow information is important.
High Turndown Ratio
A key advantage of the t-mass F 500 is its wide measuring range and high turndown capability.
The instrument can accurately measure gas flow across changing operating conditions, making it suitable for systems where gas consumption varies significantly between minimum and maximum demand.
This is particularly valuable for compressed air systems, natural gas networks and industrial utility monitoring, where low-flow conditions and peak consumption can occur within the same process.
Low Pressure Loss
The t-mass F 500 is designed to minimize additional pressure loss in the gas pipeline.
Low pressure loss is especially important for compressed air and utility gas systems, where unnecessary pressure reduction can increase compressor energy consumption and operating costs.
The flowmeter therefore supports both accurate measurement and efficient gas system operation.
Flexible Gas Measurement
The t-mass F 500 can be used for a wide range of gases, including:
Compressed air
Natural gas
Nitrogen
Oxygen
Carbon dioxide
Argon
Biogas
Other industrial and process gases
Gas properties and the selected instrument configuration determine the applicable measurement range and performance.
High-Performance Sensor Design
The t-mass F 500 sensor is designed for reliable measurement in industrial gas applications. The measuring principle has no mechanical moving parts, helping reduce wear and maintenance requirements.
The instrument can be configured for different pipe sizes and installation requirements, making it suitable for both process lines and utility gas networks.
Advanced Diagnostics and Heartbeat Technology
The Proline t-mass F 500 incorporates Endress+Hauser Heartbeat Technology, providing integrated diagnostics, verification and monitoring functions.
Heartbeat Technology helps users verify measurement performance and assess instrument condition without removing the flowmeter from the process. This can support predictive maintenance and reduce unnecessary service work.
Proline 500 Transmitter
The Proline 500 transmitter provides the interface for operating, configuring and monitoring the t-mass F sensor.
An integrated web server allows users to access measurement values, configuration settings and diagnostic information through a standard web browser. The transmitter also supports modern digital communication technologies for integration into process control and automation systems.
Gas Consumption and Energy Management
The t-mass F 500 is particularly valuable for gas consumption monitoring and energy management.
By providing reliable mass flow information, it can help users identify excessive gas consumption, monitor compressed air losses, allocate gas usage between production areas and improve overall utility efficiency.
Typical measurement points include compressed-air headers, natural gas supply lines, burner systems and industrial gas distribution networks.
Typical Applications
The Endress+Hauser Proline t-mass F 500 is suitable for:
Compressed air flow measurement
Natural gas measurement
Industrial gas measurement
Process gas measurement
Gas consumption monitoring
Compressed air energy management
Gas distribution systems
Burner and combustion gas measurement
Utility gas monitoring
Industrial energy management
Gas flow control
Process monitoring
Key Features
Thermal mass flowmeter for gases
Direct gas mass flow measurement
Wide measuring range and high turndown
Low pressure loss
No mechanical moving parts
Suitable for compressed air and natural gas
Supports various industrial and process gases
Mass flow, volume flow and temperature measurement
Proline 500 transmitter
Heartbeat Technology
Advanced diagnostics and verification
Integrated web server
Digital communication options
Suitable for gas consumption and energy management applications
