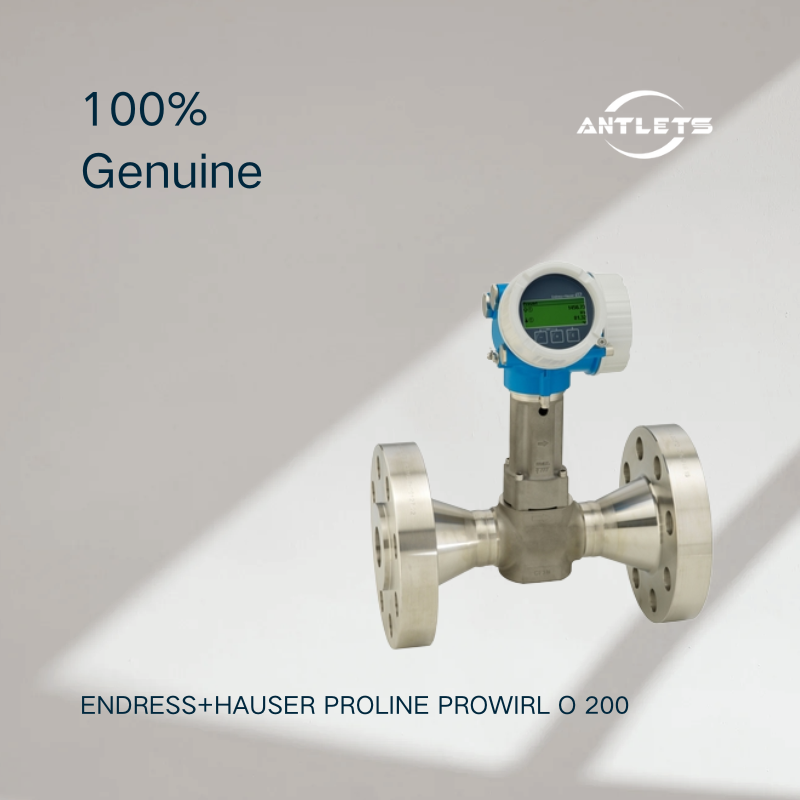

Endress+Hauser Proline Prowirl O 200 Vortex Flowmeter
The Endress+Hauser Proline Prowirl O 200 is a robust vortex flowmeter designed specifically for high-pressure process applications. It is suitable for measuring liquids, gases and steam, making it a versatile solution for demanding industrial flow measurement systems.
The Prowirl O 200 is particularly optimized for applications with high-pressure mating pipes, offering increased mechanical integrity and reliable measurement performance under demanding process conditions. The device can also combine flow measurement with integrated temperature and pressure measurement, providing more complete process information from a single measuring point.
Vortex Flow Measurement for Steam, Gas and Liquids
Prowirl O 200 uses the vortex shedding principle to determine process flow. When the process medium passes a bluff body inside the measuring tube, vortices are generated at a frequency proportional to the flow velocity. The sensor detects these vortices and converts them into a flow measurement.
The technology is suitable for a wide range of process media, including:
Steam
Natural gas
Process gases
Water and other liquids
Other industrial fluids
This makes Prowirl O 200 suitable for applications where one flowmeter platform needs to handle different types of process media.
Designed for High-Pressure Applications
One of the defining characteristics of the Prowirl O 200 is its suitability for high-pressure process systems.
The instrument supports pressure ratings up to PN 250, Class 1500 and 40K, making it suitable for demanding high-pressure steam, gas and liquid applications.
The sensor design provides increased mechanical integrity, while the robust measuring tube and capacitive sensor help maintain stable operation over long periods.
High Measurement Performance
Prowirl O 200 provides a maximum measurement error of:
Liquid volume flow: ±0.75%
Steam and gas volume flow: ±1.00%
Liquid mass flow: ±0.85%
Saturated steam mass flow: up to ±1.5% with temperature and pressure compensation
Superheated steam and gas mass flow: up to ±1.5% with temperature and pressure compensation
The flowmeter maintains the same accuracy down to a Reynolds number of 10,000, supported by its highly linear vortex meter body.
Integrated Temperature and Pressure Measurement
A major advantage of the Prowirl O 200 is its ability to combine vortex flow measurement with integrated temperature and pressure measurement.
This is particularly valuable for steam and gas applications, where pressure and temperature are required to calculate compensated mass flow or corrected volume flow.
For example, in steam measurement applications, the integrated measurement functions can help determine mass flow under changing process conditions without requiring separate measurement devices for every process variable.
Wide Measuring Range
The Prowirl O 200 provides a wide measuring range for both liquid and gas/steam applications.
Depending on the medium and operating conditions, the specified measuring range extends up to:
Liquid: 0.2 to 1,895 m³/h
Steam and gas: 1.5 to 25,285 m³/h
The standard medium temperature range is -40 to +260 °C, with an optional high/low temperature version extending from -200 to +400 °C.
Robust, Drift-Free Capacitive Sensor
The Prowirl O 200 uses a robust drift-free capacitive sensor designed for long-term measurement stability.
The sensor construction is intended to provide reliable vortex detection even under demanding process conditions. This contributes to long-term measurement reliability while reducing the need for frequent maintenance.
The wetted measuring tube is manufactured from 1.4408 (CF3M), while the process connection is available in 1.4404 / F316 / F316L materials.
NACE Compliance for Demanding Applications
For applications in the oil and gas industry and other environments where material resistance is important, Prowirl O 200 provides NACE MR0175/MR0103 compliance.
This makes the instrument suitable for selected high-pressure process applications where material requirements and mechanical integrity are critical.
Heartbeat Technology for Verification
Prowirl O 200 incorporates Endress+Hauser Heartbeat Technology, providing integrated verification and diagnostic functions.
Heartbeat Technology allows users to verify the instrument's measurement performance without removing the flowmeter from the process. This can support preventive maintenance, measurement traceability and improved plant availability.
Flexible Digital Communication
The transmitter provides flexible electrical and communication options, including Ethernet-based communication depending on the selected configuration.
The device also features a separate connection compartment, simplifying wiring and allowing convenient access to the electrical connections.
The transmitter display includes touch control and background lighting, allowing users to operate the device without opening the housing.
Typical Applications
The Endress+Hauser Proline Prowirl O 200 is suitable for:
High-pressure steam measurement
Saturated steam measurement
Superheated steam measurement
Natural gas measurement
Process gas measurement
High-pressure liquid flow measurement
Boiler and steam systems
Power generation
Oil and gas
Petrochemical processes
Chemical processing
Process utility measurement
Energy management
Key Features
Vortex flowmeter
Optimized for high-pressure applications
Measures liquids, gases and steam
Integrated temperature measurement
Integrated pressure measurement
Pressure ratings up to PN 250 / Class 1500 / 40K
Liquid volume flow accuracy up to ±0.75%
Gas and steam volume flow accuracy up to ±1.00%
Wide measuring range
Standard temperature range -40 to +260 °C
Optional temperature range -200 to +400 °C
Robust drift-free capacitive sensor
Increased mechanical integrity
NACE MR0175/MR0103 compliance
Heartbeat Technology
Flexible digital communication
Suitable for demanding steam, gas and liquid applications
