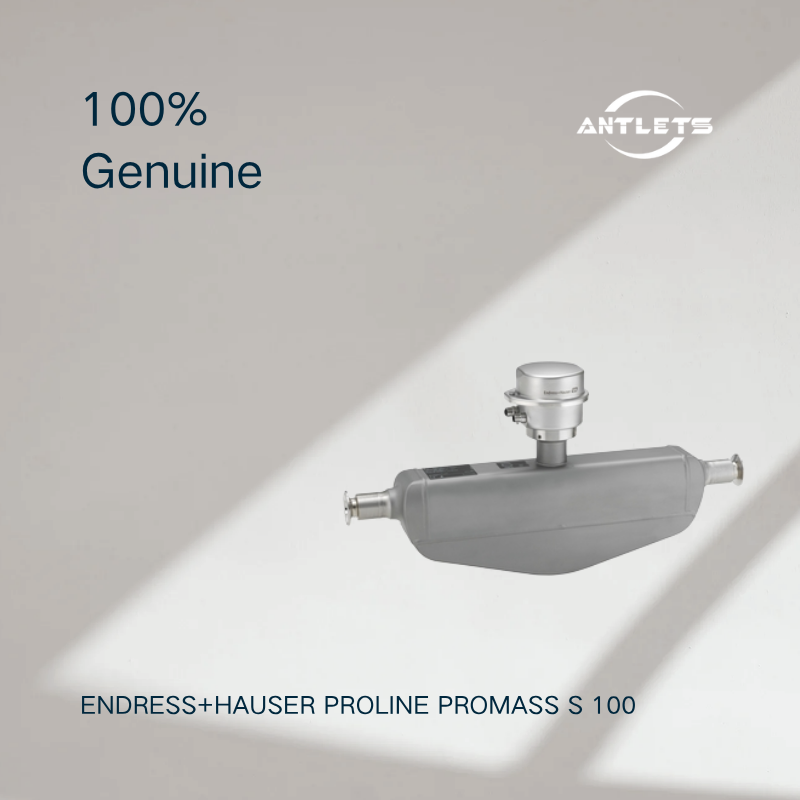

Endress+Hauser Proline Promass S 100 Coriolis Flowmeter
The Endress+Hauser Proline Promass S 100 is a hygienic Coriolis flowmeter designed for the Food & Beverage industry, combining accurate flow measurement with an easy-to-clean, fully self-drainable single-tube design. Its compact construction makes it particularly suitable for applications where hygienic performance, cleanability and limited installation space are important.
Promass S 100 is designed for optimal cleanability under hygienic conditions and is suitable for system integrators, skid builders and equipment manufacturers. The ultra-compact transmitter provides full functionality while minimizing the overall installation footprint.
Hygienic Coriolis Flow Measurement
Promass S 100 uses the Coriolis measuring principle to provide accurate mass flow, volume flow and density measurement. The measuring principle operates independently of physical fluid properties such as viscosity or density.
Key measurement performance includes:
Liquid mass flow accuracy: ±0.10%
Liquid volume flow accuracy: ±0.10%
Liquid density accuracy: ±0.0005 g/cm³
Maximum measuring range: 70,000 kg/h
Medium temperature: -50 to +150 °C
Maximum process pressure: PN 40 / Class 150 / 20K
Self-Drainable Single-Tube Design
A key advantage of Promass S 100 is its fully self-drainable single-tube measuring system.
The design supports:
Improved hygienic performance
Easy cleaning
Complete drainage
Reduced risk of product residue
Compact horizontal installation
The self-drainable tube design can help reduce installation costs and simplify hygienic process piping.
Designed for Food & Beverage Applications
Promass S 100 is specifically optimized for hygienic process measurement in the Food & Beverage industry.
Typical applications include:
Dairy processing
Beverage production
Food processing
Liquid food ingredients
Hygienic liquid transfer
CIP/SIP process environments
Skid-mounted food processing systems
Hygienic process equipment
The device is designed to meet the demanding cleanability requirements associated with hygienic production environments.
Fast CIP/SIP Recovery
Promass S 100 supports rapid recovery from CIP (Clean-in-Place) and SIP (Sterilization-in-Place) processes.
This makes the instrument suitable for production environments where frequent cleaning and sterilization cycles are required and where minimizing process downtime is important.
Hygienic Process Connections
Promass S 100 offers a wide range of hygienic process connections, allowing the flowmeter to be adapted to different Food & Beverage piping systems.
The device is designed to meet hygienic installation requirements and is 3-A and EHEDG conform, supporting applications where sanitary design and cleanability are essential.
Compact Installation
The Promass S 100 is designed for installations where space is at a premium.
Its single-tube construction and ultra-compact transmitter allow the flowmeter to deliver full Coriolis measurement functionality while minimizing the required installation space.
The Coriolis measuring principle also means that conventional inlet and outlet straight pipe runs are not required, further simplifying compact process installations.
Multivariable Measurement
Promass S 100 can provide multiple process variables from a single measuring point, including:
Mass flow
Volume flow
Density
Temperature
This multivariable measurement capability can reduce the number of separate measurement points required in hygienic process systems.
Ultra-Compact Transmitter
The Promass S 100 features an ultra-compact transmitter housing designed to provide full measurement functionality in a very small footprint.
Depending on configuration, features include:
Compact transmitter housing
Local display option
Integrated web server
Digital communication
Easy device configuration
Process and diagnostic information
The integrated web server enables local operation without requiring additional configuration hardware or software.
High Ingress Protection
The transmitter provides a high level of environmental protection, with IP69K protection available for demanding hygienic and washdown environments.
This makes Promass S 100 particularly suitable for process areas where equipment is regularly exposed to intensive cleaning procedures.
316L Stainless Steel Wetted Materials
The measuring tube is manufactured from:
1.4435 (316L) stainless steel
Process connections are available in:
1.4435 (316L) / 1.4404 (316/316L).
These materials are well suited to hygienic process environments and frequent cleaning procedures.
Heartbeat Technology
Promass S 100 incorporates Endress+Hauser Heartbeat Technology for integrated verification and diagnostics.
This provides an additional level of measurement confidence and supports verification of instrument performance without unnecessary removal of the flowmeter from the process.
Typical Applications
The Endress+Hauser Proline Promass S 100 is suitable for:
Food & Beverage processing
Hygienic liquid flow measurement
Dairy processing
Beverage production
Food ingredient measurement
Hygienic liquid transfer
CIP/SIP applications
Skid-mounted process equipment
Compact hygienic process systems
Applications requiring easy cleaning and self-drainability
Key Features
Hygienic Coriolis flowmeter
Designed for Food & Beverage applications
Self-drainable single-tube measuring system
Easy-to-clean hygienic design
3-A and EHEDG conform
Fast CIP/SIP recovery
Liquid mass flow accuracy ±0.10%
Liquid density accuracy ±0.0005 g/cm³
Measuring range up to 70,000 kg/h
Medium temperature -50 to +150 °C
Process pressure up to PN40 / Class 150 / 20K
316L stainless steel wetted parts
Ultra-compact transmitter
Local display available
IP69K protection
Integrated web server
No conventional inlet/outlet straight pipe runs
Multivariable measurement
Heartbeat Technology
