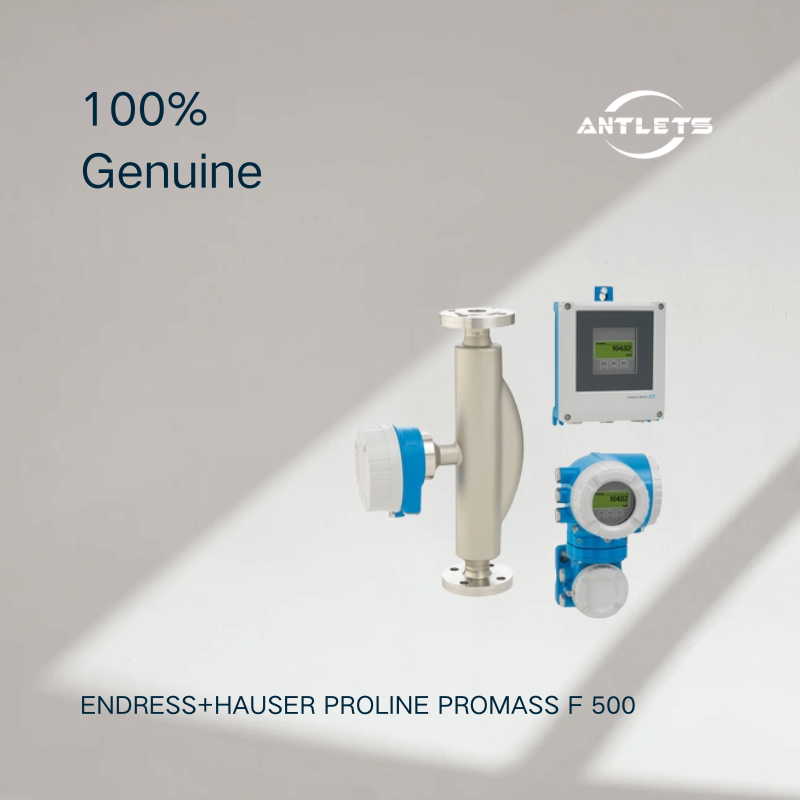

Endress+Hauser Proline Promass F 500 Coriolis Flowmeter
The Endress+Hauser Proline Promass F 500 is a high-performance remote Coriolis flowmeter designed for accurate measurement of liquids and gases under varying and demanding process conditions. It combines the proven Promass F sensor with a remotely installed transmitter, providing high measurement performance, flexible installation and extensive connectivity for modern process automation systems.
Promass F 500 uses the Coriolis measuring principle to directly measure mass flow while simultaneously providing additional process variables such as density, temperature, volume flow and concentration. This multivariable capability can reduce the number of separate measurement points required in a process installation.
Premium Accuracy for Liquid and Gas Measurement
Promass F 500 is designed for applications requiring high measurement accuracy and reliable performance.
Key measurement performance includes:
Liquid mass flow: ±0.10% standard, ±0.05% optional
Liquid volume flow: ±0.10%
Gas mass flow: ±0.25%
Liquid density: ±0.0005 g/cm³
With the optional PremiumCal capability, mass flow accuracy can reach ±0.05%, making Promass F 500 suitable for demanding industrial flow measurement applications.
Remote Transmitter Design
A key feature of the Promass F 500 is its remote transmitter configuration.
The sensor and transmitter are connected by a standard cable, allowing the transmitter to be installed separately from the measuring point. This provides greater flexibility when the sensor is installed in locations with limited access or when the operating interface needs to be positioned away from the process piping.
The transmitter supports up to four freely configurable I/Os, together with a wide range of fieldbus and Ethernet communication options.
Wide Measuring Range
Promass F 500 is available in nominal diameters from DN8 to DN250 (3/8 to 10"), making it suitable for both relatively small process lines and large-capacity flow measurement applications.
The maximum measuring range reaches 2,200,000 kg/h (80,840 lb/min).
Robust Sensor for Demanding Process Conditions
The Promass F sensor is designed to maintain measurement performance under fluctuating and harsh process conditions.
Available wetted materials include:
1.4539 / 904L stainless steel
1.4404 / 316/316L stainless steel
Alloy C22 / 2.4602
Process connections are available in 316/316L stainless steel, Alloy C22 and F304, depending on configuration.
This makes Promass F 500 suitable for a wide range of industrial fluids and demanding chemical and process applications.
Wide Temperature Range
Promass F 500 supports an unusually broad range of process temperatures.
Depending on configuration, the medium temperature range can extend from:
-196 to +150 °C
-50 to +150 °C standard
-50 to +240 °C
-50 to +350 °C high-temperature option
The high-temperature configuration up to +350 °C (662 °F) allows the flowmeter to address demanding high-temperature process applications.
High-Pressure Capability
The maximum process pressure reaches:
PN 100 / Class 600 / 63K
This makes Promass F 500 suitable for high-pressure process measurement where robust sensor construction and reliable measurement are required.
Space-Saving Installation
Like other Coriolis flowmeters, Promass F 500 does not require conventional inlet and outlet straight pipe runs.
This provides greater flexibility when designing process piping and can help reduce the overall footprint of the flow measurement point.
Flexible Connectivity and I/O
Promass F 500 provides extensive options for connecting the flowmeter to process control and automation systems.
The transmitter offers freely combinable I/Os and fieldbus interfaces, while the I/O functionality can be configured according to the application.
This allows the instrument to be integrated into:
PLC systems
DCS systems
SCADA systems
Industrial Ethernet networks
Process monitoring systems
Plant asset management systems
The transmitter also features a backlit display with touch control and WLAN access for convenient commissioning and operation.
Multivariable Measurement
One Promass F 500 measuring point can provide multiple process parameters, including:
Mass flow
Volume flow
Corrected volume flow
Density
Reference density
Temperature
Concentration
This can reduce instrumentation complexity while providing additional process information for control and monitoring.
Heartbeat Technology
Promass F 500 incorporates Endress+Hauser Heartbeat Technology for integrated verification and diagnostics.
Heartbeat Technology allows users to verify instrument performance without removing the flowmeter from the process, supporting preventive maintenance, measurement reliability and long-term process availability.
Hygienic and Industrial Applications
Promass F 500 is available with a broad range of approvals and certificates, including:
3-A
EHEDG
cGMP
PED
CRN
AD 2000
Marine approvals such as LR, DNV, ABS, BV and CCS
Material certificates including NACE MR0175/MR0103
This allows appropriately configured versions to be used across chemical, food & beverage, life sciences, oil & gas, marine and general process industries.
Typical Applications
The Endress+Hauser Proline Promass F 500 is suitable for:
High-accuracy liquid flow measurement
Gas flow measurement
Chemical processing
Oil & gas
Food & beverage
Life sciences
Power and energy
High-pressure process measurement
High-temperature applications
Density and concentration measurement
Process monitoring and control
Applications with harsh or fluctuating process conditions
Remote flow measurement installations
Key Features
Premium-performance Coriolis flowmeter
Remote transmitter configuration
Liquid and gas measurement
Mass flow accuracy up to ±0.05%
Gas mass flow accuracy ±0.25%
Liquid density accuracy ±0.0005 g/cm³
Measuring range up to 2,200,000 kg/h
Nominal diameter DN8–DN250
Process pressure up to PN 100 / Class 600 / 63K
Medium temperature up to +350 °C
Low-temperature option down to -196 °C
Up to 4 I/Os
Flexible fieldbus and Ethernet connectivity
Backlit touch-control display
WLAN access
Multivariable measurement
No conventional inlet/outlet straight runs required
Heartbeat Technology
Wide range of industrial, hygienic and marine approvals
