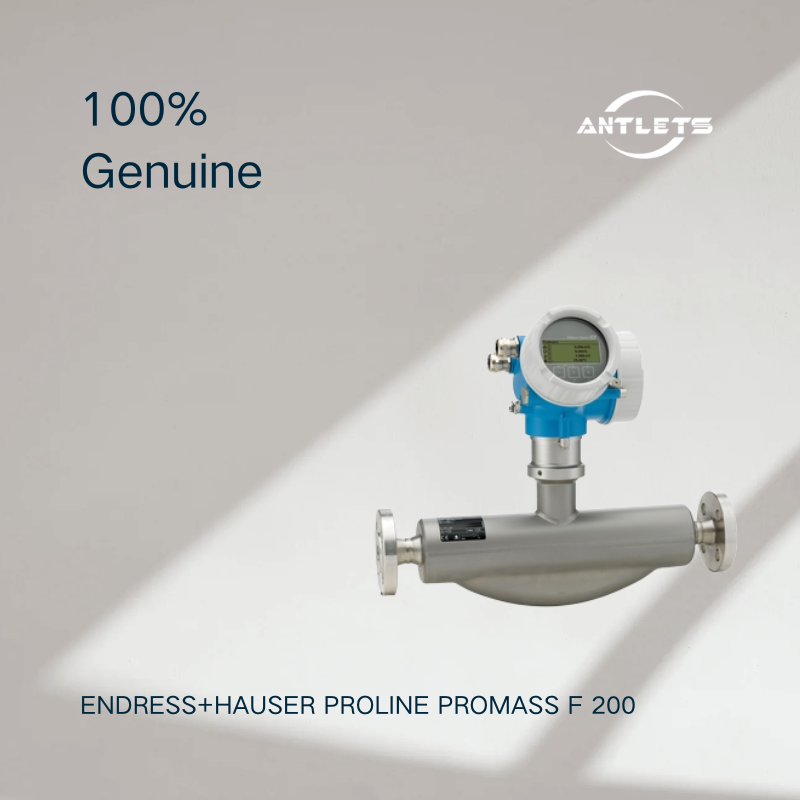

Endress+Hauser Proline Promass F 200 Coriolis Flowmeter
The Endress+Hauser Proline Promass F 200 is a robust, high-performance Coriolis flowmeter for accurate measurement of liquids and gases in demanding industrial applications. It combines the proven Promass F sensor with genuine loop-powered technology, providing reliable measurement while simplifying electrical installation and system integration.
The Promass F 200 uses the Coriolis measuring principle to directly measure mass flow and can simultaneously provide density, temperature and volume flow data. This multivariable capability allows users to obtain several important process parameters from a single measuring point.
High Measurement Performance for Liquids and Gases
Promass F 200 is designed for applications where measurement accuracy and process reliability are important.
Key measurement performance includes:
Liquid mass flow: ±0.10%
Liquid volume flow: ±0.10%
Gas mass flow: ±0.25%
Liquid density: ±0.0005 g/cm³
The flowmeter supports measurement of:
Mass flow
Volume flow
Corrected volume flow
Density
Reference density
Temperature
This makes Promass F 200 suitable for both flow monitoring and multivariable process measurement.
Robust Sensor for Harsh Process Conditions
A key advantage of the Promass F 200 is its high process safety and robust sensor design.
The instrument is designed to maintain reliable measurement performance in fluctuating and harsh process environments, making it suitable for demanding industrial applications where process conditions may vary significantly.
The wetted measuring tube is available in:
1.4539 (904L) stainless steel
1.4404 stainless steel
Alloy C22, 2.4602
Process connections are available in 316/316L stainless steel and Alloy C22, depending on configuration.
Wide Measuring Range
Promass F 200 is available in nominal diameters from DN8 to DN80 (3/8 to 3").
Its maximum measuring range reaches 70,000 kg/h (2,570 lb/min), providing coverage for a broad range of industrial liquid and gas flow applications.
Loop-Powered Coriolis Technology
One of the defining characteristics of Promass F 200 is its genuine loop-powered technology.
Loop-powered operation can simplify electrical installation by combining power and communication within the current loop. This makes Promass F 200 a practical choice for process applications where straightforward wiring and efficient instrumentation are important.
The loop-powered design also makes the instrument suitable for integration into existing process measurement and control systems.
High-Pressure and High-Temperature Capability
Promass F 200 is designed for demanding pressure and temperature conditions.
Key process specifications include:
Medium temperature: -50 to +150 °C standard
Optional medium temperature: -50 to +205 °C
Maximum process pressure: PN 100, Class 600, 63K
Nominal diameter: DN8 to DN80
The optional temperature range up to +205 °C (401 °F) allows the instrument to be used in higher-temperature process applications.
Space-Saving Installation
The Coriolis measurement principle allows Promass F 200 to be installed without conventional inlet and outlet straight pipe runs.
This provides greater flexibility when designing process piping and can help reduce the required installation space around the flowmeter.
For compact process installations, this can simplify both equipment layout and flowmeter positioning.
Multivariable Measurement
Promass F 200 can provide multiple process variables from a single instrument:
Mass flow
Volume flow
Corrected volume flow
Density
Reference density
Temperature
This helps reduce the number of separate measurement points and can provide more complete process information for control and monitoring.
Convenient Transmitter Operation
The Promass F 200 transmitter features a robust dual-compartment housing and a separate connection compartment for convenient device wiring.
The transmitter includes a backlit display with touch control, allowing users to operate the device without opening the housing. This supports easier commissioning, configuration and day-to-day operation.
Digital Communication and System Integration
Promass F 200 is designed for integration into modern process automation systems.
Its transmitter architecture supports industrial communication and flexible integration with plant control systems. Depending on configuration, the instrument can be supplied with different communication and I/O options for integration into PLC, DCS and process automation systems.
Heartbeat Technology
The Promass F 200 incorporates Endress+Hauser Heartbeat Technology for integrated measurement verification and device diagnostics.
Heartbeat Technology allows users to verify instrument performance while the flowmeter remains installed in the process, helping support preventive maintenance, measurement traceability and long-term process reliability.
Safety and Industrial Approvals
Promass F 200 is available with a broad range of safety and industrial approvals.
Depending on configuration, approvals include:
SIL
ATEX
IECEx
cCSAus
INMETRO
NEPSI
UK Ex
KC
Additional pressure, material and hygienic certifications are also available, including PED, CRN, AD 2000, 3-A, EHEDG and cGMP.
Typical Applications
The Endress+Hauser Proline Promass F 200 is suitable for:
High-accuracy liquid flow measurement
Gas flow measurement
Chemical processing
Oil & gas applications
Power and energy
General process industries
Utilities
High-pressure process measurement
High-temperature applications
Density measurement
Concentration measurement
Process monitoring and control
Applications with harsh or fluctuating process conditions
Key Features
High-performance Coriolis flowmeter
Genuine loop-powered technology
Designed for liquids and gases
Liquid mass flow accuracy ±0.10%
Gas mass flow accuracy ±0.25%
Liquid density accuracy ±0.0005 g/cm³
Measuring range up to 70,000 kg/h
Nominal diameter DN8–DN80
Process pressure up to PN 100 / Class 600 / 63K
Medium temperature up to +205 °C
Robust sensor for harsh environments
Multivariable measurement
No conventional inlet/outlet straight pipe requirements
Separate connection compartment
Backlit touch-control display
Robust dual-compartment housing
Heartbeat Technology
SIL and hazardous-area approvals
