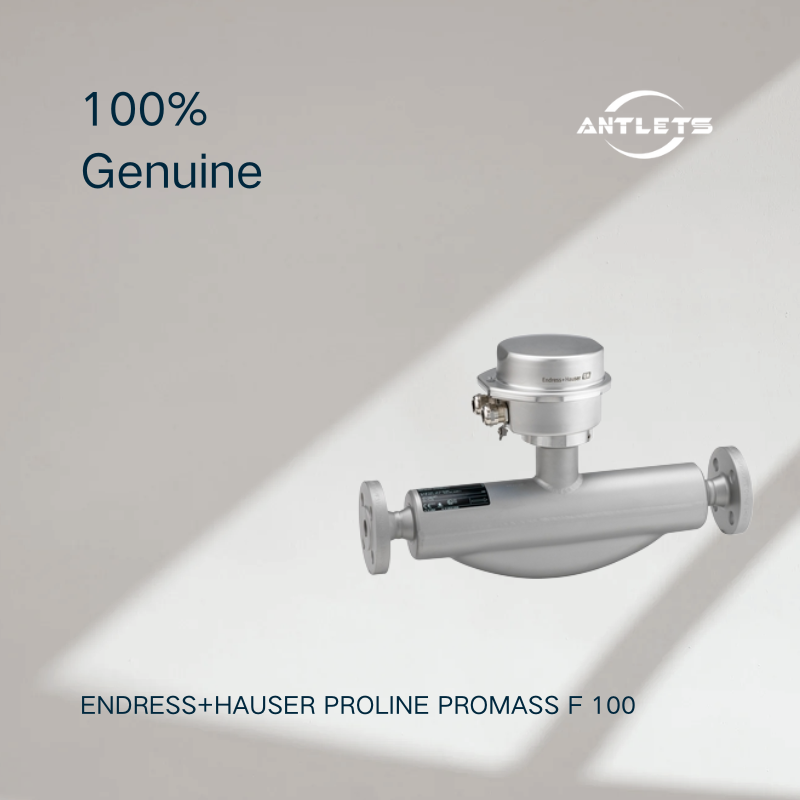

Endress+Hauser Proline Promass F 100 Coriolis Flowmeter
The Endress+Hauser Proline Promass F 100 is a high-performance Coriolis flowmeter designed for accurate and reliable measurement of liquids and gases under demanding process conditions. It combines the proven Promass F sensor with an ultra-compact transmitter, making it suitable for applications where high measurement performance, process robustness and space-saving installation are important.
The Promass F 100 uses the Coriolis measurement principle to directly measure mass flow while simultaneously providing additional process variables such as density, temperature and volume flow. This multivariable capability can reduce the number of individual measurement points required in a process system.
Premium Accuracy for Liquids and Gases
Promass F 100 is designed for applications requiring high measurement accuracy across a wide range of process conditions.
Its measurement performance includes:
Liquid mass flow: ±0.10% standard, ±0.05% optional
Liquid volume flow: ±0.10%
Gas mass flow: ±0.25%
Liquid density: ±0.0005 g/cm³
An optional PremiumCal configuration can provide mass flow measurement accuracy down to ±0.05%, making the Promass F 100 suitable for demanding measurement and process control applications.
Wide Measuring Range
The Promass F 100 is available with nominal diameters from DN8 to DN250 (3/8 to 10"), covering a broad range of process flow applications.
Its maximum measuring range reaches 2,200,000 kg/h (80,840 lb/min), allowing the same product family to be used for both smaller process lines and high-capacity flow measurement.
Robust Sensor for Demanding Process Conditions
The Promass F sensor is designed to maintain reliable measurement performance even under fluctuating and harsh process conditions.
The measuring tube is available in:
1.4539 / 904L stainless steel
1.4404 / 316/316L stainless steel
Alloy C22 / 2.4602
Process connections are available in 316/316L stainless steel and Alloy C22, depending on configuration.
This material flexibility makes Promass F 100 suitable for a wide variety of industrial fluids and process environments.
Wide Temperature and Pressure Capability
Promass F 100 is designed for demanding process applications with high pressure and temperature requirements.
Key process capabilities include:
Standard medium temperature: -50 to +150 °C
Optional medium temperature: -50 to +240 °C
Maximum process pressure: PN 100, Class 600, 63K
Nominal diameter: DN8 to DN250
The optional temperature range up to +240 °C (464 °F) allows the flowmeter to be used in higher-temperature process applications.
Space-Saving Installation
One of the important advantages of Coriolis measurement is that the Promass F 100 does not require conventional inlet and outlet straight pipe runs.
This enables more flexible installation and can help reduce the footprint of the measurement point, particularly in compact process piping and equipment packages.
Ultra-Compact Transmitter
The Promass F 100 features an ultra-compact transmitter housing designed to provide full measurement functionality within a small footprint.
The transmitter offers:
Compact housing design
IP69 protection
Local display option
Integrated web server
Local operation without additional software or hardware
Heartbeat Technology for integrated verification
The integrated web server allows convenient local device configuration and operation, helping simplify commissioning and maintenance.
Multivariable Measurement
Promass F 100 can provide several process variables from a single measurement point:
Mass flow
Volume flow
Corrected volume flow
Density
Reference density
Temperature
Concentration
This can reduce the need for additional measuring instruments while providing more process information for control and monitoring.
Suitable for Liquids, Gases and Density Applications
The Promass F 100 is designed for:
Liquid flow measurement
Gas flow measurement
Mass flow measurement
Volume flow measurement
Density measurement
Temperature measurement
Concentration measurement
Process monitoring
Demanding flow measurement applications
Its high accuracy and broad measuring range make it suitable for applications where reliable flow measurement is required under varying, demanding process conditions.
Heartbeat Technology
The Promass F 100 incorporates Endress+Hauser Heartbeat Technology for integrated device verification and diagnostics.
Heartbeat Technology helps users verify measurement performance without removing the instrument from the process, supporting preventive maintenance, process reliability and improved measurement confidence.
Industrial Approvals and Certifications
Depending on configuration, Promass F 100 is available with a wide range of industrial certifications and approvals, including:
ATEX / hazardous-area approvals
SIL
PED
CRN
AD 2000
3-A
EHEDG
cGMP
Marine approvals including ABS, BV and LR
This broad certification portfolio makes Promass F 100 suitable for demanding industrial, hygienic and regulated applications.
Typical Applications
The Endress+Hauser Proline Promass F 100 is suitable for:
High-accuracy liquid flow measurement
Gas flow measurement
Chemical processing
Oil & gas applications
Power and energy
Food and beverage
Life sciences
General process industries
Density and concentration measurement
High-pressure applications
High-temperature applications
Process monitoring and control
Key Features
High-performance Coriolis flowmeter
Premium measurement accuracy
Liquid mass flow accuracy up to ±0.05%
Gas mass flow accuracy ±0.25%
Liquid density accuracy ±0.0005 g/cm³
Measuring range up to 2,200,000 kg/h
Nominal diameter DN8–DN250
Medium temperature up to +240 °C
Process pressure up to PN 100 / Class 600 / 63K
Robust sensor for demanding process conditions
Ultra-compact transmitter
IP69 protection
Integrated web server
Multivariable measurement
No conventional inlet/outlet straight pipe requirements
Heartbeat Technology
Wide range of industrial and hygienic approvals
