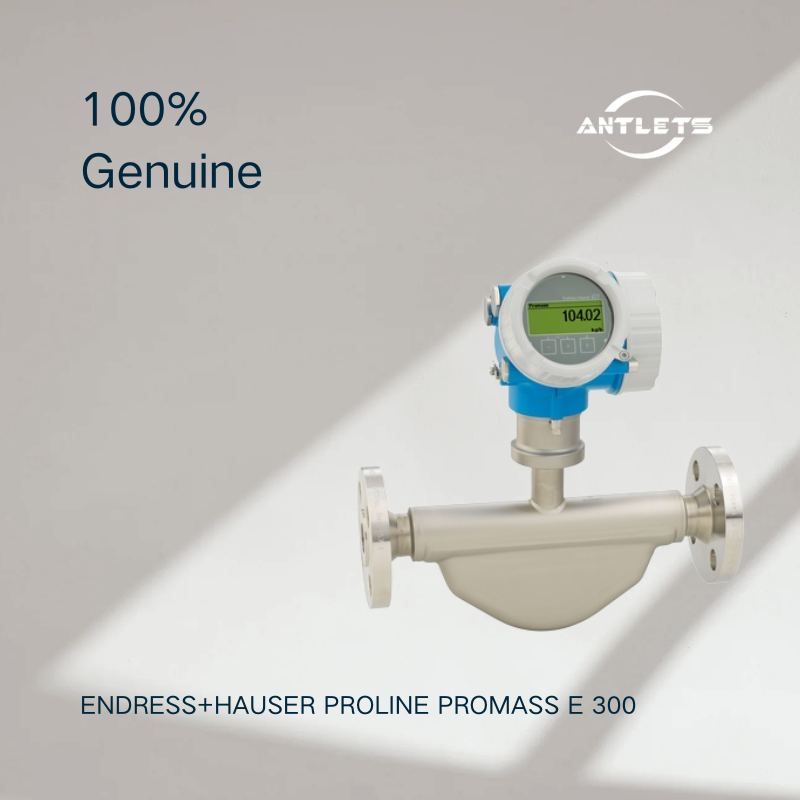

Endress+Hauser Proline Promass E 300 Coriolis Flowmeter

The Endress+Hauser Proline Promass E 300 is a mid-range Coriolis flowmeter designed for accurate measurement of liquids and gases across a wide range of standard industrial applications. It combines the reliable Promass E sensor with a compact, easily accessible transmitter, providing flexible operation, system integration and process diagnostics.

Based on the Coriolis measuring principle, Promass E 300 provides direct mass flow measurement while also measuring density, temperature and volume flow. Because Coriolis measurement is largely independent of fluid properties such as viscosity and density, the instrument can provide reliable measurement across changing process conditions.

Cost-Effective Coriolis Flow Measurement

Promass E 300 is designed as a multipurpose, cost-effective Coriolis flowmeter and can be used as an alternative to conventional volumetric flowmeters.

Its multivariable measurement capability allows flow, density and temperature to be obtained from a single measuring point, potentially reducing the number of process instruments required. The Coriolis measuring principle also enables space-saving installation without conventional inlet and outlet straight pipe runs.

Accurate Liquid and Gas Measurement

Promass E 300 provides accurate measurement for both liquid and gas applications:

•
  Liquid mass flow: ±0.15% standard, ±0.10% optional

•
  Liquid volume flow: ±0.15%

•
  Gas mass flow: ±0.50%

•
  Liquid density: ±0.0005 g/cm³


The instrument can measure:

•
  Mass flow

•
  Volume flow

•
  Corrected volume flow

•
  Density

•
  Reference density

•
  Temperature

•
  Concentration


Compact Dual-Tube Sensor

The Promass E 300 features a compact dual-tube Coriolis sensor suitable for a broad range of standard process applications.

The nominal diameter range is DN8 to DN80 (3/8 to 3"), with a maximum measuring range of 180,000 kg/h (6,615 lb/min). The measuring tube uses 1.4539 (904L) stainless steel, while the process connections use 1.4404 (316/316L).

Compact and Accessible Transmitter

A major advantage of the Promass E 300 is its compact, easily accessible transmitter.

The transmitter uses a dual-compartment housing with up to three I/Os and provides access to process and diagnostic information through configurable I/O and fieldbus options. A backlit display with touch control and WLAN access is available, while a remote display can be used when additional operating flexibility is required.

Flexible System Integration

Promass E 300 supports a broad range of communication technologies for integration with modern automation systems, including:

•
  HART

•
  PROFIBUS DP

•
  PROFIBUS PA

•
  FOUNDATION Fieldbus

•
  Modbus RS485

•
  MODBUS TCP over Ethernet-APL

•
  PROFINET

•
  PROFINET over Ethernet-APL

•
  EtherNet/IP

•
  OPC-UA


This makes the flowmeter suitable for integration into PLC, DCS, SCADA and industrial Ethernet systems.

Wide Process Operating Range

Promass E 300 is designed for demanding industrial environments.

Key process capabilities include:

•
  Nominal diameter: DN8 to DN80

•
  Measuring range: 0 to 180,000 kg/h

•
  Medium temperature: -40 to +150 °C

•
  Process pressure: up to 100 bar / 1450 psi

•
  Wetted measuring tube: 904L stainless steel


These capabilities allow Promass E 300 to cover a wide range of standard liquid and gas measurement applications.

Heartbeat Technology

Promass E 300 incorporates Endress+Hauser Heartbeat Technology for integrated measurement verification and device diagnostics.

Heartbeat Technology supports measurement reliability and can help users extend recalibration intervals by providing verification information without requiring the flowmeter to be removed from the process.

Typical Applications

The Proline Promass E 300 is suitable for:

•
  Liquid flow measurement

•
  Gas flow measurement

•
  Mass flow measurement

•
  Density measurement

•
  Temperature measurement

•
  Chemical process applications

•
  General process industries

•
  Utilities and industrial services

•
  Standard liquid and gas applications

•
  Process monitoring

•
  Density and concentration measurement

•
  Applications requiring flexible digital communication


Key Features

•
  Mid-range Coriolis flowmeter

•
  Accurate measurement of liquids and gases

•
  Cost-effective multipurpose design

•
  Compact dual-tube sensor

•
  DN8 to DN80

•
  Measuring range up to 180,000 kg/h

•
  Liquid mass flow accuracy ±0.15% standard

•
  Optional liquid mass flow accuracy ±0.10%

•
  Gas mass flow accuracy ±0.50%

•
  Liquid density accuracy ±0.0005 g/cm³

•
  Process pressure up to 100 bar

•
  Medium temperature up to +150 °C

•
  Compact dual-compartment transmitter

•
  Up to 3 I/Os

•
  Touch-control backlit display

•
  WLAN access

•
  Remote display option

•
  Extensive digital communication

•
  Heartbeat Technology
