Smart Ultrasonic Measurement for Sedimentation Processes

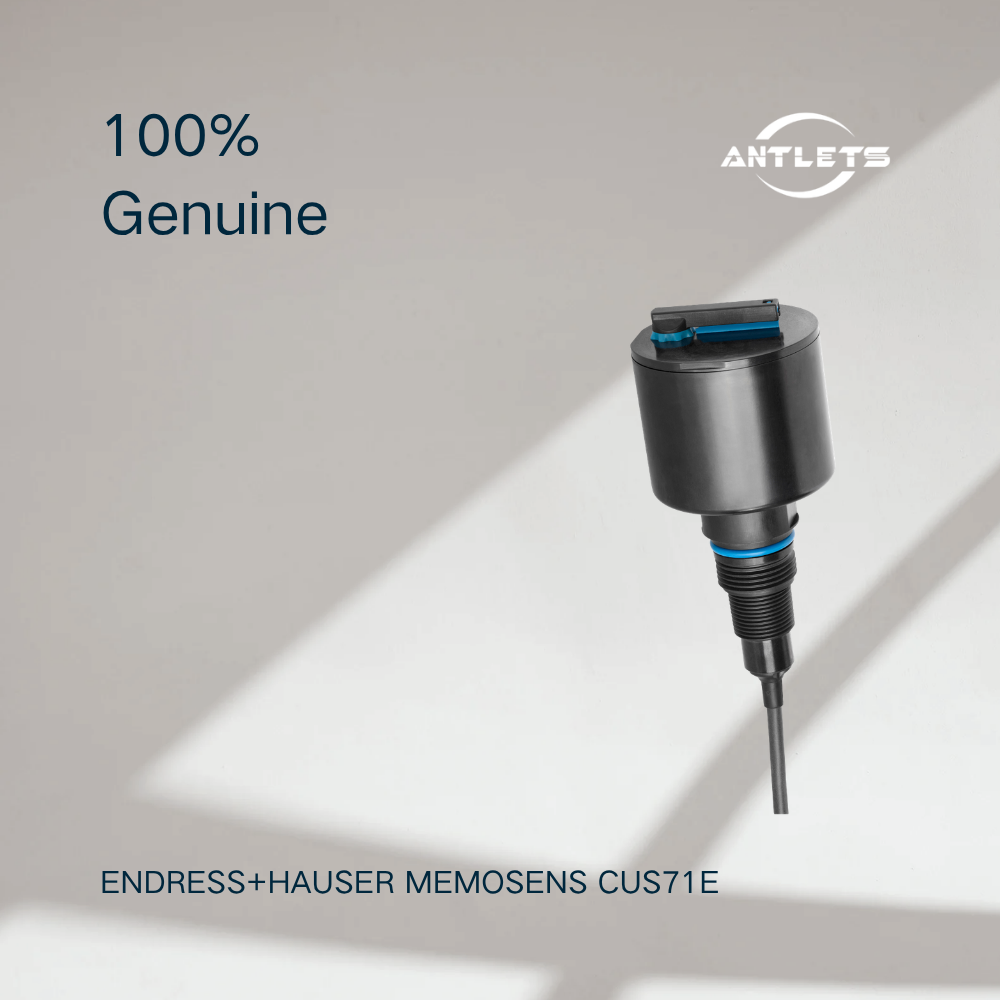

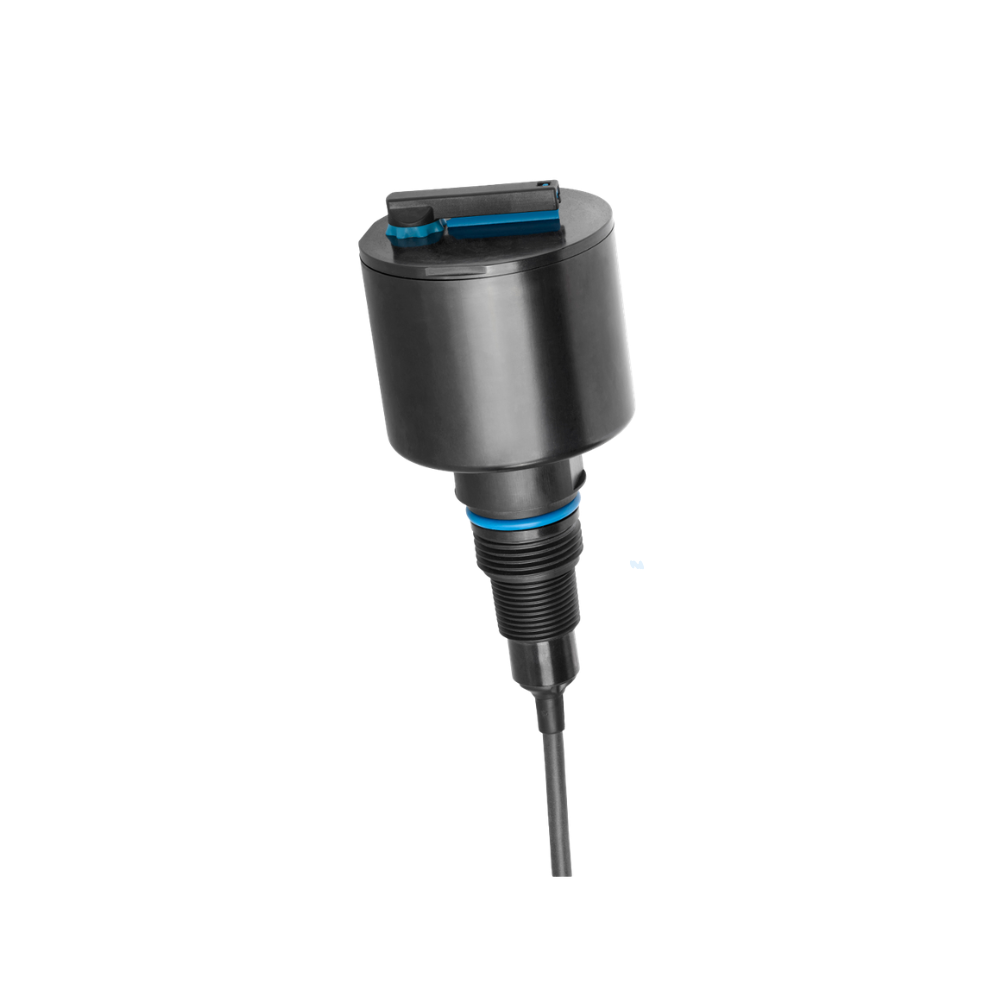

The Endress+Hauser Memosens CUS71E is an ultrasonic interface sensor developed for continuous monitoring of sediment layers in tanks, basins and reservoirs.
In clarification and sedimentation processes, knowing the exact boundary between clear water and settled solids is essential for stable operation. The CUS71E provides continuous interface level measurement, allowing operators to optimize sludge removal, chemical dosing and treatment efficiency.
Typical applications include:
Primary and secondary clarification
Sludge sedimentation monitoring
Drinking water treatment
Industrial wastewater treatment
Mining water processes
Ultrasonic Return-Time Measurement Principle
The CUS71E uses an ultrasonic echo measurement principle to identify the interface layer between liquid and sediment.
The sensor sends ultrasonic pulses into the medium and analyzes the reflected signals from different layers. Based on the signal travel time, the system determines the sediment interface position.
Advantages include:
Continuous interface level measurement
Reliable detection of sludge layers
Suitable for large sedimentation basins
Reduced dependence on manual sampling
Improved process visibility
Optimized for Wastewater Treatment Applications
The CUS71E is especially designed for sedimentation processes in wastewater treatment plants.
Typical uses include:
Clarifier Monitoring
The sensor helps monitor:
Sludge blanket level
Settling performance
Clarifier operation
By providing real-time sediment information, operators can adjust sludge withdrawal and maintain stable treatment performance.
Chemical Dosing Optimization
The CUS71E provides a sedimentation factor that can be used as a process quality indicator.
Benefits include:
Improved precipitation process control
Optimized chemical consumption
Reduced operating costs
More stable treatment results
Memosens Digital Technology
The CUS71E uses Memosens digital sensor technology, providing reliable data transmission and simplified sensor management.
Key benefits include:
Digital signal transmission
Stored calibration data
Easy sensor replacement
Improved measurement reliability
Predictive maintenance support
Memosens technology allows faster maintenance procedures and improves overall system availability.
Integrated Cleaning for Reliable Operation
Sediment measurement sensors often operate in environments with high solids content and contamination risks.
The CUS71E is available with an integrated wiper system to help maintain consistent measurement performance.
Advantages include:
Reduced sensor fouling
Stable measurement results
Less manual cleaning
Improved long-term availability
Suitable for Demanding Industrial Environments
The CUS71E is designed for various challenging applications beyond wastewater treatment.
Suitable industries include:
Drinking Water Treatment
Applications:
Sedimentation tank monitoring
Clarification process control
Sludge level measurement
Mining Industry
Applications:
Tailings pond monitoring
Sedimentation process control
Water treatment management
Hydropower and Utilities
Applications:
Reservoir sediment monitoring
Water quality management
Process optimization
Key Features
Digital ultrasonic interface sensor
Designed for sediment and sludge interface measurement
Ultrasonic return-time measurement principle
Continuous monitoring of sedimentation processes
Measuring range up to 30 m
Suitable for wastewater, drinking water and mining applications
Memosens digital technology
Optional integrated wiper cleaning system
Compatible with Liquiline CM44x transmitters
Supports hazardous area approvals depending on configuration
Typical Applications
Wastewater Treatment Plants
The CUS71E supports automatic monitoring of sedimentation processes.
Applications:
Primary clarifiers
Secondary clarifiers
Sludge blanket measurement
Sludge removal optimization
Drinking Water Treatment
The sensor helps maintain efficient clarification processes.
Applications:
Sedimentation basin monitoring
Sludge interface measurement
Treatment process optimization
Mining Water Management
The CUS71E supports monitoring of sediment layers in mining-related water processes.
Applications:
Tailings management
Settling ponds
Process water treatment
Industrial Utilities
Applications:
Industrial wastewater monitoring
Sedimentation tank control
Solids separation processes
FAQ
What is Endress+Hauser CUS71E?
The CUS71E is a digital ultrasonic interface sensor designed for continuous measurement of sediment layers and sludge interfaces in water and wastewater applications.
What does CUS71E measure?
CUS71E measures the interface level between water and settled solids, such as sludge layers in sedimentation tanks.
What measurement principle does CUS71E use?
It uses ultrasonic return-time measurement technology to detect sediment interfaces.
Where is CUS71E used?
It is mainly used in wastewater treatment, drinking water treatment, mining and utility applications.
What is the difference between CUS51D and CUS71E?
CUS51D is mainly used for suspended solids and turbidity measurement, while CUS71E is designed for interface level measurement between water and sediment layers.
