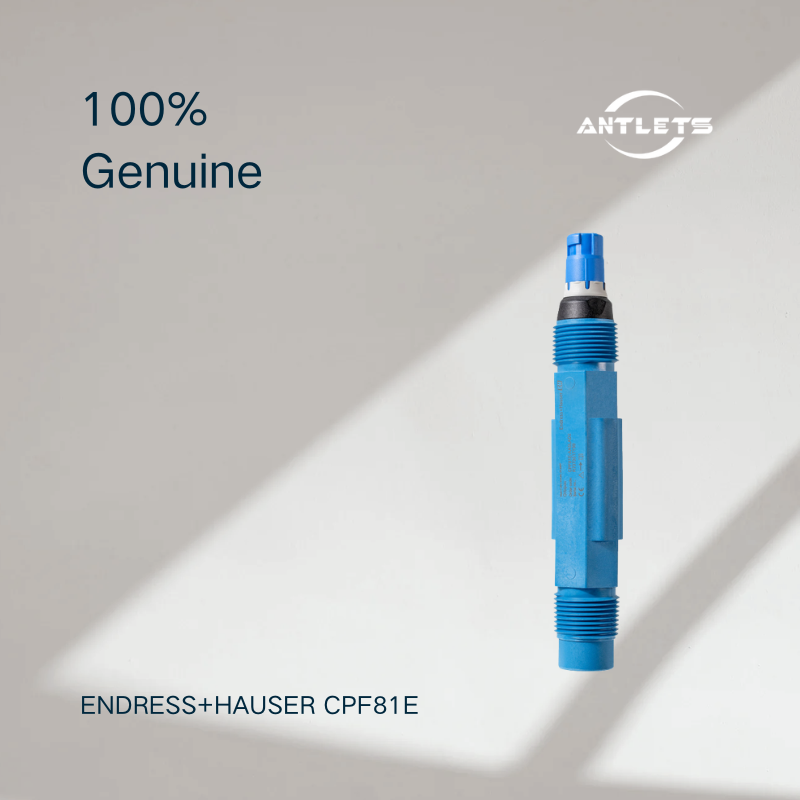

Compact pH Measurement for Harsh Conditions
The CPF81E is designed for applications where a conventional pH electrode may face challenging process conditions. Its robust construction allows reliable measurement in abrasive media and at high flow rates, making it particularly suitable for industrial water treatment and mining-related processes.
The integrated assembly also makes the sensor more compact, helping reduce the space required at the measuring point.
Digital Memosens 2.0 Technology
The CPF81E uses Memosens 2.0 digital sensor technology. Instead of transferring the raw sensor signal directly through a conventional analog connection, measurement data is converted into a digital signal and transferred to the transmitter through the Memosens connection.
The sensor can also store calibration and process information, providing useful data for sensor management and maintenance.
Built for Abrasive Media
One of the key characteristics of the CPF81E is its suitability for abrasive media and high flow rates. This makes it particularly relevant for processes such as flotation, leaching and industrial wastewater treatment where the measuring environment can be considerably more demanding than standard water applications.
Compact Integrated Assembly
Unlike a conventional separate electrode-and-holder arrangement, the CPF81E incorporates its assembly into the sensor design. This reduces installation space and provides a straightforward solution for compact measuring points.
Calibration and Sensor Data Management
The Memosens design allows the sensor to be calibrated outside the process, which can make maintenance more convenient. Calibration and process data can also be stored within the sensor, supporting easier sensor replacement and maintenance management.
Key Features
Digital pH sensor with Memosens 2.0 technology
Compact design with integrated assembly
Designed for harsh process environments
Suitable for abrasive media and high flow rates
Measuring range: pH 0 to 14
Process temperature up to 110°C, depending on version
Process pressure up to 10 bar abs at 80°C
IP68 ingress protection
NTC 30K integrated temperature sensor
Memosens plug connection
Calibration possible outside the process
Stores calibration and process data
Suitable for hazardous-area applications with optional certification
Designed for wastewater, mining, minerals and metal industries
Typical Applications
Industrial Water & Wastewater
For pH monitoring in industrial wastewater treatment, including demanding inlet and outlet measurement points.
Mining
Suitable for pH measurement in mining processes where abrasive media and high flow rates can place additional demands on the sensor.
Mineral Processing
Useful for process control in mineral treatment applications such as flotation and leaching.
Metal Processing
Can be used for pH monitoring in metal-related processes and associated water treatment systems.
Neutralization
Suitable for monitoring pH during industrial neutralization processes where stable and reliable measurement is required.
Flotation & Leaching
The CPF81E is specifically suited to these mining and mineral processing applications, where process conditions can be challenging for standard pH electrodes.
FAQ
What is the Endress+Hauser CPF81E?
The CPF81E is a compact digital pH sensor using Memosens 2.0 technology. It is designed for harsh applications, particularly industrial water and wastewater treatment, mining, minerals and metal processing.
What is the measuring range of the CPF81E?
The CPF81E has a pH measuring range of 0 to 14.
What is the maximum process temperature?
The temperature depends on the selected version. The LH version operates from 0 to 110°C, while the NN version operates from 0 to 80°C.
Is the CPF81E suitable for abrasive media?
Yes. The CPF81E is specifically designed for reliable measurement in abrasive media and at high flow rates, making it suitable for demanding mining and industrial applications.
What industries use the CPF81E?
Typical applications include mining, minerals and metals, industrial water and wastewater treatment. It can also be used for flotation, leaching and neutralization processes.
Does the CPF81E use Memosens 2.0?
Yes. The CPF81E uses Memosens 2.0 digital sensor technology, including digital data transmission and storage of calibration and process information.
Can the CPF81E be used in hazardous areas?
Yes, hazardous-area versions are available. The official product information lists optional FM IS/NI Class I Division 1 & 2, Groups A-D certification, and CSA C/US approval for specified hazardous-area zones. The exact approval depends on the ordered configuration.
