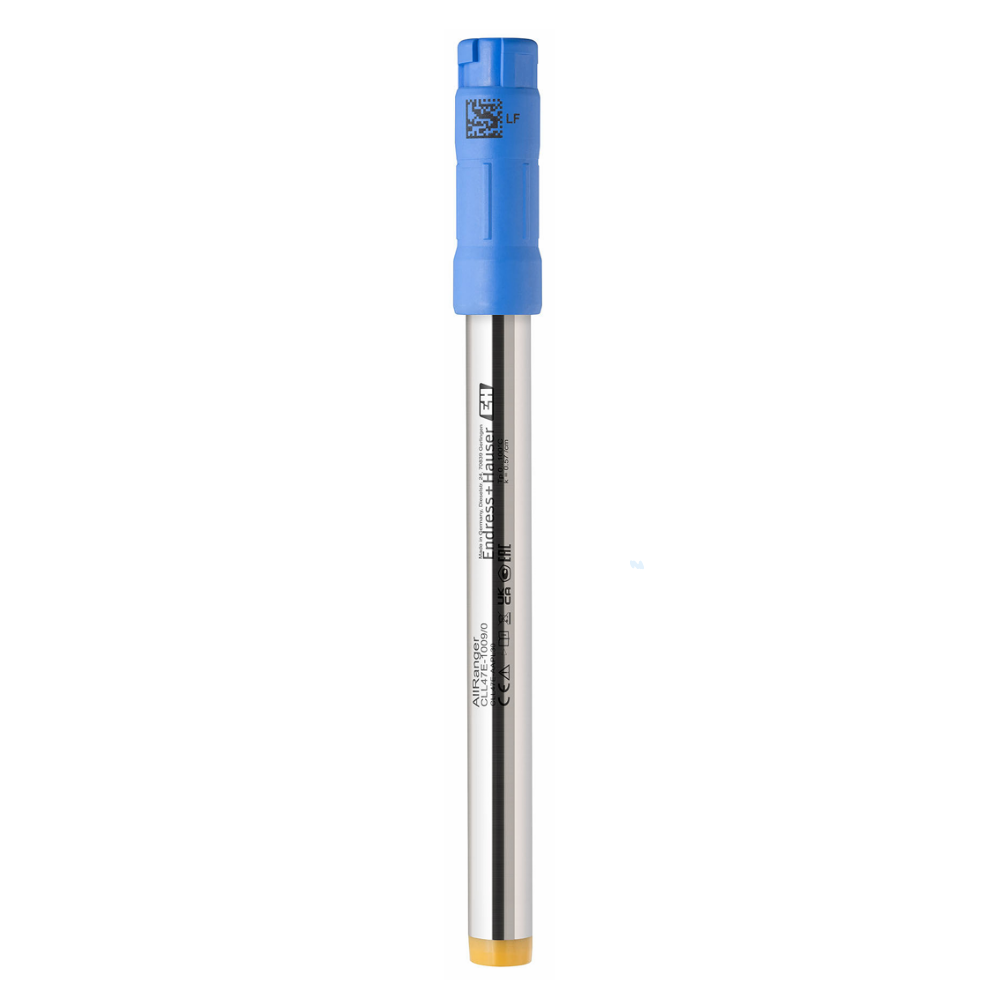

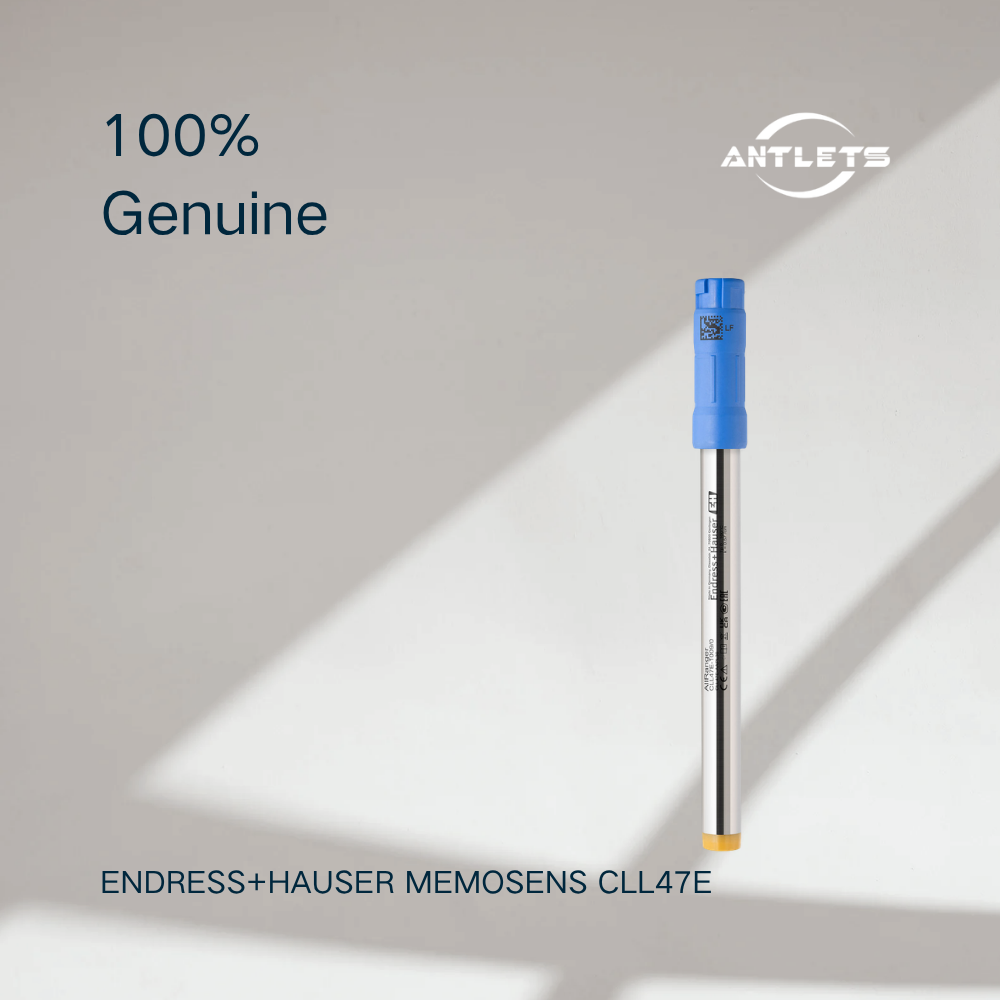

Digital Four-Electrode Conductivity Sensor for Flexible Sampling
The Endress+Hauser Memosens CLL47E is a digital conductivity sensor designed specifically for random sampling, laboratory measurements and verification of online measuring loops.
Unlike permanently installed process sensors, the CLL47E is optimized for flexible measurement tasks where operators need to quickly check conductivity values at different locations or analyze collected samples in the laboratory.
With its four-electrode measuring principle, the sensor provides a wide measuring range and stable measurement performance across different liquid applications.
Typical applications include:
Drinking water analysis
Cooling water monitoring
Wastewater testing
Process media analysis
Laboratory conductivity measurements
Verification of installed conductivity measuring points
Wide Measuring Range for Different Liquid Applications
A major advantage of the CLL47E is its wide conductivity measuring range.
The sensor can measure conductivity from:
5 μS/cm to 200 mS/cm
This allows one sensor to cover a broad range of samples, from low-conductivity water applications to higher-conductivity process liquids.
The wide range makes the CLL47E suitable for various measurement tasks without requiring multiple sensor types for different conductivity levels.
Memosens 2.0 Technology for Reliable Digital Measurement
The CLL47E uses Memosens 2.0 digital sensor technology, providing reliable data transfer and simplified sensor management.
Memosens technology stores important sensor information directly inside the sensor, including:
Calibration data
Operating history
Sensor identification information
Benefits include:
Easy sensor replacement
Reduced calibration effort
Improved measurement reliability
Simplified maintenance management
The digital connection also helps prevent measurement errors caused by moisture or signal interference commonly associated with traditional analog sensor connections.
Four-Electrode Design for Stable Conductivity Measurement
The CLL47E uses a four-electrode conductivity measuring principle with platinum electrodes.
Compared with conventional two-electrode conductivity sensors, four-electrode technology provides improved flexibility when measuring samples with different conductivity levels.
Advantages include:
Wider measuring range
Reliable measurement of changing conductivity conditions
Better adaptability for different sample types
Stable measurement performance during field testing
This makes the sensor suitable for both laboratory analysis and on-site measurement tasks.
Designed for Random Sampling and Laboratory Use
The CLL47E is developed for applications where measurements are performed at different sampling points rather than continuously installed in the process.
Typical usage scenarios include:
Verification of Online Measuring Loops
Operators can use the CLL47E to compare handheld or laboratory measurements with installed conductivity transmitters, helping verify system accuracy.
Laboratory Sample Analysis
The sensor can be used for conductivity measurement of collected liquid samples, providing reliable analytical data for quality control.
Field Spot Measurements
The compact sensor design allows technicians to perform conductivity checks directly at different process locations.
Easy Handling and Cleaning Design
The CLL47E is designed for simple operation during frequent sampling activities.
Its seamless sensor design helps simplify:
Cleaning procedures
Sample handling
Sensor maintenance
The easy-to-use design makes it suitable for operators who perform regular conductivity checks across multiple measurement points.
Individual Calibration Certificate for Measurement Confidence
Each CLL47E sensor can be supplied with an individual quality certificate specifying the cell constant.
This supports:
Higher measurement confidence
Accurate laboratory analysis
Traceable calibration procedures
Reliable comparison between measurement points
The certified cell constant helps users achieve precise conductivity measurement results during quality control and process verification tasks.
Compatible with Liquiline Mobile and Memosens Systems
The digital Memosens connection allows the CLL47E to be used with compatible Endress+Hauser Memosens measurement systems.
The sensor can be integrated into solutions for:
Portable conductivity measurement
Laboratory testing
Digital sensor management
Process measurement verification
This provides a consistent measurement experience across laboratory and field applications.
Applications Across Industries
Drinking Water Analysis
The CLL47E supports conductivity measurement in drinking water applications.
Typical uses:
Water quality checks
Distribution monitoring
Laboratory verification
Cooling Water Monitoring
The sensor can be used for checking conductivity changes in cooling water systems.
Applications:
Cooling circuit monitoring
Water treatment control
Concentration monitoring
Wastewater Analysis
The CLL47E supports conductivity measurement during wastewater testing.
Applications:
Wastewater quality assessment
Treatment process verification
Laboratory sample analysis
Industrial Process Media Analysis
The wide measuring range makes the sensor suitable for checking conductivity in various industrial liquids.
Applications:
Cleaning solution analysis
Process liquid testing
Quality control measurements
Key Features
Digital four-electrode conductivity sensor
Designed for random sampling and laboratory measurements
Memosens 2.0 digital technology
Wide measuring range: 5 μS/cm to 200 mS/cm
Platinum electrode design
Individual cell constant calibration certificate
Suitable for drinking water, wastewater and industrial media
Easy cleaning and maintenance
Compatible with Memosens measurement systems
Reliable conductivity measurement for field and laboratory applications
Typical Applications
Laboratory Conductivity Measurement
Used for accurate conductivity analysis of collected liquid samples.
Field Random Sampling
Suitable for technicians performing conductivity checks at different process locations.
Online Measuring Loop Verification
Used to compare installed conductivity measurement systems and verify measurement accuracy.
Water and Wastewater Analysis
Suitable for conductivity monitoring in drinking water, cooling water and wastewater applications.
FAQ
What is Endress+Hauser CLL47E?
The CLL47E is a digital four-electrode conductivity sensor designed for laboratory measurements, random sampling and field conductivity checks.
Is CLL47E suitable for continuous process measurement?
No. The CLL47E is designed for random sampling and laboratory measurements and is not intended for continuous in-process installation.
What is the measuring range of CLL47E?
The CLL47E has a conductivity measuring range of:
5 μS/cm to 200 mS/cm.
What technology does CLL47E use?
The sensor uses Memosens 2.0 digital technology, which stores calibration and sensor data internally for reliable measurement management.
Which industries use CLL47E?
The CLL47E is commonly used in:
Drinking water
Cooling water
Wastewater
Industrial process analysis
Laboratory testing
What is the advantage of a four-electrode conductivity sensor?
A four-electrode design provides a wider measurement range and better adaptability for different conductivity levels compared with traditional conductivity sensor designs.
